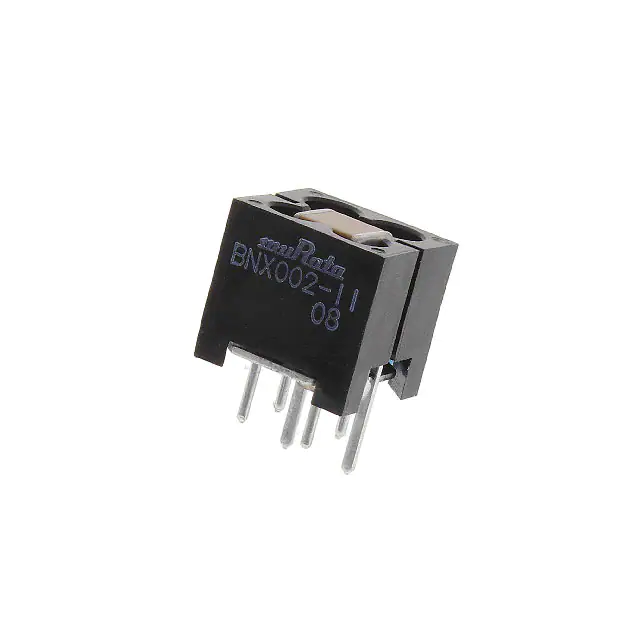

Murata Electronics BNX002-11
- Part No.:
- BNX002-11
- Manufacturer:
- Murata Electronics
- Category:
- EMI/RFI Filters (LC, RC Networks)
- Package:
- Block, 4 Lead
- Datasheet:
-
BNX002-11.pdf
- Description:
- FILTER EMI SUPPRESSION BLOCK
- Payment:
- Shipping:
Product details
BNX002-11 - Chip Type EMI Suppression Filter (EMIFIL)
BNX002-11 is a compact, high-performance EMI suppression filter from MURATA, designed to reduce electromagnetic interference in electronic devices. It features low insertion loss, high attenuation, and small form factor, making it ideal for space-constrained applications such as mobile phones, tablets, and laptops.
Product Introduction
BNX002-11 is a chip-type EMI suppression filter that integrates multiple capacitors and inductors in a single package. It effectively suppresses high-frequency noise in power supply lines and signal lines, helping electronic devices meet EMC (Electromagnetic Compatibility) standards.
With its compact size and high reliability, it is suitable for use in a wide range of applications, including mobile communications, consumer electronics, and industrial equipment. The filter is designed to handle high current levels while maintaining excellent noise suppression performance.
Key Benefits
Effectively reduces electromagnetic interference in power and signal lines, helping devices comply with EMC regulations.
Small form factor allows integration into space-constrained devices such as smartphones and wearables.
Minimal signal attenuation ensures high-quality data transmission and power efficiency.
Robust construction and wide operating temperature range make it suitable for harsh environments.
Features
Surface-mount design for easy integration into PCB layouts.
Suppresses noise from DC to several GHz, covering a broad spectrum of interference sources.
Supports high current levels for power supply lines in demanding applications.
Environmentally friendly design meets global regulatory requirements.
Package
The BNX002-11 is available in a compact chip-type package, ideal for space-constrained designs.
Package: DIP (12mm x 11mmx 12.5mm)
Note: Use the official datasheet for exact dimensions and recommended land pattern.
Pinout
The BNX002-11 has a simple two-terminal configuration for easy integration into signal or power lines.
- IN: Input terminal for the signal or power line
- OUT: Output terminal after noise suppression
Refer to the manufacturer's datasheet for detailed pin functions and layout guidelines.
Specifications
| Device Type | EMI Suppression Filter (EMIFIL) |
|---|---|
| Package Size | DIP (12mm x 11mm) |
| Operating Temperature | -40°C to +85°C |
| Max Current | Up to 10A (depending on model) |
| RoHS Compliance | Yes |
Equivalent
Equivalent models of BNX002-11 may include different package sizes or current ratings. Examples:
- BNX002-02 - Smaller package option
- BNX003-11 - Higher current rating variant
Check with MURATA or distributors for exact equivalent part numbers and specifications.
Manufacturer Information
BNX002-11 is manufactured by MURATA, a leading provider of electronic components and solutions. MURATA is known for its high-quality capacitors, inductors, sensors, and EMI suppression products.
- Core strengths: Miniaturization, high reliability, EMC expertise
- Typical markets: Mobile communications, consumer electronics, automotive, industrial
- Engineering resources: Datasheets, application notes, technical support
Application
The BNX002-11 is widely used in applications requiring effective EMI suppression in compact designs.
Mobile Phones
Suppresses noise in power and signal lines to ensure clear communication and compliance with EMC standards.
Tablets and Laptops
Reduces electromagnetic interference in high-speed data lines and power supply circuits.
Wearable Devices
Minimizes noise in compact designs such as smartwatches and fitness trackers.
Industrial Equipment
Suppresses EMI in control systems and communication interfaces to ensure reliable operation.
Disclaimer
BNX002-11 Specifications
- Specifications
- FAQ
- Attributes
- Property Value
- Manufacturer
- Murata Electronics
- Series:
- EMIFIL®, BNX
- Package/Case:
- Block, 4 Lead
- Packaging:
- Box
- Product Status:
- Active
- Type:
- Low Pass
- Filter Order:
- 5th
- Technology:
- LC
- Number of Channels:
- 2
- Center / Cutoff Frequency:
- -
- Attenuation Value:
- 40dB @ 1MHz ~ 1GHz
- Resistance - Channel (Ohms):
- -
- Current:
- 10 A
- Values:
- -
- ESD Protection:
- No
- Operating Temperature:
- -40°C ~ 85°C
- Applications:
- Data Lines for Mobile Devices
- Voltage - Rated:
- 50V
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
- Size / Dimension:
- 0.472" L x 0.433" W (12.00mm x 11.00mm)
- Height:
- 0.492" (12.50mm)
- Category:
- EMI/RFI Filters (LC, RC Networks)
1. How to order BNX002-11 on BomKey Electronics?
Currently,, BomKey Electronics only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.
2. How does BomKey Electronics guarantee that BNX002-11 is from the original manufacturer or authorized agents?
We have a professional and experienced quality control team to strictly verify and test the BNX002-11. All suppliers must pass our qualification reviews before they can publish their products including BNX002-11 on BomKey Electronics; we pay more attention to the channels and quality of BNX002-11 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence. .
3. Are the BNX002-11 price and inventory displayed accurate?
The price and inventory of BNX002-11 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.
4. What forms of payment are accepted?
Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.
Warm Tips: Some orders in certain payment forms may require handling fee.
5. How is the shipping arranged?
Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.
Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.
Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.
6. What is the process for return or replacement of BNX002-11?
All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the BNX002-11 we delivered, we will accept the replacement or return of the BNX002-11 only when all of the below conditions are fulfilled:
(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.
(2)We are informed of the defect described above within 90 days after the delivery of BNX002-11.
(3)The PartNo is unused and only in the original unpacked packaging.
Two processes to return the products:
(1)Inform us within 90 days
(2)Obtain Requesting Return Authorizations
7.How to contact us to get technical supports, such as BNX002-11 pin diagram, BNX002-11 datasheet?
If you need any after-sales service, please do not hesitate to contact us.

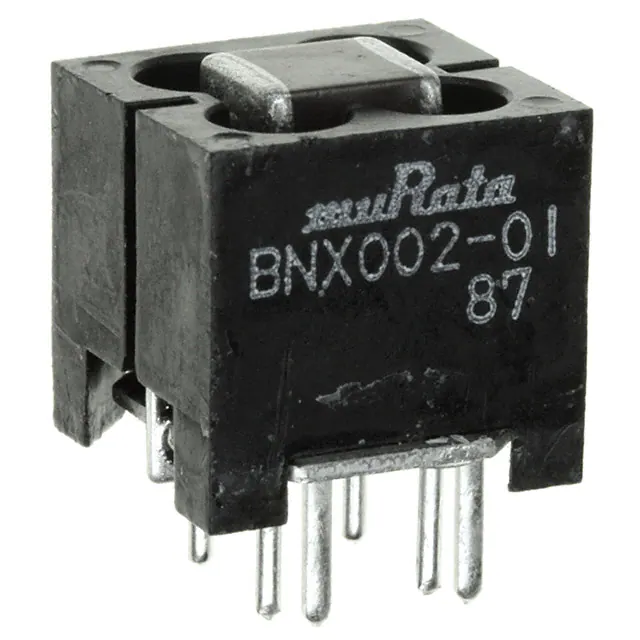

BNX002-11 Comparison
| Images |  |
 |
| Part No. | BNX002-11 | BNX002-01 |
| Manufacturer | Murata Electronics | Murata Electronics |
| Series | EMIFIL®, BNX | EMIFIL®, BNX |
| Package/Case | Block, 4 Lead | Block, 4 Lead |
| Packaging | Box | Bulk |
| Product Status | Active | Obsolete |
| Type | Low Pass | Low Pass |
| Filter Order | 5th | 5th |
| Technology | LC | LC |
| Number of Channels | 2 | 2 |
| Center / Cutoff Frequency | - | - |
| Attenuation Value | 40dB @ 1MHz ~ 1GHz | 40dB @ 1MHz ~ 1GHz |
| Resistance - Channel (Ohms) | - | - |
| Current | 10 A | 10 A |
| Values | - | - |
| ESD Protection | No | No |
| Operating Temperature | -40°C ~ 85°C | -30°C ~ 85°C |
| Applications | Data Lines for Mobile Devices | Data Lines for Mobile Devices |
| Voltage - Rated | 50V | 50V |
| Grade | - | - |
| Qualification | - | - |
| Mounting Type | Through Hole | Through Hole |
| Size / Dimension | 0.472" L x 0.433" W (12.00mm x 11.00mm) | 0.472" L x 0.433" W (12.00mm x 11.00mm) |
| Height | 0.492" (12.50mm) | 0.512" (13.00mm) |
