Texas Instruments LM358DR
- Part No.:
- LM358DR
- Manufacturer:
- Texas Instruments
- Category:
- Instrumentation, Op Amps, Buffer Amps
- Package:
- 8-SOIC (0.154", 3.90mm Width)
- Datasheet:
-
LM358DR.pdf
- Description:
- IC OPAMP GP 2 CIRCUIT 8SOIC
- Payment:
- Shipping:
Product details
LM358DR Overview
The LM358DR device is a dual-channel operational amplifier (op amp) from Texas Instruments, housed in an SOIC-8 package. It includes two independent high-gain amplifiers with internal frequency compensation, making it suitable for a wide range of analog signal processing applications.
This device is ideal for both single-supply and dual-supply operations. The wide supply voltage range, low power consumption, and robust EMI performance make LM358DR a popular choice in consumer, industrial, and automotive electronics.
LM358 devices can operate from a split supply voltage as long as the difference between the two supplies is within 3 V to 32 V. Their low quiescent current, high input impedance, and low offset voltage make them an excellent choice for signal conditioning circuits such as voltage followers, sensor amplifiers, and more.
LM358DR Features
✅ Wide Supply Voltage Range: 3V to 36V (single) or ±1.5V to ±18V (dual)
✅ Low Power Consumption: Typical quiescent current is only 300 μA per amplifier
✅ Unity-Gain Bandwidth: 1.2 MHz typical
✅ Low Input Offset Voltage: Max 3 mV (2 mV for BA version)
✅ Common-Mode Input Range Includes Ground
✅ Integrated EMI and RF Filters (B and BA versions)
✅ Internal Frequency Compensation: Stable without external components
✅ MIL-PRF-38535 compliant versions available for military/space-grade reliability
Pin Configuration and Functions
Pin 1 - output
Pin 2 - inverting input
Pin 3 - non-inverting input
Pin 4 - negative power supply (dual power supply) or ground (single power supply)
Pin 5 - non-inverting Input terminal
Pin 6 - inverting input terminals
Pin 7 - output terminals
Pin 8 - positive power supply
Pin Functions
LM358DR Applications
LM358DR is widely used in cost-effective signal processing and control systems across many industries:
Power supply and battery charger circuits
Sensor signal amplifiers and ADC front-ends
Motor control (AC, brushed, brushless, stepper)
Multifunction printers and office electronics
HVAC equipment (indoor & outdoor units)
Home appliances (washers, dryers, refrigerators)
Industrial automation and control systems
UPS (Uninterruptible Power Supply) systems
POS terminals and embedded devices
LM358B / LM2904B Series Package Information
| Part Number(s) | Package Type | Package Size (mm) |
|---|---|---|
| LM358B, LM358BA, LM2904B, LM2904BA, LM358, LM358A, LM2904, LM2904V, LM258, LM258A | D (SOIC-8) | 4.9 × 6.0 |
| LM358B, LM358BA, LM2904B, LM2904BA, LM358, LM358A, LM2904, LM2904V | PW (TSSOP-8) | 3.0 × 6.4 |
| LM358B, LM358BA, LM2904B, LM2904BA, LM358, LM358A, LM2904, LM2904V, LM258, LM258A | DGK (VSSOP-8) | 3.0 × 4.9 |
| LM358B, LM358BA, LM2904B, LM2904BA | DDF (SOT-23-8) | 2.9 × 2.8 |
| LM358, LM2904 | PS (SO-8) | 6.2 × 7.8 |
| LM358, LM2904, LM358A, LM258, LM258A | P (PDIP-8) | 9.81 × 9.43 |
| LM158, LM158A | JG (CDIP-8) | 6.99 × 6.67 |
| LM158, LM158A | FK (LCCC-20) | 8.89 × 8.89 |
Conclusion
The LM358DR dual op-amp offers a solid combination of low power, stability, and ease of use, making it a go-to solution for general-purpose analog signal amplification. Its robust feature set, EMI immunity, and industry-standard footprint ensure versatility in household, industrial, and embedded applications.LM358DR FAQ
Q1: Can LM358DR operate with a single power supply?
A: Yes. The LM358 is specifically designed for single-supply systems, supporting voltages as low as 3V and as high as 36V.Q2: Is LM358DR suitable for low-power applications?
A: Absolutely. With a typical quiescent current of only 300 μA per channel, it is ideal for battery-powered or energy-conscious designs.Q3: Does it support input signals near ground?
A: Yes. The input common-mode voltage range includes ground, which is useful for low-side current sensing and signal acquisition.Q4: How does LM358DR compare to LM324?
A: LM324 is a quad op-amp (4 channels), while LM358 contains only two. Electrical characteristics are similar, and they are often interchangeable based on channel requirements.Q5: Can LM358DR be used as a comparator?
A: Technically yes, but for faster response and rail-to-rail outputs, a dedicated comparator like the LM393 is recommended.Q6: What is the typical use in signal acquisition?
A: LM358DR is often used as a voltage follower (buffer) to prevent loading of the signal source and to raise input impedance.
LM358DR Specifications
- Specifications
- FAQ
- Attributes
- Property Value
- Manufacturer
- Texas Instruments
- Series:
- -
- Package/Case:
- 8-SOIC (0.154", 3.90mm Width)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Amplifier Type:
- General Purpose
- Number of Circuits:
- 2
- Output Type:
- -
- Slew Rate:
- 0.3V/µs
- Gain Bandwidth Product:
- 700 kHz
- -3db Bandwidth:
- -
- Current - Input Bias:
- 20 nA
- Voltage - Input Offset:
- 3 mV
- Current - Supply:
- 500µA (x2 Channels)
- Current - Output / Channel:
- 40 mA
- Voltage - Supply Span (Min):
- 3 V
- Voltage - Supply Span (Max):
- 30 V
- Operating Temperature:
- 0°C ~ 70°C (TA)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 8-SOIC
1. How to order LM358DR on BomKey Electronics?
Currently,, BomKey Electronics only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.
2. How does BomKey Electronics guarantee that LM358DR is from the original manufacturer or authorized agents?
We have a professional and experienced quality control team to strictly verify and test the LM358DR. All suppliers must pass our qualification reviews before they can publish their products including LM358DR on BomKey Electronics; we pay more attention to the channels and quality of LM358DR products than any other customer. We strictly implement supplier audits, so you can purchase with confidence. .
3. Are the LM358DR price and inventory displayed accurate?
The price and inventory of LM358DR fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.
4. What forms of payment are accepted?
Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.
Warm Tips: Some orders in certain payment forms may require handling fee.
5. How is the shipping arranged?
Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.
Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.
Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.
6. What is the process for return or replacement of LM358DR?
All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the LM358DR we delivered, we will accept the replacement or return of the LM358DR only when all of the below conditions are fulfilled:
(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.
(2)We are informed of the defect described above within 90 days after the delivery of LM358DR.
(3)The PartNo is unused and only in the original unpacked packaging.
Two processes to return the products:
(1)Inform us within 90 days
(2)Obtain Requesting Return Authorizations
7.How to contact us to get technical supports, such as LM358DR pin diagram, LM358DR datasheet?
If you need any after-sales service, please do not hesitate to contact us.
LM358DR Comparison
| Images |  |
|
|
|
|
| Part No. | LM358DR | LM358DRG3 | LM358DRE4 | LM358DRG4 | LM358DR-JF |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Series | - | - | - | - | - |
| Package/Case | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Active |
| Amplifier Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Circuits | 2 | 2 | 2 | 2 | 2 |
| Output Type | - | - | - | - | - |
| Slew Rate | 0.3V/µs | 0.3V/µs | 0.3V/µs | 0.3V/µs | 0.3V/µs |
| Gain Bandwidth Product | 700 kHz | 700 kHz | 700 kHz | 700 kHz | 700 kHz |
| -3db Bandwidth | - | - | - | - | - |
| Current - Input Bias | 20 nA | 20 nA | 20 nA | 20 nA | 20 nA |
| Voltage - Input Offset | 3 mV | 3 mV | 3 mV | 3 mV | 3 mV |
| Current - Supply | 500µA (x2 Channels) | 500µA (x2 Channels) | 500µA (x2 Channels) | 500µA (x2 Channels) | 500µA (x2 Channels) |
| Current - Output / Channel | 40 mA | 40 mA | 40 mA | 40 mA | 30 mA |
| Voltage - Supply Span (Min) | 3 V | 3 V | 3 V | 3 V | 3 V |
| Voltage - Supply Span (Max) | 30 V | 30 V | 30 V | 30 V | 30 V |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC |
LM358DR Relevant information
- LM358DR Tags
- Popular Search
- Related Categories
The following parts are popular search parts in Instrumentation, Op Amps, Buffer Amps.
The Posts
-
SEMITEC Constant Current Diode (CRD) Application Reference Guide
Current Regulating Diodes (CRD hereunder) are diodes that maintain a constant current flow despite voltage fluctuations. CRDs supply constant current over a wide range of voltage from sub 1V to 100V. C…
-
How to Test a 377 / SR626SW Watch Battery with a Multimeter
If you have a watch SR626SW battery that isn't working, you may be wondering how to test it. In this post, we'll learn, how to use a multimeter to test the watch battery. We'll also give you some tips…
-
SR626SW Cross Reference Chart: Compatible Battery Equivalents (377, AG4, D377, SR66)
Contents Why Cross References MatterNaming Systems Explained: IEC / JIS / Trade Numbers / GenericsSR626SW Cross Reference Chart (Brand-by-Brand)Size & Voltage CompatibilitySR vs LR vs CR: Don’t Confus…
-
377 Watch Battery (SR626SW) – Full Guide, Chemistry, and Replacement Tips
Discover everything about the 377 watch battery (SR626SW): its silver oxide chemistry, voltage stability, equivalents, lifespan, and replacement tips for watches. Includes expert insights and safety gu…
-
D Battery: Types, Specifications, Lifespan & Applications
The D battery, also known as an R20 or size D cell, is one of the largest standard cylindrical batteries used today. Known for its high capacity and long runtime, the D battery is a reliable power sour…
-
CR1025 Battery: Specifications, Features, and Applications
The CR1025 Battery is a 3V/30mAh coin cell Non-rechargeable Battery that features lithium manganese dioxide technology. It is suitable for use with low-drain devices and high-temperature applications.C…
-
IRF540N MOSFET: 100V N-Channel Power MOSFET Explained
Contents Pinout & PackageKey SpecificationsHow It WorksCircuit ExamplesThermal & Efficiency NotesIRF540N vs IRL540NEquivalents & AlternativesHow to Test with a MultimeterFAQWhere to BuyPinout & Package…
-
What Is an AG13 Battery? Size, Equivalents, and Applications Explained | BomKey Electronics
Looking for an AG13 battery? Learn its specs, common equivalents (like LR44, A76), typical applications, and how to choose the right replacement in this complete guide.
Inventory:37,206
Send us your inquiry,we will respond immediately.
Stock:37,206
Unit Price:$0
Ext Price:$0
| Qty. | Unit Price | Ext Price |
- Request for bulk quotations
- RFQ Add To Cart
-
LM358DT
STMicroelectronics
-
LM358DR
Texas Instruments
-
LM2904DR
Texas Instruments
-
LM358ADR
Texas Instruments
-

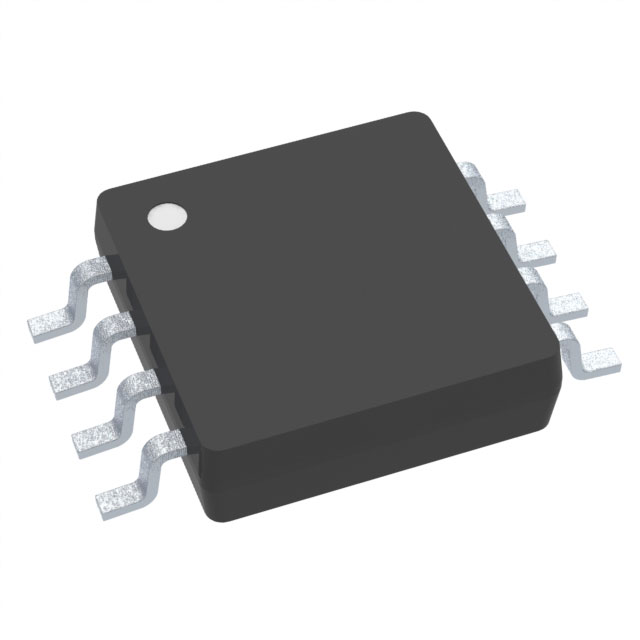

LM2904DGKR
Texas Instruments
-

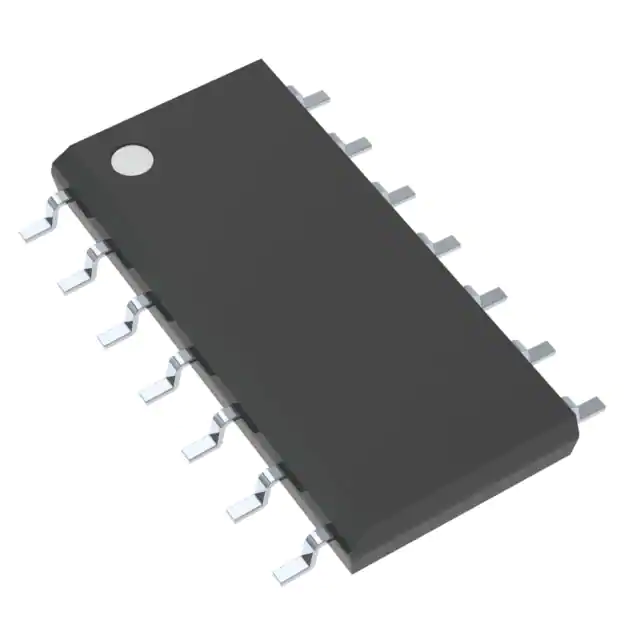

LM324DR
Texas Instruments
-

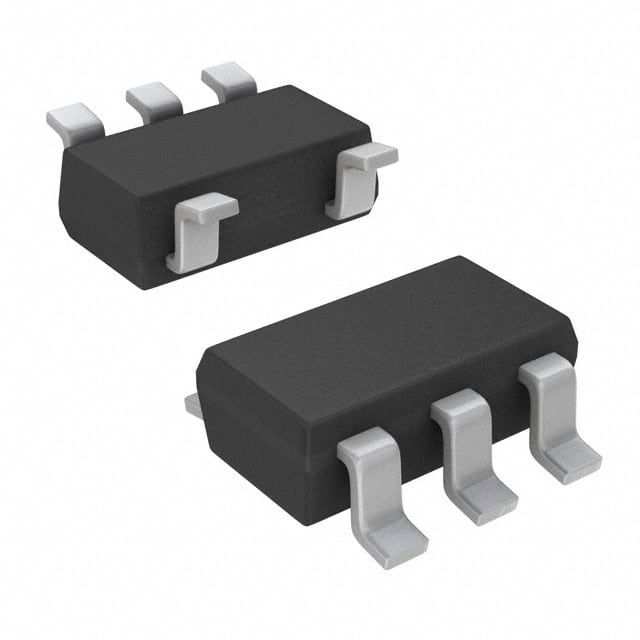

MCP6006T-E/OT
Microchip Technology
-
MCP6006UT-E/OT
Microchip Technology
-

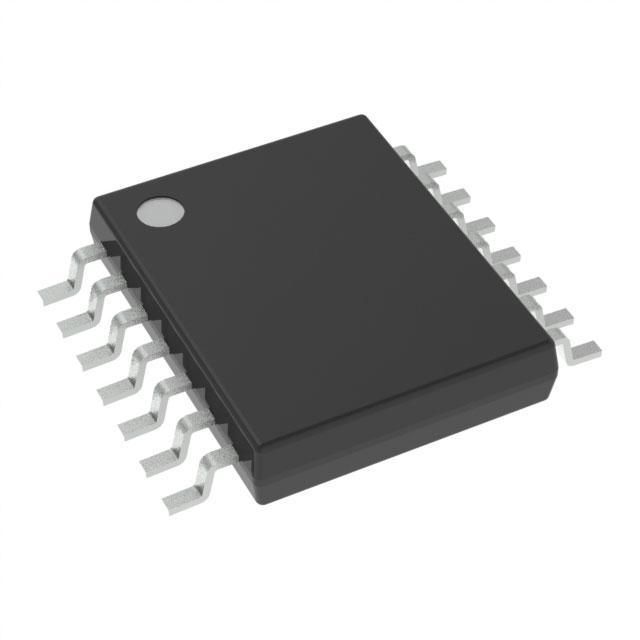

LM324PWR
