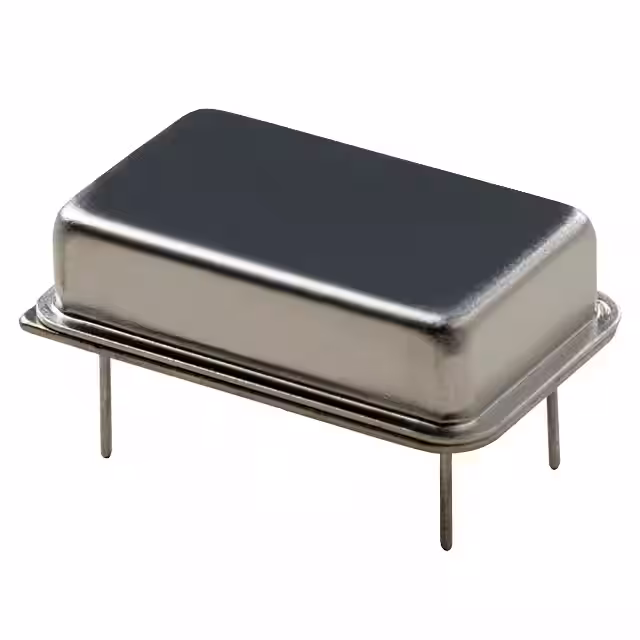

Cardinal Components Inc. CPPX1-A5BC-XX.XXXNP
- Part No.:
- CPPX1-A5BC-XX.XXXNP
- Manufacturer:
- Cardinal Components Inc.
- Category:
- Programmable Oscillators
- Package:
- 14-DIP, 4 Leads (Full Size, Metal Can)
- Datasheet:
-
CPPX1-A5BC-XX.XXXNP.pdf
- Description:
- OSC PROG BLANK 500KHZ-133MHZ
- Payment:
- Shipping:
CPPX1-A5BC-XX.XXXNP Specifications
- Specifications
- FAQ
- Attributes
- Property Value
- Manufacturer
- Cardinal Components Inc.
- Package/Case:
- 14-DIP, 4 Leads (Full Size, Metal Can)
- Series:
- FIPO™ CPP
- Packaging:
- Tube
- Product Status:
- Obsolete
- Base Resonator:
- Crystal
- Type:
- XO (Standard)
- Programmable Type:
- Blank (User Must Program)
- Available Frequency Range:
- 500 kHz ~ 133 MHz
- Function:
- Enable/Disable, Standby
- Output:
- CMOS, TTL
- Voltage - Supply:
- 3V ~ 5.5V
- Frequency Stability:
- ±25ppm
- Frequency Stability (Total):
- -
- Operating Temperature:
- -20°C ~ 70°C
- Spread Spectrum Bandwidth:
- -
- Current - Supply (Max):
- 45mA
- Ratings:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- -
- Size / Dimension:
- 0.819" L x 0.520" W (20.80mm x 13.20mm)
- Height - Seated (Max):
- 0.200" (5.08mm)
- Category:
- Programmable Oscillators
CPPX1-A5BC-XX.XXXNP Comparison
| Images |  |
 |
| Part No. | CPPX1-A5BC-XX.XXXNP | CPPX1-A7BR |
| Manufacturer | Cardinal Components Inc. | Cardinal Components Inc. |
| Package/Case | 14-DIP, 4 Leads (Full Size, Metal Can) | 14-DIP, 4 Leads (Full Size, Metal Can) |
| Series | FIPO™ CPP | FIPO™ CPP |
| Packaging | Tube | Tube |
| Product Status | Obsolete | Obsolete |
| Base Resonator | Crystal | Crystal |
| Type | XO (Standard) | XO (Standard) |
| Programmable Type | Blank (User Must Program) | Blank (User Must Program) |
| Available Frequency Range | 500 kHz ~ 133 MHz | 500 kHz ~ 133 MHz |
| Function | Enable/Disable, Standby | Enable/Disable, Standby |
| Output | CMOS, TTL | CMOS, TTL |
| Voltage - Supply | 3V ~ 5.5V | 3V ~ 5.5V |
| Frequency Stability | ±25ppm | ±50ppm |
| Frequency Stability (Total) | - | - |
| Operating Temperature | -20°C ~ 70°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - |
| Current - Supply (Max) | 45mA | 45mA |
| Ratings | - | - |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | - | - |
| Size / Dimension | 0.819" L x 0.520" W (20.80mm x 13.20mm) | 0.819" L x 0.520" W (20.80mm x 13.20mm) |
| Height - Seated (Max) | 0.200" (5.08mm) | 0.200" (5.08mm) |
