Assmann WSW Components H3CCS-1406M
- Part No.:
- H3CCS-1406M
- Manufacturer:
- Assmann WSW Components
- Category:
- Rectangular Cable Assemblies
- Package:
- Datasheet:
-
H3CCS-1406M.pdf
- Description:
- IDC CBL - HHKC14S/AE14M/HHKC14S
- Payment:
- Shipping:
H3CCS-1406M Specifications
- Specifications
- FAQ
- Attributes
- Property Value
- Manufacturer
- Assmann WSW Components
- Series:
- -
- Packaging:
- Bulk
- Product Status:
- Active
- Connector Type:
- Socket to Socket
- Number of Positions:
- 14
- Number of Rows:
- 2
- Pitch - Connector:
- 0.100" (2.54mm)
- Pitch - Cable:
- 0.050" (1.27mm)
- Length:
- 0.500' (152.40mm, 6.00")
- Features:
- Polarizing Key
- Color:
- Multiple, Ribbon
- Shielding:
- Unshielded
- Usage:
- -
- Cable Termination:
- IDC
- Contact Finish:
- Tin
- Contact Finish Thickness:
- -
- Category:
- Rectangular Cable Assemblies
H3CCS-1406M Comparison

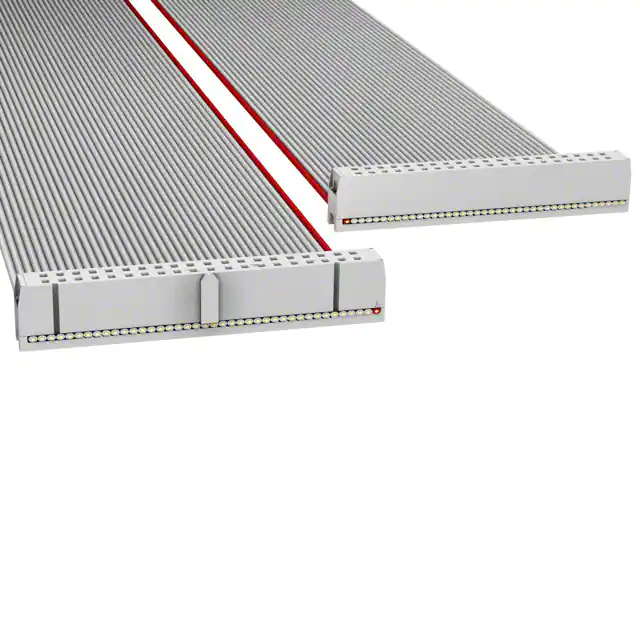

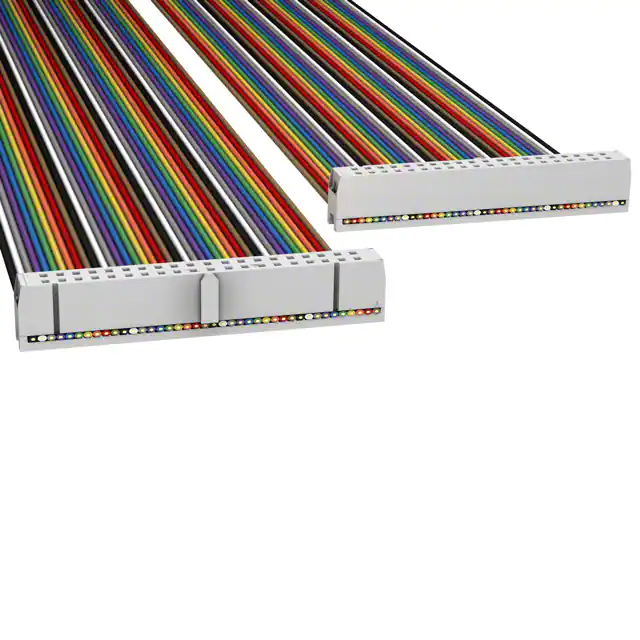

| Images |  |
 |
 |
 |
 |
| Part No. | H3CCS-1406M | H3CCS-3406G | H3CCS-4006G | H3CCS-1618G | H3CCS-4006M |
| Manufacturer | Assmann WSW Components | Assmann WSW Components | Assmann WSW Components | Assmann WSW Components | Assmann WSW Components |
| Series | - | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Connector Type | Socket to Socket | Socket to Socket | Socket to Socket | Socket to Socket | Socket to Socket |
| Number of Positions | 14 | 34 | 40 | 16 | 40 |
| Number of Rows | 2 | 2 | 2 | 2 | 2 |
| Pitch - Connector | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Pitch - Cable | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) |
| Length | 0.500' (152.40mm, 6.00") | 0.500' (152.40mm, 6.00") | 0.500' (152.40mm, 6.00") | 1.50' (457.20mm) | 0.500' (152.40mm, 6.00") |
| Features | Polarizing Key | Polarizing Key | Polarizing Key | Polarizing Key | Polarizing Key |
| Color | Multiple, Ribbon | Gray, Ribbon | Gray, Ribbon | Gray, Ribbon | Multiple, Ribbon |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| Usage | - | - | - | - | - |
| Cable Termination | IDC | IDC | IDC | IDC | IDC |
| Contact Finish | Tin | Tin | Tin | Tin | Tin |
| Contact Finish Thickness | - | - | - | - | - |
