Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

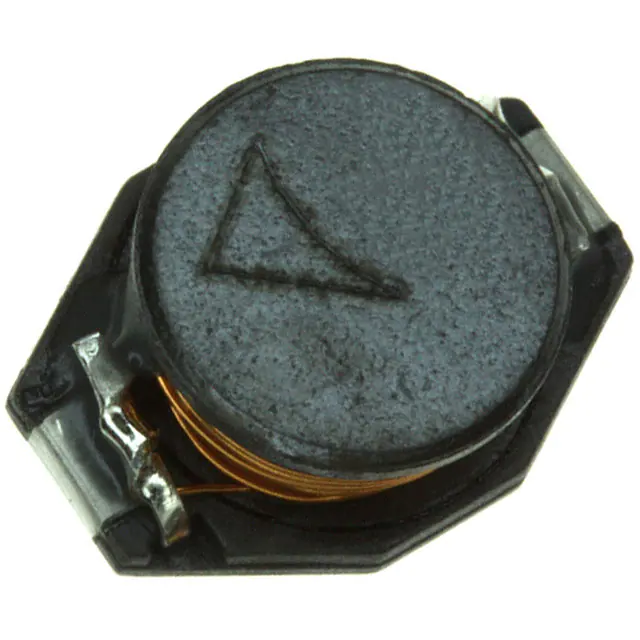

B82476A1153M000FIXED IND 15UH 3.1A 40 MOHM SMD |
903 |
|
Datasheet |
B82476A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.1 A | 3A | Unshielded | 40mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|

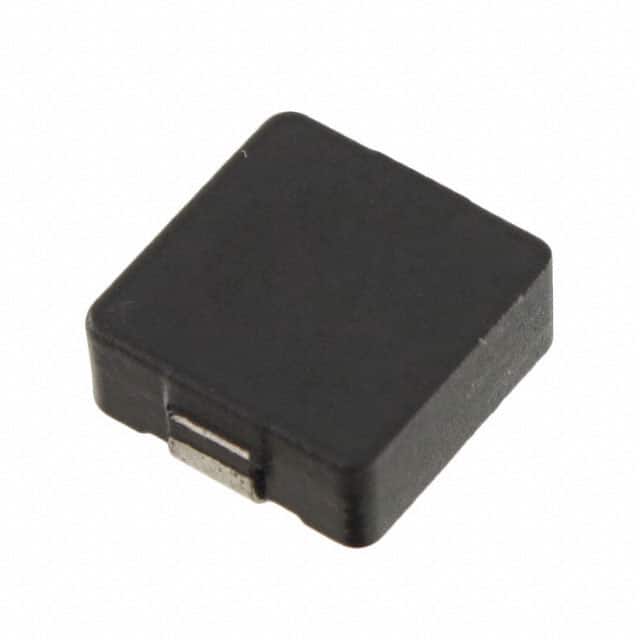

HCM1104-R20-RFIXED IND 200NH 32A 0.72MOHM SMD |
500 |
|
Datasheet |
HCM1104 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 200 nH | ±20% | 32 A | 45A | Shielded | 0.72mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.157" (4.00mm) |
|

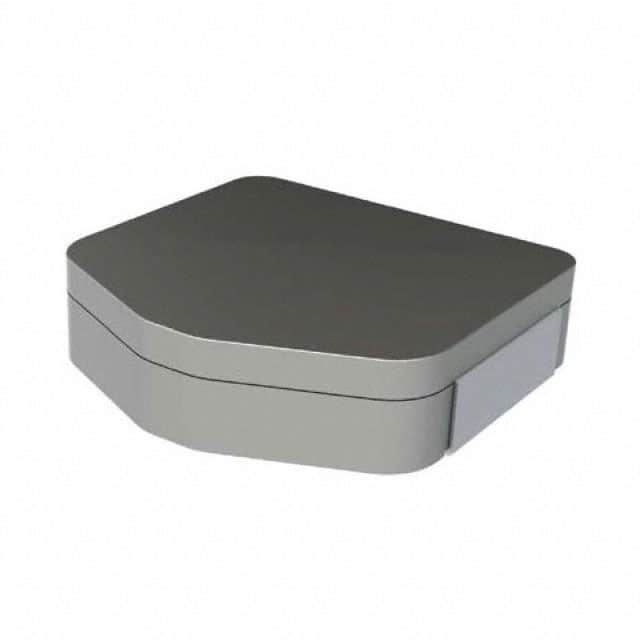

MPX1D1040L470FIXED IND 47UH 3A 182.6 MOHM SMD |
451 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 47 µH | ±20% | 3 A | 4A | Shielded | 182.6mOhm Max | - | 4.5MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.157" (4.00mm) |
|

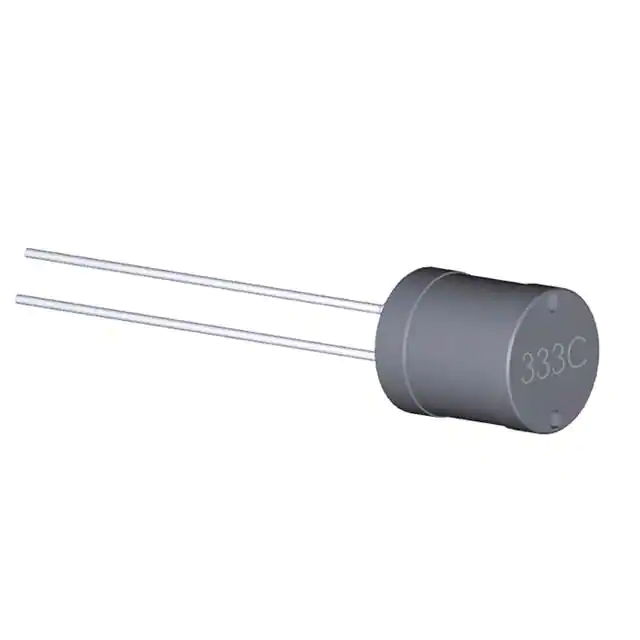

18R155CFIXED IND 1.5MH 330MA 1.5 OHM TH |
111 |
|
Datasheet |
1800R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 1.5 mH | ±10% | 330 mA | - | Unshielded | 1.5Ohm Max | 106 @ 50kHz | 1.6MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.539" Dia (13.70mm) | 0.626" (15.90mm) |
|
MGV06051R5M-10FIXED IND 1.5UH 12A 9 MOHM SMD |
6,991 |
|
Datasheet |
MGV | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 12 A | 13A | Shielded | 9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.264" W (7.30mm x 6.70mm) | 0.209" (5.30mm) |
|
HCM1A0703-1R5-RFIXED IND 1.5UH 6.6A 15.5MOHM SM |
1,994 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1.5 µH | ±20% | 6.6 A | 11A | Shielded | 15.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
MDH7045C-680MA=P3FIXED IND 68UH 880MA 200MOHM SMD |
1,987 |
|
Datasheet |
MDH7045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 880 mA | 960mA | Shielded | 200mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|
|
HCM1A0703-R15-RFIXED IND 150NH 18.5A 1.8MOHM SM |
1,950 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 150 nH | ±20% | 18.5 A | 36A | Shielded | 1.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
|
HCM1A0703-R68-RFIXED IND 680NH 10A 5.5MOHM SMD |
1,815 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 680 nH | ±20% | 10 A | 15A | Shielded | 5.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
|
HCM1A0703-4R7-RFIXED IND 4.7UH 4.1A 40MOHM SMD |
1,793 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 4.1 A | 8.8A | Shielded | 40mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
|
HCM1A0703-R33-RFIXED IND 330NH 14A 4 MOHM SMD |
1,754 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 330 nH | ±20% | 14 A | 19A | Shielded | 4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
PG0871.222NLFIXED IND 2.2UH 9.5A 7.6MOHM SMD |
1,750 |
|
Datasheet |
PG0871NL | Nonstandard | Tray | Active | Wirewound | - | 2.2 µH | ±20% | 9.5 A | 12A | Shielded | 7.6mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.252" (6.40mm) |
|
|
MDH7045C-1R0NB=P3FIXED IND 1UH 4.7A 9 MOHM SMD |
1,730 |
|
Datasheet |
MDH7045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 4.7 A | 8.8A | Shielded | 9mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|
|
HCM1A0703-2R2-RFIXED IND 2.2UH 5.7A 20MOHM SMD |
1,693 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 2.2 µH | ±20% | 5.7 A | 10A | Shielded | 20mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
|
HCM1A0703-8R2-RFIXED IND 8.2UH 3.1A 68MOHM SMD |
1,539 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 8.2 µH | ±20% | 3.1 A | 5.6A | Shielded | 68mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
|
HCM1A0703-R47-RFIXED IND 470NH 12A 4.2MOHM SMD |
1,325 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±20% | 12 A | 17A | Shielded | 4.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
|
HCM1A0703-1R0-RFIXED IND 1UH 7.9A 10 MOHM SMD |
1,204 |
|
Datasheet |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1 µH | ±20% | 7.9 A | 13A | Shielded | 10mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|

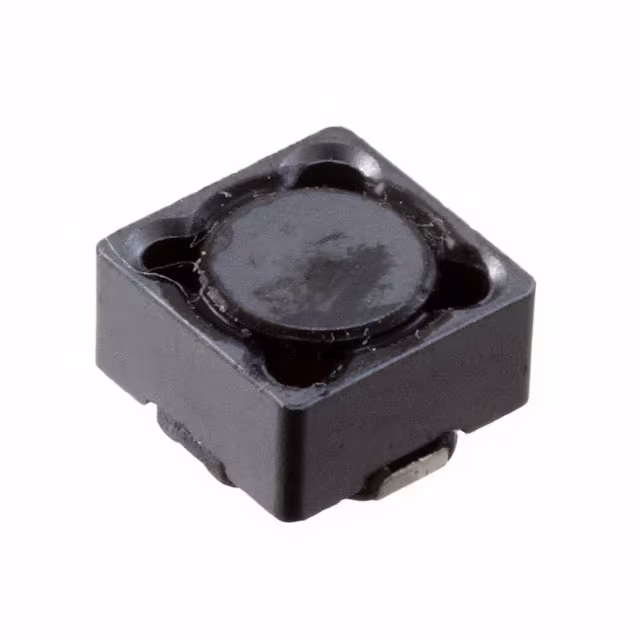

B82472P6154M000FIXED IND 150UH 530MA 580MOHM SM |
1,113 |
|
Datasheet |
B82472P6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 530 mA | 430mA | Shielded | 580mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|

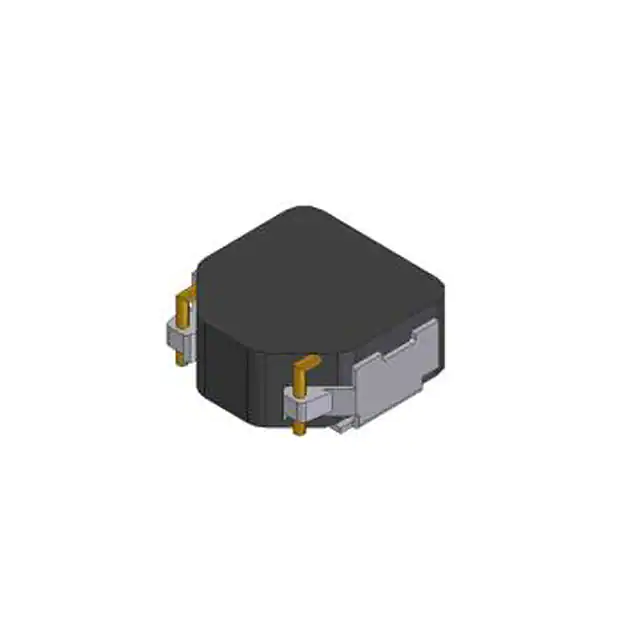

DFEG7030D-4R7M=P3FIXED IND 4.7UH 4.2A 41MOHM SMD |
973 |
|
Datasheet |
DFEG7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | 4.7 µH | ±20% | 4.2 A | 5.6A | Shielded | 41mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

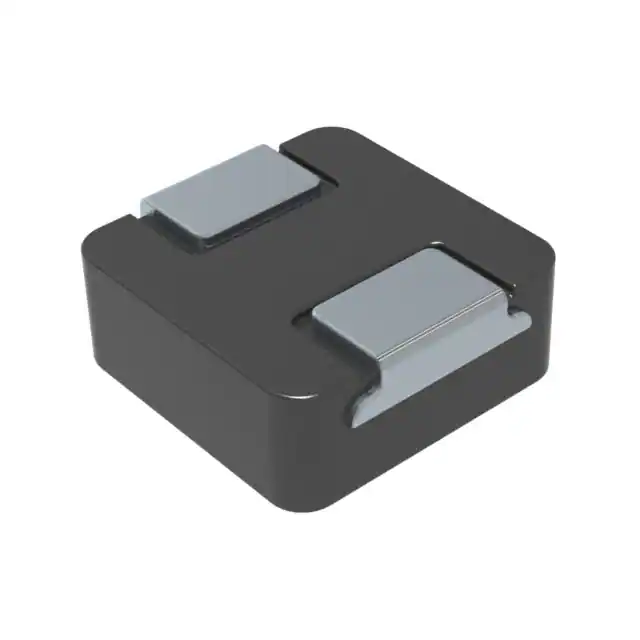

VCMT104T-330MN5FIXED IND 33UH 3.6A 102MOHM SMD |
970 |
|
Datasheet |
VCMT104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 33 µH | ±20% | 3.6 A | 3.6A | Unshielded | 102mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
