Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

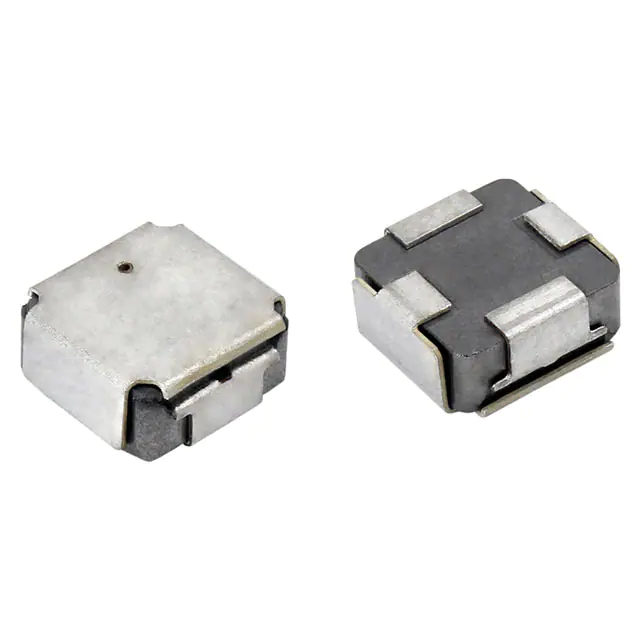

IHLE2525CDER1R0M5AIHLE-2525CD-5A 1 20% ER E3 |
1,176 |
|
Datasheet |
IHLE-2525CD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 12 A | 13A | Shielded | 8.45mOhm Max | - | 53.2MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.284" L x 0.280" W (7.21mm x 7.12mm) | 0.132" (3.35mm) |
|
MPXV1D0840LR47FIXED IND 470NH 25.8A 2.7MOHM SM |
990 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 470 nH | ±20% | 25.8 A | 38A | Shielded | 2.7mOhm Max | - | 59MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
|
B82472P6152M000FIXED IND 1.5UH 3.4A 19 MOHM SMD |
833 |
|
Datasheet |
B82472P6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 3.4 A | 3A | Shielded | 19mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
MPXV1D0840L1R0FIXED IND 1UH 20.8A 4.2MOHM SMD |
803 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 20.8 A | 28A | Shielded | 4.2mOhm Max | - | 40MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
|

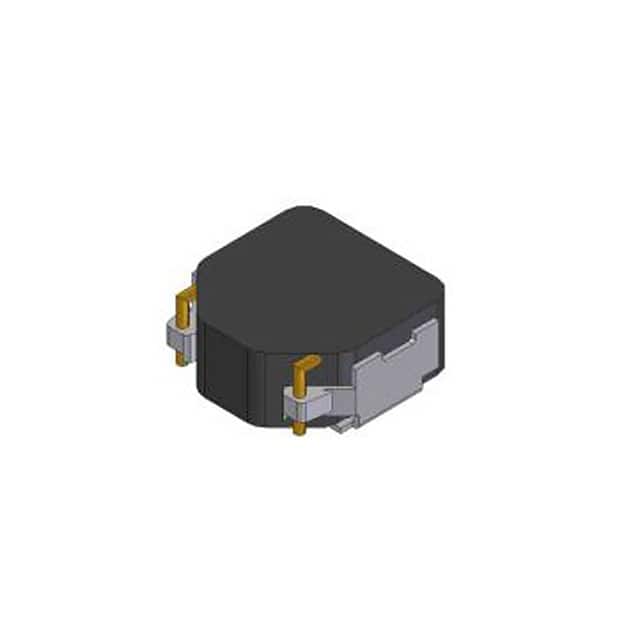

DFEH7030D-220M=P3FIXED IND 22UH 1.9A 198MOHM SMD |
764 |
|
Datasheet |
DFEH7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | 22 µH | ±20% | 1.9 A | 2.7A | Shielded | 198mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
B82464A4152M000FIXED IND 1.5UH 6.5A 10 MOHM SMD |
700 |
|
Datasheet |
B82464A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 6.5 A | 9.8A | Unshielded | 10mOhm Max | - | 100kHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|

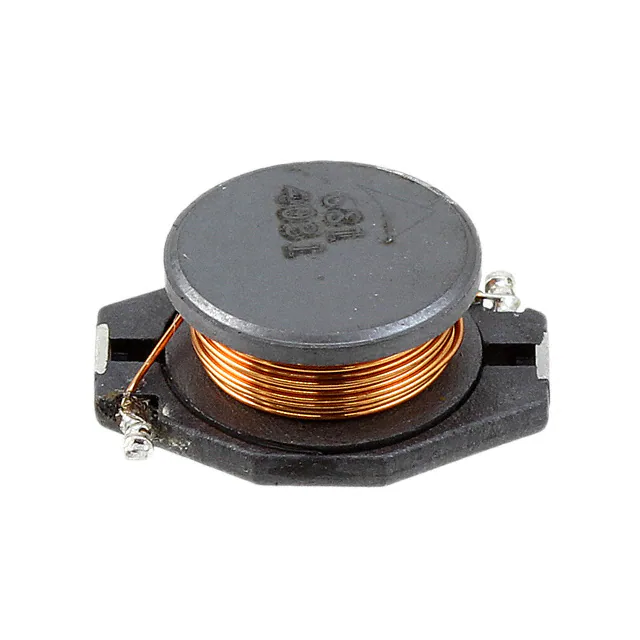

B82476B1684M100FIXED IND 680UH 430MA 1.6OHM SMD |
403 |
|
Datasheet |
B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 430 mA | 400mA | Unshielded | 1.6Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|

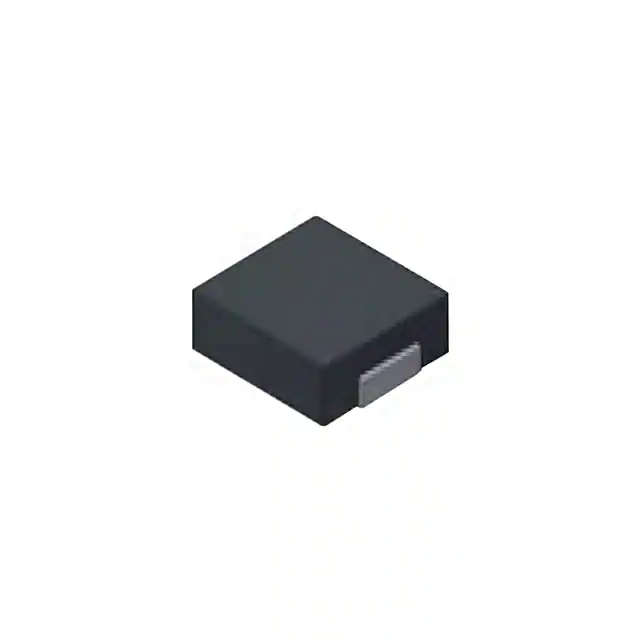

0840CDMCCDS-4R7MCFIXED IND 4.7UH 7.3A 24MOHM SMD |
395 |
|
Datasheet |
0840CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 7.3 A | 7A | Shielded | 24mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.157" (4.00mm) |
|
|
DFEH7030D-100M=P3FIXED IND 10UH 3A 82 MOHM SMD |
326 |
|
Datasheet |
DFEH7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | 10 µH | ±20% | 3 A | 4.2A | Shielded | 82mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
0840CDMCCDS-3R3MCFIXED IND 3.3UH 10A 15 MOHM SMD |
297 |
|
Datasheet |
0840CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 10 A | 9.2A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.307" W (8.10mm x 7.80mm) | 0.157" (4.00mm) |
|

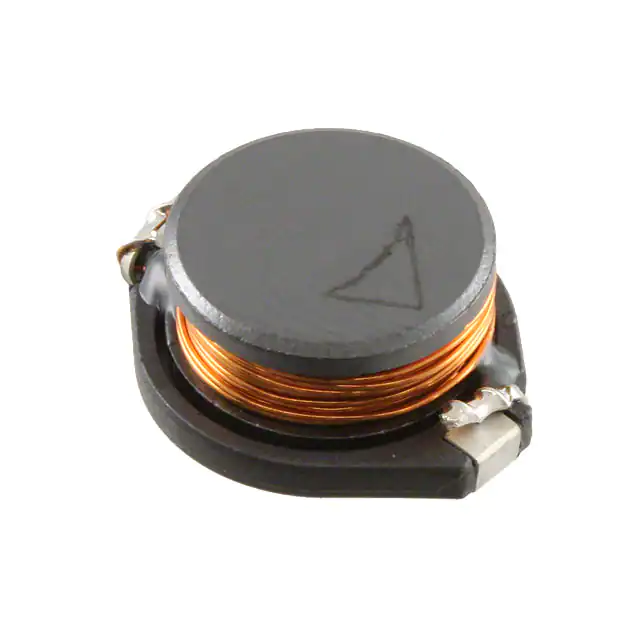

B82479A1105M000FIXED IND 1MH 560MA 1.8 OHM SMD |
240 |
|
Datasheet |
B82479A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 560 mA | 1A | Unshielded | 1.8Ohm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
MPXV1D0840L6R8FIXED IND 6.8UH 7.3A 33.4MOHM SM |
125 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 6.8 µH | ±20% | 7.3 A | 9A | Shielded | 33.4mOhm Max | - | 13MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
|
MPI2510V2-R47-RFIXED IND 470NH 4.4A 25MOHM SMD |
5,640 |
|
Datasheet |
MPI25-V2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 470 nH | ±20% | 4.4 A | 6A | Shielded | 25mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.041" (1.05mm) |
|

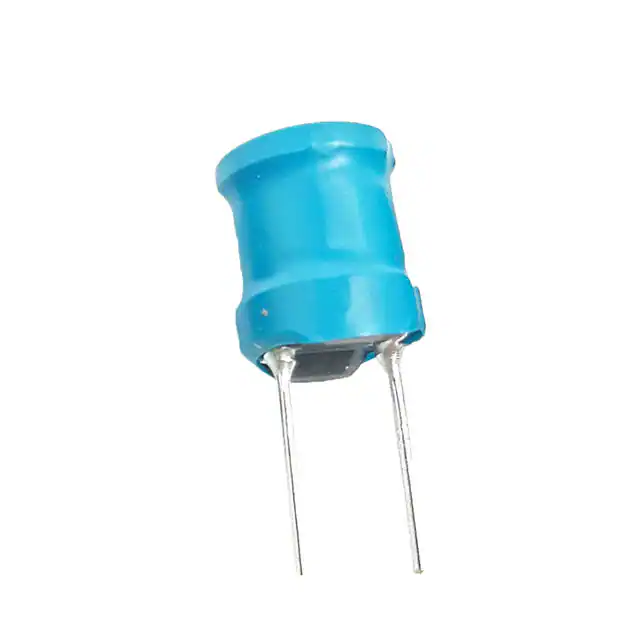

SBCP-80HY102HFIXED IND 1MH 400MA 1.89 OHM TH |
2,228 |
|
Datasheet |
SBCP | Radial, Vertical Cylinder | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 400 mA | 480mA | Unshielded | 1.89Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.433" (11.00mm) |
|
ASPIAIG-F1040-100M-TFIXED IND 10UH 7.5A 30 MOHM SMD |
1,960 |
|
Datasheet |
ASPIAIG-F1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 7.5 A | 12A | Shielded | 30mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1040 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
9230-80-RCFIXED IND 330UH 62MA 28 OHM TH |
1,159 |
|
Datasheet |
9230 | Axial | Bulk | Active | Molded | Ferrite | 330 µH | ±10% | 62 mA | - | Unshielded | 28Ohm Max | 30 @ 790kHz | 7MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
9230-64-RCFIXED IND 68UH 135MA 6.7 OHM TH |
702 |
|
Datasheet |
9230 | Axial | Bulk | Active | Molded | Ferrite | 68 µH | ±10% | 135 mA | - | Unshielded | 6.7Ohm Max | 50 @ 2.5MHz | 15MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
9230-76-RCFIXED IND 220UH 73MA 21 OHM TH |
643 |
|
Datasheet |
9230 | Axial | Bulk | Active | Molded | Ferrite | 220 µH | ±10% | 73 mA | - | Unshielded | 21Ohm Max | 30 @ 790kHz | 9MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
SDR2207-221KLFIXED IND 220UH 1.2A 380MOHM SMD |
437 |
|
Datasheet |
SDR2207 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 1.2 A | 2.4A | Unshielded | 380mOhm Max | 19 @ 2MHz | 5.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
SRP4030FA-R90MFIXED IND 900NH 11.2A 10.01 MOHM |
147 |
|
Datasheet |
SRP4030FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 900 nH | ±20% | 11.2 A | 7A | Shielded | 10.01mOhm Max | 10 @ 100kHz | 60MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.118" (3.00mm) |
