Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM42S-470-RCFIXED IND 47UH 620MA 600MOHM SMD |
480 |
|
Datasheet |
PM42S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 620 mA | 450mA | Shielded | 600mOhm Max | 8 @ 2.52MHz | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|

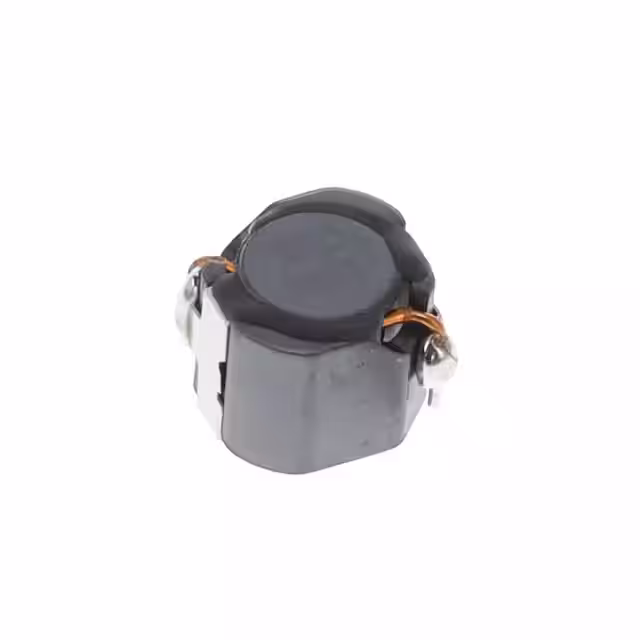

CDRH80D65BT150NP-1R0NCFIXED IND 1UH 8.74A 6.4MOHM SMD |
475 |
|
Datasheet |
CDRH80D65B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±30% | 8.74 A | 14.3A | Shielded | 6.4mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.268" (6.80mm) |
|
LTF4022T-3R3N-DFIXED IND 3.3UH 2.1A 64 MOHM SMD |
469 |
|
Datasheet |
LTF4022-D | 2-SMD | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 2.1 A | 1.6A | Shielded | 64mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.087" (2.20mm) |
|

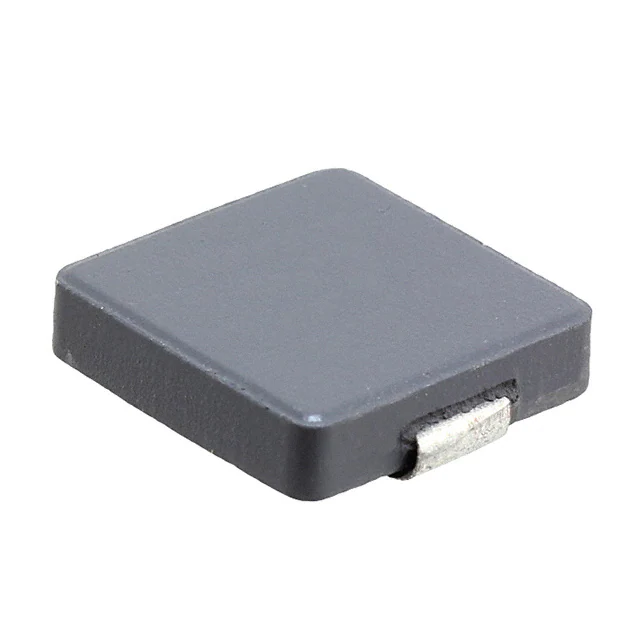

SRP1238A-R10YFIXED IND 100NH 43A 0.43MOHM SMD |
469 |
|
Datasheet |
SRP1238A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 100 nH | ±30% | 43 A | 84A | Shielded | 0.43mOhm Max | 10 @ 100kHz | 175MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.138" (3.50mm) |
|

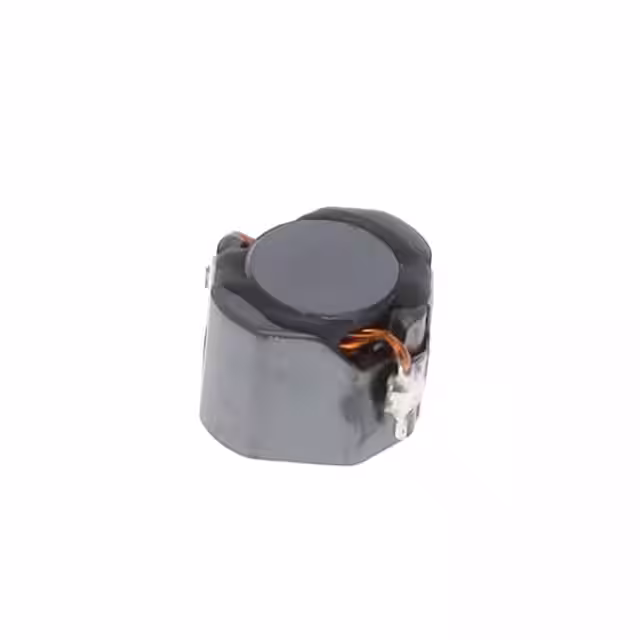

CDRH80D65BT150NP-3R9NCFIXED IND 3.9UH 6.1A 11.8MOHM SM |
464 |
|
Datasheet |
CDRH80D65B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.9 µH | ±30% | 6.1 A | 7.05A | Shielded | 11.8mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.268" (6.80mm) |
|
WTXE323012TR68MTFIXED IND 0.6820%UH 0.014OHM 770 |
437 |
|
Datasheet |
WT | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 nH | ±20% | - | - | Unshielded | - | - | - | - | -55°C ~ 155°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.047" (1.20mm) |
|

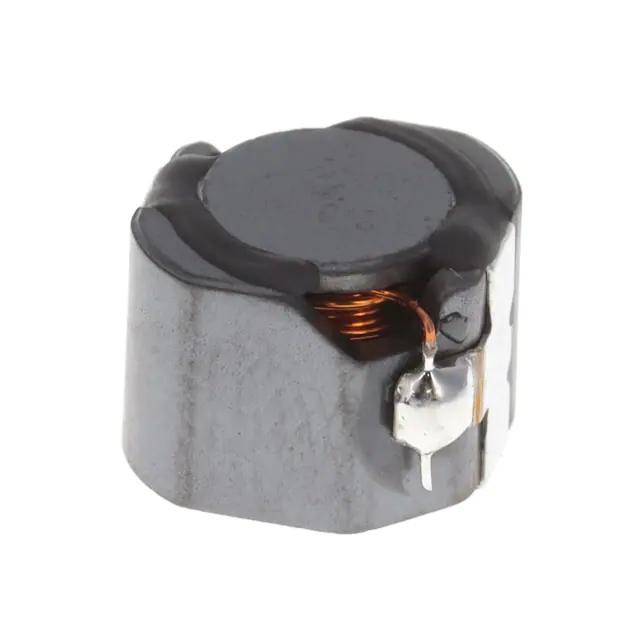

CDRH80D65BT150NP-151MCFIXED IND 150UH 1.09A 267MOHM SM |
359 |
|
Datasheet |
CDRH80D65B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±20% | 1.09 A | 1.17A | Shielded | 267mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.268" (6.80mm) |
|

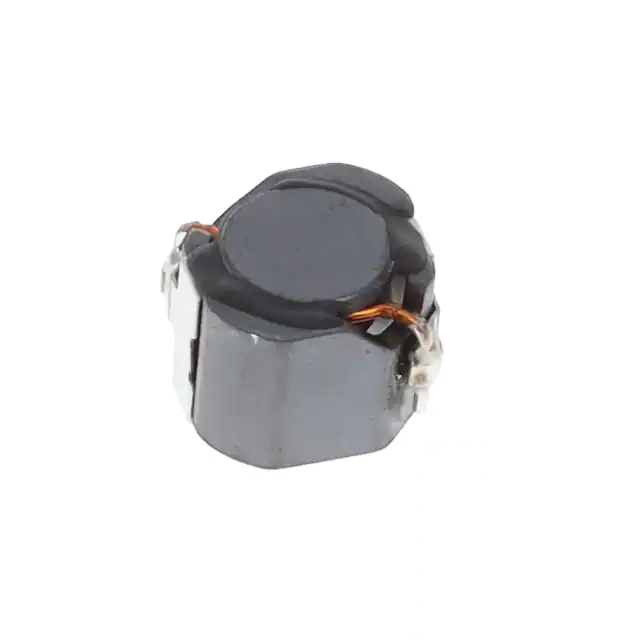

CDRH80D65BT150NP-3R3NCFIXED IND 3.3UH 6.35A 10.8 MOHM |
311 |
|
Datasheet |
CDRH80D65B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 6.35 A | 7.65A | Shielded | 10.8mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.268" (6.80mm) |
|

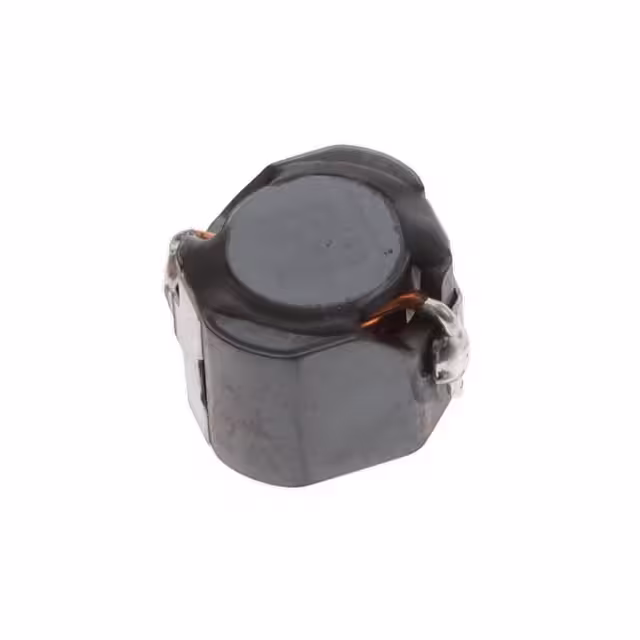

CDRH80D65BT150NP-100MCFIXED IND 10UH 4.54A 19.8MOHM SM |
285 |
|
Datasheet |
CDRH80D65B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 4.54 A | 4.5A | Shielded | 19.8mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.268" (6.80mm) |
|
SRP5030TA-R68MFIXED IND 680NH 8.5A 12 MOHM SMD |
247 |
|
Datasheet |
SRP5030TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 680 nH | ±20% | 8.5 A | 14A | Shielded | 12mOhm Max | 10 @ 100kHz | 85MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|
DD1274AS-H-150M=P3FIXED IND 15UH 3.9A 42.3MOHM SMD |
214 |
|
Datasheet |
DEM10050C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.9 A | 5.1A | Shielded | 42.3mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
|
SRP1238A-R33MFIXED IND 330NH 36.5A 1 MOHM SMD |
201 |
|
Datasheet |
SRP1238A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 330 nH | ±20% | 36.5 A | 62A | Shielded | 1mOhm Max | 10 @ 100kHz | 85MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.138" (3.50mm) |
|
B82476A1334M000FIXED IND 330UH 600MA 810MOHM SM |
162 |
|
Datasheet |
B82476A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 600 mA | 600mA | Unshielded | 810mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
IHLP5050EZERR47M01FIXED IND 470NH 38A 1.3 MOHM SMD |
141 |
|
Datasheet |
IHLP-5050EZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 38 A | 65A | Shielded | 1.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.197" (5.00mm) |
|
|
SRP1238A-5R6MFIXED IND 5.6UH 9.5A 22 MOHM SMD |
133 |
|
Datasheet |
SRP1238A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 5.6 µH | ±20% | 9.5 A | 19A | Shielded | 22mOhm Max | 20 @ 100kHz | 15MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.138" (3.50mm) |
|
IHLE2525CDERR47M5AIHLE-2525CD-5A .47 20% ER E3 |
3,072 |
|
Datasheet |
IHLE-2525CD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | Metal Composite | 470 nH | ±20% | 20 A | 14A | Shielded | 4.14mOhm Max | - | 82.4MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.284" L x 0.280" W (7.21mm x 7.12mm) | 0.134" (3.40mm) |
|
CDRH60D45BT150NP-6R8NCFIXED IND 6.8UH 3.1A 35.1MOHM SM |
2,684 |
|
Datasheet |
CDRH60D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±30% | 3.1 A | 3.6A | Shielded | 35.1mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.248" W (6.60mm x 6.30mm) | 0.189" (4.80mm) |
|
|
78404084150WE-LQSA SMT SEMI-SHIELDED POWER |
1,989 |
|
Datasheet |
WE-LQSA | 3131 (8080 Metric) | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 3.75 A | 3.9A | Shielded | 60mOhm Max | - | 17MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
78404084470WE-LQSA SMT SEMI-SHIELDED POWER |
1,989 |
|
Datasheet |
WE-LQSA | 3131 (8080 Metric) | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 2.23 A | 2.18A | Shielded | 168mOhm Max | - | 10MHz | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
9230-34-RCFIXED IND 3.9UH 350MA 1 OHM TH |
1,020 |
|
Datasheet |
9230 | Axial | Bulk | Active | Molded | Ferrite | 3.9 µH | ±10% | 350 mA | - | Unshielded | 1Ohm Max | 45 @ 7.9MHz | 82MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
