Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR1210A-681MFIXED IND 680UH 1A 1.2 OHM SMD |
725 |
|
Datasheet |
SRR1210A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 680 µH | ±20% | 1 A | 850mA | Shielded | 1.2Ohm Max | 11 @ 796kHz | 850kHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
B82464D6333M000FIXED IND 33UH 2.15A 0.173OHM SM |
595 |
|
Datasheet |
B82464D6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.15 A | 3.3A | Shielded | 173mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.248" (6.30mm) |
|
IHLP3232DZER1R0M5AFIXED IND 1UH 19A 4.9 MOHM SMD |
492 |
|
Datasheet |
IHLP-3232DZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 19 A | 16.2A | Shielded | 4.9mOhm Max | - | 45MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.322" L x 0.322" W (8.18mm x 8.18mm) | 0.157" (4.00mm) |
|
|
SRR1210A-150MFIXED IND 15UH 5.8A 32 MOHM SMD |
484 |
|
Datasheet |
SRR1210A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 5.8 A | 5.3A | Shielded | 32mOhm Max | 16 @ 2.52MHz | 10.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
104CDMCDDS-1R5MCFIXED IND 1.5UH 16.5A 6.6MOHM SM |
470 |
|
Datasheet |
104CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 16.5 A | 30.6A | Shielded | 6.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
B82464A4334K000FIXED IND 330UH 580MA 1 OHM SMD |
453 |
|
Datasheet |
B82464A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 580 mA | 700mA | Unshielded | 1Ohm Max | - | 100kHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|

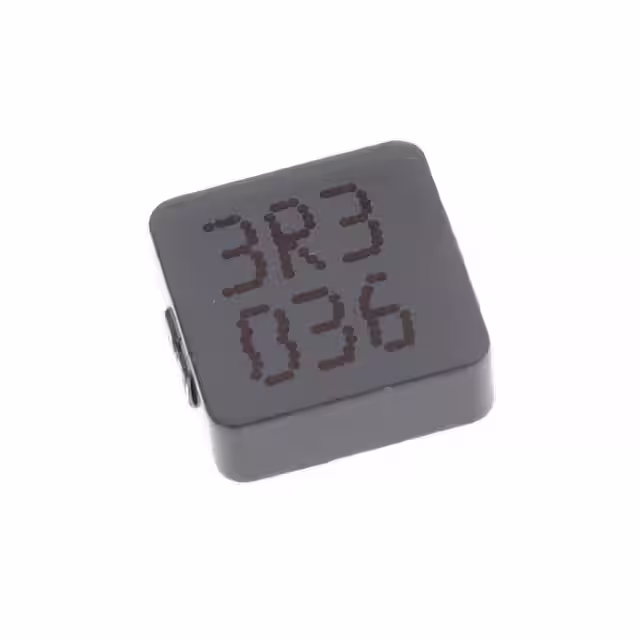

104CDMCDDS-3R3MCFIXED IND 3.3UH 11.8A 13MOHM SMD |
453 |
|
Datasheet |
104CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 11.8 A | 19A | Shielded | 13mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

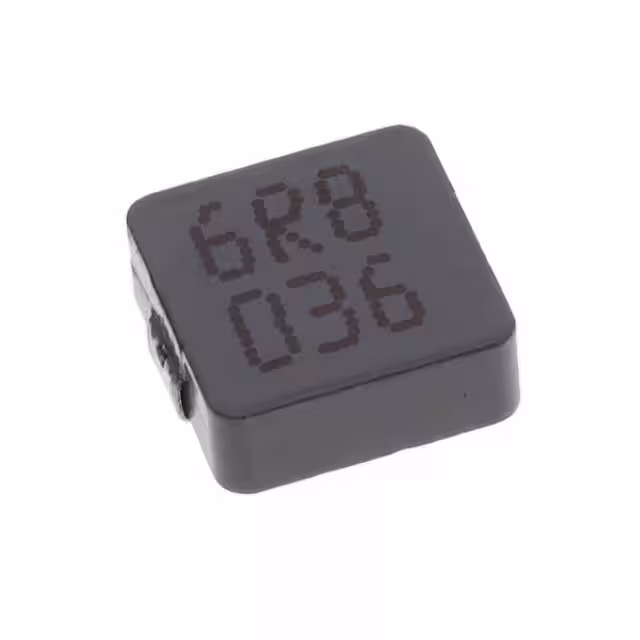

104CDMCDDS-6R8MCFIXED IND 6.8UH 8.8A 24MOHM SMD |
438 |
|
Datasheet |
104CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 6.8 µH | ±20% | 8.8 A | 14.5A | Shielded | 24mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SRR1210A-821MFIXED IND 820UH 850MA 1.32OHM SM |
437 |
|
Datasheet |
SRR1210A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 820 µH | ±20% | 850 mA | 750mA | Shielded | 1.32Ohm Max | 6 @ 796kHz | 850kHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
768772332WE-TI HV RADIAL LEADED WIRE WOUN |
279 |
|
Datasheet |
WE-TI HV | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 3.3 mH | ±10% | 250 mA | 270mA | Unshielded | 7.08Ohm Max | - | 850kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
IHLP4040DZER100M51FIXED IND 10UH 6.5A 33.06MOHM SM |
231 |
|
Datasheet |
IHLP-4040DZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 6.5 A | 8.5A | Shielded | 33.06mOhm Max | - | 11.5MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
|
PE-53631NLTFIXED IND 9.4UH 2.8A 43.4MOHM SM |
1,413 |
|
Datasheet |
SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 9.4 µH | - | 2.8 A | - | Unshielded | 43.4mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
|
B82464A4154K000FIXED IND 150UH 860MA 400MOHM SM |
1,002 |
|
Datasheet |
B82464A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 860 mA | 1A | Unshielded | 400mOhm Max | - | 100kHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
DD1274AS-H-8R2M=P3FIXED IND 8.2UH 4.8A 26.4MOHM SM |
944 |
|
Datasheet |
DEM10050C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 4.8 A | 9.1A | Shielded | 26.4mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
RL875-472K-RCFIXED IND 4.7MH 120MA 16.7OHM TH |
915 |
|
Datasheet |
RL875 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 120 mA | - | Unshielded | 16.7Ohm Max | 35 @ 252kHz | 1MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
DD1274AS-H-1R5N=P3FIXED IND 1.5UH 8.9A 7.7MOHM SMD |
900 |
|
Datasheet |
DEM10050C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 8.9 A | 20.4A | Shielded | 7.7mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
|
RL875-270K-RCIND7.8X7.5MM,27UH10%0.170A,NON-S |
833 |
|
Datasheet |
RL875 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 1.7 A | - | Unshielded | 110mOhm Max | 30 @ 2.52MHz | 13MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Through Hole | Radial | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
DD1274AS-H-6R8N=P3FIXED IND 6.8UH 5.4A 21.3MOHM SM |
734 |
|
Datasheet |
DEM10050C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 5.4 A | 10A | Shielded | 21.3mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|

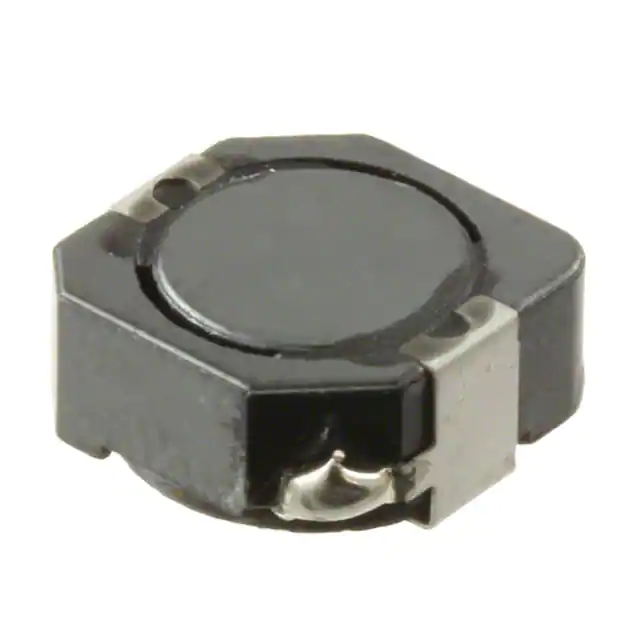

CDRH105RNP-820NCFIXED IND 82UH 1.45A 227MOHM SMD |
495 |
|
Datasheet |
CDRH105R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 82 µH | ±30% | 1.45 A | 1.5A | Shielded | 227mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
|

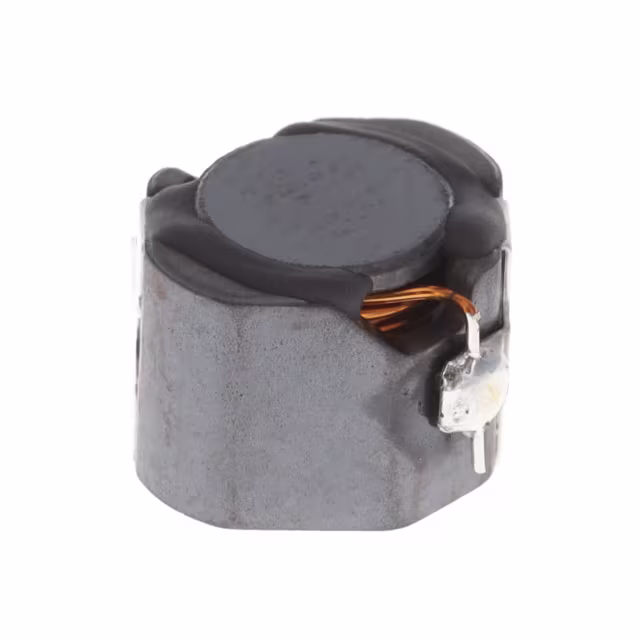

CDRH80D65BT150NP-680MCFIXED IND 68UH 1.57A 131MOHM SMD |
483 |
|
Datasheet |
CDRH80D65B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 1.57 A | 1.67A | Shielded | 131mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.268" (6.80mm) |
