Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

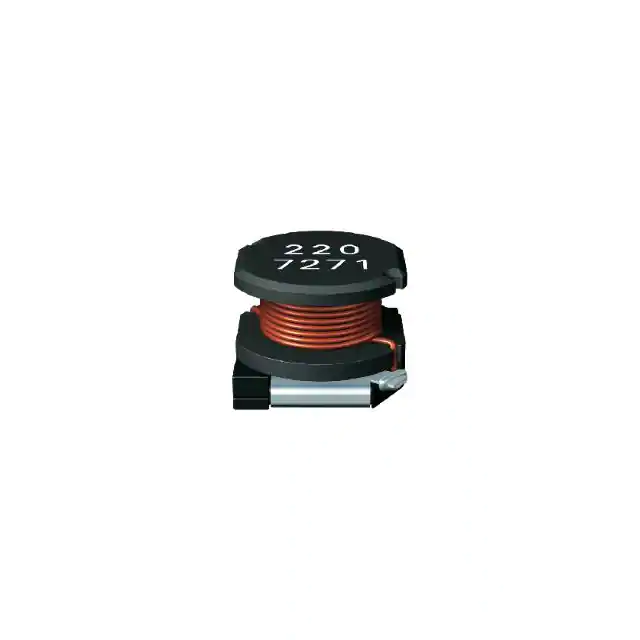

B82473M1473K000FIXED IND 47UH 1.1A 180 MOHM SMD |
1,970 |
|
Datasheet |
B82473M1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.1 A | 1.2A | Unshielded | 180mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
|
HCM1A0503V2-6R8-RFIXED IND 6.8UH 3.3A 70 MOHM SMD |
1,860 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 3.3 A | 4A | Shielded | 70mOhm Max | - | 16MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
IHLP2020CZER1R5M5AFIXED IND 1.5UH 7.9A 19.8MOHM SM |
1,741 |
|
Datasheet |
IHLP-2020CZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 7.9 A | 7.1A | Shielded | 19.8mOhm Max | - | 49.2MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.204" L x 0.204" W (5.18mm x 5.18mm) | 0.118" (3.00mm) |
|
SBC4-681-431FIXED IND 680UH 430MA 1.32OHM TH |
865 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 430 mA | 570mA | Unshielded | 1.32Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.571" (14.50mm) |
|
SPM4015T-1R0M-LRFIXED IND 1UH 4.7A 33.6 MOHM SMD |
736 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 4.7 A | 8.9A | Shielded | 33.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.059" (1.50mm) |
|
|
SPM5012T-100M-LRFIXED IND 10UH 1.3A 390.5MOHM SM |
718 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 1.3 A | 2.2A | Shielded | 390.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.047" (1.20mm) |
|
VCMV053T-1R0MN2FIXED INDUCTOR 1UH 20% |
391 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
B82462A4474K000FIXED IND 470UH 170MA 5.6OHM SMD |
379 |
|
Datasheet |
B82462-A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 170 mA | 280mA | Unshielded | 5.6Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
SBC4-102-291FIXED IND 1MH 290MA 2.15 OHM TH |
256 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 290 mA | 470mA | Unshielded | 2.15Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.571" (14.50mm) |
|
|
SPM5012T-1R0M-LRFIXED IND 1UH 4.4A 35.2 MOHM SMD |
159 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 4.4 A | 7.5A | Shielded | 35.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.047" (1.20mm) |
|
IHLP2525AHERR10M01FIXED IND 100NH 18A 3.5 MOHM SMD |
4,719 |
|
Datasheet |
IHLP-2525AH-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 nH | ±20% | 18 A | 40A | Shielded | 3.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.071" (1.80mm) |
|
PA3288.151HLTFIXED IND 150NH 64A 0.29MOHM SMD |
3,630 |
|
Datasheet |
PA3288.XXXHL | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 nH | ±15% | 64 A | 70A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.362" L x 0.244" W (9.20mm x 6.20mm) | 0.315" (8.00mm) |
|
|
IHLP2525AHER2R2M01FIXED IND 2.2UH 3.75A 46MOHM SMD |
3,428 |
|
Datasheet |
IHLP-2525AH-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 3.75 A | 13A | Shielded | 46mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.071" (1.80mm) |
|
SRR1260A-560MFIXED IND 56UH 2.3A 100 MOHM SMD |
2,324 |
|
Datasheet |
SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 2.3 A | 2.2A | Shielded | 100mOhm Max | 24 @ 2.52MHz | 7.92MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
WTXE252012TA1R0MTFIXED IND 1.020%UH 0.026OHM 3700 |
1,955 |
|
Datasheet |
WT | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | - | - | Unshielded | - | - | - | - | -55°C ~ 155°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
SRP7028A-R75MFIXED IND 750NH 14.5A 6.6MOHM SM |
1,942 |
|
Datasheet |
SRP7028A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 750 nH | ±20% | 14.5 A | 24.5A | Shielded | 6.6mOhm Max | 15 @ 100kHz | 65MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRR1260A-1R2YFIXED IND 1.2UH 9.2A 8 MOHM SMD |
1,899 |
|
Datasheet |
SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 9.2 A | 9.8A | Shielded | 8mOhm Max | 18 @ 7.96MHz | 91.1MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SRR1260A-270MFIXED IND 27UH 3.6A 45 MOHM SMD |
1,800 |
|
Datasheet |
SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 3.6 A | 3.3A | Shielded | 45mOhm Max | 26 @ 2.52MHz | 12.7MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SRR1260A-561KFIXED IND 560UH 880MA 1 OHM SMD |
1,750 |
|
Datasheet |
SRR1260A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 880 mA | 800mA | Shielded | 1Ohm Max | 22 @ 796kHz | 2.4MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SBC2-102-181FIXED IND 1MH 180MA 4 OHM TH |
1,749 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 180 mA | 210mA | Unshielded | 4Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.276" Dia (7.00mm) | 0.413" (10.50mm) |
