Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM3316-6R8M-RCFIXED IND 6.8UH 3.4A 30 MOHM SMD |
488 |
|
Datasheet |
PM3316 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3.4 A | 4.5A | Unshielded | 30mOhm | 50 @ 3MHz | 31MHz | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|

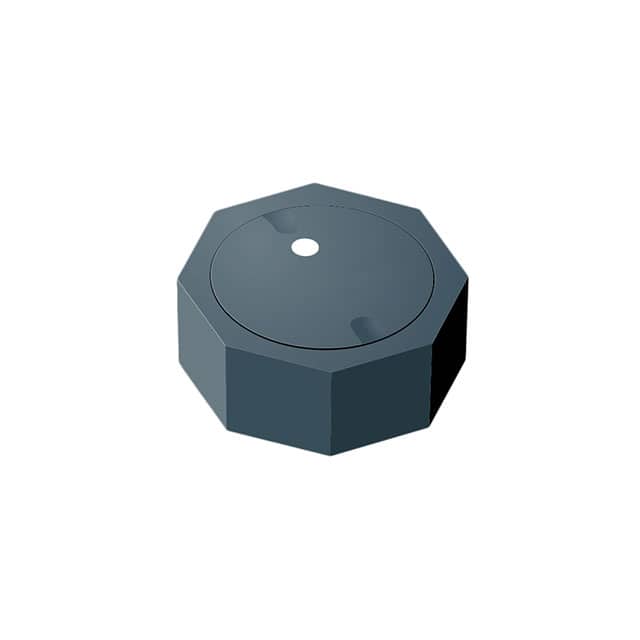

SRU1063A-4R7YFIXED IND 4.7UH 5.5A 14 MOHM SMD |
448 |
|
Datasheet |
SRU1063A | 4-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 5.5 A | 5.7A | Shielded | 14mOhm Max | 11 @ 7.96MHz | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.268" (6.80mm) |
|
MPXV1D0520L3R3FIXED IND 3.3UH 4.1A 64.2MOHM SM |
448 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 3.3 µH | ±20% | 4.1 A | 5.5A | Shielded | 64.2mOhm Max | - | 34MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.079" (2.00mm) |
|
|
PM3316-4R7M-RCFIXED IND 4.7UH 4.5A 19 MOHM SMD |
415 |
|
Datasheet |
PM3316 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4.5 A | 5.4A | Unshielded | 19mOhm | 50 @ 4MHz | 42MHz | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|
|
SRU1063A-220YFIXED IND 22UH 3A 60 MOHM SMD |
326 |
|
Datasheet |
SRU1063A | 4-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 3 A | 3.2A | Shielded | 60mOhm Max | 15 @ 2.52MHz | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.268" (6.80mm) |
|
|
PM3316-471M-RCFIXED IND 470UH 450MA 1.7OHM SMD |
206 |
|
Datasheet |
PM3316 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 450 mA | 500mA | Unshielded | 1.7Ohm | 57 @ 50kHz | 4MHz | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|
IHLP2020CZER1R5M51IHLP-2020CZ-51 1.5 20% ER E3 |
1,926 |
|
Datasheet |
IHLP-2020CZ-51 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1.5 µH | ±20% | 7.9 A | 7.1A | Shielded | 19.8mOhm Max | - | 49.2MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
SPM3010T-R47M-LRFIXED IND 470NH 5.1A 27.7MOHM SM |
1,816 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 5.1 A | 6.5A | Shielded | 27.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.039" (1.00mm) |
|
|
SPM3015T-3R3M-LRFIXED IND 3.3UH 2.2A 134.2 MOHM |
1,455 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 2.2 A | 3.5A | Shielded | 134.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.059" (1.50mm) |
|
|
SPM5020T-1R5M-LRFIXED IND 1.5UH 5.9A 24.8MOHM SM |
1,422 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 5.9 A | 9A | Shielded | 24.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.079" (2.00mm) |
|
|
IHLP2020CZER100M51IHLP-2020CZ-51 10 20% ER E3 |
1,147 |
|
Datasheet |
IHLP-2020CZ-51 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 2.8 A | 1.6A | Shielded | 138mOhm Max | - | 15.9MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
|
SPM4015T-4R7M-LRFIXED IND 4.7UH 2A 203.6MOHM SMD |
540 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 2 A | 3.6A | Shielded | 203.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.059" (1.50mm) |
|
|
SRU1063A-6R8YFIXED IND 6.8UH 5.2A 18 MOHM SMD |
530 |
|
Datasheet |
SRU1063A | 4-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 5.2 A | 5.2A | Shielded | 18mOhm Max | 11 @ 7.96MHz | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.268" (6.80mm) |
|

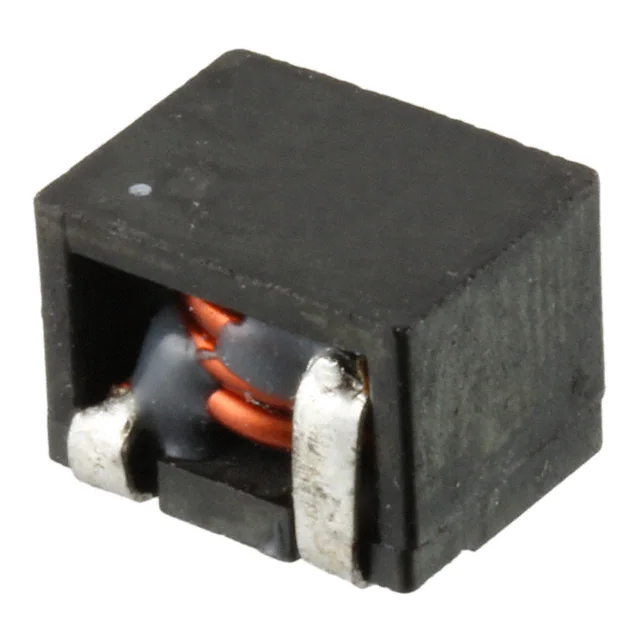

PG0702.451NLFIXED IND 450NH 38A 0.91MOHM SMD |
1,520 |
|
Datasheet |
PG0702NL | Nonstandard | Tray | Active | Wirewound | - | 450 nH | ±20% | 38 A | 41A | Shielded | 0.91mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.362" W (10.80mm x 9.20mm) | 0.315" (8.00mm) |
|
|
PG0702.222NLFIXED IND 2.2UH 15.9A 3.3MOHM SM |
1,520 |
|
Datasheet |
PG0702NL | Nonstandard | Tray | Active | Wirewound | - | 2.2 µH | ±20% | 15.9 A | 15.9A | Shielded | 3.3mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.362" W (10.80mm x 9.20mm) | 0.315" (8.00mm) |
|
|
PG0702.301NLFIXED IND 300NH 42.5A 0.68 MOHM |
1,520 |
|
Datasheet |
PG0702NL | Nonstandard | Tray | Active | Wirewound | - | 300 nH | ±20% | 42.5 A | 42.5A | Shielded | 0.68mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.362" W (10.80mm x 9.20mm) | 0.315" (8.00mm) |
|
|
PG0702.401NLFIXED IND 400NH 38A 0.91MOHM SMD |
1,520 |
|
Datasheet |
PG0702NL | Nonstandard | Tray | Active | Wirewound | - | 400 nH | ±20% | 38 A | 43A | Shielded | 0.91mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.362" W (10.80mm x 9.20mm) | 0.315" (8.00mm) |
|
|
PG0702.601NLFIXED IND 600NH 32A 0.91MOHM SMD |
1,508 |
|
Datasheet |
PG0702NL | Nonstandard | Tray | Active | Wirewound | - | 600 nH | ±20% | 32 A | 32A | Shielded | 0.91mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.362" W (10.80mm x 9.20mm) | 0.315" (8.00mm) |
|
|
SPM3012T-3R3M-LRFIXED IND 3.3UH 1.7A 185.4 MOHM |
5,790 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 1.7 A | 2.8A | Shielded | 185.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.047" (1.20mm) |
|

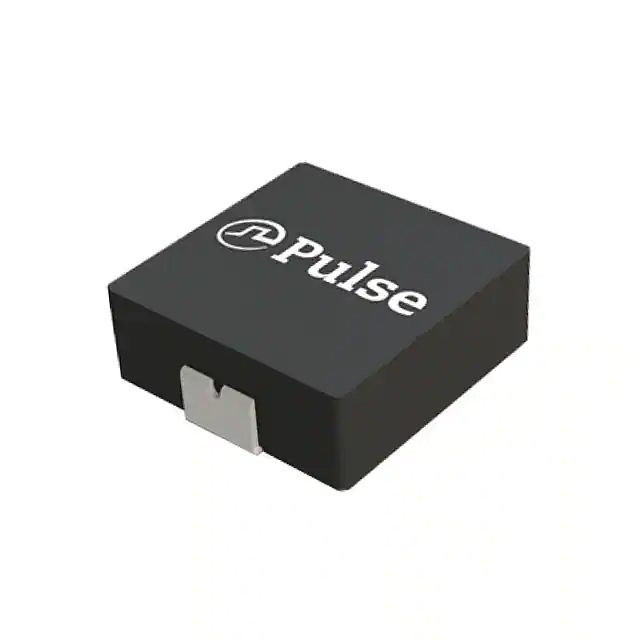

PA4342.451NLTFIXED IND 450NH 29A 1.5 MOHM SMD |
5,480 |
|
Datasheet |
PA4342.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 450 nH | ±20% | 29 A | 45A | Shielded | 1.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
