Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82473A1104K000FIXED IND 100UH 720MA 430MOHM SM |
237 |
|
Datasheet |
B82473A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 720 mA | 800mA | Unshielded | 430mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
|
744040520047FIXED IND 470NH 4.9A 13.9MOHM SM |
153 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±30% | 4.9 A | 8.5A | Shielded | 13.9mOhm | - | 252MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
SPM3015T-1R0M-LRFIXED IND 1UH 3.8A 45.1 MOHM SMD |
150 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 3.8 A | 5A | Shielded | 45.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.059" (1.50mm) |
|
ECS-MPI4040R3-2R2-RFIXED IND 2.2UH 3.4A 48 MOHM SMD |
17,487 |
|
Datasheet |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 3.4 A | 7.9A | Shielded | 48mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.073" (1.85mm) |
|
MPXV1D0520L1R0FIXED IND 1UH 7.6A 18.9 MOHM SMD |
5,996 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 7.6 A | 9A | Shielded | 18.9mOhm Max | - | 62MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.079" (2.00mm) |
|
|
MPXV1D0520L100FIXED IND 10UH 2.2A 222.8MOHM SM |
5,745 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 2.2 A | 3.5A | Shielded | 222.8mOhm Max | - | 20MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.079" (2.00mm) |
|
|
MPXV1D0530LR68FIXED IND 680NH 12.6A 8.2MOHM SM |
5,107 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 680 nH | ±20% | 12.6 A | 12A | Shielded | 8.2mOhm Max | - | 70MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
PM3316-150M-RCFIXED IND 15UH 2.5A 60 MOHM SMD |
4,843 |
|
Datasheet |
PM3316 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.5 A | 3A | Unshielded | 60mOhm | 50 @ 3MHz | 22MHz | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|
SPM5030VT-R15M-DFIXED IND 150NH 17.1A 0.003OHM |
3,483 |
|
Datasheet |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 150 nH | ±20% | 17.1 A | 20.2A | Shielded | 3mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 5030 | 0.209" L x 0.201" W (5.30mm x 5.10mm) | 0.118" (3.00mm) |
|
IHLP2020BZER1R0MA1IHLP-2020BZ-A1 1 20% ER E3 |
2,975 |
|
Datasheet |
IHLP-2020BZ-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 7 A | 16A | Shielded | 20mOhm Max | - | 62MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
|
SPM5030VT-R68M-DFIXED IND 680NH 10.7A 0.0074OHM |
2,920 |
|
Datasheet |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 10.7 A | 12.2A | Shielded | 7.4mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 5030 | 0.209" L x 0.201" W (5.30mm x 5.10mm) | 0.118" (3.00mm) |
|
SPM5030VT-R22M-DFIXED IND 220NH 14.2A 0.0042OHM |
2,474 |
|
Datasheet |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 220 nH | ±20% | 14.2 A | 21A | Shielded | 4.2mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 5030 | 0.209" L x 0.201" W (5.30mm x 5.10mm) | 0.118" (3.00mm) |
|

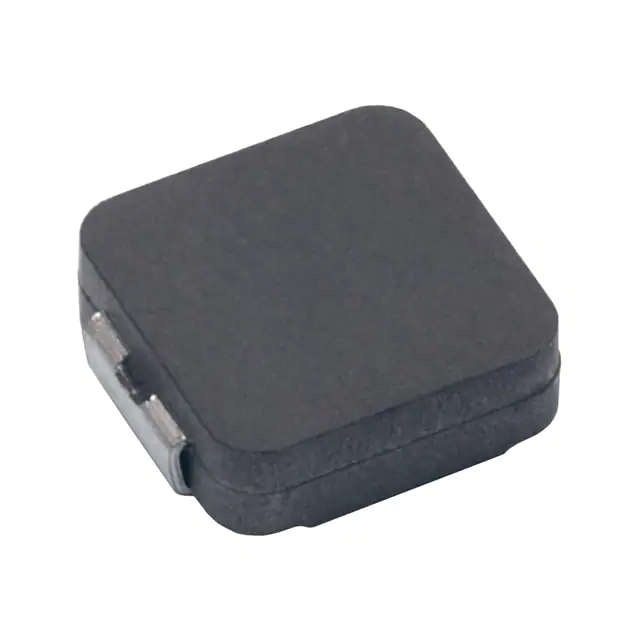

MPX1D0624LR22FIXED IND 220NH 19.4A 3.3MOHM SM |
2,400 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 220 nH | ±20% | 19.4 A | 29A | Shielded | 3.3mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.094" (2.40mm) |
|
|
SPM4010T-1R0M-LRFIXED IND 1UH 3.8A 55 MOHM SMD |
1,814 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 3.8 A | 4.5A | Shielded | 55mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.039" (1.00mm) |
|
|
MPXV1D0630L1R5FIXED IND 1.5UH 10.5A 12.7 MOHM |
1,390 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1.5 µH | ±20% | 10.5 A | 11A | Shielded | 12.7mOhm Max | - | 38MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
|
|
SPM4015T-1R5M-LRFIXED IND 1.5UH 3.9A 49 MOHM SMD |
1,129 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 3.9 A | 5.9A | Shielded | 49mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.059" (1.50mm) |
|
|
MPXV1D0630LR33FIXED IND 330NH 21.1A 3.2MOHM SM |
991 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 330 nH | ±20% | 21.1 A | 25A | Shielded | 3.2mOhm Max | - | 84MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
|
|
MPXV1D0630LR10FIXED IND 100NH 31.1A 1.5MOHM SM |
935 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 100 nH | ±20% | 31.1 A | 50A | Shielded | 1.5mOhm Max | - | 200MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
|
|
PM3316-2R2M-RCFIXED IND 2.2UH 6.1A 12 MOHM SMD |
767 |
|
Datasheet |
PM3316 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 6.1 A | 7A | Unshielded | 12mOhm | 50 @ 3MHz | 65MHz | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.209" (5.30mm) |
|
|
MPXV1D0630L150FIXED IND 15UH 3.3A 130.2MOHM SM |
675 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 15 µH | ±20% | 3.3 A | 4A | Shielded | 130.2mOhm Max | - | 13MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.118" (3.00mm) |
