Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EXLA1V0605-6R8-RIND MOLDED SHLD 6.8UH 6.6A |
796 |
|
Datasheet |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 6.8 µH | ±20% | 6.6 A | 7A | Shielded | 25.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.197" (5.00mm) |
|
|
EXLA1V0605-1R8-RIND MOLDED SHLD 1.8UH 16.0A |
790 |
|
Datasheet |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1.8 µH | ±20% | 16 A | 13.5A | Shielded | 7.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.197" (5.00mm) |
|
|
EXLA1V0605-4R3-RIND MOLDED SHLD 4.3UH 9.0A |
788 |
|
Datasheet |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 4.3 µH | ±20% | 9 A | 8.5A | Shielded | 16.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.197" (5.00mm) |
|

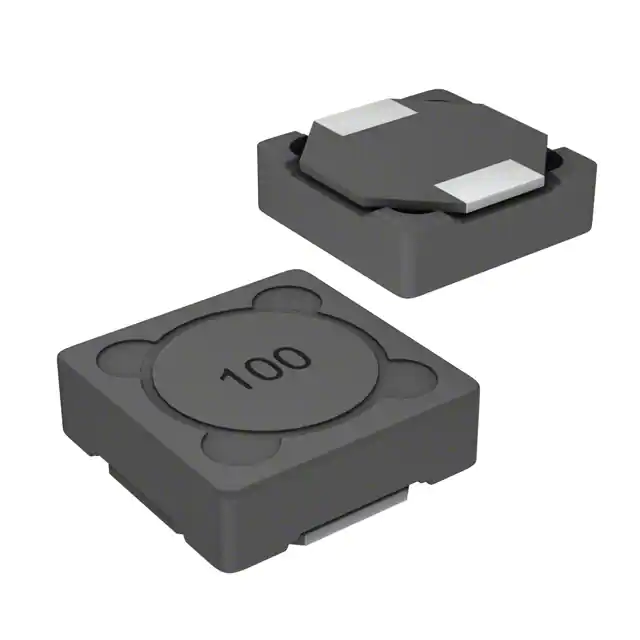

SRR1240-1R5YFIXED IND 1.5UH 9.2A 9.5MOHM SMD |
778 |
|
Datasheet |
SRR1240 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 9.2 A | 9A | Shielded | 9.5mOhm Max | 16 @ 7.96MHz | 80MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
EXLA1V0605-5R6-RIND MOLDED SHLD 5.6UH 7.0A |
775 |
|
Datasheet |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 5.6 µH | ±20% | 7 A | 8.3A | Shielded | 22mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.197" (5.00mm) |
|

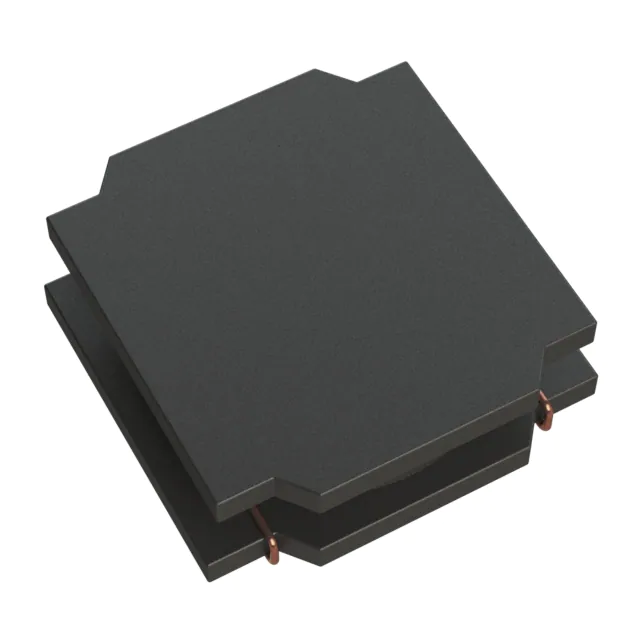

SWPA8040S150MTFIXED IND 15UH 2.6A 61 MOHM SMD |
774 |
|
Datasheet |
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.6 A | 3.4A | Shielded | 61mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
EXLA1V0605-1R0-RIND MOLDED SHLD 1.0UH 20.0A |
770 |
|
Datasheet |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1 µH | ±20% | 20 A | 18A | Shielded | 4.52mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.197" (5.00mm) |
|
|
SRR1240-560MFIXED IND 56UH 1.8A 170 MOHM SMD |
745 |
|
Datasheet |
SRR1240 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 1.8 A | 1.65A | Shielded | 170mOhm Max | 16 @ 2.52MHz | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
MPXV1D0530LR22FIXED IND 220NH 18.4A 3.9MOHM SM |
740 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 220 nH | ±20% | 18.4 A | 16A | Shielded | 3.9mOhm Max | - | 140MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
SRR1050A-3R3YFIXED IND 3.3UH 6.5A 11 MOHM SMD |
697 |
|
Datasheet |
SRR1050A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 6.5 A | 7.8A | Shielded | 11mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
|
|
MPXV1D0530LR33FIXED IND 330NH 16A 5.2 MOHM SMD |
694 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 330 nH | ±20% | 16 A | 15A | Shielded | 5.2mOhm Max | - | 110MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
|
EXLA1V0605-2R2-RIND MOLDED SHLD 2.2UH 13.0A |
649 |
|
Datasheet |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 13 A | 12A | Shielded | 8.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.197" (5.00mm) |
|
|
SRR1050A-4R2YFIXED IND 4.2UH 6.1A 14 MOHM SMD |
619 |
|
Datasheet |
SRR1050A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.2 µH | ±30% | 6.1 A | 6.4A | Shielded | 14mOhm Max | - | 29MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
|
|
SRR1050A-390YFIXED IND 39UH 2.25A 106MOHM SMD |
619 |
|
Datasheet |
SRR1050A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±30% | 2.25 A | 2.3A | Shielded | 106mOhm Max | - | 6.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
|
SRR1260-5R6YFIXED IND 5.6UH 6.7A 16.2MOHM SM |
537 |
|
Datasheet |
SRR1260 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 6.7 A | 6.9A | Shielded | 16.2mOhm Max | 19 @ 7.96MHz | 33MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
SBC3-472-121FIXED IND 4.7MH 120MA 11.4OHM TH |
525 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 120 mA | 140mA | Unshielded | 11.4Ohm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.453" (11.50mm) |
|
|
MPXV1D0520LR47FIXED IND 470NH 12A 7.8 MOHM SMD |
425 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 470 nH | ±20% | 12 A | 14A | Shielded | 7.8mOhm Max | - | 87MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.079" (2.00mm) |
|
|
SRR1240-821KFIXED IND 820UH 450MA 2.4OHM SMD |
380 |
|
Datasheet |
SRR1240 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 450 mA | 420mA | Shielded | 2.4Ohm Max | 10 @ 796kHz | 3.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
SRR1280-103KIND12.5X12.5X7.5MM,10M10%6A,SHDS |
351 |
|
Datasheet |
SRR1280 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 mH | - | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
MPXV1D0530L3R3FIXED IND 3.3UH 5.5A 42.8MOHM SM |
322 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 3.3 µH | ±20% | 5.5 A | 5.5A | Shielded | 42.8mOhm Max | - | 29MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
