Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLE2020CDER220M51IHLE-2020CD-51 22 20% ER E3 |
2,185 |
|
Datasheet |
IHLE-2020CD-51 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 22 µH | ±20% | - | - | Shielded | - | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.135" (3.43mm) |
|
NS12565T7R0NNFIXED IND 7UH 5.21A 19.44MOHM SM |
1,999 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7 µH | ±30% | 5.21 A | 7.93A | Shielded | 19.44mOhm Max | - | 24.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.270" (6.85mm) |
|
|
IHLE2020CDER6R8M51IHLE-2020CD-51 6.8 20% ER E3 |
1,995 |
|
Datasheet |
IHLE-2020CD-51 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 3.2 A | 2.9A | Shielded | 111mOhm Max | - | 18.8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.135" (3.43mm) |
|
IHLP2020CZERR68M8AFIXED IND 680NH 11.3A 9.74 MOHM |
1,972 |
|
Datasheet |
IHLP-2020CZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 11.3 A | 8.2A | Shielded | 9.74mOhm Max | - | 77.7MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.204" L x 0.204" W (5.18mm x 5.18mm) | 0.118" (3.00mm) |
|
EXLA1V0703-4R7-RIND MOLDED SHLD 4.7UH 6.9A |
1,738 |
|
Datasheet |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 4.7 µH | ±20% | 9 A | 12.2A | Shielded | 26.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.122" (3.10mm) |
|
|
EXLA1V0703-1R5-RIND MOLDED SHLD 1.5UH 12.0A |
1,735 |
|
Datasheet |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1.5 µH | ±20% | 15.3 A | 23.5A | Shielded | 8.25mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.122" (3.10mm) |
|

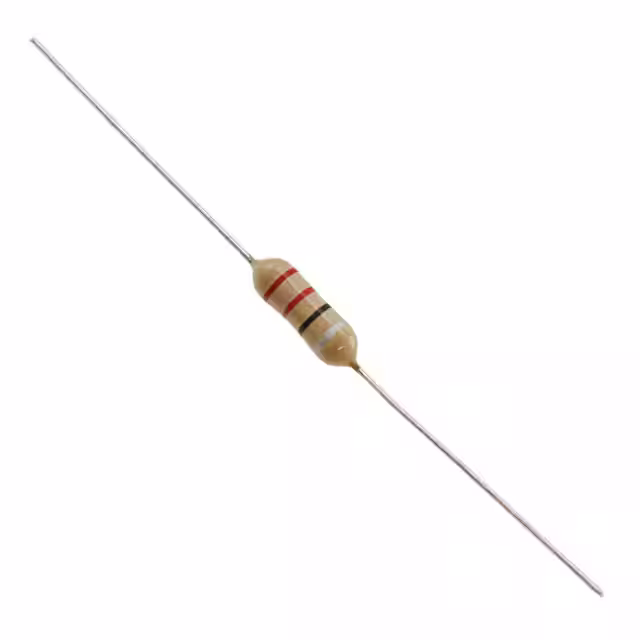

5300-22-RCFIXED IND 56UH 650MA 470 MOHM TH |
1,688 |
|
Datasheet |
5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 650 mA | 400mA | Unshielded | 470mOhm Max | - | 5.8MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
EXLA1V0703-100-RIND MOLDED SHLD 10.0UH 2.8A |
1,684 |
|
Datasheet |
EXLA1V07 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 10 µH | ±20% | 5 A | 7A | Shielded | 56.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.331" L x 0.315" W (8.40mm x 8.00mm) | 0.122" (3.10mm) |
|
MWSA0604S-100MTB01FIXED IND 10UH 65 MOHM SMD |
1,448 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 10 µH | ±20% | - | - | Shielded | 65mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.157" (4.00mm) |
|
|
5300-21-RCFIXED IND 47UH 760MA 350 MOHM TH |
1,175 |
|
Datasheet |
5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 760 mA | 430mA | Unshielded | 350mOhm Max | - | 6MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
MPXV1D0618LR47FIXED IND 470NH 10.7A 8.5MOHM SM |
1,000 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 470 nH | ±20% | 10.7 A | 17A | Shielded | 8.5mOhm Max | - | 95MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.071" (1.80mm) |
|
|
5300-39-RCIND12.7X4.6MM,1500UH10%0.130A,NO |
999 |
|
Datasheet |
5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 130 mA | 78mA | Unshielded | 12Ohm Max | - | 760kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
SPM5010T-1R5M-LRFIXED IND 1.5UH 3.1A 84.7MOHM SM |
997 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 3.1 A | 3.7A | Shielded | 84.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.039" (1.00mm) |
|
NS10145T150MNV8FIXED IND 15UH 3A 45.8 MOHM SMD |
991 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 15 µH | ±20% | 3 A | 3.44A | Shielded | 45.8mOhm Max | - | 19MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
MPXV1D0618LR22FIXED IND 220NH 13.7A 5.3MOHM SM |
990 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 220 nH | ±20% | 13.7 A | 26A | Shielded | 5.3mOhm Max | - | 140MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.071" (1.80mm) |
|
|
MPXV1D0624LR68FIXED IND 680NH 12.6A 7.8MOHM SM |
990 |
|
Datasheet |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 680 nH | ±20% | 12.6 A | 16A | Shielded | 7.8mOhm Max | - | 57MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.094" (2.40mm) |
|

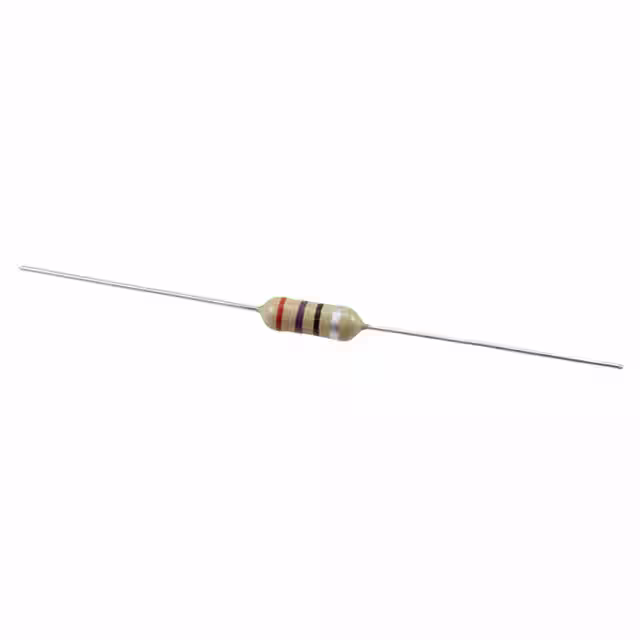

5300-18-RCFIXED IND 27UH 950MA 220 MOHM TH |
988 |
|
Datasheet |
5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 950 mA | 580mA | Unshielded | 220mOhm Max | - | 8MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
5300-10-RCFIXED IND 5.6UH 1.6A 74 MOHM TH |
949 |
|
Datasheet |
5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±10% | 1.6 A | 1.3A | Unshielded | 74mOhm Max | - | 64MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
SPM5010T-2R2M-LRFIXED IND 2.2UH 2.9A 110MOHM SMD |
882 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.9 A | 3.3A | Shielded | 110mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.039" (1.00mm) |
|
|
SPM5010T-4R7M-LRFIXED IND 4.7UH 1.7A 247.3 MOHM |
874 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 1.7 A | 2.4A | Shielded | 247.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.039" (1.00mm) |
