Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLE2020CDERR22M51IHLE-2020CD-51 .22 20% ER E3 |
2,200 |
|
Datasheet |
IHLE-2020CD-51 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 220 nH | ±20% | 18 A | 13A | Shielded | 4.23mOhm Max | - | 164.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.135" (3.43mm) |
|
|
IHLE2020CDER1R0M51IHLE-2020CD-51 1 20% ER E3 |
2,185 |
|
Datasheet |
IHLE-2020CD-51 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1 µH | ±20% | 9.8 A | 10.3A | Shielded | 12.1mOhm Max | - | 66MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.135" (3.43mm) |
|
|
IHLE2020CDER1R5M51IHLE-2020CD-51 1.5 20% ER E3 |
2,123 |
|
Datasheet |
IHLE-2020CD-51 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1.5 µH | ±20% | 7.9 A | 9.4A | Shielded | 19.8mOhm Max | - | 49.2MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.135" (3.43mm) |
|

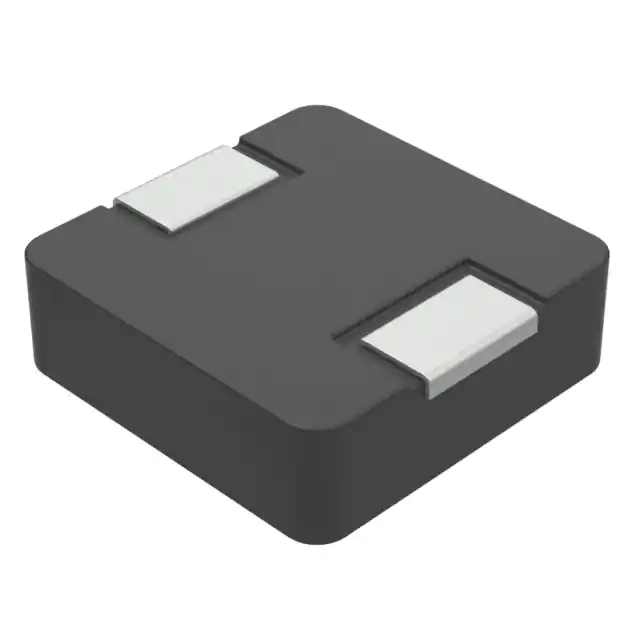

0315CDMCCDS-R56MCFIXED IND 560NH 5.5A 25MOHM SMD |
2,000 |
|
Datasheet |
0315CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 560 nH | ±20% | 5.5 A | 5.2A | Shielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.126" W (3.40mm x 3.20mm) | 0.059" (1.50mm) |
|

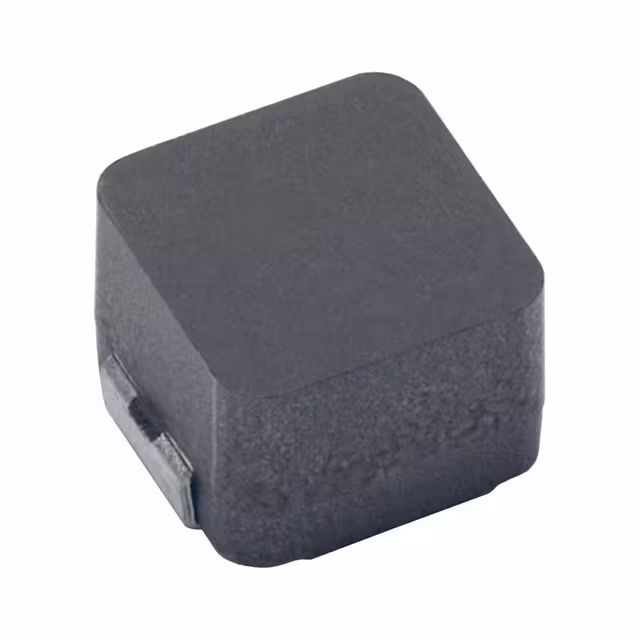

MPX1D0650L1R5FIXED IND 1.5UH 13.2A 8.3MOHM SM |
1,913 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 13.2 A | 12A | Shielded | 8.3mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.197" (5.00mm) |
|
IHLP2525CZER1R5MA1IHLP-2525CZ-A1 1.5 20% ER E3 |
1,688 |
|
Datasheet |
IHLP-2525CZ-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1.5 µH | ±20% | 9 A | 18A | Shielded | 15mOhm Max | - | 40MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
SPM3012T-R47M-LRFIXED IND 470NH 4.5A 34.8MOHM SM |
1,617 |
|
Datasheet |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 4.5 A | 7.3A | Shielded | 34.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.047" (1.20mm) |
|
IHLP3232CZER1R5M01FIXED IND 1.5UH 11A 13.3MOHM SMD |
506 |
|
Datasheet |
IHLP-3232CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 11 A | 24A | Shielded | 13.3mOhm Max | - | 42MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.118" (3.00mm) |
|
|
IHLP3232CZER1R5M11FIXED IND 1.5UH 12.5A 9.94 MOHM |
207 |
|
Datasheet |
IHLP-3232CZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 12.5 A | 11.3A | Shielded | 9.94mOhm Max | - | 35MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.118" (3.00mm) |
|
MWLB0601S-2R2MTFIXED IND 2.220%UH 120MOHM 4000M |
4,993 |
|
Datasheet |
MWLB-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 2.2 µH | ±20% | 2.6 A | 3.5A | Unshielded | 120mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.240" W (6.10mm x 6.10mm) | 0.039" (1.00mm) |
|
ECS-MPI4040R2-3R3-RFIXED IND 3.3UH 2.6A 76 MOHM SMD |
4,055 |
|
Datasheet |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 2.6 A | 5.4A | Shielded | 76mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.059" (1.50mm) |
|
|
ECS-MPI4040R2-1R0-RFIXED IND 1UH 4.6A 25 MOHM SMD |
4,037 |
|
Datasheet |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 4.6 A | 8.9A | Shielded | 25mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.059" (1.50mm) |
|
SRP5015TA-5R6MFIXED IND 5.6UH 2.4A 152MOHM SMD |
3,439 |
|
Datasheet |
SRP5015TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 5.6 µH | ±20% | 2.4 A | 3.2A | Shielded | 152mOhm Max | 10 @ 100kHz | 27MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.059" (1.50mm) |
|
|
MWLB0601S-1R5MTFIXED IND 1.520%UH 90MOHM 4000MA |
2,995 |
|
Datasheet |
MWLB-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 1.5 µH | ±20% | 3.2 A | 3.5A | Unshielded | 90mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.240" W (6.10mm x 6.10mm) | 0.039" (1.00mm) |
|
5300-41-RCFIXED IND 2.2MH 100MA 19 OHM TH |
2,938 |
|
Datasheet |
5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 100 mA | 64mA | Unshielded | 19Ohm Max | - | 640kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
5300-46-RCFIXED IND 5.6MH 63MA 50 OHM TH |
2,920 |
|
Datasheet |
5300 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 5.6 mH | ±10% | 63 mA | 40mA | Unshielded | 50Ohm Max | - | 400kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
SRP5015TA-8R2MFIXED IND 8.2UH 2.1A 210MOHM SMD |
2,847 |
|
Datasheet |
SRP5015TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 8.2 µH | ±20% | 2.1 A | 2.6A | Shielded | 210mOhm Max | 10 @ 100kHz | 22MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.059" (1.50mm) |
|
|
SRP5015TA-R68MFIXED IND 680NH 7A 16.2 MOHM SMD |
2,368 |
|
Datasheet |
SRP5015TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 680 nH | ±20% | 7 A | 13A | Shielded | 16.2mOhm Max | 5 @ 100kHz | 85MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.059" (1.50mm) |
|
P1167.103NLFIXED IND 10UH 2A 50 MOHM SMD |
2,229 |
|
Datasheet |
P1167NL | Nonstandard | Tray | Active | Wirewound | - | 10 µH | ±20% | 2 A | 2.1A | Shielded | 50mOhm Max | - | 26MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.177" (4.50mm) |
|
|
IHLE2020CDER2R2M51IHLE-2020CD-51 2.2 20% ER E3 |
2,190 |
|
Datasheet |
IHLE-2020CD-51 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 2.2 µH | ±20% | 6.5 A | 7.1A | Shielded | 26mOhm Max | - | 39.8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.135" (3.43mm) |
