DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0802512J2B-2T0FAN AXIAL 80X25.4MM 12VDC WIRE |
4,637 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 55.6 CFM (1.56m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 3.84 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.188 lb (85.28 g) |
|
EE92251BX-000U-A99FAN |
2,628 |
|
Datasheet |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EE92252BX-000U-A99FAN |
2,229 |
|
Datasheet |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MR4020M24B1-RSRFAN AXIAL 40X20MM 24VDC WIRE |
2,263 |
|
Datasheet |
MR4020 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 11.5 CFM (0.322m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 29.8dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|
G4020E12B1-RSRFAN AXIAL 40X20MM 12VDC WIRE |
3,627 |
|
Datasheet |
G4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 32.0dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
|
MF17080V2-1000U-H995VDC FAN 17X8MM PWM |
2,346 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 17mm L x 17mm H | 8.00mm | 0.700 CFM (0.020m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control | 14.2dB(A) | 0.33 W | 16500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF17080V1-1000U-H995VDC FAN 17X8MM PWM |
3,851 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 17mm L x 17mm H | 8.00mm | 0.870 CFM (0.025m³/min) | 0.280 in H2O (69.7 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control | 21.5dB(A) | 0.47 W | 21000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
CFM-8025-13-10FAN AXIAL 80X25.4MM 12VDC WIRE |
3,219 |
|
Datasheet |
CFM-80 | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 69.2 CFM (1.94m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Auto Restart | 47.0dB(A) | 5.16 W | 5100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.195 lb (88.45 g) |
|
MR8025L12B-FSRFAN AXIAL 80X25MM 12VDC WIRE |
3,540 |
|
Datasheet |
MR8025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 44.0 CFM (1.23m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart | 31.5dB(A) | - | 3000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.119 lb (53.98 g) |
|
|
MR8025L24B-FSRFAN AXIAL 80X25MM 24VDC WIRE |
3,042 |
|
Datasheet |
MR8025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 44.0 CFM (1.23m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart | 31.5dB(A) | - | 3000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.119 lb (53.98 g) |
|
|
MR8025M24B-FSRFAN AXIAL 80X25MM 24VDC WIRE |
3,594 |
|
Datasheet |
MR8025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 52.0 CFM (1.46m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart | 38.1dB(A) | - | 3600 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.119 lb (53.98 g) |
|
|
AFB0524HBFAN AXIAL 50X15MM 24VDC WIRE |
3,843 |
|
Datasheet |
AFB | Box | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 1.68 W | 5600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|

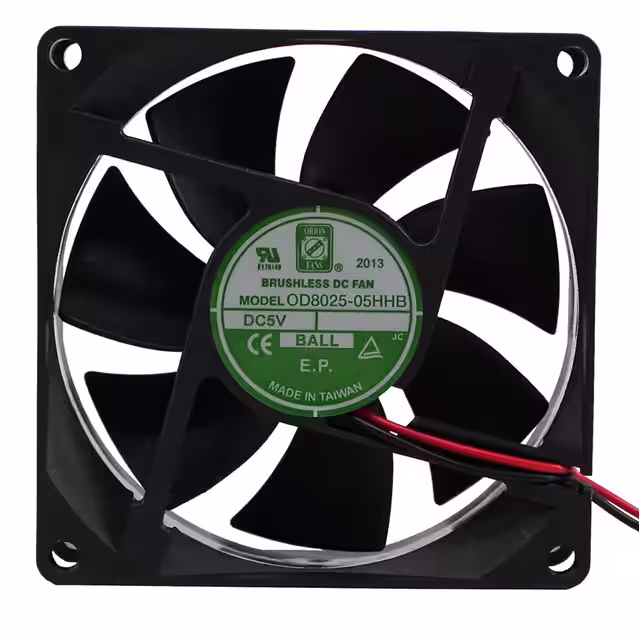

OD8025-05HHBFAN AXIAL 80X25MM BALL 5VDC WIRE |
3,435 |
|
Datasheet |
OD8025-05 | Bulk | Active | 5VDC | Square - 80mm L x 80mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart | 33.0dB | 1.4 W | 3200 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.191 lb (86.64 g) |
|
OD4020-05MBFAN AXIAL 40X20MM BALL 5VDC WIRE |
4,645 |
|
Datasheet |
OD4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 7.5 CFM (0.210m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart | 30.3dB(A) | 1.2 W | 6450 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV | - |
|
OD5010-12MBFAN AXIAL 50X10.5MM 12VDC WIRE |
3,919 |
|
Datasheet |
OD5010 | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 10.50mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | cURus | - |
|
OD8015-12LBFAN AXIAL 80X15MM 12VDC WIRE |
4,662 |
|
Datasheet |
OD8015 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
OD8025-12LLBFAN AXIAL 80X25MM 12VDC WIRE |
2,552 |
|
Datasheet |
OD8025 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 19.0 CFM (0.532m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Auto Restart | 19.0dB | 490 mW | 1600 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | 0.191 lb (86.64 g) |
|
|
NP973427-001 REV ANP973427-001 REV A |
1,775 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CFM-8038B-140-449-20FAN AXIAL 80X37.6MM 12VDC WIRE |
4,219 |
|
Datasheet |
CFM-80B | Box | Active | 12VDC | Square - 80mm L x 80mm H | 37.60mm | 49.4 CFM (1.38m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 45.0dB(A) | 4.56 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8038B-240-449-20FAN AXIAL 80X37.6MM 24VDC WIRE |
2,769 |
|
Datasheet |
CFM-80B | Box | Active | 24VDC | Square - 80mm L x 80mm H | 37.60mm | 49.4 CFM (1.38m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 45.0dB(A) | 5.04 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
