DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|

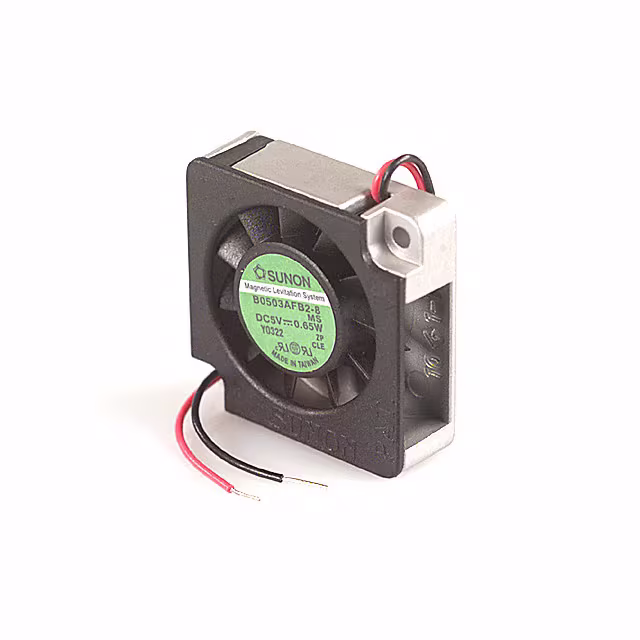

B0503AFB2-8 MSFAN BLOWER 30X10MM 5VDC WIRE |
3,995 |
|
Datasheet |
- | - | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 1.1 CFM (0.031m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Blower | - | 30.0dB(A) | 650 mW | 8000 RPM | 2 Wire Leads | - | - | - | 0.023 lb (10.43 g) |
|
G8020E24B-RSRFAN AXIAL 80X20.8MM 24VDC WIRE |
1,893 |
|
Datasheet |
G8020 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 20.80mm | 49.0 CFM (1.37m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 37.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.185 lb (83.91 g) |
|
|
G8020H12B-RSRFAN AXIAL 80X20.8MM 12VDC WIRE |
4,480 |
|
Datasheet |
G8020 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 20.80mm | 43.0 CFM (1.20m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 33.0dB(A) | - | 3500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.185 lb (83.91 g) |
|
G8020L12B-RSRFAN AXIAL 80X20.8MM 12VDC WIRE |
3,720 |
|
Datasheet |
G8020 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 20.80mm | 31.0 CFM (0.868m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 25.0dB(A) | - | 2500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.185 lb (83.91 g) |
|
|
G8020L24B-RSRFAN AXIAL 80X20.8MM 24VDC WIRE |
4,162 |
|
Datasheet |
G8020 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 20.80mm | 31.0 CFM (0.868m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 25.0dB(A) | - | 2500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.185 lb (83.91 g) |
|
|
G8020M05B-RSRFAN AXIAL 80X20.8MM 5VDC WIRE |
4,650 |
|
Datasheet |
G8020 | Bulk | Active | 5VDC | Square - 80mm L x 80mm H | 20.80mm | 38.0 CFM (1.06m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 29.0dB(A) | - | 3000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.185 lb (83.91 g) |
|
|
G8020M24B-RSRFAN AXIAL 80X20.8MM 24VDC WIRE |
1,766 |
|
Datasheet |
G8020 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 20.80mm | 38.0 CFM (1.06m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 29.0dB(A) | - | 3000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.185 lb (83.91 g) |
|
|
G8020S12B-RSRFAN AXIAL 80X20.8MM 12VDC WIRE |
1,879 |
|
Datasheet |
G8020 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 20.80mm | 24.0 CFM (0.672m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 22.0dB(A) | - | 2000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.185 lb (83.91 g) |
|
G8020S05B-RSRFAN AXIAL 80X20.8MM 5VDC WIRE |
3,096 |
|
Datasheet |
G8020 | Bulk | Active | 5VDC | Square - 80mm L x 80mm H | 20.80mm | 24.0 CFM (0.672m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 22.0dB(A) | - | 2000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.185 lb (83.91 g) |
|
DC0802512M2B-3T0FAN AXIAL 80X25.4MM 12VDC WIRE |
4,845 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 69.9 CFM (1.96m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 7.8 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.188 lb (85.28 g) |
|
|
DC0802512L2B-3T0FAN AXIAL 80X25.4MM 12VDC WIRE |
1,936 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 66.4 CFM (1.86m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 42.0dB(A) | 4.8 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.188 lb (85.28 g) |
|
|
DC0802512I2B-3T0FAN AXIAL 80X25.4MM 12VDC WIRE |
2,147 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 47.6 CFM (1.33m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 2.4 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.188 lb (85.28 g) |
|
|
DC0802524I2B-2T0FAN 80X25MM 24VDC |
3,929 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 55.6 CFM (1.56m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 3.12 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0802524L2B-2T0FAN 80X25MM 24VDC |
4,202 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 66.4 CFM (1.86m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 42.0dB(A) | 4.8 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
G4010E12B1-RSR-WSFAN AXIAL 40X10.3MM 12VDC WIRE |
4,222 |
|
Datasheet |
G4010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.30mm | 11.0 CFM (0.308m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 41.0dB(A) | - | 10000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.026 lb (11.79 g) |
|
|
G4010H12B1-RSR-WSFAN AXIAL 40X10.3MM 12VDC WIRE |
3,508 |
|
Datasheet |
G4010 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.30mm | 9.0 CFM (0.252m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 35.0dB(A) | - | 8000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.026 lb (11.79 g) |
|
|
CFM-4015B-245-176-22DC AXIAL FAN, 40 MM SQUARE, 15 M |
3,873 |
|
Datasheet |
CFM-40B | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.10mm | 5.0 CFM (0.140m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 17.6dB(A) | 0.72 W | 4500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

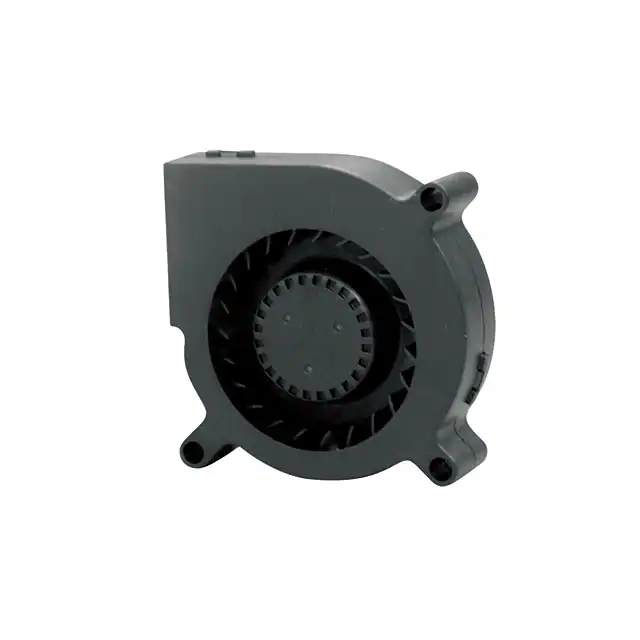

MF60151V1-B00U-A99FAN BLOWER 60X15MM 12VDC WIRE |
3,842 |
|
Datasheet |
MagLev® MF | Bulk | Obsolete | 12VDC | Square/Rounded - 60mm L x 60mm H | 15.00mm | 5.7 CFM (0.160m³/min) | 0.440 in H2O (109.6 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 40.2dB(A) | 1.08 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.081 lb (36.74 g) |
|
CFM-4020BG-1100-389FAN AXIAL 40X20MM 12VDC WIRE |
2,592 |
|
Datasheet |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 11.8 CFM (0.330m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Auto Restart | 38.9dB(A) | 2.4 W | 10000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
GB0535ACB1-8.B2208.GNFAN BLOWER 34.8X6MM 5VDC WIRE |
4,433 |
|
Datasheet |
GB | Bulk | Obsolete | 5VDC | Square - 34.8mm L x 34.8mm H | 6.00mm | 0.880 CFM (0.025m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Blower | - | 31.0dB(A) | 700 mW | 9500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.022 lb (9.98 g) |
