DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0702512M2B-2T2FAN 70X25MM 12VDC MOLEX 22-01-10 |
2,211 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 35.6 CFM (0.997m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 1.08 W | 3600 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0801524J2B-3T0FAN 80X15MM 24VDC TACH |
4,863 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 22.0 CFM (0.616m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.0dB(A) | 1.44 W | 2400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0801524L2B-3T0FAN 80X15MM 24VDC TACH |
4,681 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 27.5 CFM (0.770m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 2.4 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0801524M2B-3T0FAN 80X15MM 24VDC TACH |
3,818 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 31.5 CFM (0.882m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 2.88 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
DC0802012U2B-3T0FAN AXIAL 80X20MM 12VDC WIRE |
4,047 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 51.2 CFM (1.43m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 3.6 W | 4300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.171 lb (77.56 g) |
|
DC0501512M2B-BT0FAN AXIAL 50X15MM 12VDC WIRE |
3,781 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 13.2 CFM (0.370m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 30.0dB(A) | 1.08 W | 4800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.084 lb (38.1 g) |
|
|
DC0802024H2B-2T0FAN 80X20MM 24VDC |
1,764 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 40.2 CFM (1.13m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 36.0dB(A) | 5.76 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0501524M2B-3T0FAN 50X15MM 24VDC TACH |
4,477 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 13.2 CFM (0.370m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 2.16 W | 4800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0501024M2B-3T0FAN 50X10MM 24VDC TACH |
4,096 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 10.00mm | 10.5 CFM (0.294m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 1.92 W | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0802024U2B-2T0FAN 80X20MM 24VDC |
2,048 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 51.2 CFM (1.43m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 43.0dB(A) | 7.2 W | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
MC20100V2-000U-A99FAN AXIAL 20X10MM VAPO 5VDC WIRE |
4,955 |
|
Datasheet |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 20mm L x 20mm H | 10.00mm | 1.5 CFM (0.042m³/min) | 0.200 in H2O (49.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 20.0dB(A) | 780 mW | 14000 RPM | 2 Wire Leads | - | - | CUR, TUV, UL | 0.012 lb (5.44 g) |
|
AFB0712VHD-R00FAN AXIAL 70X20MM 12VDC WIRE |
1,629 |
|
Datasheet |
AFB | Tray | Obsolete | 12VDC | Square - 70mm L x 70mm H | 20.00mm | 46.9 CFM (1.31m³/min) | 0.285 in H2O (71.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 44.3dB(A) | 4.2 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.154 lb (69.85 g) |
|

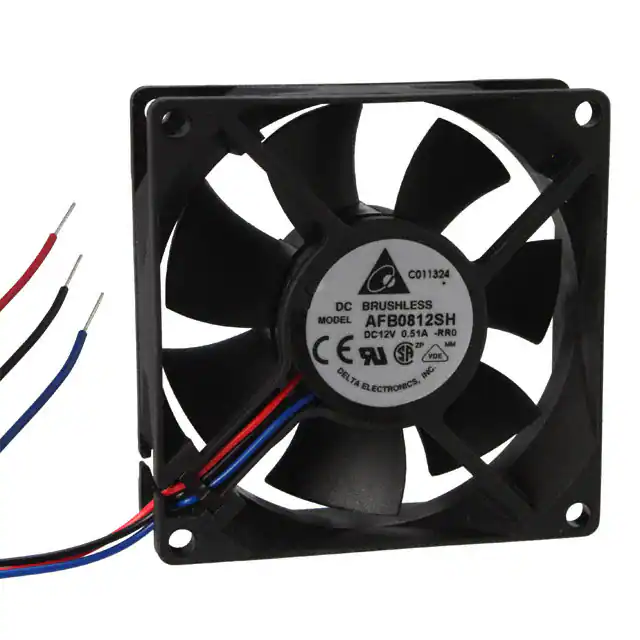

AFB0812SH-RR0FAN AXIAL 80X25.4MM 12VDC WIRE |
4,280 |
|
Datasheet |
AFB | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 46.6 CFM (1.30m³/min) | 0.267 in H2O (66.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 40.0dB(A) | 4.08 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (79.83 g) |
|
MC25101V1-000U-A99FAN AXIAL 25X10MM 12VDC WIRE |
3,515 |
|
Datasheet |
MagLev® MC | Tray | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 3.5 CFM (0.098m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 23.0dB(A) | 690 mW | 13000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.017 lb (7.71 g) |
|
BFB0405HHA-AR00FAN BLOWER 40X10MM 5VDC WIRE |
3,736 |
|
Datasheet |
BFB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 3.0 CFM (0.084m³/min) | 0.564 in H2O (140.5 Pa) | Ball | Blower | Locked Rotor Sensor | 34.5dB(A) | 800 mW | 8500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.027 lb (12.25 g) |
|
BFB0305LA-CF00FAN BLOWER 30X10MM 5VDC WIRE |
3,137 |
|
Datasheet |
BFB | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 1.1 CFM (0.031m³/min) | 0.144 in H2O (35.9 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 450 mW | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.023 lb (10.43 g) |
|
|
AF40200VX-1000U-G995VDC FAN 40X20MM ALARM |
3,474 |
|
Datasheet |
AF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.5dB(A) | 0.9 W | 8600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
AF40201VX-1000U-G9912VDC FAN 40X20MM ALARM |
2,961 |
|
Datasheet |
AF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.5dB(A) | 0.92 W | 8600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
EFB0405VHDFAN AXIAL 40X20MM BALL 5VDC WIRE |
3,382 |
|
Datasheet |
EFB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 10.1 CFM (0.283m³/min) | 0.416 in H2O (103.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.5dB(A) | 1.6 W | 9000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.073 lb (33.11 g) |
|
CFM-6020B-150-368-22FAN AXIAL 60X20MM 12VDC WIRE |
3,028 |
|
Datasheet |
CFM-60B | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 19.1 CFM (0.535m³/min) | 0.180 in H2O (45.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 36.8dB(A) | 2.52 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
