DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|

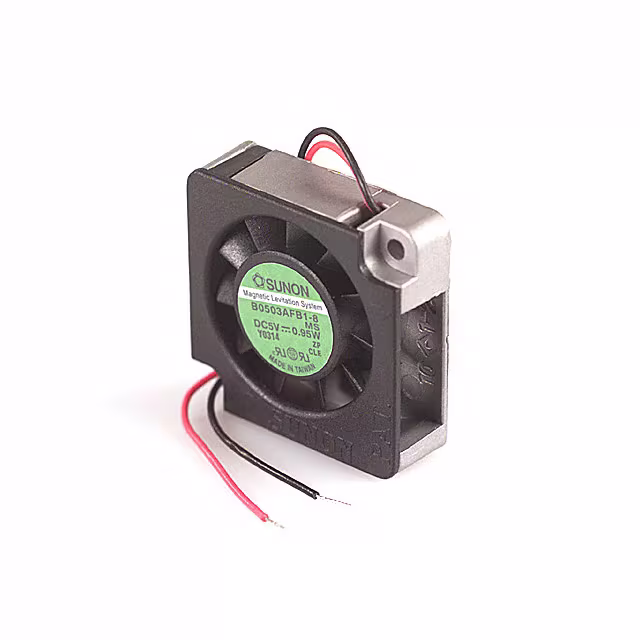

B0503AFB1-8 MSFAN BLOWER 30X10MM 5VDC WIRE |
1,390 |
|
Datasheet |
- | - | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 1.3 CFM (0.036m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Blower | - | 36.0dB(A) | 950 mW | 10000 RPM | 2 Wire Leads | - | - | - | 0.023 lb (10.43 g) |
|
DC0801512M2B-2T2FAN 80X15MM 12VDC MOLEX 22-01-10 |
4,653 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 31.5 CFM (0.882m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.0dB(A) | 1.44 W | 3100 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0801512L2B-2T2FAN 80X15MM 12VDC MOLEX 22-01-10 |
2,094 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 27.5 CFM (0.770m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 30.0dB(A) | 1.2 W | 2700 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0801512J2B-2T2FAN 80X15MM 12VDC MOLEX 22-01-10 |
3,511 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 22.0 CFM (0.616m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 720 mW | 2400 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0501512M2B-2T2FAN 50X15MM 12VDC MOLEX 22-01-10 |
2,274 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 13.2 CFM (0.370m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 30.0dB(A) | 1.08 W | 4800 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

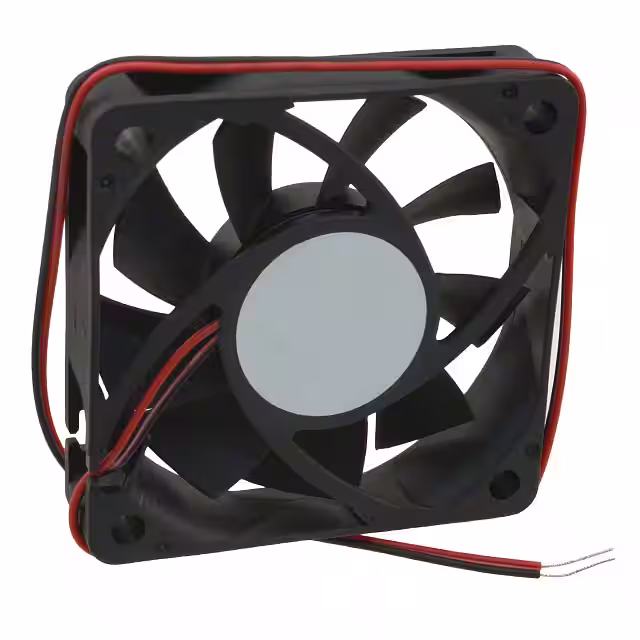

AFB0612HHCFAN AXIAL 60X13MM 12VDC WIRE |
3,839 |
|
Datasheet |
AFB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 13.00mm | 24.7 CFM (0.692m³/min) | 0.204 in H2O (51.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 2.4 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.074 lb (33.56 g) |
|

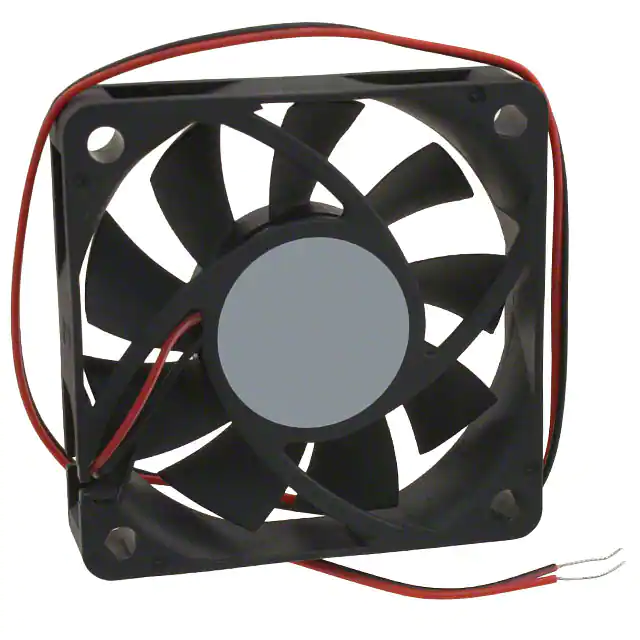

AFB0612HCFAN AXIAL 60X13MM 12VDC WIRE |
3,373 |
|
Datasheet |
AFB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 13.00mm | 21.2 CFM (0.594m³/min) | 0.163 in H2O (40.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.5dB(A) | 1.68 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.074 lb (33.56 g) |
|
|
CBM-9330B-220-346-20DC BLOWER, 92.3 X 92.6 X 30 MM, |
4,349 |
|
Datasheet |
CBM-93B | Box | Active | 24VDC | Rectangular/Rounded - 92.5mm L x 92.3mm H | 29.50mm | 12.0 CFM (0.336m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 34.6dB(A) | 1.68 W | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-9330B-120-346-20DC BLOWER, 92.3 X 92.6 X 30 MM, |
2,627 |
|
Datasheet |
CBM-93B | Box | Active | 12VDC | Rectangular/Rounded - 92.5mm L x 92.3mm H | 29.50mm | 12.0 CFM (0.336m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 34.6dB(A) | 1.44 W | 2000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
EF80252B1-1000U-G99FAN AXIAL 80X25MM 24VDC WIRE |
3,087 |
|
Datasheet |
EF | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 41.0 CFM (1.15m³/min) | 0.180 in H2O (45.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 33.0dB(A) | 1.56 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
EF80252B3-1000U-G9924VDC FAN 80X25MM ALARM |
2,554 |
|
Datasheet |
EF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 33.0 CFM (0.924m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.0dB(A) | 0.89 W | 2600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF80252B2-1000U-G9924VDC FAN 80X25MM ALARM |
2,510 |
|
Datasheet |
EF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 37.0 CFM (1.04m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.0dB(A) | 1.16 W | 2900 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
G4020E12B2-RSFAN AXIAL 40X20MM 12VDC WIRE |
3,888 |
|
Datasheet |
G4020 | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 32.0dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
|
G4020M05B-RSFAN AXIAL 40X20MM BALL 5VDC WIRE |
2,909 |
|
Datasheet |
G4020 | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 9.0 CFM (0.252m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 26.0dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
|
G4020M12B-RSFAN AXIAL 40X20MM 12VDC WIRE |
1,882 |
|
Datasheet |
G4020 | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 9.0 CFM (0.252m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 26.0dB(A) | - | 6000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
|
MB8020M12B-FSFAN AXIAL 80X20MM 12VDC WIRE |
3,685 |
|
Datasheet |
MB8020 | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 26.9 CFM (0.753m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | - | 29.0dB(A) | - | 2500 RPM | 2 Wire Leads | - | - | cUL, UL | 0.137 lb (62.14 g) |
|
|
EF40201B3-1000U-Q9912VDC FAN 40X20MM ALARM/PWM |
3,780 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.4 CFM (0.179m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 16.2dB(A) | 0.42 W | 5200 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF40201B1-1000U-Q9912VDC FAN 40X20MM ALARM/PWM |
2,843 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.9 CFM (0.249m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 24.5dB(A) | 0.66 W | 7200 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF40201B2-1000U-Q9912VDC FAN 40X20MM ALARM/PWM |
1,876 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 21.3dB(A) | 0.48 W | 6200 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF40201BX-1000U-Q9912VDC FAN 40X20MM ALARM/PWM |
3,853 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 10.8 CFM (0.302m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 28.5dB(A) | 0.78 W | 8200 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
