Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82475A1682M000FIXED IND 6.8UH SMD |
496 |
|
Datasheet |
B82475A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | - | - | Unshielded | - | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.370" W (10.40mm x 9.40mm) | 0.228" (5.80mm) |
|

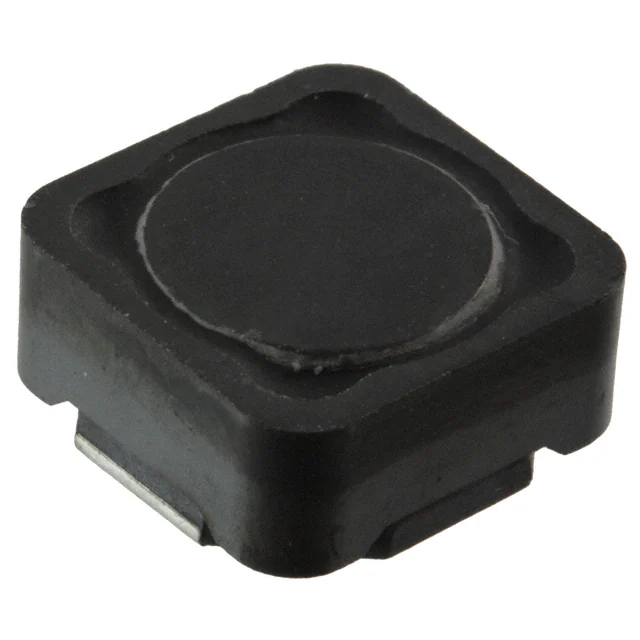

DRA125-151-RFIXED IND 150UH 1.409A 273 MOHM |
494 |
|
Datasheet |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 1.409 A | 1.785A | Shielded | 273mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
SDR2207-150YLFIXED IND 15UH 5A 28.8 MOHM SMD |
474 |
|
Datasheet |
SDR2207 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±15% | 5 A | 9A | Unshielded | 28.8mOhm Max | 38 @ 5MHz | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
104CDMCDDS-100MCFIXED IND 10UH 6.6A 39 MOHM SMD |
421 |
|
Datasheet |
104CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 6.6 A | 10.7A | Shielded | 39mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
B82477G2473M000FIXED IND 47UH 1.8A 75 MOHM SMD |
297 |
|
Datasheet |
B82477G2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.8 A | - | Shielded | 75mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.484" L x 0.484" W (12.30mm x 12.30mm) | 0.236" (6.00mm) |
|
104CDMCDDS-R24MCFIXED IND 240NH 43A 1.15MOHM SMD |
277 |
|
Datasheet |
104CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 240 nH | ±20% | 43 A | 70.4A | Shielded | 1.15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

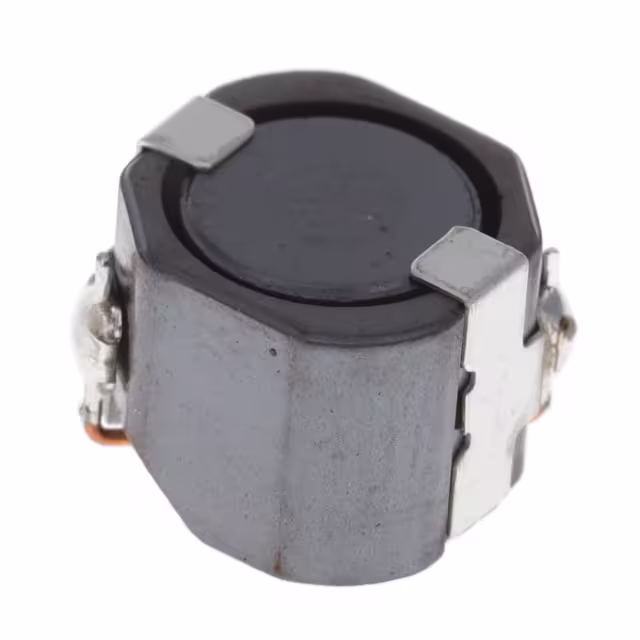

CDRH80D65BT150NP-220MCFIXED IND 22UH 2.83A 49MOHM SMD |
265 |
|
Datasheet |
CDRH80D65B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 2.83 A | 2.94A | Shielded | 49mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.268" (6.80mm) |
|
|
SDR2207-8R2MLFIXED IND 8.2UH 7A 15.5 MOHM SMD |
211 |
|
Datasheet |
SDR2207 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 7 A | 11A | Unshielded | 15.5mOhm Max | 35 @ 3MHz | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
CDRH80D65BT150NP-471MCFIXED IND 470UH 610MA 799MOHM SM |
193 |
|
Datasheet |
CDRH80D65B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±20% | 610 mA | 640mA | Shielded | 799mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.339" L x 0.323" W (8.60mm x 8.20mm) | 0.268" (6.80mm) |
|
PA5405.223NLTFIXED IND 22UH 4.5A 99 MOHM SMD |
2,731 |
|
Datasheet |
PA5405 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 4.5 A | 7A | Shielded | 99mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.138" (3.50mm) |
|
PA3784.121HLTFIXED IND 120NH 70A 0.18MOHM SMD |
2,696 |
|
Datasheet |
PA3784.XXXHL | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 nH | ±10% | 70 A | 94A | Unshielded | 0.18mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.315" W (10.00mm x 8.00mm) | 0.315" (8.00mm) |
|
IHLE2020CDERR22M5AIHLE-2020CD-5A .22 20% ER E3 |
2,068 |
|
Datasheet |
IHLE-2020CD-5A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 220 nH | ±20% | 18 A | 13A | Shielded | 4.23mOhm Max | - | 164.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.135" (3.43mm) |
|
CDR7D28MNNP-101NCFIXED IND 100UH 650MA 655MOHM SM |
2,031 |
|
Datasheet |
CDR7D28MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±25% | 650 mA | 750mA | Shielded | 655mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.118" (3.00mm) |
|
|
IHLE2020CDER1R5M5AIHLE-2020CD-5A 1.5 20% ER E3 |
1,659 |
|
Datasheet |
IHLE-2020CD-5A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1.5 µH | ±20% | 7.9 A | 9.4A | Shielded | 19.8mOhm Max | - | 49.2MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.135" (3.43mm) |
|

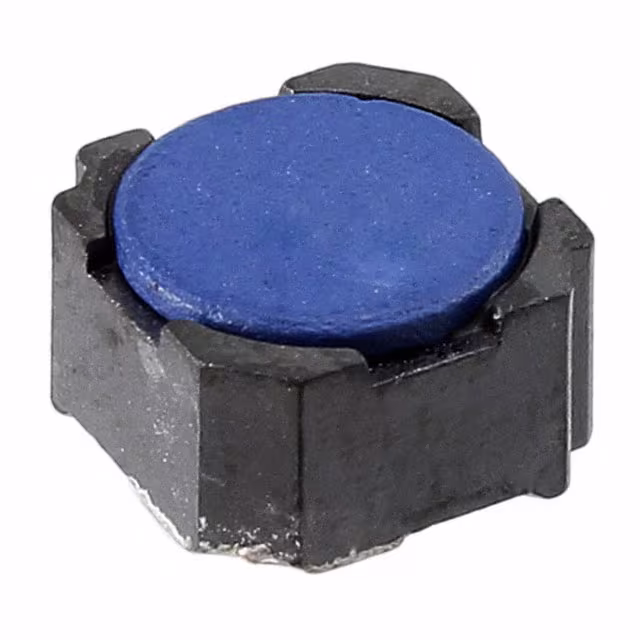

CDR7D43MNNP-470NCFIXED IND 47UH 900MA 247MOHM SMD |
1,654 |
|
Datasheet |
CDR7D43MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±25% | 900 mA | 1.9A | Shielded | 247mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
CDRR75NP-101MCFIXED IND 100UH 830MA 315MOHM SM |
1,122 |
|
Datasheet |
CDRR | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 830 mA | 440mA | Shielded | 315mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.272" L x 0.272" W (6.90mm x 6.90mm) | 0.189" (4.80mm) |
|

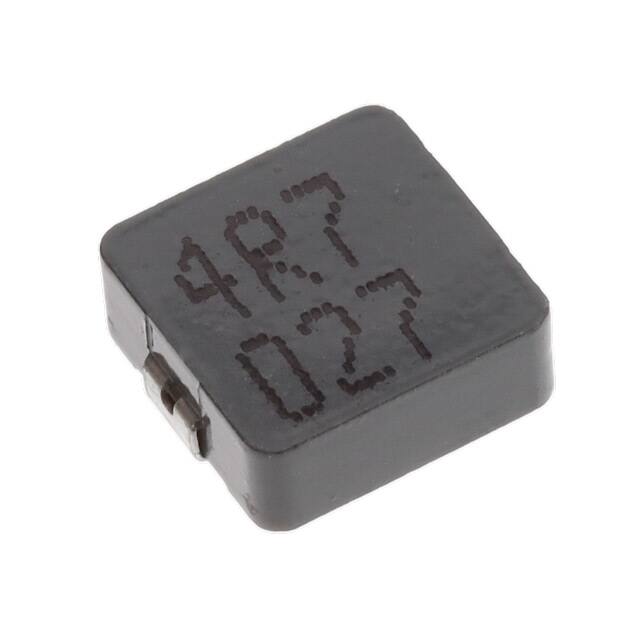

104CDMCDDS-4R7MCFIXED IND 4.7UH 9.5A 18MOHM SMD |
1,004 |
|
Datasheet |
104CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 4.7 µH | ±20% | 9.5 A | 15.3A | Shielded | 18mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

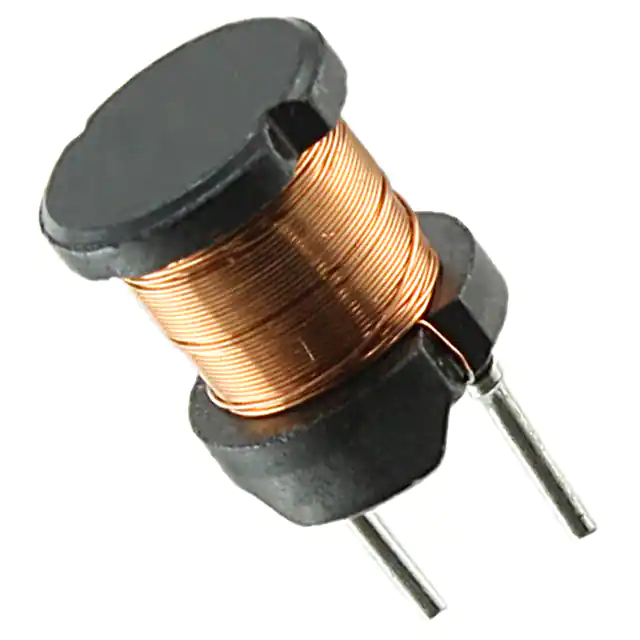

RL895-101K-RCFIXED IND 100UH 900MA 190MOHM TH |
998 |
|
Datasheet |
RL895 | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 900 mA | - | Unshielded | 190mOhm Max | 25 @ 796kHz | 4MHz | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.374" (9.50mm) |
|

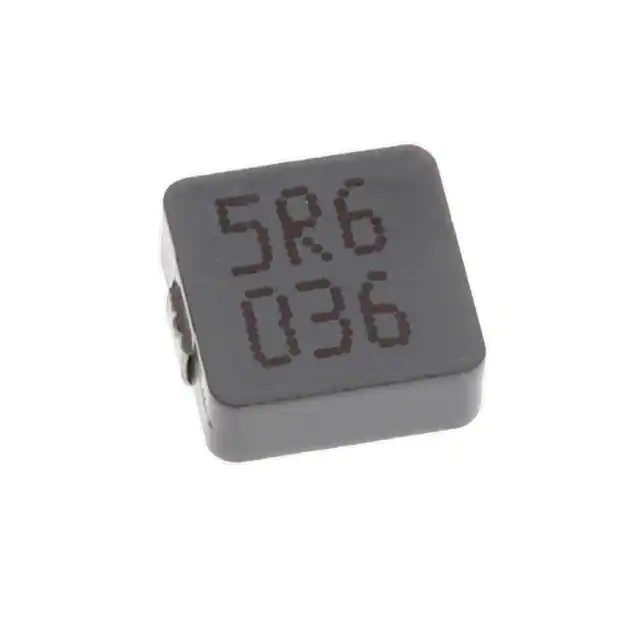

104CDMCDDS-5R6MCFIXED IND 5.6UH 9A 22.5MOHM SMD |
998 |
|
Datasheet |
104CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 5.6 µH | ±20% | 9 A | 14A | Shielded | 22.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
RL895-331K-RCFIXED IND 330UH 510MA 610MOHM TH |
865 |
|
Datasheet |
RL895 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 510 mA | - | Unshielded | 610mOhm Max | 20 @ 796kHz | 2.2MHz | - | -30°C ~ 100°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.374" (9.50mm) |
