Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MWSA0605S-1R5MTFIXED IND 1.5UH 9.5A 10MOHM SMD |
979 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 1.5 µH | ±20% | 9.5 A | 13A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.197" (5.00mm) |
|
|
MWSA0604S-R68MTFIXED IND 680NH 4.8 MOHM SMD |
974 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 680 nH | ±20% | - | - | Shielded | 4.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.157" (4.00mm) |
|
|
MWSA0604S-2R2MTFIXED IND 2.2UH 9A 14 MOHM SMD |
974 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 2.2 µH | ±20% | 9 A | 11A | Shielded | 14mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.157" (4.00mm) |
|
|
MWSA0605S-4R7MTFIXED IND 4.7UH 6A 29 MOHM SMD |
968 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 4.7 µH | ±20% | 6 A | 8A | Shielded | 29mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.197" (5.00mm) |
|
|
MWSA0605S-8R2MTFIXED IND 8.2UH 5.5A 48MOHM SMD |
935 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 8.2 µH | ±20% | 5.5 A | 5.5A | Shielded | 48mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.197" (5.00mm) |
|
|
MWSA0604S-150MTFIXED IND 15UH 3.5A 110MOHM SMD |
925 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 15 µH | ±20% | 3.5 A | 4.5A | Shielded | 110mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.157" (4.00mm) |
|
|
MWSA0605S-3R3MTFIXED IND 3.3UH 8.5A 22MOHM SMD |
925 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 3.3 µH | ±20% | 8.5 A | 10A | Shielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.197" (5.00mm) |
|
|
MWSA0605S-100MTFIXED IND 10UH 4.5A 60 MOHM SMD |
905 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 10 µH | ±20% | 4.5 A | 5.3A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.197" (5.00mm) |
|
|
MWSA0604S-330MTFIXED IND 33UH 240 MOHM SMD |
900 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 33 µH | ±20% | - | - | Shielded | 240mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.157" (4.00mm) |
|
|
MWSA0604S-1R5MTFIXED IND 1.5UH 10 MOHM SMD |
827 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 1.5 µH | ±20% | - | - | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.157" (4.00mm) |
|
|
MWSA0605S-330MTFIXED IND 33UH 2.3A 190MOHM SMD |
721 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 33 µH | ±20% | 2.3 A | 3A | Shielded | 190mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.197" (5.00mm) |
|
|
MWSA0605S-6R8MTFIXED IND 6.8UH 5.8A 41MOHM SMD |
675 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 6.8 µH | ±20% | 5.8 A | 6.3A | Shielded | 41mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.197" (5.00mm) |
|
|
MWSA0604S-4R7MTFIXED IND 4.7UH 7A 30 MOHM SMD |
670 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 4.7 µH | ±20% | 7 A | 9A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.157" (4.00mm) |
|
IHLP3232CZERR22M11FIXED IND 220NH 36A 1.62MOHM SMD |
472 |
|
Datasheet |
IHLP-3232CZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 36 A | 24A | Shielded | 1.62mOhm Max | - | 151MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.118" (3.00mm) |
|

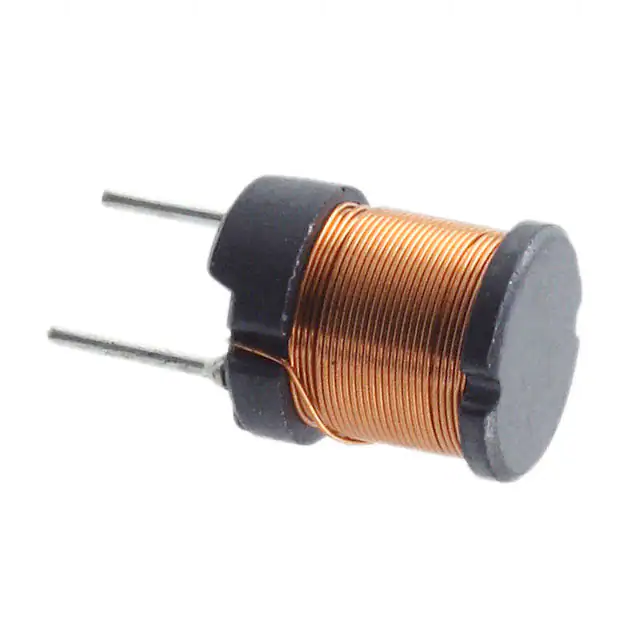

768772221FIXED IND 220UH 900MA 600MOHM TH |
409 |
|
Datasheet |
WE-TI HV | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 900 mA | 1.3A | Unshielded | 600mOhm Max | - | 3.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
IHLP4040DZERR19M11FIXED IND 190NH 40A 0.8 MOHM SMD |
399 |
|
Datasheet |
IHLP-4040DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 190 nH | ±20% | 40 A | 46A | Shielded | 0.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|

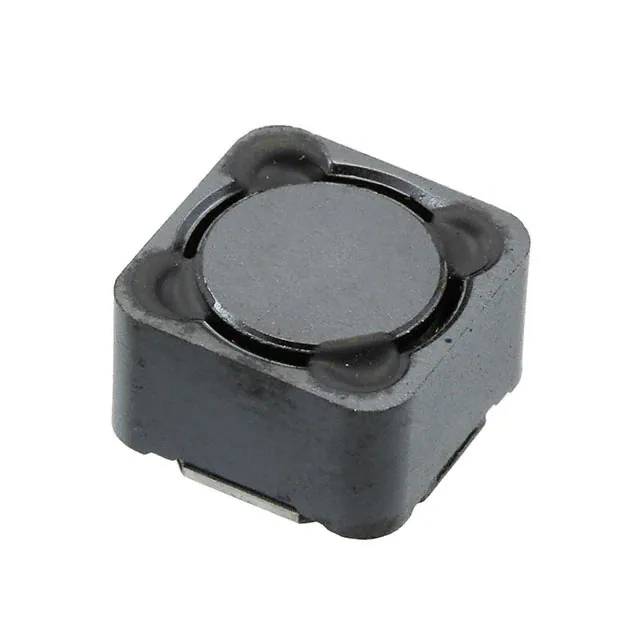

SRR1280A-821KFIXED IND 820UH 700MA 1.5OHM SMD |
399 |
|
Datasheet |
SRR1280A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 820 µH | ±10% | 700 mA | 940mA | Shielded | 1.5Ohm Max | 20 @ 1KHz | 1.4MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1280 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
768772331FIXED IND 330UH 700MA 700MOHM TH |
159 |
|
Datasheet |
WE-TI HV | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 700 mA | 950mA | Unshielded | 700mOhm Max | - | 3.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
SRP5020TA-1R5MFIXED IND 1.5UH 5.5A 30.5MOHM SM |
8,605 |
|
Datasheet |
SRP5020TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 5.5 A | 9.8A | Shielded | 30.5mOhm Max | 15 @ 100kHz | 52MHz | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.079" (2.00mm) |
|

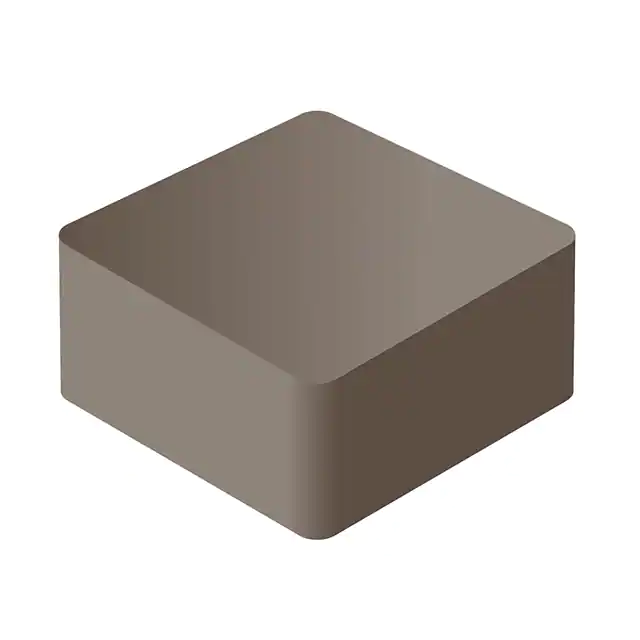

SRP4020FA-R82MFIXED IND 820NH 11.5A 9.5MOHM SM |
7,097 |
|
Datasheet |
SRP4020FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 820 nH | ±20% | 11.5 A | 6.5A | Shielded | 9.5mOhm Max | 20 @ 100kHz | 62MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
