Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP4020FA-2R0MFIXED IND 2UH 8.2A 23.3 MOHM SMD |
2,006 |
|
Datasheet |
SRP4020FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2 µH | ±20% | 8.2 A | 4A | Shielded | 23.3mOhm Max | 15 @ 100kHz | 40MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
AMPLA5030S-2R2MTFIXED IND 2.2UH 5.5A 35 MOHM SMD |
1,933 |
|
Datasheet |
AMPLA5030S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 2.2 µH | ±20% | 5.5 A | 9A | Shielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.118" (3.00mm) |
|

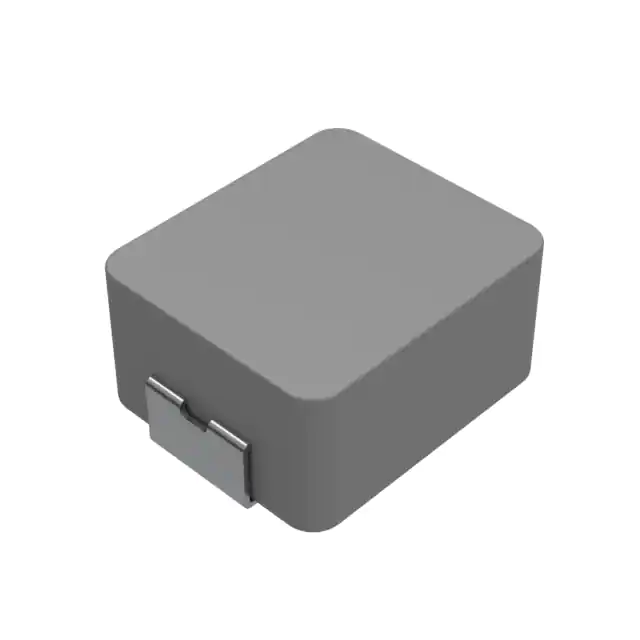

CMLB064T-2R2MSFIXED IND 2.2UH 8.1A 17.3MOHM SM |
1,725 |
|
Datasheet |
CMLB064T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 2.2 µH | ±20% | 8.1 A | 12A | Unshielded | 17.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.157" (4.00mm) |
|
SRP5020TA-5R6MFIXED IND 5.6UH 2.5A 122MOHM SMD |
1,614 |
|
Datasheet |
SRP5020TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 5.6 µH | ±20% | 2.5 A | 4A | Shielded | 122mOhm Max | 19 @ 100kHz | 25MHz | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.079" (2.00mm) |
|
ASPI-1040HI-1R0M-T05FIXED IND 1UH 18A 3.3 MOHM SMD |
1,229 |
|
Datasheet |
ASPI-1040HI | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 1 µH | ±20% | 18 A | 28A | Unshielded | 3.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
NS12575T1R2NNFIXED IND 1.2UH 9.15A 6.96 MOHM |
842 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 9.15 A | 18.08A | Shielded | 6.96mOhm Max | - | 101.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|

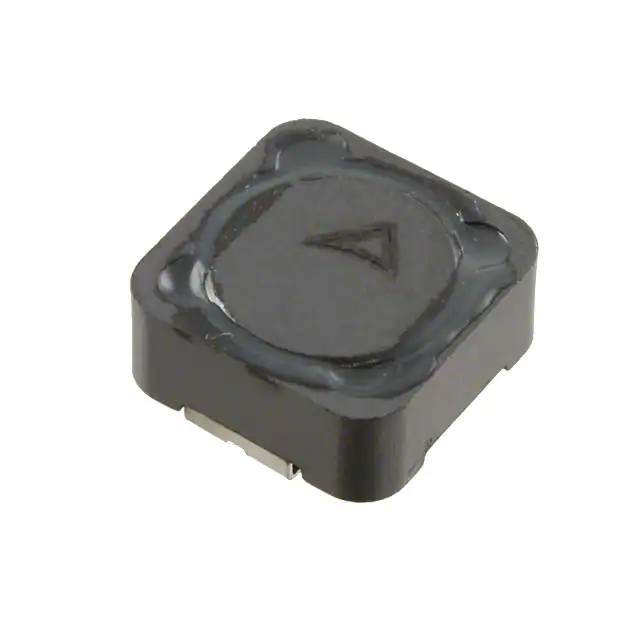

B82477G2474M000FIXED IND 470UH 580MA 770MOHM SM |
451 |
|
Datasheet |
B82477G2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 580 mA | - | Shielded | 770mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.484" L x 0.484" W (12.30mm x 12.30mm) | 0.236" (6.00mm) |
|
ETQ-P3MR68YFNFIXED IND 680NH 12A 6.9 MOHM SMD |
3,427 |
|
Datasheet |
PCC-M0630M | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 12 A | 24A | Shielded | 6.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.236" W (6.50mm x 6.00mm) | 0.118" (3.00mm) |
|
104CDMCDDS-R19MCFIXED IND 190NH 62A 780MOHM SMD |
3,000 |
|
Datasheet |
104CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 190 nH | ±20% | 62 A | 76.5A | Shielded | 780mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
PGL6478.171HLTINDUCTOR PWR BEAD 162NH 31A SMD |
2,000 |
|
Datasheet |
PGL6478.XXXHL | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | - | - | 170 nH | ±15% | 33 A | 44A | Unshielded | 450mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3-SMD | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.140" (3.55mm) |
|
|
PGL6478.141HLTINDUCTOR PWR BEAD 132NH 37A SMD |
2,000 |
|
Datasheet |
PGL6478.XXXHL | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | - | - | 140 nH | ±15% | 33 A | 51A | Unshielded | 450mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3-SMD | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.140" (3.55mm) |
|

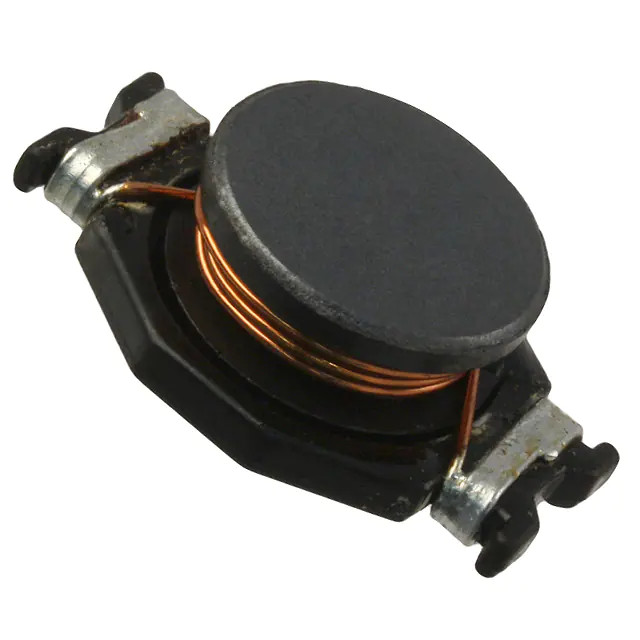

SDR2207-1R8MLFIXED IND 1.8UH 13A 4.5 MOHM SMD |
1,732 |
|
Datasheet |
SDR2207 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±20% | 13 A | 25A | Unshielded | 4.5mOhm Max | 31 @ 3MHz | 51MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|

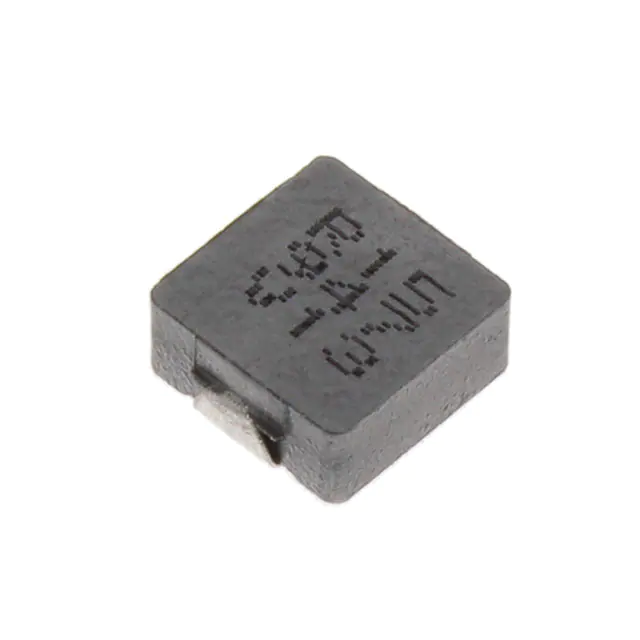

CMLE063T-R15MS0R987FIXED IND 150NH 35A 0.98MOHM SMD |
1,509 |
|
Datasheet |
CMLE063T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 150 nH | ±20% | 35 A | 35A | Shielded | 0.98mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.260" W (7.25mm x 6.60mm) | 0.118" (3.00mm) |
|
HCM1A0703V2-100-RFIXED IND 10UH 3.3A 75 MOHM SMD |
1,330 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 10 µH | ±20% | 3.3 A | 4.4A | Shielded | 75mOhm Max | - | 12MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SDR2207-220YLFIXED IND 22UH 4A 39.4 MOHM SMD |
980 |
|
Datasheet |
SDR2207 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±15% | 4 A | 6.5A | Unshielded | 39.4mOhm Max | 27 @ 3MHz | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
5800-120-RCFIXED IND 12UH 2A 35 MOHM TH |
956 |
|
Datasheet |
5800 | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 2 A | 3.4A | Unshielded | 35mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) | - |
|
|
SDR2207-330YLFIXED IND 33UH 3.4A 58.4MOHM SMD |
733 |
|
Datasheet |
SDR2207 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±15% | 3.4 A | 5.5A | Unshielded | 58.4mOhm Max | 27 @ 3MHz | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
|
SDR2207-680KLFIXED IND 68UH 2.4A 112 MOHM SMD |
643 |
|
Datasheet |
SDR2207 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 2.4 A | 4A | Unshielded | 112mOhm Max | 18 @ 2MHz | 7.9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
|
SDR2207-6R8MLFIXED IND 6.8UH 7.5A 14.2MOHM SM |
533 |
|
Datasheet |
SDR2207 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 7.5 A | 12A | Unshielded | 14.2mOhm Max | 38 @ 3MHz | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
|
NS10165T100MNV8FIXED IND 10UH 4.66A 20.9MOHM SM |
500 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 4.66 A | 5.2A | Shielded | 20.9mOhm Max | - | 16.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.270" (6.85mm) |
