DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

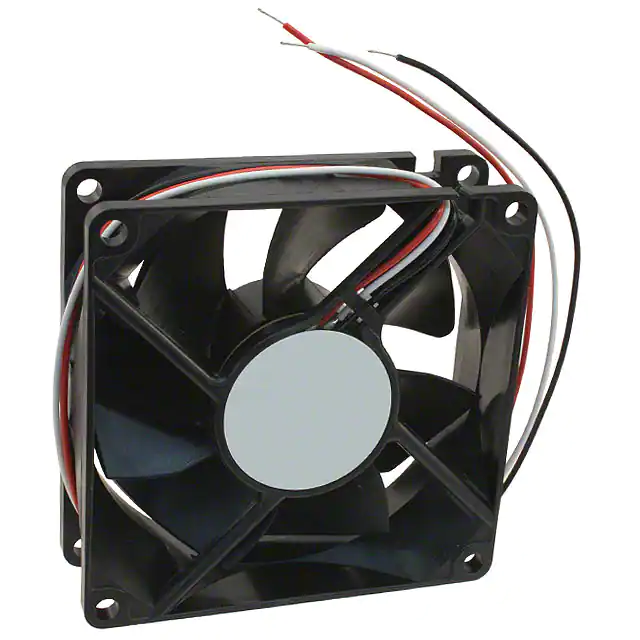

3110KL-05W-B49-D50FAN AXIAL 80X25MM 24VDC WIRE |
2,914 |
|
Datasheet |
3110KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 35.3 CFM (0.988m³/min) | 0.129 in H2O (32.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 31.0dB | 2.4 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-05W-B49-G50FAN AXIAL 80X25MM 24VDC WIRE |
4,768 |
|
Datasheet |
3110KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 35.3 CFM (0.988m³/min) | 0.129 in H2O (32.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 31.0dB | 2.4 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-05W-B59-D00FAN AXIAL 80X25MM 24VDC WIRE |
2,098 |
|
Datasheet |
3110KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 38.8 CFM (1.09m³/min) | 0.149 in H2O (37.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 34.0dB | 2.88 W | 3250 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-05W-B59-D50FAN AXIAL 80X25MM 24VDC WIRE |
3,186 |
|
Datasheet |
3110KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 38.8 CFM (1.09m³/min) | 0.149 in H2O (37.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 34.0dB | 2.88 W | 3250 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-05W-B69-D50FAN AXIAL 80X25MM 24VDC WIRE |
4,635 |
|
Datasheet |
3110KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 40.2 CFM (1.13m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 35.0dB | 3.36 W | 3400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-05W-B69-G50FAN AXIAL 80X25MM 24VDC WIRE |
4,619 |
|
Datasheet |
3110KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 40.2 CFM (1.13m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 35.0dB | 3.36 W | 3400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
MF30060V2-1000U-G995VDC FAN 30X6MM ALARM |
4,191 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 6.00mm | 3.7 CFM (0.104m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.7dB(A) | 0.36 W | 7100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
CFM-8020BF-125-273-20FAN AXIAL 80X20MM 12VDC WIRE |
2,096 |
|
Datasheet |
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 24.5 CFM (0.685m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 27.4dB(A) | 960 mW | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8020BF-135-346-20FAN AXIAL 80X20MM 12VDC WIRE |
4,910 |
|
Datasheet |
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 34.3 CFM (0.960m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.7dB(A) | 1.8 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8025B-225-290-20FAN AXIAL 80X25MM 24VDC WIRE |
1,262 |
|
Datasheet |
CFM-80B | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 30.9 CFM (0.865m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 29.0dB(A) | 1.92 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-9225B-230-356-20FAN AXIAL 92.2X32MM 24VDC WIRE |
2,581 |
|
Datasheet |
CFM-92B | Box | Active | 24VDC | Square - 92.0mm L x 92.0mm H | 25.00mm | 50.0 CFM (1.40m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 35.6dB(A) | 3.6 W | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-5015BF-155-391-20DC BLOWER, 51.7 X 51.25 X 14.9 M |
4,120 |
|
Datasheet |
CBM-50BF | Box | Active | 12VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 15.00mm | 3.5 CFM (0.098m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 39.2dB(A) | 1.8 W | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
PMB1275PNB1-A (2)FAN BLOWER 75.7X30MM 12VDC WIRE |
3,856 |
|
Datasheet |
PMB | - | Obsolete | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 13.6 CFM (0.381m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Blower | - | 43.5dB(A) | 3.6 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.191 lb (86.64 g) |
.jpg)
|

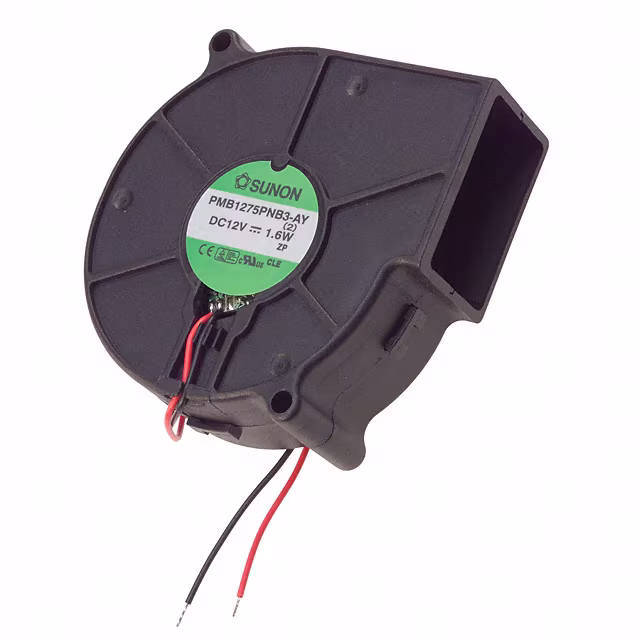

PMB1275PNB3-AY (2)FAN BLOWER 75.7X30MM 12VDC WIRE |
1,919 |
|
Datasheet |
PMB | - | Obsolete | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 9.6 CFM (0.269m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Blower | - | 33.9dB(A) | 1.6 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.191 lb (86.64 g) |
|
CFM-2510B-070-140-22FAN AXIAL 25X10MM BALL 5VDC WIRE |
1,029 |
|
Datasheet |
CFM-25B | Box | Active | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.4 CFM (0.040m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 14.1dB(A) | 600 mW | 7000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-3010B-0100-316-22FAN AXIAL 30X10.5MM 5VDC WIRE |
2,390 |
|
Datasheet |
CFM-30B | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.50mm | 3.2 CFM (0.090m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 31.6dB(A) | 1.2 W | 10000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-3010B-080-267-22FAN AXIAL 30X10.5MM 5VDC WIRE |
3,861 |
|
Datasheet |
CFM-30B | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.50mm | 2.5 CFM (0.070m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 26.8dB(A) | 850 mW | 8000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-5020B-160-360DC BLOWER, 49.2 X 49.8 X 20 MM, |
3,136 |
|
Datasheet |
CBM-50B | Box | Active | 12VDC | Rectangular/Rounded - 49.8mm L x 49.2mm H | 20.00mm | 6.1 CFM (0.171m³/min) | 0.640 in H2O (159.4 Pa) | Ball | Blower | Auto Restart | 36.0dB(A) | 3.24 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
COM-11270BLOWER - SQUIRREL CAGE (12V) |
3,097 |
|
Datasheet |
- | Bulk | Active | 12VDC | - | - | 16.0 CFM (0.448m³/min) | - | - | Blower | - | - | 10 W | 3500 RPM | - | - | - | - | - |
|

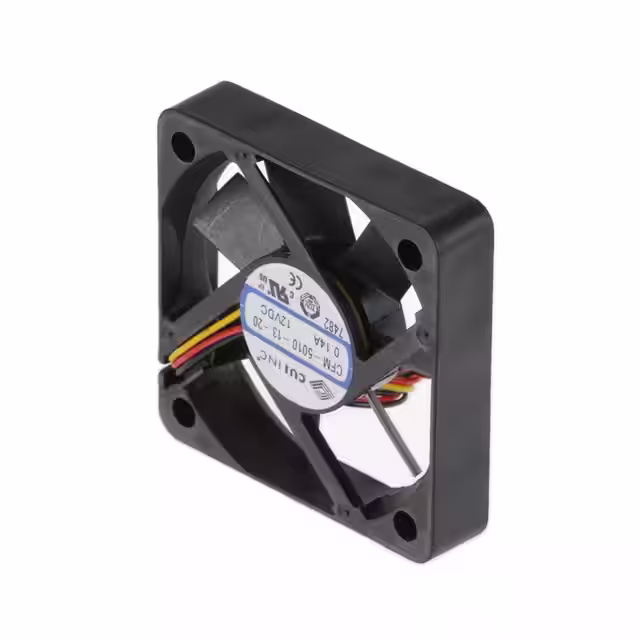

CFM-5010-13-20FAN AXIAL 50X10.6MM 12VDC WIRE |
1,080 |
|
Datasheet |
CFM-50 | Tray | Obsolete | 12VDC | Square - 50mm L x 50mm H | 10.60mm | 16.1 CFM (0.451m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.0dB(A) | 1.68 W | 6100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.046 lb (20.87 g) |
