DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF20060V2-1000U-F995VDC FAN 20X6MM TACH |
2,919 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 20mm L x 20mm H | 6.00mm | 0.700 CFM (0.020m³/min) | 0.080 in H2O (19.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 35.0dB(A) | 0.16 W | 10000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF30100V2-1000U-S995VDC FAN 30X10MM TACH/PWM |
3,261 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 4.7 CFM (0.132m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 21.0dB(A) | 0.4 W | 9500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF30100V2-1000U-F995VDC FAN 30X10MM TACH |
2,549 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 4.7 CFM (0.132m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 21.0dB(A) | 0.4 W | 9500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF30100V1-1000U-F995VDC FAN 30X10MM TACH |
1,963 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 5.5 CFM (0.154m³/min) | 0.200 in H2O (49.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 23.0dB(A) | 0.6 W | 11000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF20060V1-1000U-F995VDC FAN 20X6MM TACH |
1,168 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 20mm L x 20mm H | 6.00mm | 1.1 CFM (0.031m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 24.5dB(A) | 0.32 W | 15500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF20060V3-1000U-F995VDC FAN 20X6MM TACH |
2,952 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 20mm L x 20mm H | 6.00mm | 0.280 CFM (0.008m³/min) | 0.030 in H2O (7.5 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 24.2dB(A) | 0.1 W | 6200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF30100V3-1000U-S995VDC FAN 30X10MM TACH/PWM |
2,256 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 2.4 CFM (0.07m³/min) | 0.070 in H2O (17.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 10.2dB(A) | 0.23 W | 6000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
AFB0505HDFAN AXIAL 50X20MM BALL 5VDC WIRE |
1,424 |
|
Datasheet |
AFB | Bulk | Obsolete | 5VDC | Square - 50mm L x 50mm H | 20.00mm | 15.8 CFM (0.442m³/min) | 0.182 in H2O (45.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 1.65 W | 5600 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.085 lb (38.56 g) |
|
GB0502PFV1-8.B2393.GNFAN BLOWER 25X10MM 5VDC WIRE |
3,353 |
|
Datasheet |
MagLev® GB | Tray | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.0 CFM (0.028m³/min) | 0.300 in H2O (74.7 Pa) | Vapo-Bearing™ | Blower | - | 32.0dB(A) | 500 mW | 12000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.017 lb (7.71 g) |
|
CBM-4010B-160-267-20FAN BLOWER 39.5X10MM 12VDC WIRE |
3,492 |
|
Datasheet |
CBM-40B | Box | Active | 12VDC | Square/Rounded - 39.5mm L x 39.5mm H | 10.00mm | 1.8 CFM (0.050m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 26.7dB(A) | 1.32 W | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

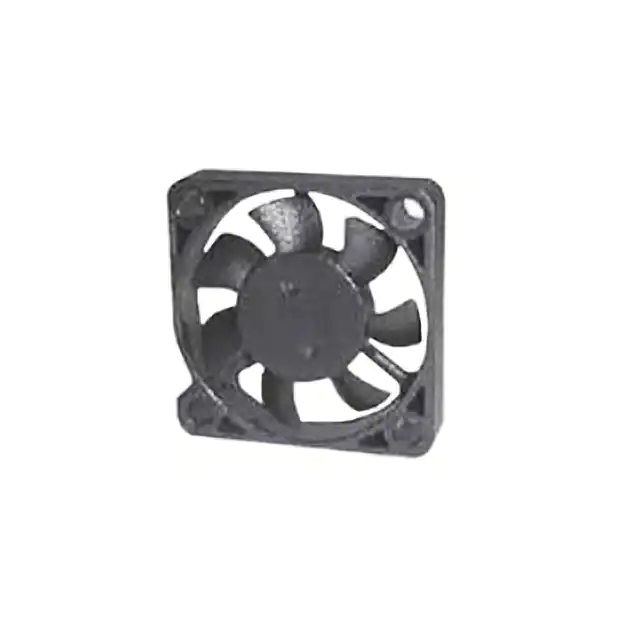

OD3006-12LSS01AFAN AXIAL 30X6MM 12VDC WIRE |
2,403 |
|
Datasheet |
OD3006 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 6.00mm | - | - | Sealed Sleeve | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | - | - |
|
|
OD3006-12MSS01AFAN AXIAL 30X6MM 12VDC WIRE |
4,539 |
|
Datasheet |
OD3006 | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 6.00mm | - | - | Sealed Sleeve | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | - | - |
|

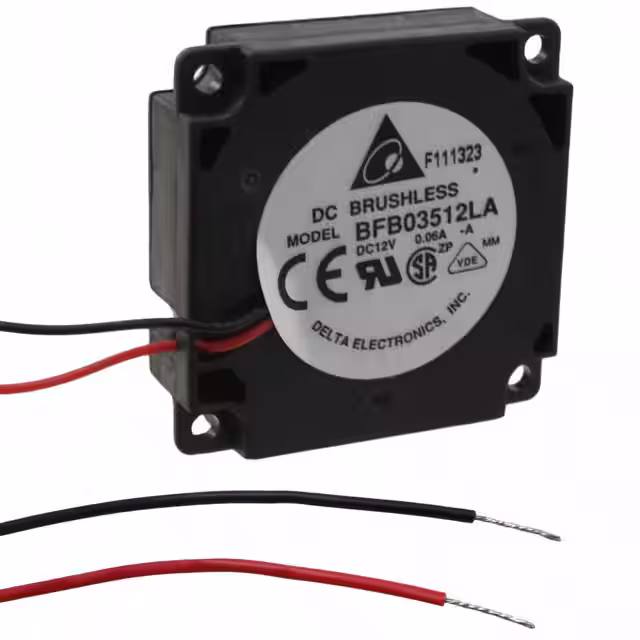

BFB03512LA-AFAN BLOWER 35X10MM 12VDC WIRE |
2,487 |
|
Datasheet |
BFB | Bulk | Obsolete | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 1.3 CFM (0.036m³/min) | 0.163 in H2O (40.6 Pa) | Ball | Blower | Locked Rotor Protection | 24.0dB(A) | 480 mW | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.025 lb (11.34 g) |
|
CFM-4010B-150-195-22FAN AXIAL 40X10.5MM 12VDC WIRE |
1,818 |
|
Datasheet |
CFM-40B | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 4.2 CFM (0.118m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 19.5dB(A) | 600 mW | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-4010B-165-251-22FAN AXIAL 40X10.5MM 12VDC WIRE |
4,629 |
|
Datasheet |
CFM-40B | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 5.5 CFM (0.154m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 25.1dB(A) | 720 mW | 6500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-7015B-250-406-20DC AXIAL FAN, 70 MM SQUARE, 15 M |
4,691 |
|
Datasheet |
CFM-70B | Box | Active | 24VDC | Square - 70mm L x 70mm H | 15.50mm | 32.1 CFM (0.899m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 40.6dB(A) | 4.08 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

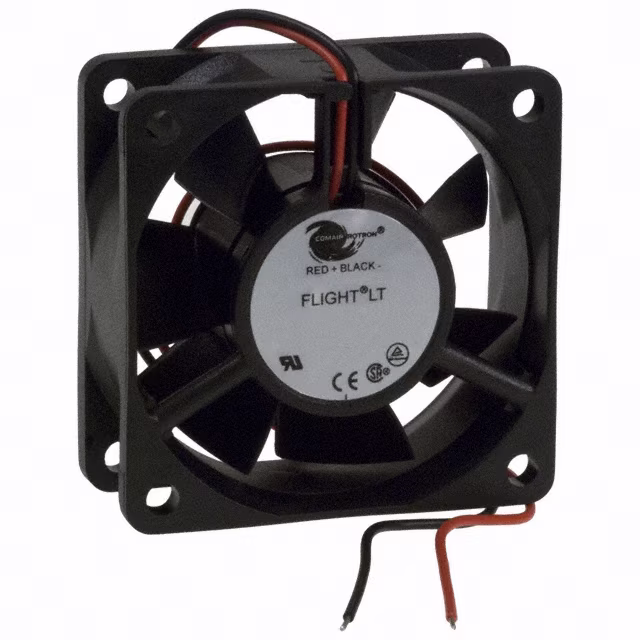

19032704AFAN AXIAL 60X25MM CR0612HB-A70GL |
4,571 |
|
Datasheet |
Flight LT 60 | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 23.2 CFM (0.650m³/min) | 0.185 in H2O (46.1 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 32.3dB(A) | 2.76 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.15 lb (68.04 g) |
|

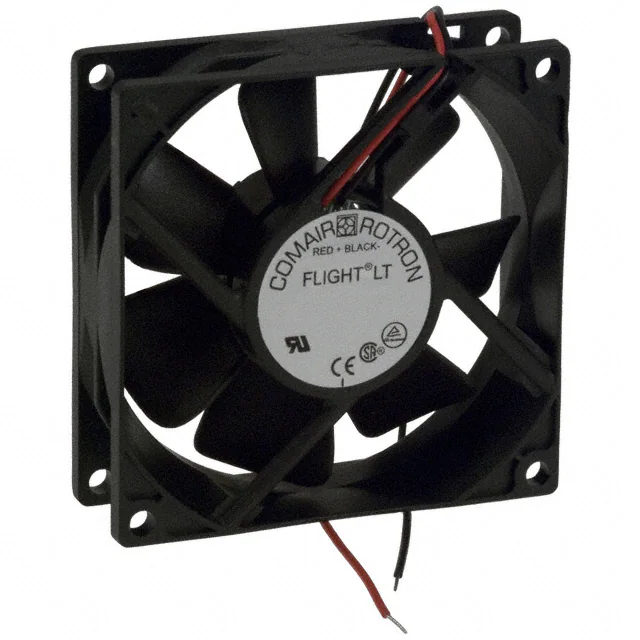

19032738AFAN AXIAL 80X25MM CR0812MB-A70GL |
3,781 |
|
Datasheet |
Flight LT 80 | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 31.0 CFM (0.868m³/min) | 0.112 in H2O (27.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 28.3dB(A) | 1.8 W | 2440 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, TUV, UL | 0.19 lb (86.18 g) |
|

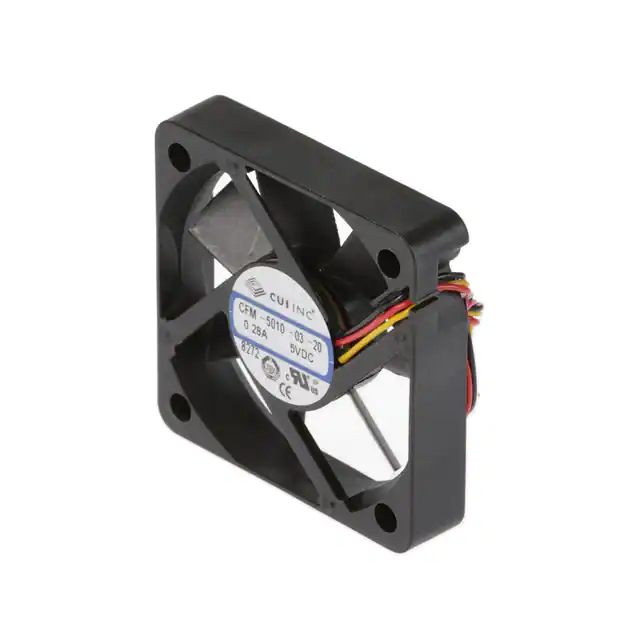

CFM-5010-03-20FAN AXIAL 50X10.6MM 5VDC WIRE |
4,194 |
|
Datasheet |
CFM-50 | Tray | Obsolete | 5VDC | Square - 50mm L x 50mm H | 10.60mm | 16.1 CFM (0.451m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.2dB(A) | 1.4 W | 6100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.046 lb (20.87 g) |
|

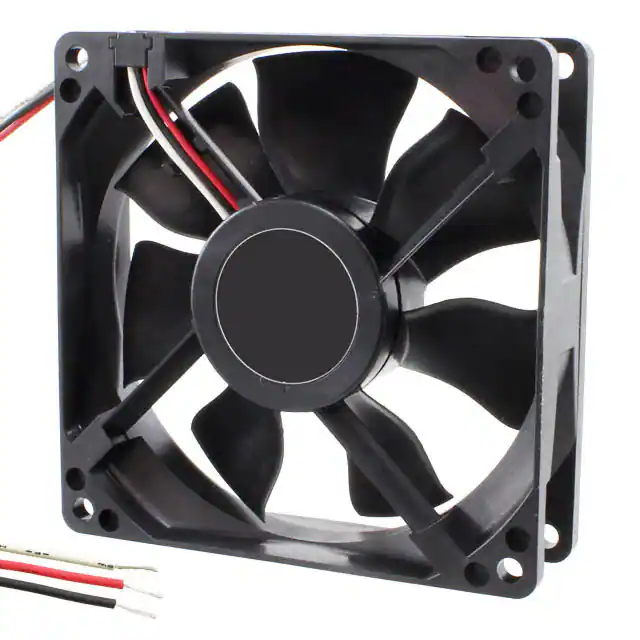

3610SB-05W-B39-E00FAN AXIAL 92X25MM 24VDC WIRE |
4,628 |
|
Datasheet |
09225SA | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 41.3 CFM (1.16m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 28.0dB | 1.2 W | 2400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL, VDE | 0.209 lb (94.8 g) |
