DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF30100V1-1000U-Q995VDC FAN 30X10MM ALARM/PWM |
3,991 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 5.5 CFM (0.154m³/min) | 0.200 in H2O (49.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 23.0dB(A) | 0.6 W | 11000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
CFM-A225SG-123-374-20DC AXIAL FAN, 120 MM SQUARE, 25 |
1,396 |
|
Datasheet |
CFM-A2SG | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 80.2 CFM (2.25m³/min) | 0.170 in H2O (42.3 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.6dB(A) | 5.04 W | 2300 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
EFB0512HA-F00FAN AXIAL 50X10MM 12VDC WIRE |
2,010 |
|
Datasheet |
EFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 11.4 CFM (0.319m³/min) | 0.167 in H2O (41.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 1.2 W | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|
|
EFB0512LA-R00FAN AXIAL 50X10MM 12VDC WIRE |
4,863 |
|
Datasheet |
EFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 7.5 CFM (0.210m³/min) | 0.068 in H2O (17.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 18.0dB(A) | 600 mW | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|
|
EFB0512LA-F00FAN AXIAL 50X10MM 12VDC WIRE |
1,283 |
|
Datasheet |
EFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 7.5 CFM (0.210m³/min) | 0.068 in H2O (17.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 18.0dB(A) | 600 mW | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|
|
EFB0512HA-R00FAN AXIAL 50X10MM 12VDC WIRE |
2,828 |
|
Datasheet |
EFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 11.4 CFM (0.319m³/min) | 0.167 in H2O (41.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 30.0dB(A) | 1.2 W | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|
EE80252B3-000U-999FAN AXIAL 80X25MM 24VDC WIRE |
1,291 |
|
Datasheet |
EE | Tray | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 33.0 CFM (0.924m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | 1.2 W | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.165 lb (74.84 g) |
|
CFM-6025BF-050-351-20FAN AXIAL 60X25.4MM 5VDC WIRE |
4,970 |
|
Datasheet |
CFM-60BF | Box | Active | 5VDC | Square - 60mm L x 60mm H | 25.40mm | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 35.2dB(A) | 2.8 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
MF60151V2-1B00U-A99FAN BLOWER 60X15MM 12VDC WIRE |
3,979 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 15.00mm | 5.1 CFM (0.143m³/min) | 0.330 in H2O (82.2 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 29.0dB(A) | 660 mW | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CCC, CE, CUR, TUV, UL | - |
|
|
MF60151V1-1B00U-A99FAN BLOWER 60X15MM 12VDC WIRE |
3,985 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 15.00mm | 5.7 CFM (0.157m³/min) | 0.460 in H2O (114.6 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 32.8dB(A) | 900 mW | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CCC, CE, CUR, TUV, UL | - |
|
|
EE60201B3-000U-A99Thermal Products |
2,988 |
|
Datasheet |
EE | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 14.0 CFM (0.392m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Auto Restart | 24.5dB(A) | 840 mW | 3000 RPM | 2 Wire Leads | - | - | - | - |
|
|
EE60201B2-000U-A99Thermal Products |
1,985 |
|
Datasheet |
EE | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 19.0 CFM (0.532m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart | 29.0dB(A) | 1.14 W | 3700 RPM | 2 Wire Leads | - | - | - | - |
|
|
MF60151VX-1B00U-A99Thermal Products |
3,962 |
|
Datasheet |
MF | Bulk | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 15.00mm | 6.2 CFM (0.174m³/min) | 0.710 in H2O (176.9 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 37.7dB(A) | 1.56 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
EE60201B1-000U-A99Thermal Products |
4,858 |
|
Datasheet |
EE | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 23.0 CFM (0.644m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart | 34.5dB(A) | 1.62 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|

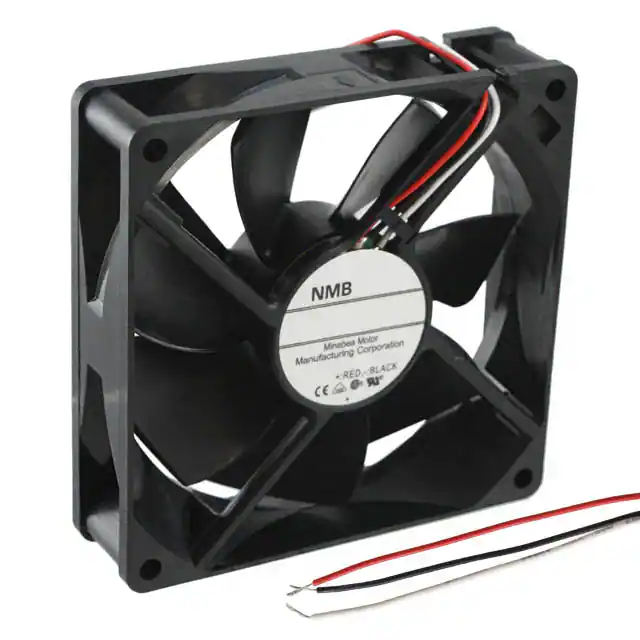

3610KL-05W-B69-D00FAN AXIAL 92X25MM 24VDC WIRE |
3,401 |
|
Datasheet |
3610KL | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 61.8 CFM (1.73m³/min) | 0.229 in H2O (57.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 44.5dB | 4.8 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
3110KL-04W-B19-D00FAN AXIAL 80X25MM 12VDC WIRE |
1,433 |
|
Datasheet |
3110KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 24.7 CFM (0.692m³/min) | 0.067 in H2O (16.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 22.0dB | 1.2 W | 2150 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-04W-B19-D50FAN AXIAL 80X25MM 12VDC WIRE |
3,962 |
|
Datasheet |
3110KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 24.7 CFM (0.692m³/min) | 0.067 in H2O (16.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 22.0dB | 1.2 W | 2150 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-04W-B19-G00FAN AXIAL 80X25MM 12VDC WIRE |
2,511 |
|
Datasheet |
3110KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 24.7 CFM (0.692m³/min) | 0.067 in H2O (16.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 22.0dB | 1.2 W | 2150 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-04W-B19-G50FAN AXIAL 80X25MM 12VDC WIRE |
3,669 |
|
Datasheet |
3110KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 24.7 CFM (0.692m³/min) | 0.067 in H2O (16.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 22.0dB | 1.2 W | 2150 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3110KL-04W-B29-D50FAN AXIAL 80X25MM 12VDC WIRE |
1,812 |
|
Datasheet |
3110KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 28.2 CFM (0.790m³/min) | 0.087 in H2O (21.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 25.0dB | 1.32 W | 2400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
