    Signal Transformer 80-2

    Part No.:
    80-2
    Manufacturer:
    Signal Transformer
    Category:
    Power Transformers
    Package:
    Datasheet:
    BomKey Electronics80-2.pdf
    Description:
    PWR XFMR LAMINATED 160VA CHAS MT
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Related
    Attributes
    Property Value
    Manufacturer
    Signal Transformer
    Series:
    -
    Packaging:
    Box
    Product Status:
    Active
    Type:
    Laminated Core
    Voltage - Primary:
    105V, 115V, 125V
    Voltage - Secondary (Full Load):
    Parallel 40V, Series 80V
    Current - Output (Max):
    Parallel 4A, Series 2A
    Primary Winding(s):
    Single, Multiple Taps
    Secondary Winding(s):
    Dual
    Center Tap:
    Yes
    Power - Max:
    160VA
    Mounting Type:
    Chassis Mount
    Termination Style:
    Solder, Quick Connect
    Size / Dimension:
    104.80mm L x 85.70mm W
    Height - Seated (Max):
    87.30mm
    Voltage - Isolation:
    1500Vrms
    Weight:
    6.8 lbs (3.1 kg)
    Category:
    Power Transformers
    Reset All
    Search Similar
    Result:

    1. How to order 80-2 on BomKey Electronics?

    Currently,, BomKey Electronics only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does BomKey Electronics guarantee that 80-2 is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the 80-2. All suppliers must pass our qualification reviews before they can publish their products including 80-2 on BomKey Electronics; we pay more attention to the channels and quality of 80-2 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence. .

    3. Are the 80-2 price and inventory displayed accurate?

    The price and inventory of 80-2 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of 80-2?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the 80-2 we delivered, we will accept the replacement or return of the 80-2 only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of 80-2.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as 80-2 pin diagram, 80-2 datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

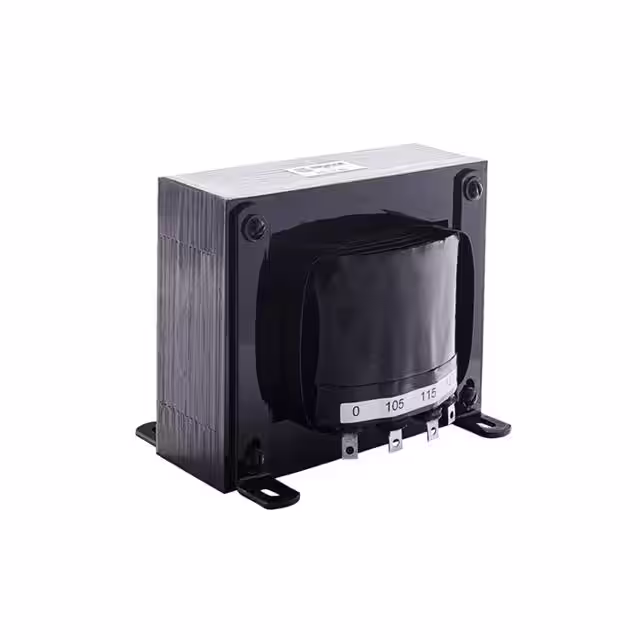

    Images 80-1 80-2 80-4 80-6 80-8
    Part No. 80-1 80-2 80-4 80-6 80-8
    Manufacturer Signal Transformer Signal Transformer Signal Transformer Signal Transformer Signal Transformer
    Series - - - - -
    Packaging Box Box Box Box Box
    Product Status Active Active Active Active Active
    Type Laminated Core Laminated Core Laminated Core Laminated Core Laminated Core
    Voltage - Primary 105V, 115V, 125V 105V, 115V, 125V 105V, 115V, 125V 105V, 115V, 125V 105V, 115V, 125V
    Voltage - Secondary (Full Load) Parallel 40V, Series 80V Parallel 40V, Series 80V Parallel 40V, Series 80V Parallel 40V, Series 80V Parallel 40V, Series 80V
    Current - Output (Max) Parallel 2A, Series 1A Parallel 4A, Series 2A Parallel 8A, Series 4A Parallel 12A, Series 6A Parallel 16A, Series 8A
    Primary Winding(s) Single, Multiple Taps Single, Multiple Taps Single, Multiple Taps Single, Multiple Taps Single, Multiple Taps
    Secondary Winding(s) Dual Dual Dual Dual Dual
    Center Tap Yes Yes Yes Yes Yes
    Power - Max 80VA 160VA 320VA 480VA 640VA
    Mounting Type Chassis Mount Chassis Mount Chassis Mount Chassis Mount Chassis Mount
    Termination Style Solder, Quick Connect Solder, Quick Connect Solder, Quick Connect Solder, Quick Connect Solder, Quick Connect
    Size / Dimension 85.70mm L x 77.70mm W 104.80mm L x 85.70mm W 133.40mm L x 108.00mm W 133.40mm L x 139.70mm W 162.00mm L x 133.40mm W
    Height - Seated (Max) 71.40mm 87.30mm 111.10mm 111.10mm 134.90mm
    Voltage - Isolation 1500Vrms 1500Vrms 1500Vrms 1500Vrms 1500Vrms
    Weight 4 lbs (1.8 kg) 6.8 lbs (3.1 kg) 13 lbs (5.9 kg) 19 lbs (8.6 kg) 21 lbs (9.5 kg)
