    Ohmite RA-T2X-25E

    Part No.:
    RA-T2X-25E
    Manufacturer:
    Ohmite
    Category:
    Heat Sinks
    Package:
    Datasheet:
    BomKey ElectronicsRA-T2X-25E.pdf
    Description:
    HEATSINK TO-218,TO-220,TO-247
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Related
    Attributes
    Property Value
    Manufacturer
    Ohmite
    Series:
    R
    Packaging:
    Box
    Product Status:
    Active
    Type:
    Board Level, Vertical
    Package Cooled:
    TO-218, TO-220, TO-247
    Attachment Method:
    Bolt On and PC Pin
    Shape:
    Rectangular, Fins
    Length:
    1.654" (42.00mm)
    Width:
    0.985" (25.00mm)
    Diameter:
    -
    Fin Height:
    1.000" (25.40mm)
    Power Dissipation @ Temperature Rise:
    2.0W @ 20°C
    Thermal Resistance @ Forced Air Flow:
    1.50°C/W @ 200 LFM
    Thermal Resistance @ Natural:
    4.80°C/W
    Material:
    Aluminum
    Material Finish:
    Black Anodized
    Category:
    Heat Sinks
    Reset All
    Search Similar
    Result:

    1. How to order RA-T2X-25E on BomKey Electronics?

    Currently,, BomKey Electronics only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does BomKey Electronics guarantee that RA-T2X-25E is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the RA-T2X-25E. All suppliers must pass our qualification reviews before they can publish their products including RA-T2X-25E on BomKey Electronics; we pay more attention to the channels and quality of RA-T2X-25E products than any other customer. We strictly implement supplier audits, so you can purchase with confidence. .

    3. Are the RA-T2X-25E price and inventory displayed accurate?

    The price and inventory of RA-T2X-25E fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of RA-T2X-25E?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the RA-T2X-25E we delivered, we will accept the replacement or return of the RA-T2X-25E only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of RA-T2X-25E.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as RA-T2X-25E pin diagram, RA-T2X-25E datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

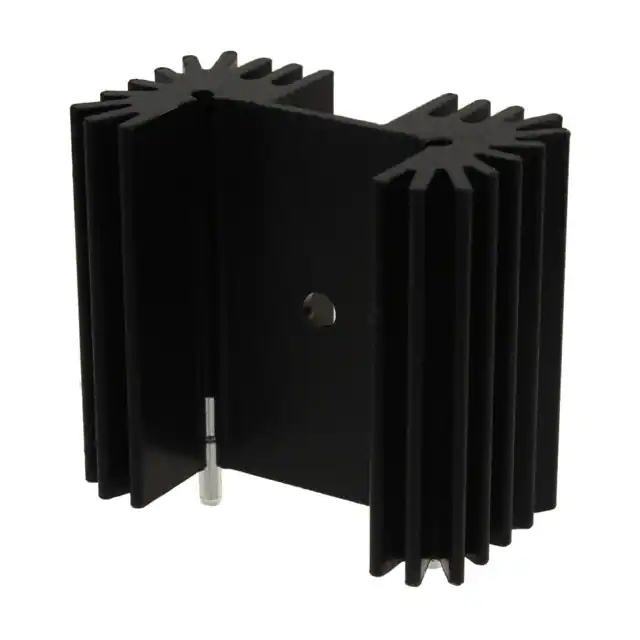

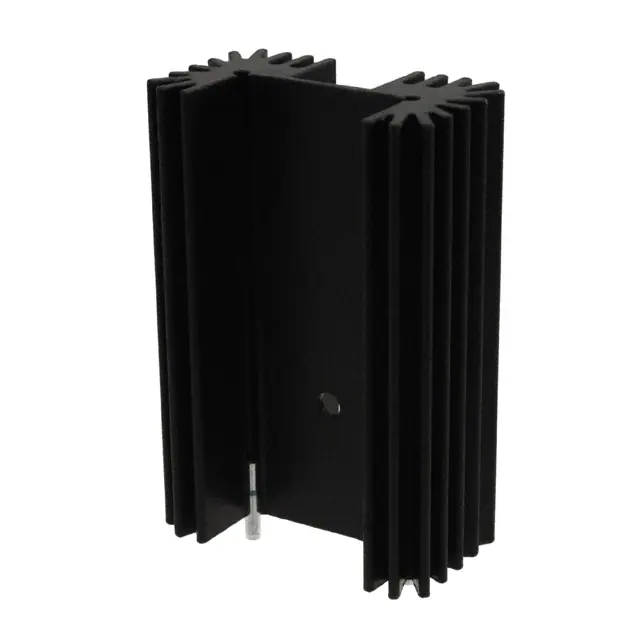

    Images RA-T2X-25E RA-T2X-51E RA-T2X-64E RA-T2X-38E RA-T2X-64E
    Part No. RA-T2X-25E RA-T2X-51E RA-T2X-64E RA-T2X-38E RA-T2X-64E
    Manufacturer Ohmite Ohmite Ohmite Ohmite Ohmite
    Series R R R R R
    Packaging Box Box Box Box Bulk
    Product Status Active Active Active Active Active
    Type Board Level, Vertical Board Level, Vertical Board Level, Vertical Board Level, Vertical Board Level, Vertical
    Package Cooled TO-218, TO-220, TO-247 TO-218, TO-220, TO-247 TO-218, TO-220, TO-247 TO-218, TO-220, TO-247 TO-218, TO-220, TO-247
    Attachment Method Bolt On and PC Pin Bolt On and PC Pin Bolt On and PC Pin Bolt On and PC Pin Bolt On and PC Pin
    Shape Rectangular, Fins Rectangular, Fins Rectangular, Fins Rectangular, Fins Rectangular, Fins
    Length 1.654" (42.00mm) 1.654" (42.00mm) 1.654" (42.00mm) 1.654" (42.00mm) 1.654" (42.00mm)
    Width 0.985" (25.00mm) 0.985" (25.00mm) 0.985" (25.00mm) 0.985" (25.00mm) 0.985" (25.00mm)
    Diameter - - - - -
    Fin Height 1.000" (25.40mm) 2.000" (50.80mm) 2.500" (63.50mm) 1.500" (38.10mm) 2.500" (63.50mm)
    Power Dissipation @ Temperature Rise 2.0W @ 20°C 8.0W @ 40°C 4.0W @ 20°C 14.0W @ 70°C 4.0W @ 20°C
    Thermal Resistance @ Forced Air Flow 1.50°C/W @ 200 LFM 1.00°C/W @ 300 LFM 1.00°C/W @ 200 LFM 1.00°C/W @ 400 LFM 1.00°C/W @ 200 LFM
    Thermal Resistance @ Natural 4.80°C/W 3.50°C/W 3.10°C/W 3.90°C/W 3.10°C/W
    Material Aluminum Aluminum Aluminum Aluminum Aluminum
    Material Finish Black Anodized Black Anodized Black Anodized Black Anodized Black Anodized
