Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

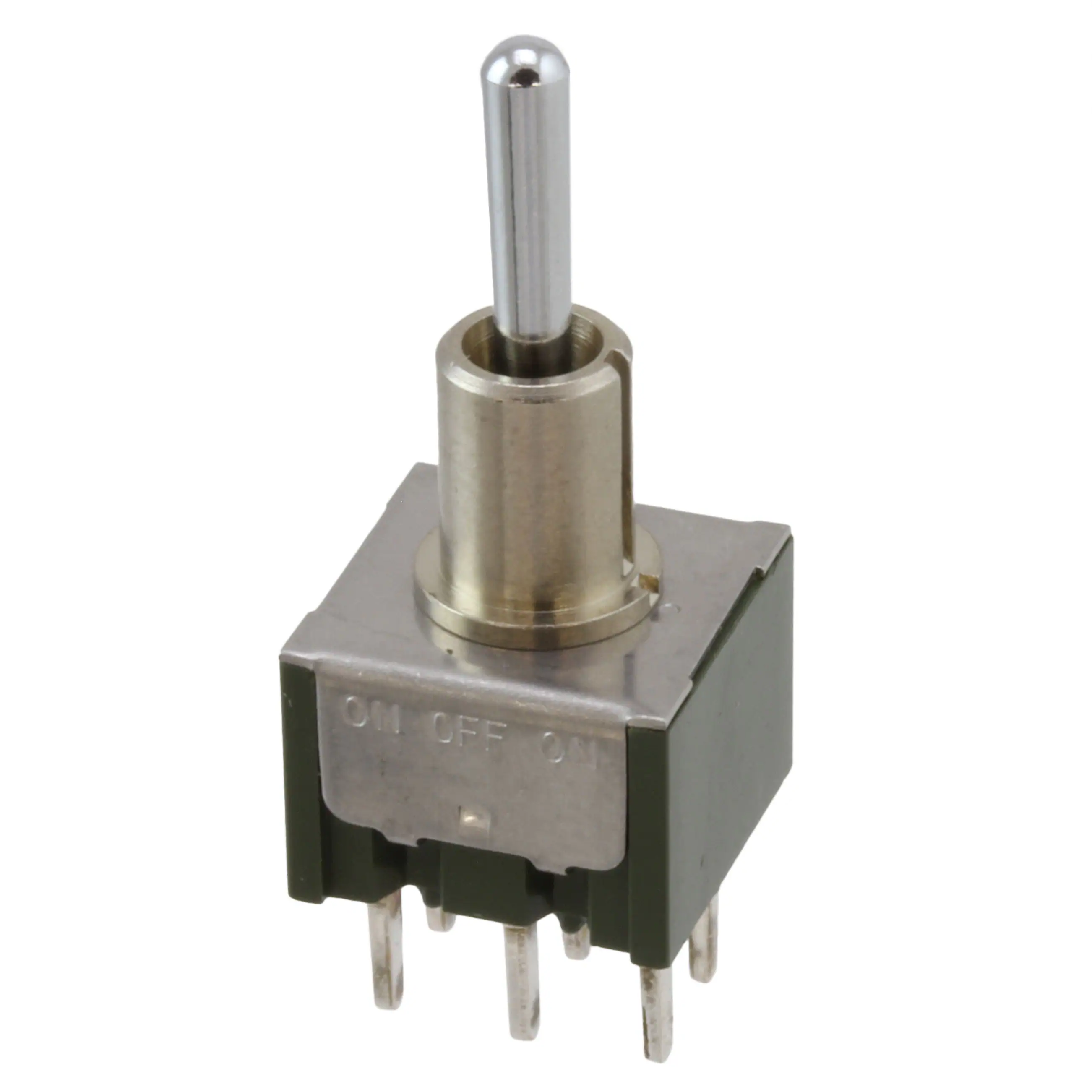

M2023SS2W03SWITCH TOGGLE DPDT 6A 125V |
1,401 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2012S2A1G01SWITCH TOGGLE SPDT 0.4VA 28V |
4,481 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2012SD8W01SWITCH TOGGLE SPDT 6A 125V |
1,201 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2026SS1W02SWITCH TOGGLE SP3T 6A 125V |
3,563 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | Mom-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.50mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
M2023CS1G01SWITCH TOGGLE DPDT 0.4VA 28V |
1,214 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 14.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2023CS1G01-CSWITCH TOGGLE DPDT 0.4VA 28V |
2,382 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Locking Lever | 14.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Red Cap | -30°C ~ 85°C |
|
7101SYZ3QESWITCH TOGGLE SPDT 5A 120V |
3,265 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
ZL31S010200SWITCH TOGGLE SPST 500MA 48V |
4,183 |
|
Datasheet |
ZL | Bulk | Active | Panel Mount | SPST | On-Off | 500mA (AC/DC) | 48 V | 48 V | Standard Round | 5.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.90mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
ZL39S0101SWITCH TOGGLE SPDT 500MA 48V |
2,120 |
|
Datasheet |
ZL | Bulk | Active | Panel Mount | SPDT | On-Off-On | 500mA (AC/DC) | 48 V | 48 V | Standard Round | 5.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.90mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

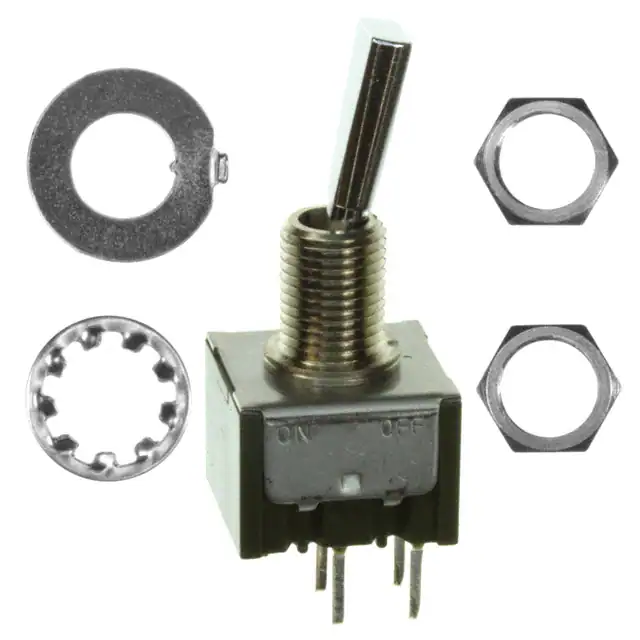

M2021ES1W03SWITCH TOGGLE DPST 6A 125V |
1,049 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

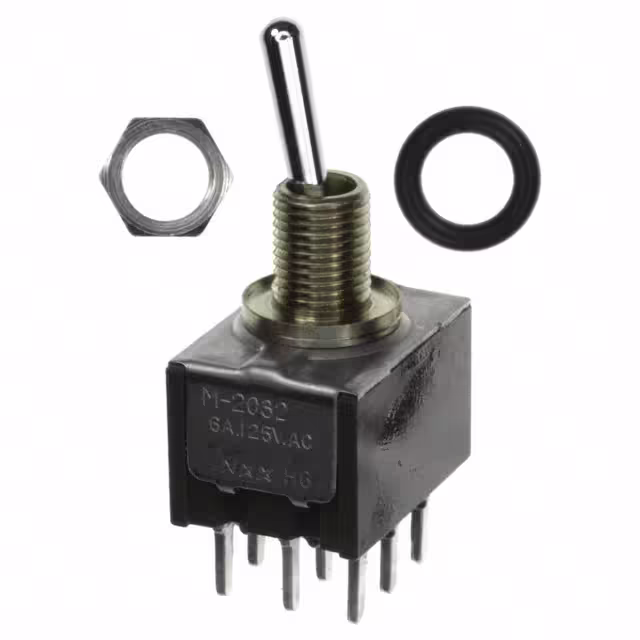

M2032SD3W03SWITCH TOGGLE 3PDT 6A 125V |
1,888 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-DP1-T1-B1-M1GESWITCH TOGGLE DPDT 5A 125V |
1,291 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.39mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-DP1-T1-B1-M3QESWITCH TOGGLE DPDT 5A 125V |
3,793 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.39mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-SP5-T1-B2-M7KESWITCH TOGGLE SPDT 0.4VA 20V |
2,090 |
|
Datasheet |
2M | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.39mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-SP4-T1-B2-M7KESWITCH TOGGLE SPDT 0.4VA 20V |
2,074 |
|
Datasheet |
2M | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.39mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-DP1-T2-B3-M2RESWITCH TOGGLE DPDT 0.4VA 20V |
3,102 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-SP5-T6-B1-M1GESWITCH TOGGLE SPDT 5A 125V |
4,286 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Flatted | 12.10mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-SP4-T5-B1-M1RESWITCH TOGGLE SPDT 0.4VA 20V |
3,125 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | 21.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-SP4-T2-B9-M2GESWITCH TOGGLE SPDT 5A 125V |
1,766 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Standard Round | 5.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-DP1-T2-B3-M2GESWITCH TOGGLE DPDT 5A 125V |
2,457 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 5.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
