Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4-1825137-2SWITCH TOGGLE SPDT 5A 120V |
1,725 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP6T6B12M7RESWITCH TOGGLE SP3T 0.4VA 20V |
4,170 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle, Vertical | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
2M1-DP1-T1-B3-M2GESWITCH TOGGLE DPDT 5A 125V |
2,675 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.39mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-SP1-T7-B0-M2RE/NO HDWSWITCH TOGGLE SPST 0.4VA 20V |
3,868 |
|
Datasheet |
2M | Bulk | Active | Through Hole | SPST | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Anti-Rotation | 11.68mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-SP1-T7-B0-M2RESWITCH TOGGLE SPST 0.4VA 20V |
2,316 |
|
Datasheet |
2M | Bulk | Active | Through Hole | SPST | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Anti-Rotation | 11.68mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-SP5-T1-B1-M6PESWITCH TOGGLE SPDT 5A 125V |
2,976 |
|
Datasheet |
2M | Bulk | Active | Panel Mount, Right Angle | SPDT | On-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.39mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ASP12B3M7RTSWITCH TOGGLE SPDT 0.4VA 20V |
2,930 |
|
Datasheet |
34A | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
34ASP51B3M6RTSWITCH TOGGLE SPDT 0.4VA 20V |
4,724 |
|
Datasheet |
34A | Bulk | Active | Panel Mount, Right Angle | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.19mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
34BWSP11B4V3RTSWITCH TOGGLE SPDT 0.4VA 20V |
1,829 |
|
Datasheet |
34B | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.60mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B1RKVSWITCH TOGGLE SPDT 0.4VA 28V |
1,976 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Lever for Cap | 5.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

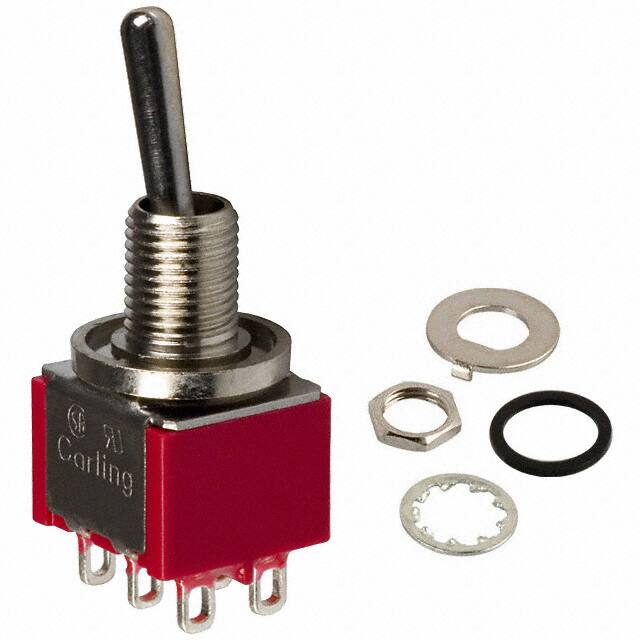

2M1-DP1-T1-B9-M1QESWITCH TOGGLE DPDT 5A 125V |
3,391 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-DP1-T1-B9-M2QESWITCH TOGGLE DPDT 5A 125V |
2,027 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.39mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-DP1-T5-B5-M1QESWITCH TOGGLE DPDT 5A 125V |
2,965 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Paddle | 21.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-DP1-T1-B2-M6QESWITCH TOGGLE DPDT 5A 125V |
3,741 |
|
Datasheet |
2M | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.39mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-DP1-T5-B3-M2QESWITCH TOGGLE DPDT 5A 125V |
4,814 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Paddle | 21.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2M1-DP1-T2-B2-M6QESWITCH TOGGLE DPDT 5A 125V |
3,845 |
|
Datasheet |
2M | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 5.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2S1-MDP1-T1-B1-M2KESWITCH TOGGLE DPDT 0.4VA 20V |
3,785 |
|
Datasheet |
2S | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 9.50mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
1003P1T1B9M1QESWITCH TOGGLE 3PDT 5A 120V |
2,392 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ASP31B2M7RTSWITCH TOGGLE SPDT 0.4VA 20V |
3,603 |
|
Datasheet |
34A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|

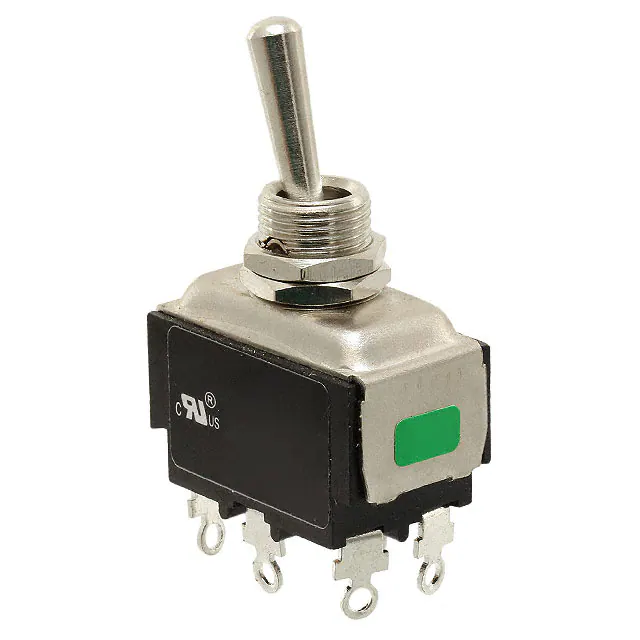

ST22GD00SWITCH TOGGLE DPDT 20A 125V |
1,842 |
|
Datasheet |
ST2 | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | M12 x 1 | - | - | 0°C ~ 85°C |
