Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

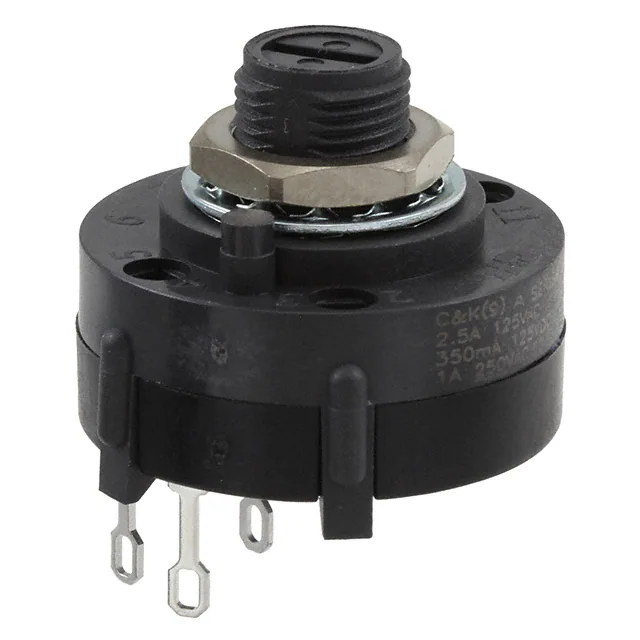

A102S1RNZQSWITCH ROTARY 2POS 2.5A 125V |
1,732 |
|
Datasheet |
A | Tray | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Screwdriver Slot | Flush | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|

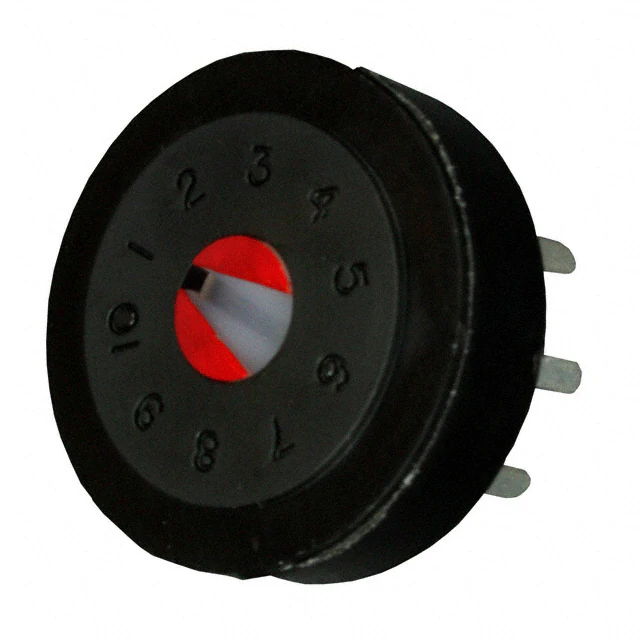

R10815RS02QSWITCH ROTARY 8POS 5A 125V |
1,155 |
|
Datasheet |
R | Tray | Active | 8 | Fixed | 1 | 1 | SP8T, Adjacent Contact | Non-Shorting (BBM) | 5A (AC), 500mA (DC) | 125 V | 125 V | Screwdriver Slot | Flush | 36° | Copper | Silver | Through Hole | PC Pin | - | 10.29mm |
|
A10003MNCQKSWITCH ROTARY 12POS 2.5A 125V |
4,448 |
|
Datasheet |
A | Tray | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals, Splashproof Bushing Seal | 14.48mm |
|
|
A11005RNCQKSWITCH ROTARY 10POS 2.5A 125V |
4,371 |
|
Datasheet |
A | Tray | Active | 10 | Fixed | 1 | 1 | SP10T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals, Splashproof Bushing Seal | 14.48mm |
|

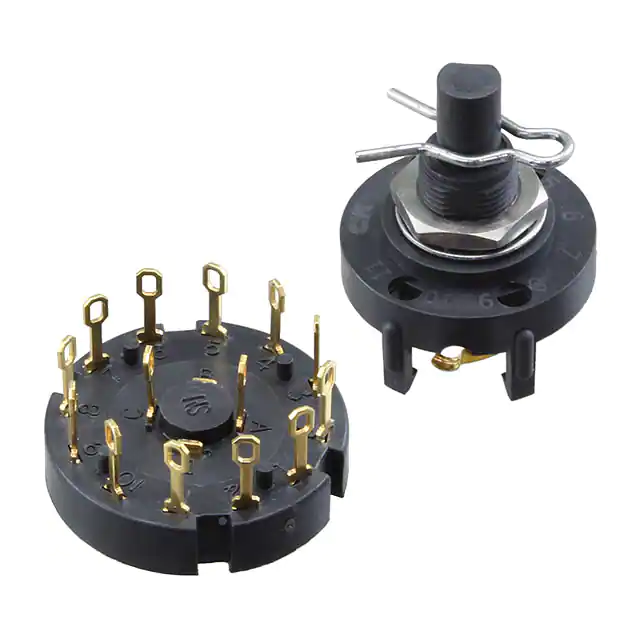

A20603MNMCBSWITCH ROTARY 6POS 0.4VA 20V |
2,460 |
|
Datasheet |
A | Tray | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | Modular Base | 14.48mm |
|

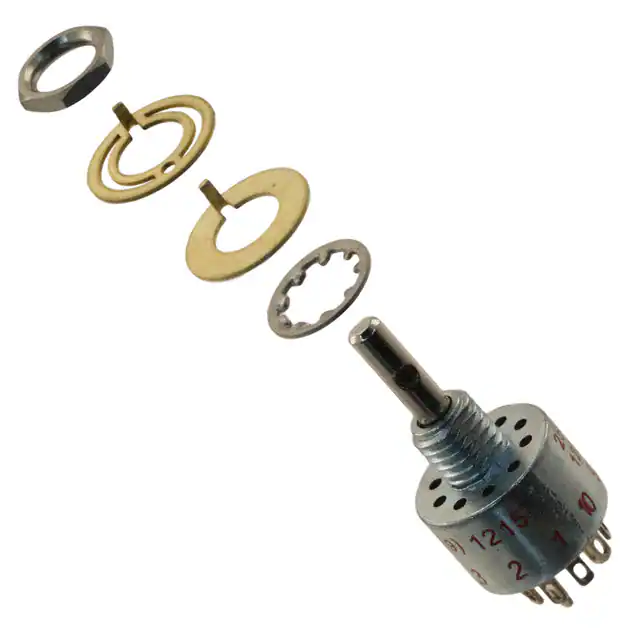

MF00L1NZQDSWITCH ROTARY 5POS 250MA 125V |
4,451 |
|
Datasheet |
M | Tray | Active | 5 | Continuous | 1 | 2 | DP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 15.88mm |
|
|
A30305RNZGSWITCH ROTARY 3POS 2.5A 125V |
3,348 |
|
Datasheet |
A | Tray | Active | 3 | Fixed | 1 | 3 | 3P3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Gold | Panel Mount | Solder Lug | - | 20.83mm |
|

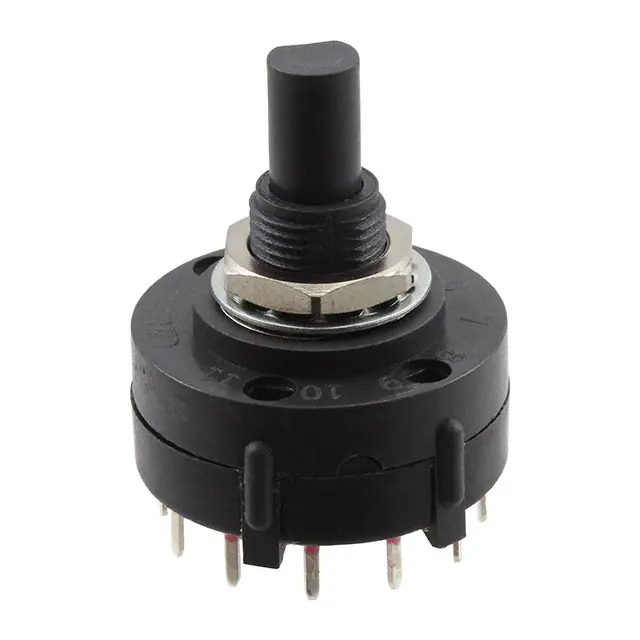

A40303RNCQESWITCH ROTARY 3POS 2.5A 125V |
1,457 |
|
Datasheet |
A | Tray | Active | 3 | Fixed | 1 | 4 | 4P3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals | 14.48mm |
|
50A90-01-1-02NSWITCH ROTARY 2POS 150MA 115V |
1,096 |
|
Datasheet |
50 | Bulk | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 90° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|

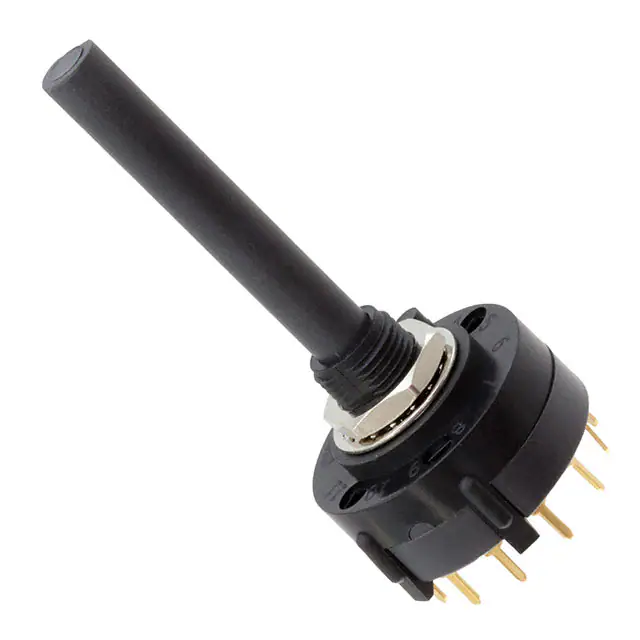

A30415RNCBSWITCH ROTARY 4POS 0.4VA 20V |
4,715 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 1 | 3 | 3P4T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
|
A11442MNZBSWITCH ROTARY 2POS 0.4VA 20V |
3,239 |
|
Datasheet |
A | Bulk | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Round (6mm Dia) | 42.00mm | 90° | Copper Alloy | Gold | Panel Mount | Solder Lug | - | 20.83mm |
|

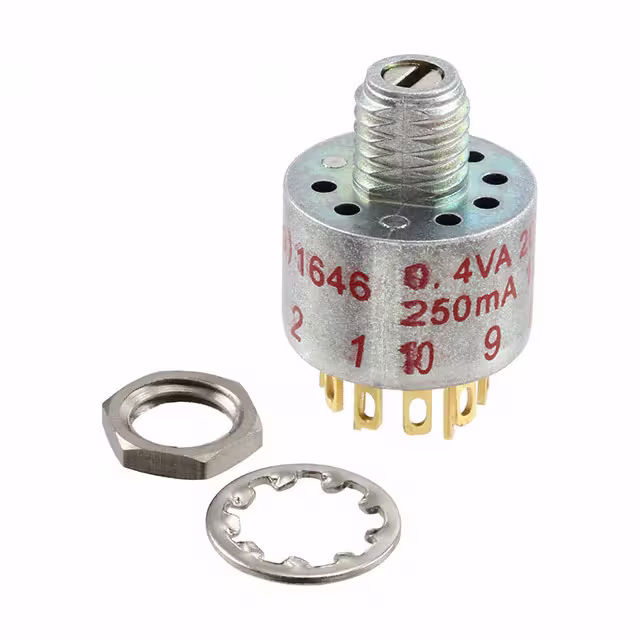

MB03L2NZGDSWITCH ROTARY 3POS 250MA 125V |
2,131 |
|
Datasheet |
M | Tray | Active | 3 | Fixed | 1 | 2 | DP3T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Screwdriver Slot | Flush | 36° | Copper Alloy | Gold | Panel Mount | Solder Lug | - | 14.86mm |
|

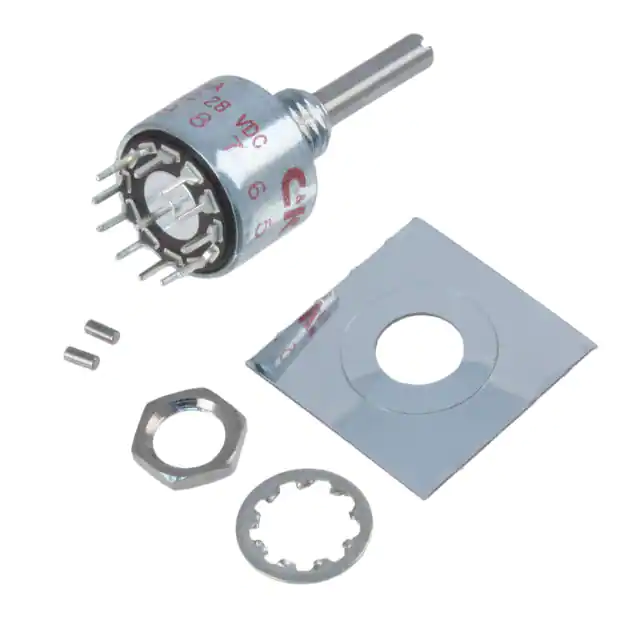

MC00S6NCQDSWITCH ROTARY 12POS 250MA 125V |
1,759 |
|
Datasheet |
M | Bulk | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Round (3.17mm Dia), Slotted | 13.59mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 10.42mm |
|
|
56P30-01-1-04NSWITCH ROTARY 4POS 200MA 115V |
4,952 |
|
Datasheet |
56 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount, Through Hole | PC Pin | - | 9.58mm |
|
|
50DP36-01-1-AJSSWITCH ROTARY 2-10POS 150MA 115V |
4,272 |
|
Datasheet |
50 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | 1 | SP10T | Shorting (MBB) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount, Through Hole | PC Pin | - | 13.64mm |
|

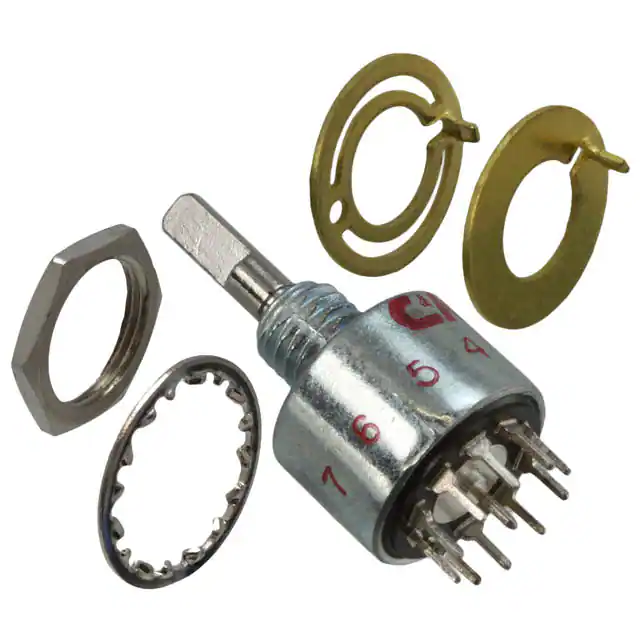

ME00L1NCQDSWITCH ROTARY 10POS 250MA 125V |
3,284 |
|
Datasheet |
M | Tray | Active | 10 | Continuous | 1 | 1 | SP10T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 11.44mm |
|
|
50M60-01-1-04NSWITCH ROTARY 4POS 150MA 115V |
1,330 |
|
Datasheet |
50 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 60° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
MC00L1NZQDSWITCH ROTARY 12POS 250MA 125V |
1,540 |
|
Datasheet |
M | Tray | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 30° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 14.86mm |
|

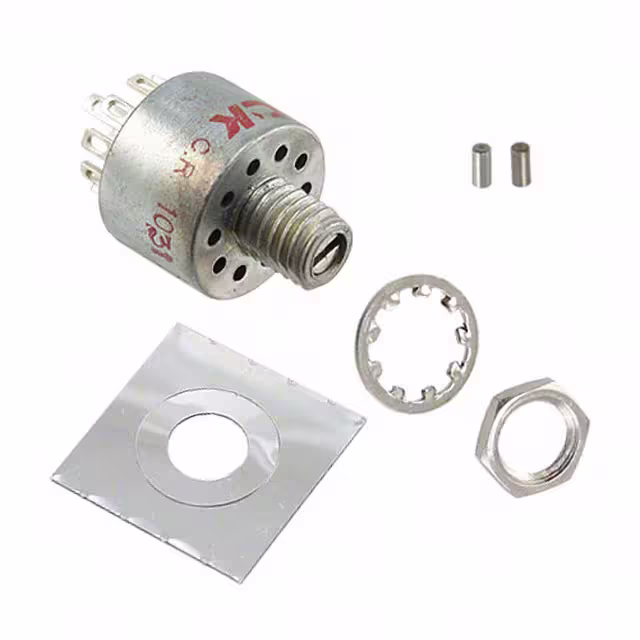

MB00L2NZQDSWITCH ROTARY 5POS 250MA 125V |
4,242 |
|
Datasheet |
M | Bulk | Active | 5 | Continuous | 1 | 2 | DP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Screwdriver Slot | Flush | 36° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 14.86mm |
|
MH00L1NCQDSWITCH ROTARY 6POS 250MA 125V |
4,978 |
|
Datasheet |
M | Tray | Active | 6 | Continuous | 1 | 2 | DP6T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 11.44mm |
