Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

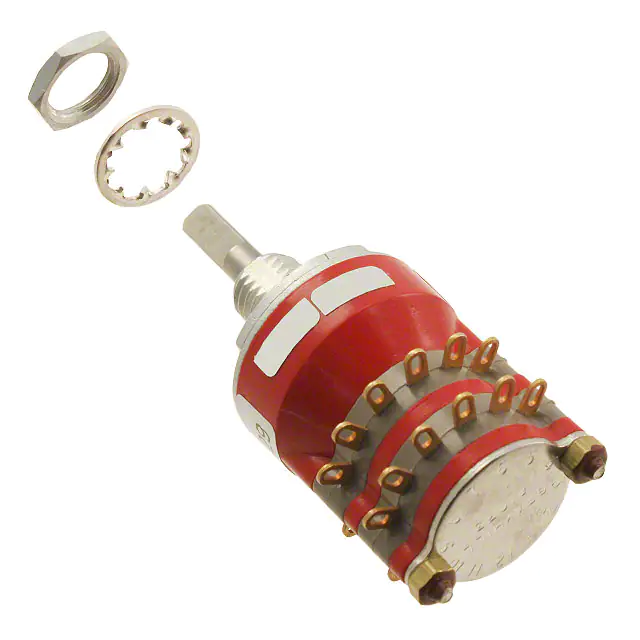

71AD30-02-1-AJNSWITCH ROTARY 2-12POS 250MA 115V |
3,299 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 2 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.87mm |
|

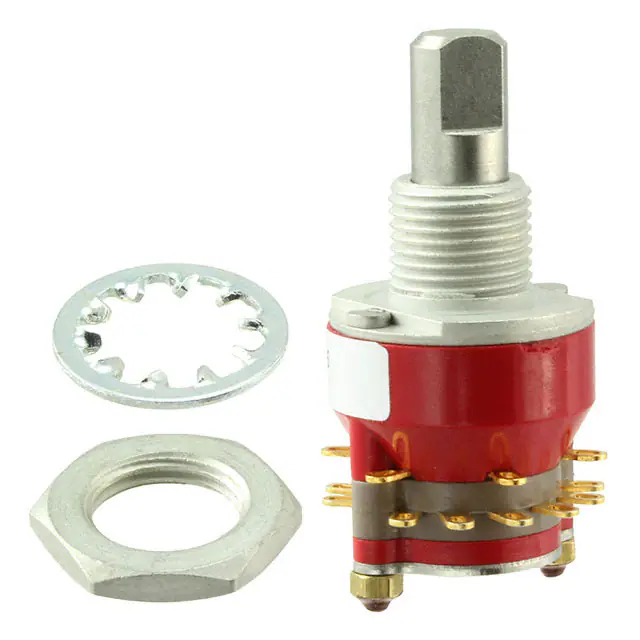

71B30-01-6-02SSWITCH ROTARY 2POS 250MA 115V |
4,482 |
|
Datasheet |
71 | Bulk | Active | 2 | Fixed | 1 | 6 | 6PDT | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 19.33mm |
|

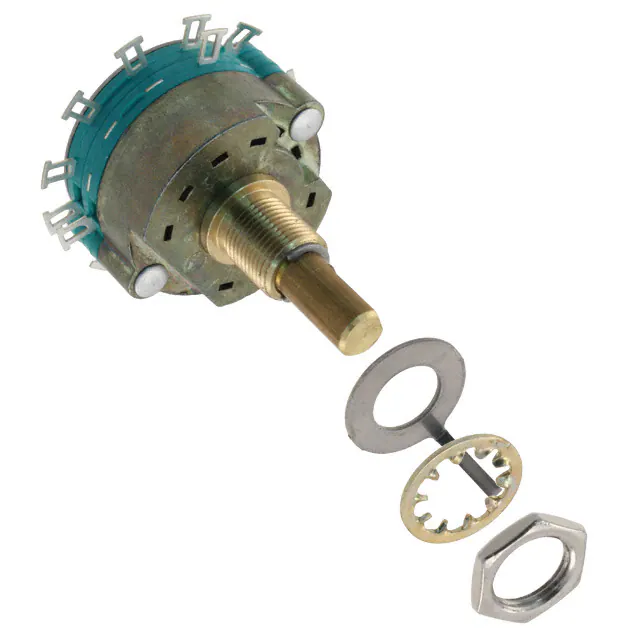

C4D0304N-ASWITCH ROTARY 2-4POS 300MA 125V |
1,891 |
|
Datasheet |
C4 | Tray | Active | 2 ~ 4 | Adjustable | 1 | 3 | 3P4T | Non-Shorting (BBM) | 300mA (AC), 500mA (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 20.12mm |
|
50K36-01-1-05NSWITCH ROTARY 5POS 150MA 115V |
3,848 |
|
Datasheet |
50 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|

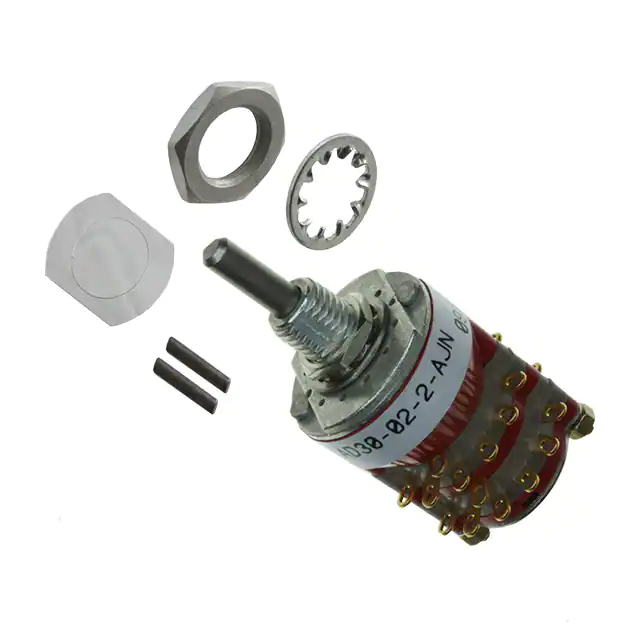

71AD30-02-2-AJNSWITCH ROTARY 2-6POS 250MA 115V |
1,328 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | 2 | DP6T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.87mm |
|
77P36-01-1-07NSWITCH ROTARY 7POS 50MA 115V |
2,752 |
|
Datasheet |
77 | Bulk | Active | 7 | Fixed | 1 | 1 | SP7T | Non-Shorting (BBM) | 50mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | 36° | Silver Tin Oxide (AgSnO) | Gold | Panel Mount, Through Hole | PC Pin | - | 4.57mm |
|
|
50K45-01-1-07NSWITCH ROTARY 7POS 150MA 115V |
2,636 |
|
Datasheet |
50 | Bulk | Active | 7 | Fixed | 1 | 1 | SP7T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 9.53mm | 45° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|

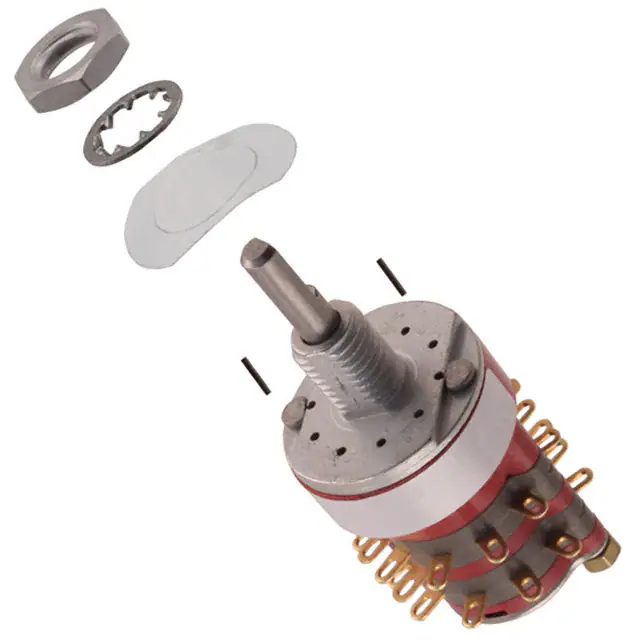

71AD36-02-2-AJNSWITCH ROTARY 2-5POS 250MA 115V |
3,623 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | 2 | DP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.87mm |
|

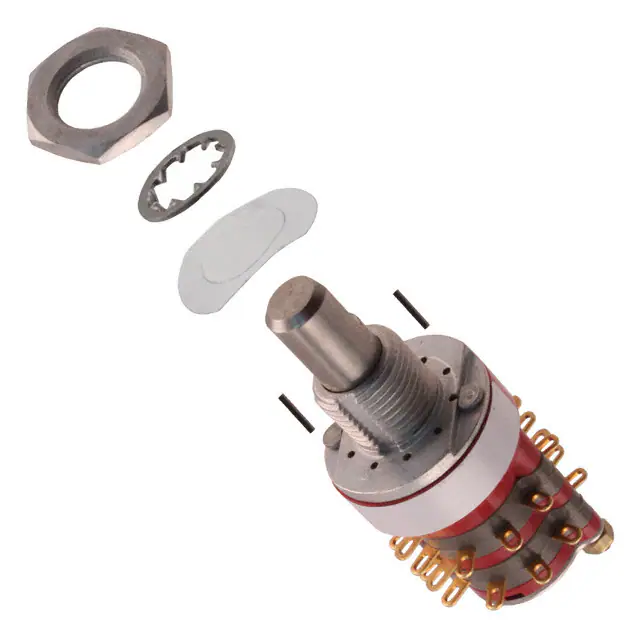

71BD36-02-2-AJNSWITCH ROTARY 2-5POS 250MA 115V |
3,371 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | 2 | DP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.87mm |
|
71BD30-02-2-AJNSWITCH ROTARY 2-6POS 250MA 115V |
1,070 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | 2 | DP6T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.87mm |
|
|
50KS36-01-1-10NSWITCH ROTARY 10POS 150MA 115V |
2,143 |
|
Datasheet |
50 | Bulk | Active | 10 | Continuous | 1 | 1 | SP10T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 18.77mm |
|
|
51KP30-01-1-12NSWITCH ROTARY 12POS 150MA 115V |
4,414 |
|
Datasheet |
51 | Bulk | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount, Through Hole | PC Pin | - | 13.64mm |
|

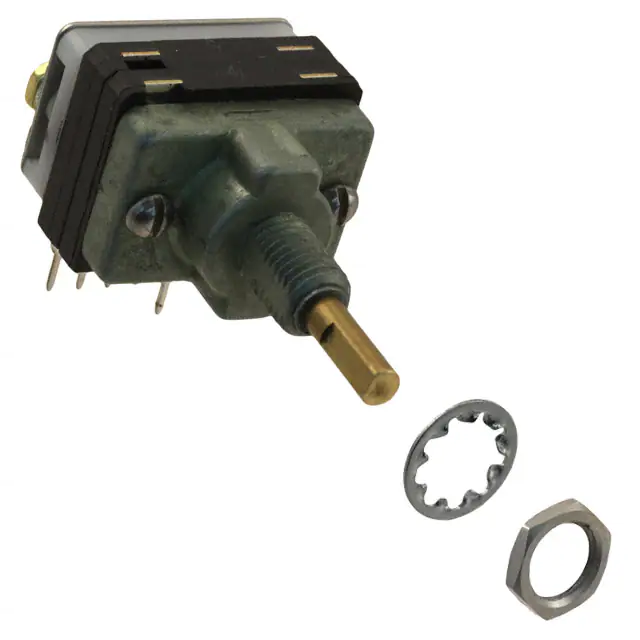

C2P0204N-ASWITCH ROTARY 2-4POS 100MA 125V |
4,890 |
|
Datasheet |
C2 | Bulk | Active | 2 ~ 4 | Adjustable | 1 | 2 | DP4T | Non-Shorting (BBM) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount, Through Hole, Right Angle | PC Pin | - | 22.38mm |
|
|
51SP22-01-2-07NSWITCH ROTARY 7POS 150MA 115V |
1,487 |
|
Datasheet |
51 | Bulk | Active | 7 | Fixed | 1 | 2 | DP7T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 22.5° | - | Gold | Panel Mount, Through Hole | PC Pin | Shaft and Panel Sealed | 13.64mm |
|
|
51SP22-01-2-08NSWITCH ROTARY 8POS 150MA 115V |
1,920 |
|
Datasheet |
51 | Bulk | Active | 8 | Fixed | 1 | 2 | DP8T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 22.5° | - | Gold | Panel Mount, Through Hole | PC Pin | Shaft and Panel Sealed | 13.64mm |
|

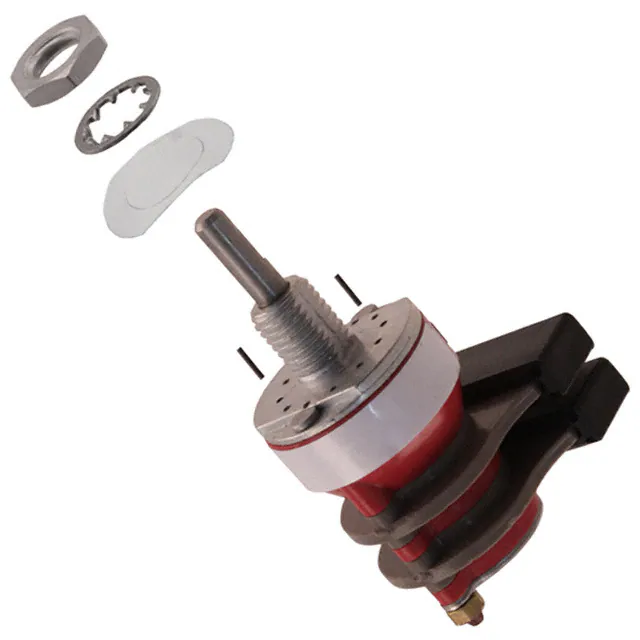

71ADF30-02-1-AJNSWITCH ROTARY 2-12POS 250MA 115V |
1,288 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 12 | Adjustable | 2 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 24.87mm |
|

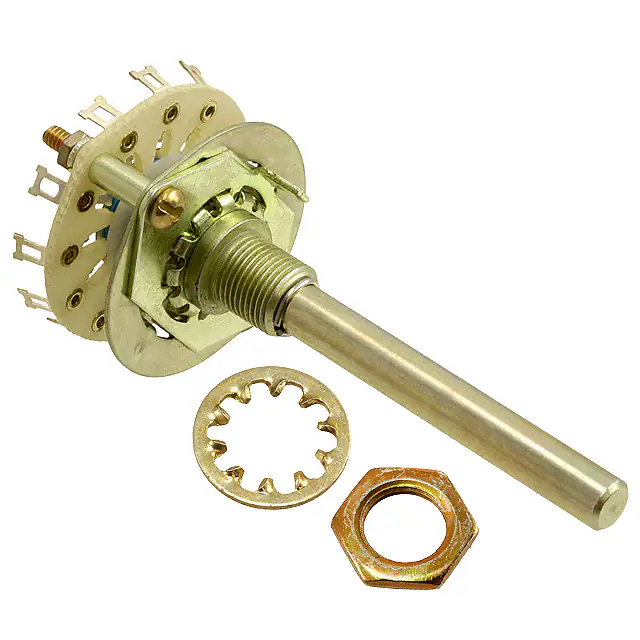

D4G0205NSWITCH ROTARY 2-5POS 500MA 115V |
1,884 |
|
Datasheet |
D4 | Bulk | Active | 2 ~ 5 | Adjustable | 1 | 2 | DP5T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 14.27mm |
|
|
51ST22-01-2-07NSWITCH ROTARY 7POS 150MA 115V |
4,096 |
|
Datasheet |
51 | Bulk | Active | 7 | Fixed | 1 | 2 | DP7T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 22.5° | - | Gold | Panel Mount | Solder Lug | Process Sealed, Shaft and Panel Sealed | 18.77mm |
|
|
50K36-01-2-03NSWITCH ROTARY 3POS 150MA 115V |
1,125 |
|
Datasheet |
50 | Bulk | Active | 3 | Fixed | 1 | 2 | DP3T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|

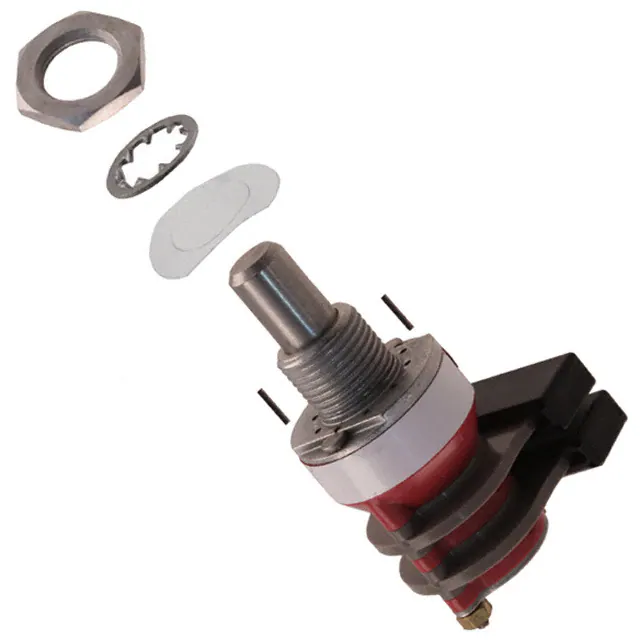

71BDF36-02-1-AJNSWITCH ROTARY 2-10POS 250MA 115V |
1,052 |
|
Datasheet |
71 | Bulk | Active | 2 ~ 10 | Adjustable | 2 | 1 | SP10T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 24.87mm |
