Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

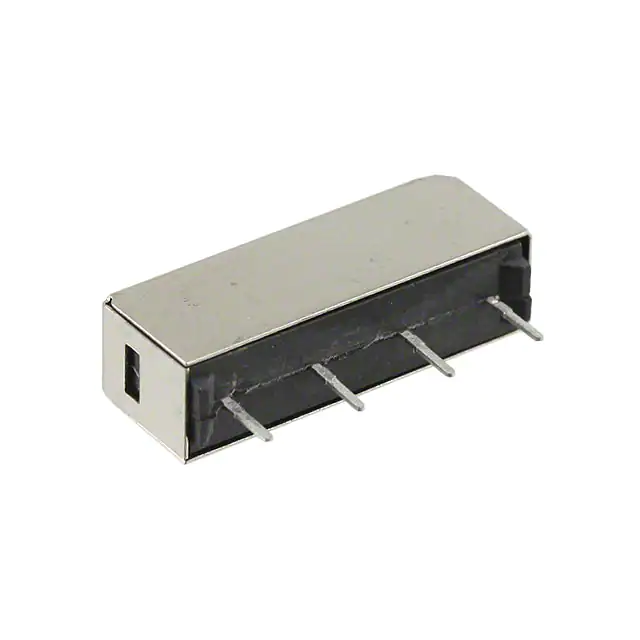

9007-12-10RELAY REED SPST 500MA 12V |
2,676 |
|
Datasheet |
9007, Spartan | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
3570-1411-124RELAY REED SIP SPST .5A 12V W/EM |
1,640 |
|
Datasheet |
3570 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C | - |
|
9007-05-11RELAY REED SPST 500MA 5V |
3,175 |
|
Datasheet |
9007, Spartan | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|

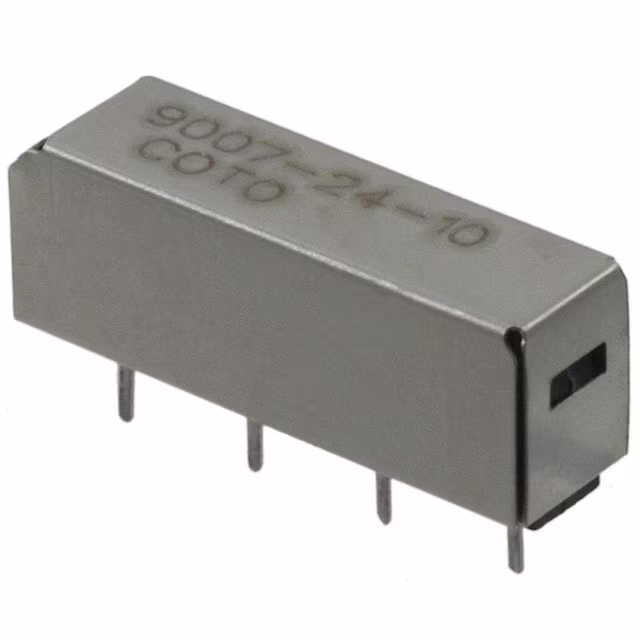

9007-24-10RELAY REED SPST 500MA 24V |
1,955 |
|
Datasheet |
9007, Spartan | Tube | Not For New Designs | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | EMI Shielded | PC Pin | - | 18 VDC | 2 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
|
HE422A2450RELAY REED DPST 500MA 24V |
3,251 |
|
Datasheet |
400 | Tube | Obsolete | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 10.4 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
HE721A2430RELAY REED SPST 500MA 24V |
1,388 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 11.1 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 16 VDC | 2 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
|
HE721C0540RELAY REED SPDT 250MA 5V |
4,190 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 25 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 3 ms | 3 ms | -40°C ~ 85°C | - |
|
|
HE721C1250RELAY REED SPDT 250MA 12V |
3,784 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 24 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 8 VDC | 1 VDC | 3 ms | 3 ms | -40°C ~ 85°C | - |
|
|
HE721A0530RELAY REED SPST 500MA 5V |
1,352 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.5 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
9091-12-00RELAY REED SPST 500MA 12V |
2,408 |
|
Datasheet |
9091 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C | - |
|
|
HE721R2410RELAY REED SPDT 250MA 24V |
2,985 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 16 VDC | 2 VDC | 3 ms | 3 ms | -40°C ~ 85°C | - |
|
|
HE721C2450RELAY REED SPDT 250MA 24V |
2,703 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 12 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 16 VDC | 2 VDC | 3 ms | 3 ms | -40°C ~ 85°C | - |
|
HE3321C0400RELAY REED SPDT 250MA 5V |
3,561 |
|
Datasheet |
HE3300 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 40 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 3 ms | 3 ms | -40°C ~ 85°C | - |
|
|
HE722A0530RELAY REED DPST 500MA 5V |
4,694 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 25 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.5 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
|
MSIP-1A12200V/0.5A MINI SIZE REED RELAY, |
3,789 |
|
Datasheet |
MSIP | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C | - | |
|
9001-05-10RELAY REED SPST 500MA 5V |
3,861 |
|
Datasheet |
9000 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
HE721C0520RELAY REED SPDT 250MA 5V |
2,940 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 175VDC - Max | 25 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.5 VDC | 3 ms | 3 ms | -40°C ~ 85°C | - |
|
3570-1512-051RELAY REED SIP SPST .5A 5V |
2,119 |
|
Datasheet |
3570 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C | - |
|
|
9001-12-11RELAY REED SPST 500MA 12V |
4,774 |
|
Datasheet |
9000 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
V23100V4024A000RELAY REED SPST 500MA 24V |
4,515 |
|
Datasheet |
V23100-V4, AXICOM | Tube | Discontinued at Digi-Key | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.75 ms | 0.15 ms | -40°C ~ 85°C | Ruthenium (Ru) |
