Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RM05-8A-SPRELAY REED 8PST 0.5A 5V |
3,680 |
|
Datasheet |
RM | Bulk | Active | Through Hole | 5VDC | 8PST-NO (8 Form A) | 500 mA | 170VAC, 170VDC - Max | 10 mA | Non Latching | - | PC Pin | - | - | - | 0.6 ms | 0.1 ms | -20°C ~ 85°C | - |
|

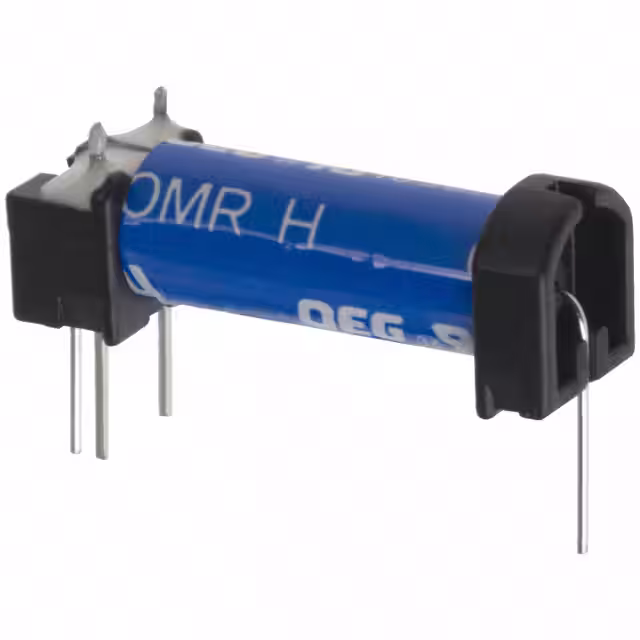

OMR-106H,V000RELAY REED SPST 500MA 6V |
4,944 |
|
Datasheet |
OMR, OEG | Bulk | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 500 mA | 120VAC, 60VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 3.5 VDC | 0.5 VDC | 1 ms | 0.5 ms | -30°C ~ 70°C | Rhodium (Rh), Ruthenium (Ru) |
|
HE3671A2400RELAY REED SPST 500MA 24V |
4,678 |
|
Datasheet |
HE3600 | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 11.1 mA | Non Latching | - | PC Pin | - | 16 VDC | 2 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
HE721A1240RELAY REED SPST 500MA 12V |
3,558 |
|
Datasheet |
HE700 | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | EMI Shielded | PC Pin | - | 8 VDC | 1 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
|
HE721A1220RELAY REED SPST 500MA 12V |
2,759 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | Electrostatic Shield | PC Pin | - | 8 VDC | 1 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
SIP-1A12200V/1A REED RELAY, 1 FORM A, 12 |
2,122 |
|
Datasheet |
SIP | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 100VAC, 100VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.5 ms | -40°C ~ 80°C | - | |
|
|
HE3621A6012RELAY REED SPST 500MA 12V |
1,333 |
|
Datasheet |
HE3600 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 6 mA | Non Latching | - | PC Pin | - | 8 VDC | 1 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
|
HE721A0540RELAY REED SPST 500MA 5V |
3,298 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
|
SIP-1A24200V/1A REED RELAY, 1 FORM A, 24 |
3,491 |
|
Datasheet |
SIP | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 100VAC, 100VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.5 ms | -40°C ~ 80°C | - | |
|

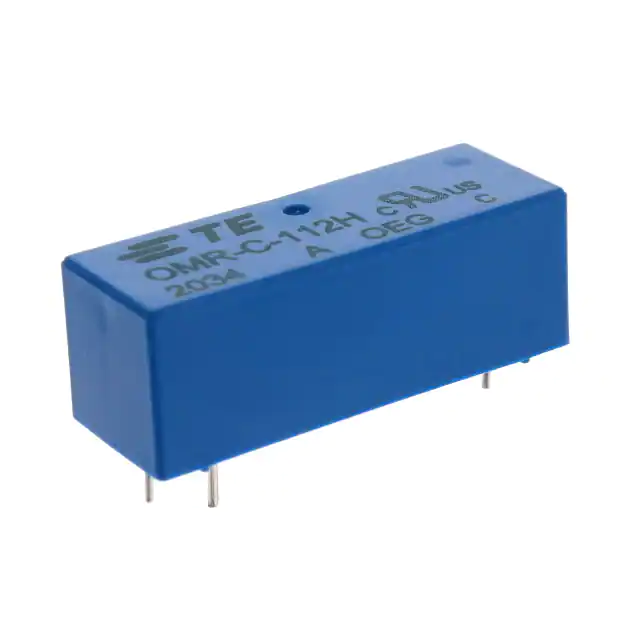

OMR-C-112H,V000RELAY REED SPST 500MA 12V |
1,404 |
|
Datasheet |
OMR, OEG | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 120VAC, 60VDC - Max | 11.4 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.2 VDC | 1 ms | 0.5 ms | -30°C ~ 70°C | Rhodium (Rh), Ruthenium (Ru) |
|
3570-1333-121RELAY REED SIP SPST .5A 12V |
2,564 |
|
Datasheet |
3570 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C | - |
|
|
3570-1333-123RELAY REED SIP SPST .5A 12V W/DI |
1,346 |
|
Datasheet |
3570 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 0.35 ms | 0.1 ms | -40°C ~ 85°C | - |
|
|
OMR-112H,V000RELAY REED SPST 500MA 12V |
2,040 |
|
Datasheet |
OMR, OEG | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 120VAC, 60VDC - Max | 11.4 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1.2 VDC | 1 ms | 0.5 ms | -30°C ~ 70°C | Rhodium (Rh), Ruthenium (Ru) |
|
|
HE3671A1210RELAY REED SPST 500MA 12V |
1,162 |
|
Datasheet |
HE3600 | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 8 VDC | 1 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
HE3621A0550RELAY REED SPST 500MA 5V |
2,692 |
|
Datasheet |
HE3600 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
|
|
OMR-C-124F,000RELAY REED SPST 1A 24V |
4,972 |
|
Datasheet |
OMR, OEG | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 120VAC, 60VDC - Max | 11.5 mA | Non Latching | - | PC Pin | - | 16.8 VDC | 2.4 VDC | 1 ms | 0.5 ms | -30°C ~ 70°C | Rhodium (Rh), Ruthenium (Ru) |
|
3570-1210-124RELAY REED DIP SPST .5A 12V W/DI |
3,785 |
|
Datasheet |
3570 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 150VDC - Max | 12 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
HE751A2410RELAY REED SPST 500MA 24V |
3,011 |
|
Datasheet |
HE700 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 300VDC - Max | 11.1 mA | Non Latching | Diode | PC Pin | - | 16 VDC | 2 VDC | 1 ms | 1 ms | -20°C ~ 85°C | - |
|
|
3570-1210-242RELAY REED DIP SPST .5A 24V W/ES |
2,698 |
|
Datasheet |
3570 | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 150VDC - Max | 11 mA | Non Latching | Electrostatic Shield | PC Pin | - | 18 VDC | 2 VDC | 0.5 ms | 0.5 ms | -20°C ~ 85°C | - |
|
|
HE421A0550RELAY REED SPST 500MA 5V |
3,458 |
|
Datasheet |
400 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 20.8 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 1 ms | -40°C ~ 85°C | - |
