DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EC4SBW-24D12DC DC CONVERTER +/-12V 20W |
2,857 |
|
Datasheet |
EC4SBW (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 830mA, 830mA | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 88.5% | - | - | Through Hole | - | Enable, Active High | CE | 62368-1 | |
|
THN 10-2412WIRDC DC CONVERTER 12V 10W |
4,987 |
|
Datasheet |
THN 10WIR (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 830mA | 10 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 89% | - | - | Through Hole | - | - | CB, cURus | - | |
|
|
THN 10-2413WIRDC DC CONVERTER 15V 10W |
2,178 |
|
Datasheet |
THN 10WIR (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 670mA | 10 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 90% | - | - | Through Hole | - | - | CB, cURus | - | |
|

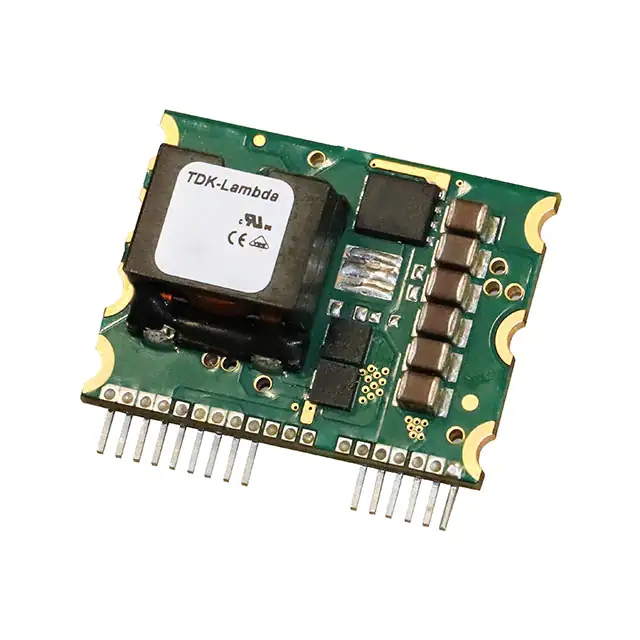

I6A4W010A033V-0S1-RDC DC CONVERTER 3.3-40V 250W |
4,482 |
|
Datasheet |
i6A4W (250W) | 20-SIP Module, 18 Leads | Box | Active | Non-Isolated PoL Module | 1 | 9V | 53V | 3.3 ~ 40V | - | - | - | 10A | 250 W | - | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 125°C | 97.5% | - | - | Through Hole | SIP | Enable, Active Low | CE | - | |
|

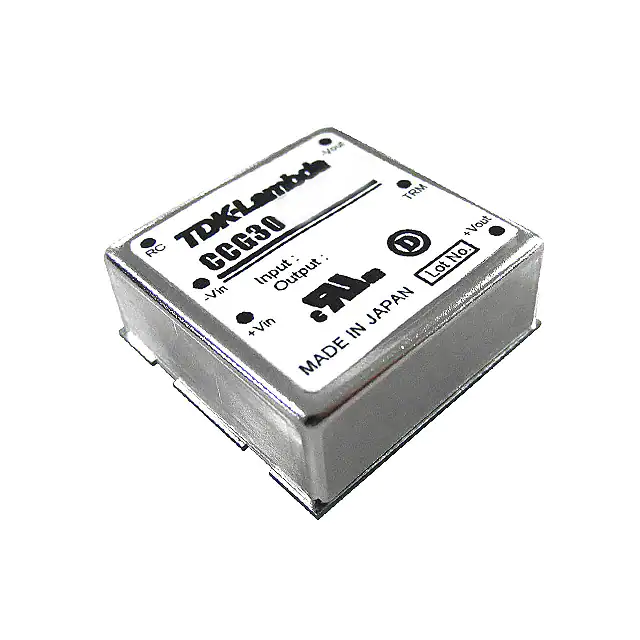

CCG30-48-12DDC DC CONVERTER +/-12V 30W |
2,950 |
|
Datasheet |
CCG30 (30W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 18V | 76V | 12V | -12V | - | - | 1.25A, 1.25A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C | 91% | - | - | Through Hole | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 | |
|

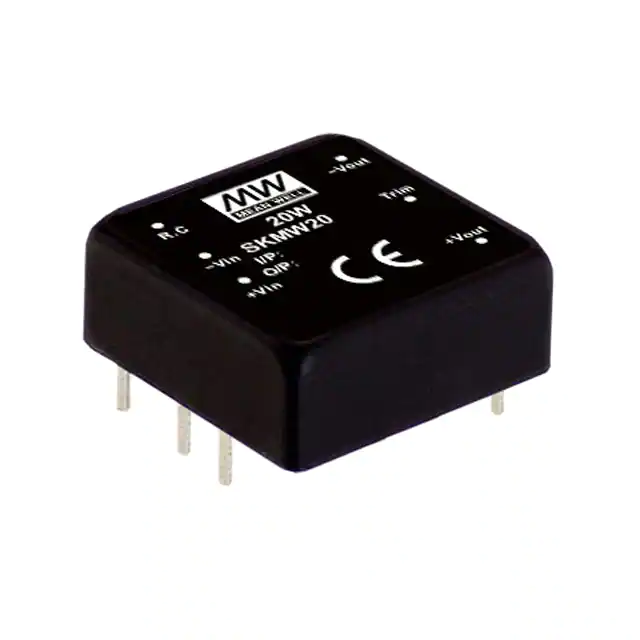

SKMW20G-05DC DC CONVERTER 5V 20W |
1,547 |
|
Datasheet |
SKMW20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 4A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | - | - | |
|
TIM 3.5-2412DC DC CONVERTER 12V 3.5W |
1,939 |
|
Datasheet |
TIM 3.5 (3.5W) | 16-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 292mA | 3.5 W | 5 kV | Medical | Remote On/Off, OVP, SCP | -40°C ~ 90°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - | |
|
TEN 8-4810WIDC DC CONVERTER 3.3V 7.9W |
3,384 |
|
Datasheet |
TEN 8WI (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 2.4A | 7.9 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | - | - | - | - | |
|
TEN 8-4812WIDC DC CONVERTER 12V 8W |
3,963 |
|
Datasheet |
TEN 8WI (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 666mA | 8 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | - | - | - | - | |
|
TEN 8-2412WIDC DC CONVERTER 12V 8W |
4,075 |
|
Datasheet |
TEN 8WI (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 666mA | 8 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | - | - | - | |
|
TMR 9-4811DC DC CONVERTER 5V 8W |
4,265 |
|
Datasheet |
TMR 9 (9W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 1.6A | 8 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | - | - | - | - | |
|
|
TMR 9-2415DC DC CONVERTER 24V 9W |
3,885 |
|
Datasheet |
TMR 9 (9W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 375mA | 9 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | - | - | - | - | |
|

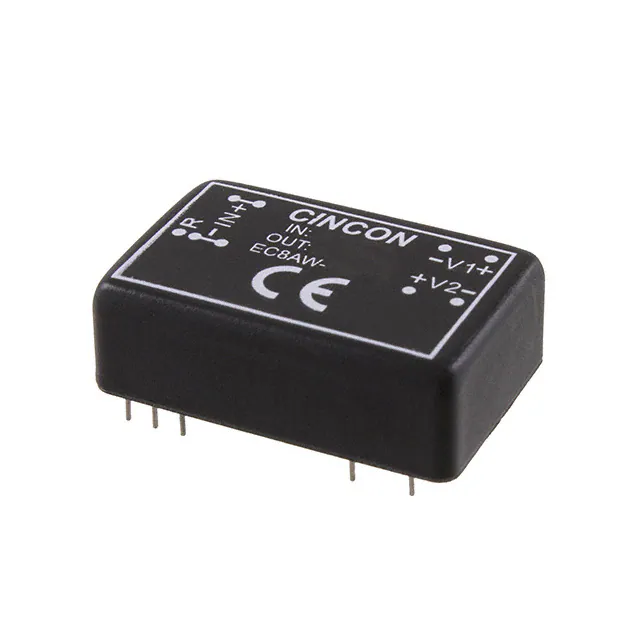

EC8AW-24D15DC DC CONVERTER +/-15V 15W |
3,137 |
|
Datasheet |
EC8AW (15W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | - | - | CE | 60950-1 | |
|
TVN 3-2411DC DC CONVERTER 5V 3W |
1,108 |
|
Datasheet |
TVN 3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - | |
|
TMR 12-2422WIULTRA COMPACT 12 WATT DC/DC IN S |
1,320 |
|
Datasheet |
TMR 12WI (12W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 500mA, 500mA | 12 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C | 89% | - | - | Through Hole | - | - | CB, cURus | 62368-1 | |
|
REC30E-2412SZ30W DC/DC-CONVERTER 'ECONOLINE' |
3,594 |
|
Datasheet |
REC30E-Z (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 2.5A | 30 W | 2 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 105°C (With Derating) | 90% | - | - | Through Hole | - | - | - | 62368-1 | |
|
BY05-05S30LDC DC CONVERTER 5V 1.5W |
2,688 |
|
Datasheet |
BY-L (1.5W) | 24-DIP Module, 6 Leads | Bulk | Active | Isolated Module | 1 | 4.75V | 6V | 5V | - | - | - | 300mA | 1.5 W | 500 V | ITE (Commercial) | - | -25°C ~ 71°C (With Derating) | 60% | - | - | Through Hole | - | - | - | - | |
|
SUW100515CDC DC CONVERTER +/-15V 11W |
1,805 |
|
Datasheet |
SUW (10W) | 7-DIP Module | Box | Active | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 350mA, 350mA | 11 W | 500 V | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | - | - | - | - | |
|
TDR 3-2422WIDC DC CONVERTER +/-12V 3W |
4,892 |
|
Datasheet |
TDR 3WI (3W) | 14-DIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - | |
|
|
TMR 12-2410WIULTRA COMPACT 12 WATT DC/DC IN S |
3,103 |
|
Datasheet |
TMR 12WI (12W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 3A | 9.9 W | 1.6 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 105°C | 87% | - | - | Through Hole | - | - | CB, cURus | 62368-1 |
