DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PDL06-48S15WDC DC CONVERTER 15V 6W |
4,674 |
|
Datasheet |
PDL06W (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 400mA | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off, Standby Output | -40°C ~ 100°C (With Derating) | 87% | - | - | Through Hole | - | - | CB, CE, cURus | - | |
|
|
CPT4L48PBDC DC CONVERTER 18V 72W |
1,036 |
|
Datasheet |
CPT | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 18V | - | - | - | 4A | 72 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | Sixteenth Brick | Enable, Active High | CSA, TUV, UL | - | |
|
|
AM1DS-2424DH30LPZ1W DC/DC Converter |
2,157 |
|
Datasheet |
AM1DS-LPZ | 7-SIP Module | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | -24V | 24V | - | - | 21mA, 21mA | 1 W | 3000 V | ITE (Commercial) | - | -40°C ~ 105°C | 84% | - | - | Through Hole | 7-SIP | - | CE | 62368-1 | |
|
|
AM1DS-1224SH30LPZ1W DC/DC Converter |
2,679 |
|
Datasheet |
AM1DS-LPZ | 7-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 24V | - | - | - | 42mA | 1 W | 3000 V | ITE (Commercial) | - | -40°C ~ 105°C | 89% | - | - | Through Hole | 7-SIP | - | CE | 62368-1 | |
|
|
BCM6123TD1E13A3TB12361 BCM K=1/32 TH |
1,925 |
|
Datasheet |
BCM® | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
PRM2A02-000864PRM2A CFG 36/48/75 48/201W |
4,586 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
PRM2A02-000703PRM2A CFG 36/48/75 48/400W |
4,158 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
BCM6123TD1E13A3T0P2361 BCM K=1/32 TH |
2,031 |
|
Datasheet |
BCM® | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
PRM48BF480T500A01PRM2A NARROW FULL 500W |
4,681 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
BCM6123T60E15A3T0R2361 BCM K=1/4 TH |
4,312 |
|
Datasheet |
BCM® | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
MYMGK00510ERSRDC DC CONVERTER 0.7-5V |
9,957 |
|
Datasheet |
MonoBlock MYMGK | 23-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 8V | 15V | 0.7 ~ 5V | - | - | - | 10A | 50W | - | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C | 92.6% | - | - | Surface Mount | Module | Enable, Active High | - | - | |
|

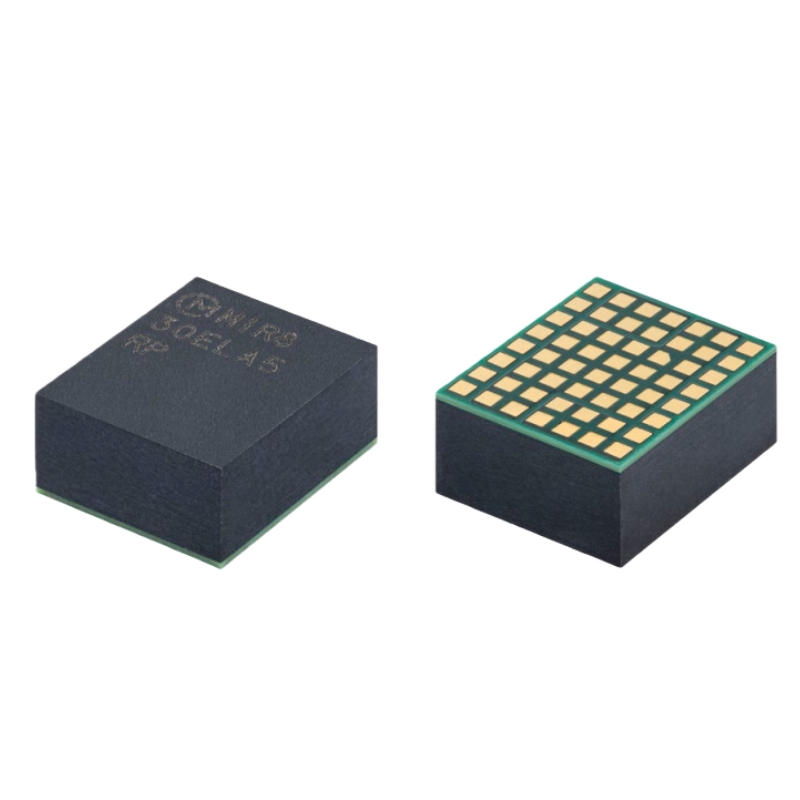

MYMGM1R830ELA5RP7.5V to 15V input voltage, 50A, Buck Converter with PMBus and 125degC Tj |
9,616 |
|
Datasheet |
MonoBK™ MYMGM | 56-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 7.5V | 15V | 0.7 ~ 1.2V | - | - | - | 50A | 60 W | - | ITE (Commercial) | Adjustable Output, I2C Interface, Load Sharing, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 105°C (With Derating) | 86.2% | - | - | Surface Mount | - | Enable, Active High | - | - | |
|
MYMGM5R012ELA5RN-EVMMYMGM5R012ELA5RN evaluation board 7.5 to 15V input, 1.8 to 5.0V output, 12A output, PMBus |
2,245 |
|
Datasheet |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | -40～105℃ | - | - | - | - | - | - | - | - |
What is a DC-DC converter?
A DC-DC converter is equipment that converts DC into DC.
Kinds of DC-DC converters
Generally, there are four kinds of DC-DC converters. Their names are as follows.
| Kind | Generic name |
|---|---|
| Power supply equipment that reduces the voltage | Buck converter, Step-down converter |
| Power supply equipment that increases the voltage | Boost converter, Step-up converter |
| Power supply equipment that increases and decreases the voltage | Buck-Boost converter |
| Power supply equipment that generates a negative voltage | Negative voltage converter, Inverting converter |
What is POL (Point of Load)?
POL is a DC-DC converter installed in the immediately vicinity of a microprocessor or an LSI (Large-Scale Integrated circuit) such as a DSP, FPGA or ASIC.
POL Trends
In the light of this background, POL is required to have "voltage accuracy," "load fluctuation transient response," "low radiation noise," and "compactness."
Features of MonoBK™ with illustrations
1. Small mounting area
Downsizing by circuit design based on extensive power supply design know-how and mounting the inductor in a 3D structure
2. High power density / good heat dissipation characteristics
Enhanced heat dissipation effect with resin molding and thinner printed circuit board
3. Low noise
Reduced noise with minimization of the current loop using a 3D structure and extensive EMI noise knowledge
Fig. MYMGK1R820ERSR EMI data
4. High reliability
Improved heat shock resistance with resin molding
