DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Size / Dimension | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADUM5010ARSZDC DC CONVERTER 3.15-5.25V 150MW |
648 |
|
Datasheet |
ADuM5010 | 20-SSOP (0.209", 5.30mm Width) | Tube | Active | Isolated Module | 1 | 3V | 5.5V | 3.15 ~ 5.25V | - | - | - | 30mA | 150 mW | 2.5 kV | ITE (Commercial) | OTP, UVLO | -40°C ~ 105°C | - | - | - | Surface Mount | 20-SSOP | Enable, Active Low | - | - | |
|
|
RPL-3.0-RDC DC CONVERTER 0.8-5.2V 16W |
6,661 |
|
Datasheet |
INNOLINE RPL-3.0 | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4V | 18V | 0.8 ~ 5.2V | - | - | - | 3A | 16 W | - | ITE (Commercial) | Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 89% | - | - | Surface Mount | - | - | - | - | |
|

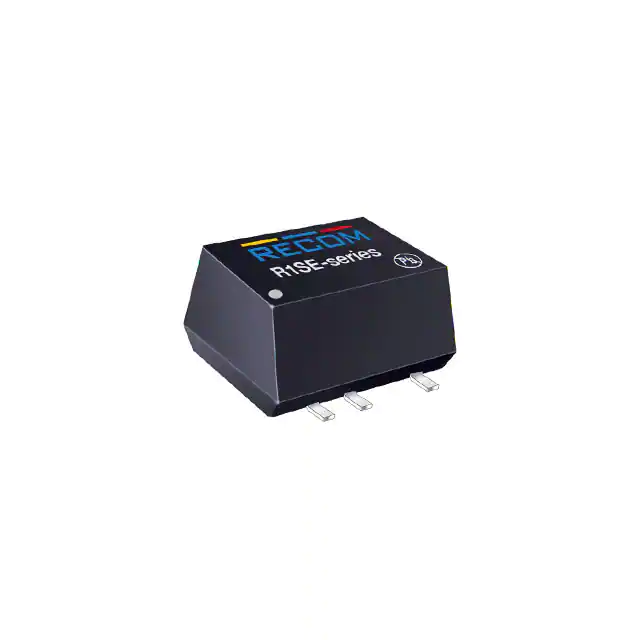

R1SE-0505-RDC DC CONVERTER 5V 1W |
14,546 |
|
Datasheet |
ECONOLINE R1SE (E-Series) (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 75% | - | - | Surface Mount | - | - | - | - | |
|
TPS82150SILRDC DC CONVERTER 0.9-6V |
5,020 |
|
Datasheet |
MicroSip™ | 8-LDFN Exposed Pad, Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 17V | 0.9 ~ 6V | - | - | - | 1A | - | - | ITE (Commercial) | OTP | -40°C ~ 125°C (With Derating) | - | - | - | Surface Mount | 8-uSIP (3x2.8) | - | - | - | |
|
|
TPSM365R6V5RDNRDC DC CONVERTER 5V |
2,841 |
|
Datasheet |
HotRod™ | 11-PowerFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 65V | 5V | - | - | - | 600mA | - | - | ITE (Commercial) | Remote On/Off | -40°C ~ 125°C | 84.7% | - | - | Surface Mount, Wettable Flank | 11-QFN-FCMOD (4.5x3.5) | Enable, Active High | - | - | |
|
R1SE-0515/H2-RDC DC CONVERTER 15V 1W |
998 |
|
Datasheet |
ECONOLINE R1SE-H2 (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 66mA | 1 W | 2 kV | ITE (Commercial) | - | -40°C ~ 100°C | 76% | - | - | Surface Mount | - | - | - | - | |
|
|
TPSM365R6FRDNR3-V TO 65-V INPUT, 1-V TO 13-V O |
164 |
|
Datasheet |
HotRod™ | 11-PowerFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3.6V | 65V | 1 ~ 13V | - | - | - | 600mA | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C | 82.7% | - | - | Surface Mount, Wettable Flank | 11-QFN-FCMOD (4.5x3.5) | Enable, Active High | - | - | |
|
TR05S3V3DC DC CONVERTER 3.3V 2W |
930 |
|
Datasheet |
TR | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 4.5V | 28V | 3.3V | - | - | - | 500mA | 2 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C | 89% | - | - | Through Hole | - | - | - | - | |
|
LMZ10501SILTDC DC CONVERTER 0.6-3.6V |
1,704 |
|
Datasheet |
SIMPLE SWITCHER® Nano | 8-LDFN Exposed Pad, Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.7V | 5.5V | 0.6 ~ 3.6V | - | - | - | 1A | - | - | ITE (Commercial) | OCP, OTP, SCP, UVLO | -40°C ~ 125°C | 95% | - | - | Surface Mount | 8-uSIP | Enable, Active High | - | - | |
|
MUN3CAD01-SCDC DC CONVERTER 0.8-4V |
18,734 |
|
Datasheet |
- | 6-TDFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.7V | 5.5V | 0.8 ~ 4V | - | - | - | 1A | - | - | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 85°C | 93% | - | - | Surface Mount | 6-DFN (2.9x2.3) | - | - | - | |
|
ROE-3.305SDC DC CONVERTER 5V 1W |
7,844 |
|
Datasheet |
ECONOLINE ROE (E-Series) (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 2.97V | 3.63V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Through Hole | - | - | - | - | |
|
|
ROE-2405SDC DC CONVERTER 5V 1W |
1,009 |
|
Datasheet |
ECONOLINE ROE (E-Series) (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - | |
|
MPM3833CGRH-ZDC DC CONVERTER 0.6-6V |
4,963 |
|
Datasheet |
- | 18-PowerLFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.75V | 6V | 0.6 ~ 6V | - | - | - | 3A | - | - | ITE (Commercial) | OCP, SCP, UVLO | -40°C ~ 150°C | 82% | - | - | Surface Mount | 18-QFN (2.5x3.5) | - | - | - | |
|
TPSM82813SILR2.75-V TO 6-V, 3-A STEP-DOWN MOD |
7,037 |
|
Datasheet |
- | 14-DFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.75V | 6V | 0.6 ~ 5.5V | - | - | - | 3A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | - | - | - | Surface Mount | 14-uSIP (4x3) | Enable, Active Low | - | - | |
|
LMZ20501SILRDC DC CONVERTER 0.8-3.6V 4W |
3,500 |
|
Datasheet |
SIMPLE SWITCHER® Nano | 8-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.7V | 5.5V | 0.8 ~ 3.6V | - | - | - | 1A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 125°C | 93% | - | - | Surface Mount | - | - | - | - | |
|
MPM3620GQV-ZDC DC CONVERTER 4.5-24V |
11,687 |
|
Datasheet |
- | 20-PowerLFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 24V | 0.8 ~ 18.48V | - | - | - | 2A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 20-QFN (3x5) | Enable, Active High | - | - | |
|
|
MPM3620AGQV-ZDC DC CONVERTER 0.8-19.9V |
5,664 |
|
Datasheet |
- | 20-PowerLFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 24V | 0.8 ~ 19.9V | - | - | - | 2A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 20-QFN (3x5) | Enable, Active High | - | - | |
|

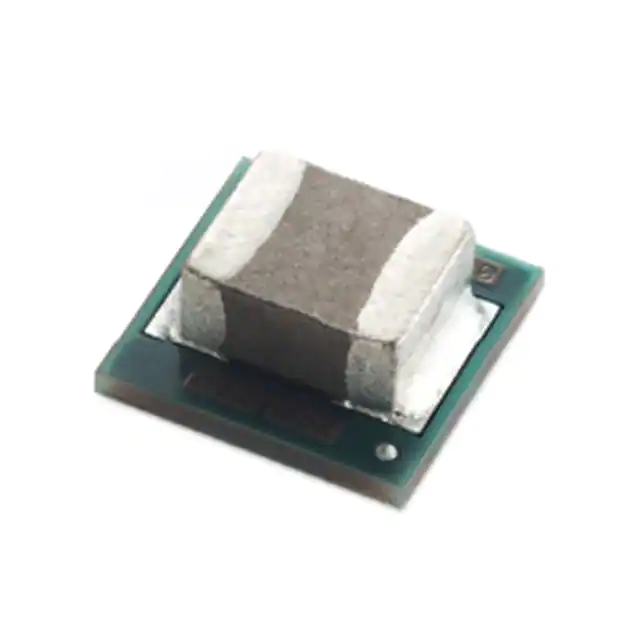

TPS82140SILRDC DC CONVERTER 0.9-6V |
4,006 |
|
Datasheet |
MicroSip™ | 8-LDFN Exposed Pad, Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 17V | 0.9 ~ 6V | - | - | - | 2A | - | - | ITE (Commercial) | OTP | -40°C ~ 125°C (With Derating) | - | - | - | Surface Mount | 8-uSIP (3x2.8) | Enable, Active High | - | - | |
SILR.jpg)
|
TPSM265R1SILR3-V TO 65-V INPUT, 100-MA, STEP- |
5,050 |
|
Datasheet |
- | 10-LDFN Exposed Pad, Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 65V | 1.233 ~ 15V | - | - | - | 100mA | - | - | - | Adjustable Output | -40°C ~ 125°C | - | - | - | Surface Mount | 10-uSIP (3.8x3) | - | - | - | |
|
TPSM265R1V5SILR3-V TO 65-V INPUT, 100-MA, STEP- |
3,751 |
|
Datasheet |
- | 10-LDFN Exposed Pad, Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 65V | 5V | - | - | - | 100mA | - | - | - | - | -40°C ~ 125°C | 83% | - | - | Surface Mount | 10-uSIP (3.8x3) | - | - | - |
What is a DC-DC converter?
A DC-DC converter is equipment that converts DC into DC.
Each IC or other component mounted on the board of the set has an intrinsic working voltage range, and in addition the required voltage accuracy differs from one component to another.
When power is supplied from a power source that does not produce a stable voltage, issues such as malfunctioning will occur.
It is therefore necessary to use a DC-DC converter to convert the voltage to the correct value and to stabilize it.
Kinds of DC-DC converters
Generally, there are four kinds of DC-DC converters. Their names are as follows.
| Kind | Generic name |
|---|---|
| Power supply equipment that reduces the voltage | Buck converter, Step-down converter |
| Power supply equipment that increases the voltage | Boost converter, Step-up converter |
| Power supply equipment that increases and decreases the voltage | Buck-Boost converter |
| Power supply equipment that generates a negative voltage | Negative voltage converter, Inverting converter |
What is POL (Point of Load)?
POL is a DC-DC converter installed in the immediately vicinity of a microprocessor or an LSI (Large-Scale Integrated circuit) such as a DSP, FPGA or ASIC.
POL Trends
In recent mega-trends represented by 5G or IoT, equipment such as a base station or a server must be processed to enable it to operate at high speed and to ensure that it has large capacity.
To this end, the LSI is manufactured using a more precision process, thus enhancing the performance of the chip.
Along with the refinement of the process, demands will arise to decrease the voltage and increase the current supplied to the power supply circuit that supplies electric power to the LSI.
When using reduced voltage, it is necessary to increase the voltage accuracy and increase the high-speed response to load fluctuations, in order to prevent malfunctioning of the LSI.
When using large current, power from the switching power supply is output from the LDO. This makes the circuit difficult to design, even though it could previously be designed compactly and with ease.
In addition, when the switching power is generated, the issue of noise arises.
In the light of this background, POL is required to have "voltage accuracy," "load fluctuation transient response," "low radiation noise," and "compactness."
Features of MonoBK™ with illustrations
1. Small mounting area
Downsizing by circuit design based on extensive power supply design know-how and mounting the inductor in a 3D structure
2. High power density / good heat dissipation characteristics
Enhanced heat dissipation effect with resin molding and thinner printed circuit board
3. Low noise
Reduced noise with minimization of the current loop using a 3D structure and extensive EMI noise knowledge
Fig. MYMGK1R820ERSR EMI data
4. High reliability
Improved heat shock resistance with resin molding
