Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

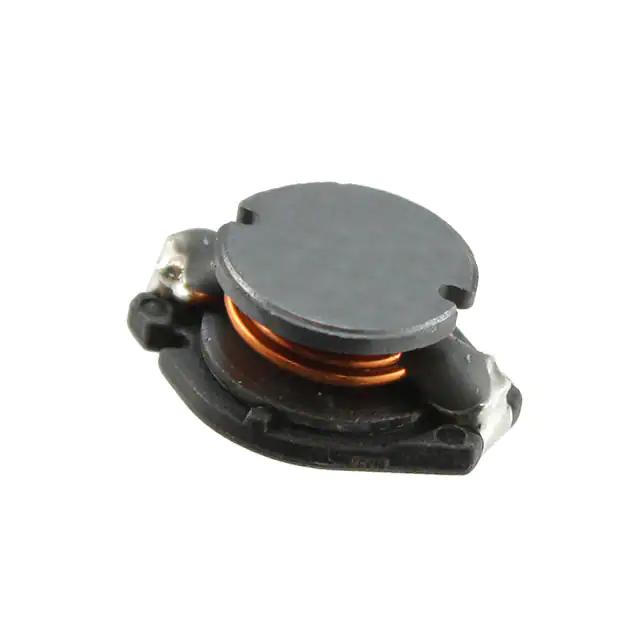

SDR1005-6R8MLFIXED IND 6.8UH 3.4A 30 MOHM SMD |
2,310 |
|
Datasheet |
SDR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3.4 A | 4.5A | Unshielded | 30mOhm Max | 56 @ 2MHz | 31MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.197" (5.00mm) |
|

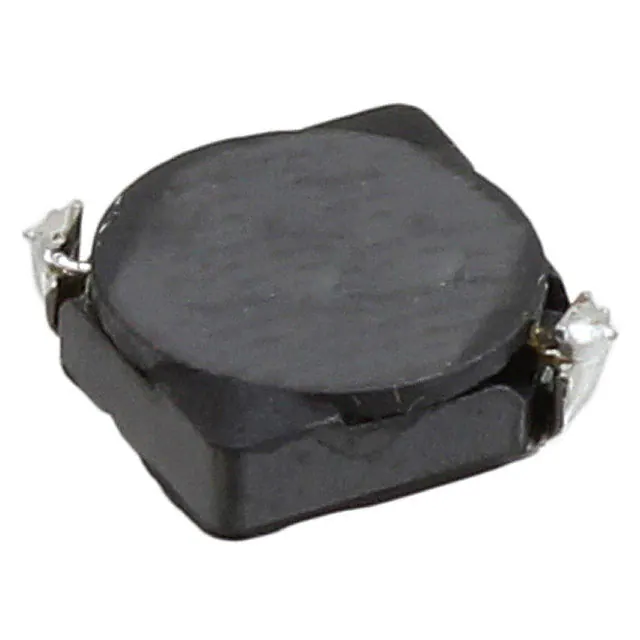

CDRH5D18NP-820NCFIXED IND 82UH 410MA 978MOHM SMD |
2,238 |
|
Datasheet |
CDRH5D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 82 µH | ±30% | 410 mA | - | Shielded | 978mOhm Max | - | - | - | -40°C ~ 100°C | 10 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.079" (2.00mm) |
|

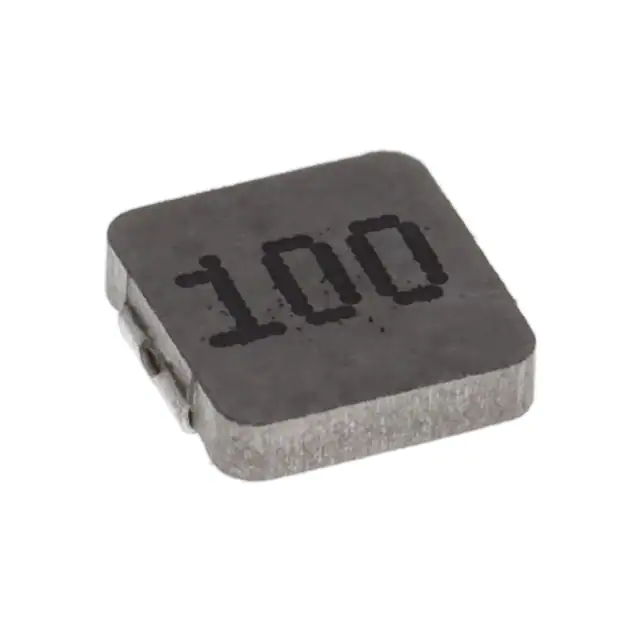

0410CDMCCDS-100MCFIXED IND 10UH 1.6A 318MOHM SMD |
1,893 |
|
Datasheet |
0410CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 1.6 A | 1.65A | Shielded | 318mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.039" (1.00mm) |
|

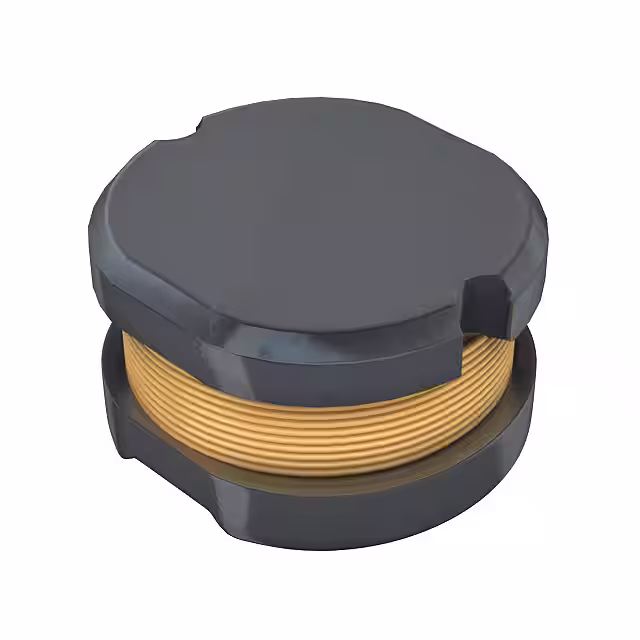

SRU2013-100YFIXED IND 10UH 670MA 520MOHM SMD |
1,425 |
|
Datasheet |
SRU2013 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 670 mA | 450mA | Shielded | 520mOhm Max | 12 @ 2.52MHz | 40MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.059" (1.50mm) |
|
|
SRU2013-4R7YFIXED IND 4.7UH 900MA 220MOHM SM |
1,210 |
|
Datasheet |
SRU2013 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 900 mA | 750mA | Shielded | 220mOhm Max | 10 @ 7.96MHz | 72MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.059" (1.50mm) |
|

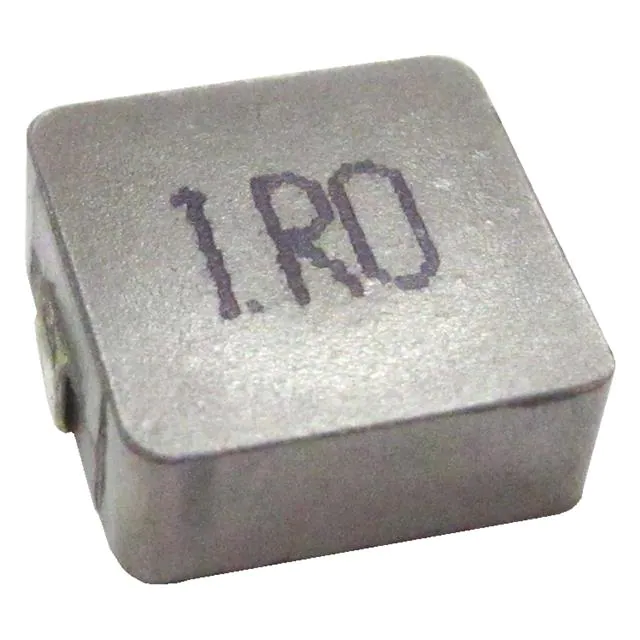

BMRA000404204R7MA1FIXED IND 4.7UH 2.2A 126MOHM SMD |
1,197 |
|
Datasheet |
BMRA | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 2.2 A | 3A | Shielded | 126mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.079" (2.00mm) |
|

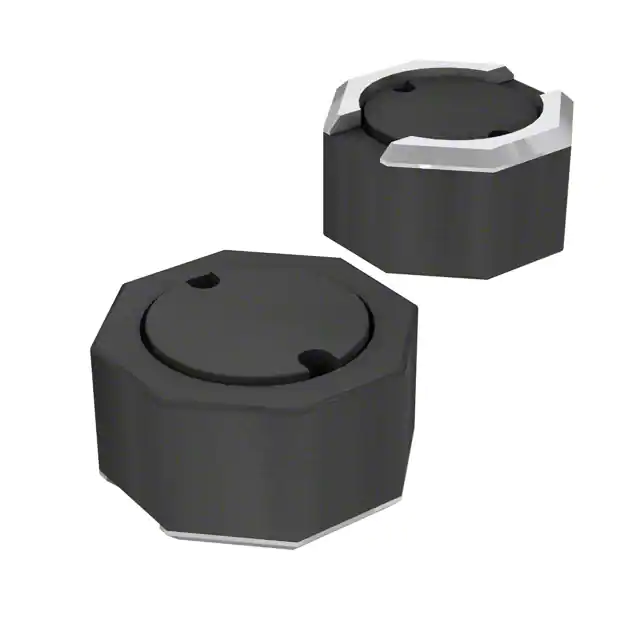

SRU2016-220YFIXED IND 22UH 430MA 990MOHM SMD |
2,290 |
|
Datasheet |
SRU2016 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 430 mA | 370mA | Shielded | 990mOhm Max | 12 @ 2.52MHz | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.071" (1.80mm) |
|

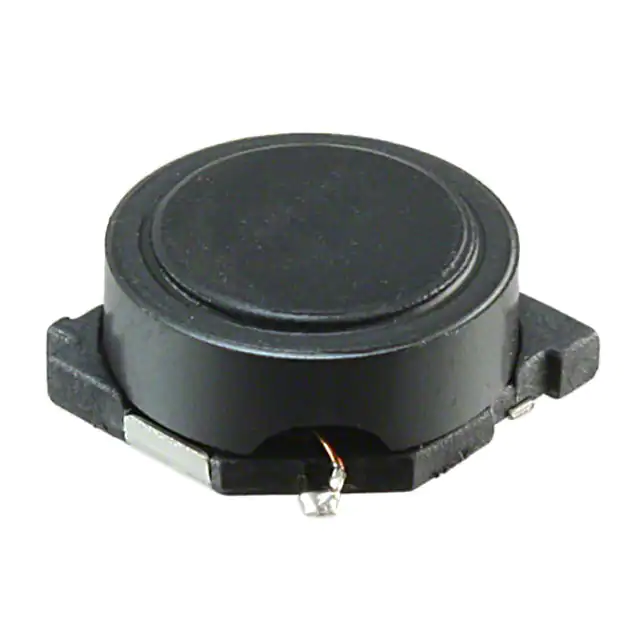

NS10145T330MNAFIXED IND 33UH 2.01A 98.4MOHM SM |
1,845 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.01 A | 2.36A | Shielded | 98.4mOhm Max | - | 10.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
SRU3028-470YFIXED IND 47UH 320MA 815MOHM SMD |
1,800 |
|
Datasheet |
SRU3028 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 320 mA | 380mA | Shielded | 815mOhm | 20 @ 2.52MHz | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.130" W (3.50mm x 3.30mm) | 0.118" (3.00mm) |
|

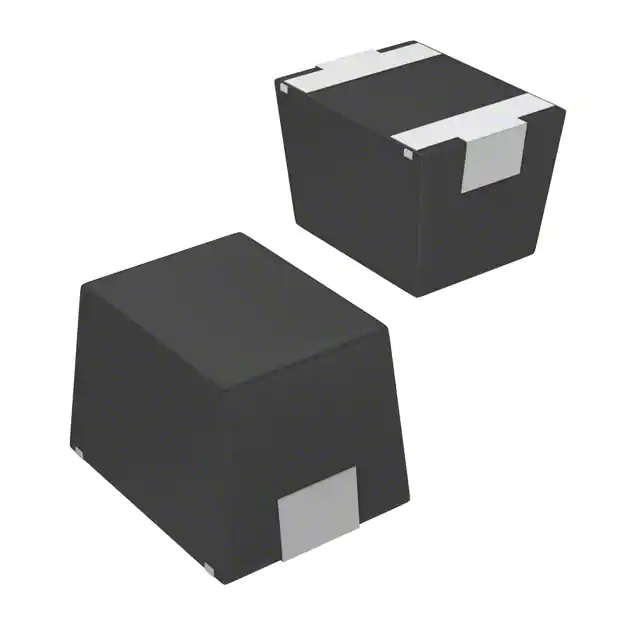

IMC1210ER5R6KFIXED IND 5.6UH 217MA 1.6OHM SMD |
1,400 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 5.6 µH | ±10% | 217 mA | - | Unshielded | 1.6Ohm Max | 30 @ 7.96MHz | 45MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|

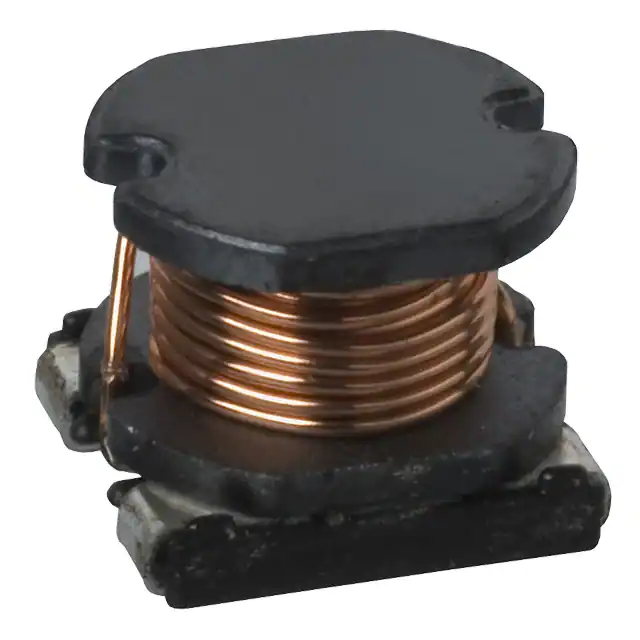

CR54NP-470LCFIXED IND 47UH 720MA 370MOHM SMD |
1,004 |
|
Datasheet |
CR54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±15% | 720 mA | - | Unshielded | 370mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.209" W (5.80mm x 5.30mm) | 0.191" (4.85mm) |
|

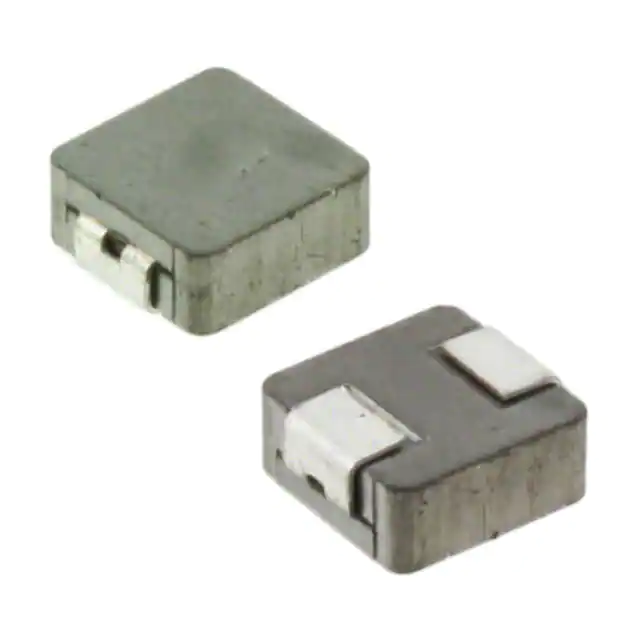

ASPI-0630HI-4R7M-T15FIXED IND 4.7UH 5.5A 40 MOHM SMD |
12,102 |
|
Datasheet |
ASPI-0630HI | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 4.7 µH | ±20% | 5.5 A | 10A | Shielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | 0.118" (3.00mm) |
|
AMPLA4020S-4R7MTFIXED IND 4.7UH 2.6A 105MOHM SMD |
5,775 |
|
Datasheet |
AMPLA4020S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 4.7 µH | ±20% | 2.6 A | 3.5A | Shielded | 105mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
SDR1006-390KLFIXED IND 39UH 1.35A 140MOHM SMD |
2,200 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 1.35 A | 2.6A | Unshielded | 140mOhm Max | 20 @ 2.52MHz | 9MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|

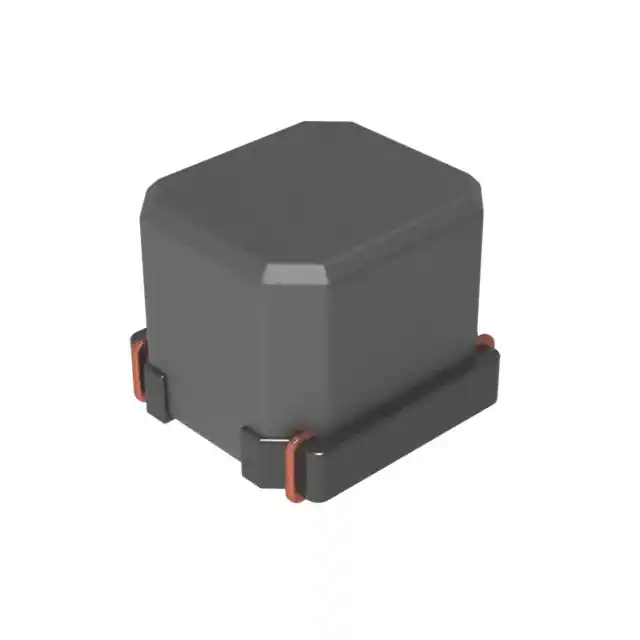

LMLP07C7M1R0DTASFIXED IND 1UH 15A 6.5 MOHM SMD |
2,168 |
|
Datasheet |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1 µH | ±20% | 15 A | 20A | Shielded | 6.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|

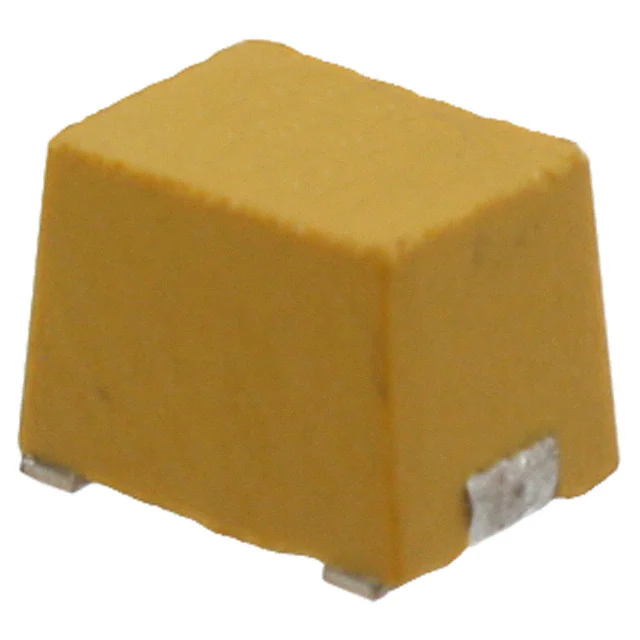

IMC1812ES680KFIXED IND 68UH 130MA 6 OHM SMD |
1,950 |
|
Datasheet |
IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 68 µH | ±10% | 130 mA | - | Unshielded | 6Ohm Max | 50 @ 2.52MHz | 9MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
MWSA0624S-R47MTFIXED IND 470NH 15A 5.1MOHM SMD |
1,488 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 470 nH | ±20% | 15 A | 20A | Shielded | 5.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
|
|
MWSA0624S-R56MTFIXED IND 560NH 13A 6.5MOHM SMD |
1,450 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 560 nH | ±20% | 13 A | 17A | Shielded | 6.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
|
|
MWSA0618S-R68MTFIXED IND 680NH 9.5A 12MOHM SMD |
1,430 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 680 nH | ±20% | 9.5 A | 16.5A | Shielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.071" (1.80mm) |
|
|
MWSA0618S-220MTFIXED IND 22UH 1.8A 350MOHM SMD |
1,394 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 22 µH | ±20% | 1.8 A | 2.3A | Shielded | 350mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.071" (1.80mm) |
