Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW03AW2N9C00DFIXED IND 2.9NH 540MA 100MOHM SM |
7,822 |
|
Datasheet |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 2.9 nH | ±0.2nH | 540 mA | - | Unshielded | 100mOhm Max | 41 @ 900MHz | 13GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
|
0410CDMCCDS-R47MCFIXED IND 470NH 5A 30.5MOHM SMD |
6,102 |
|
Datasheet |
0410CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 5 A | 6.4A | Shielded | 30.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.039" (1.00mm) |
|

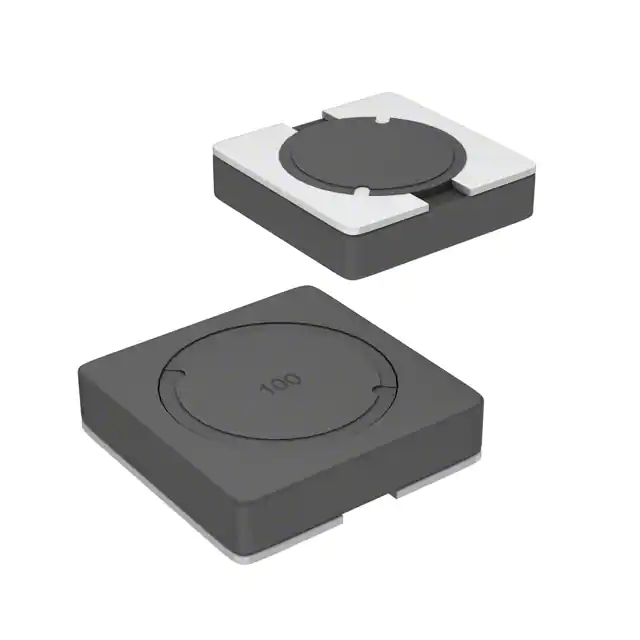

SRR4011-4R7YLFIXED IND 4.7UH 1.35A 165MOHM SM |
4,873 |
|
Datasheet |
SRR4011 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 1.35 A | 1.2A | Shielded | 165mOhm Max | 13 @ 7.96MHz | 61MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.051" (1.30mm) |
|
|
SRR4011-2R2YLFIXED IND 2.2UH 2A 75 MOHM SMD |
3,210 |
|
Datasheet |
SRR4011 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 2 A | 1.8A | Shielded | 75mOhm Max | 11 @ 7.96MHz | 92MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.051" (1.30mm) |
|

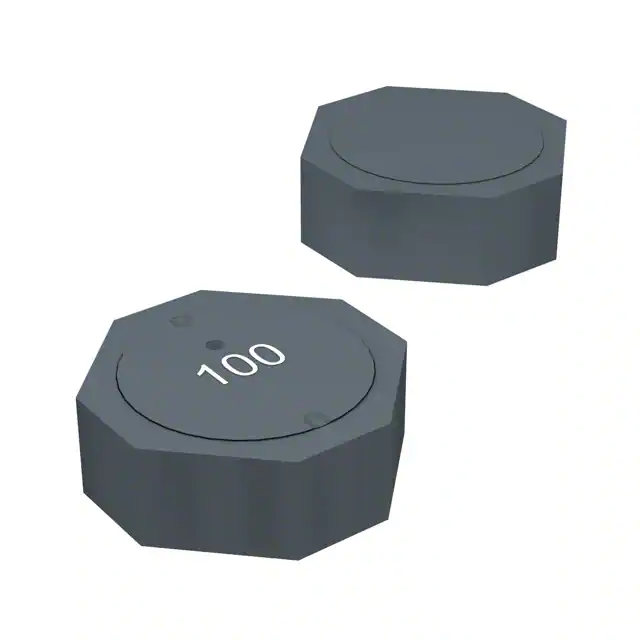

SRU5018-1R5YFIXED IND 1.5UH 2.5A 15.5MOHM SM |
3,118 |
|
Datasheet |
SRU5018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 2.5 A | 2.4A | Shielded | 15.5mOhm | 9 @ 7.96MHz | 160MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
1227AS-H-1R5N=P2FIXED IND 1.5UH 3.4A 32 MOHM SMD |
1,970 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 3.4 A | 2A | Shielded | 32mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.071" (1.80mm) |
|

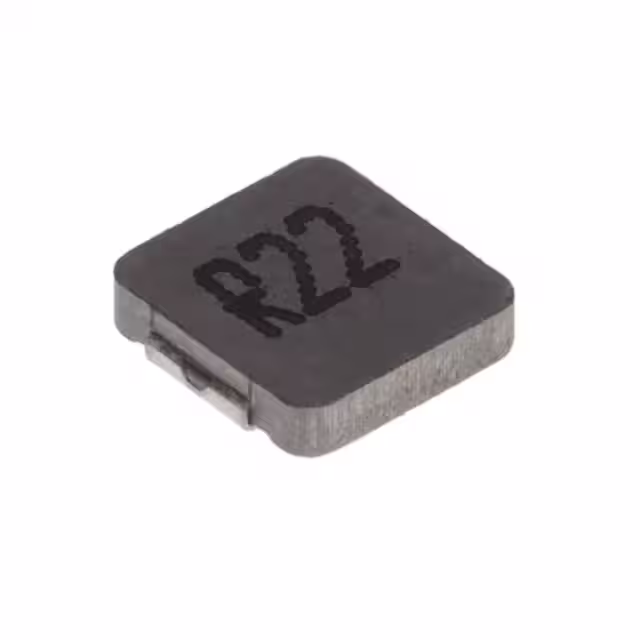

0410CDMCCDS-R22MCFIXED IND 220NH 9A 11.7MOHM SMD |
1,773 |
|
Datasheet |
0410CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 220 nH | ±20% | 9 A | 9.2A | Shielded | 11.7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.039" (1.00mm) |
|

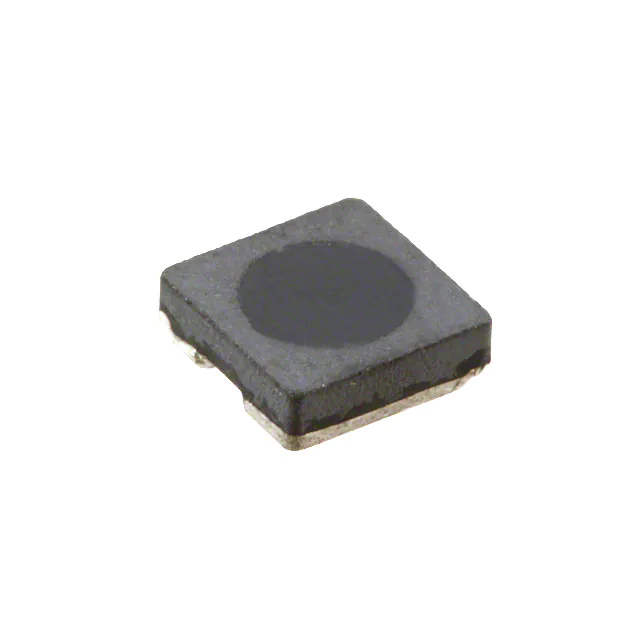

SRR3011-2R5YLFIXED IND 2.5UH 1.2A 85 MOHM SMD |
1,725 |
|
Datasheet |
SRR3011 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±30% | 1.2 A | 1A | Shielded | 85mOhm Max | 7 @ 7.96MHz | 112MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.051" (1.30mm) |
|
|
LQW03AW3N6C00DFIXED IND 3.6NH 340MA 230MOHM SM |
1,575 |
|
Datasheet |
LQW03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 3.6 nH | ±0.2nH | 340 mA | - | Unshielded | 230mOhm Max | 36 @ 900MHz | 11GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.021" L x 0.016" W (0.53mm x 0.40mm) | 0.018" (0.45mm) |
|

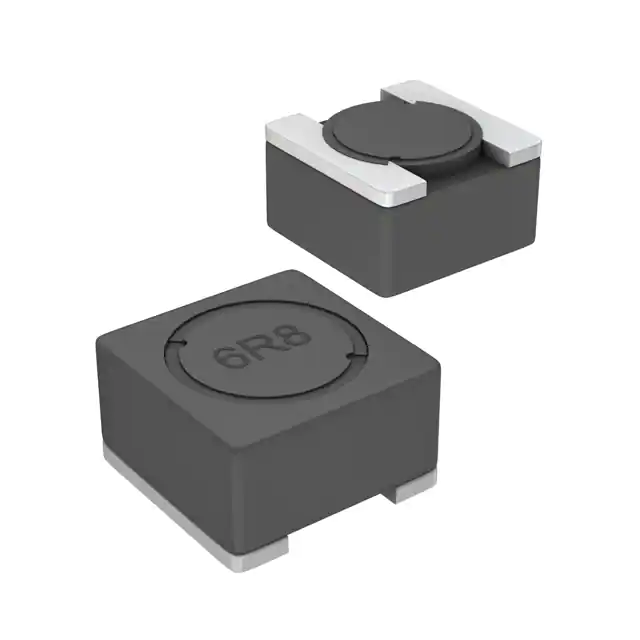

SRR4028-271YFIXED IND 270UH 320MA 1.5OHM SMD |
1,055 |
|
Datasheet |
SRR4028 | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±30% | 320 mA | 180mA | Shielded | 1.5Ohm Max | 17.46 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|

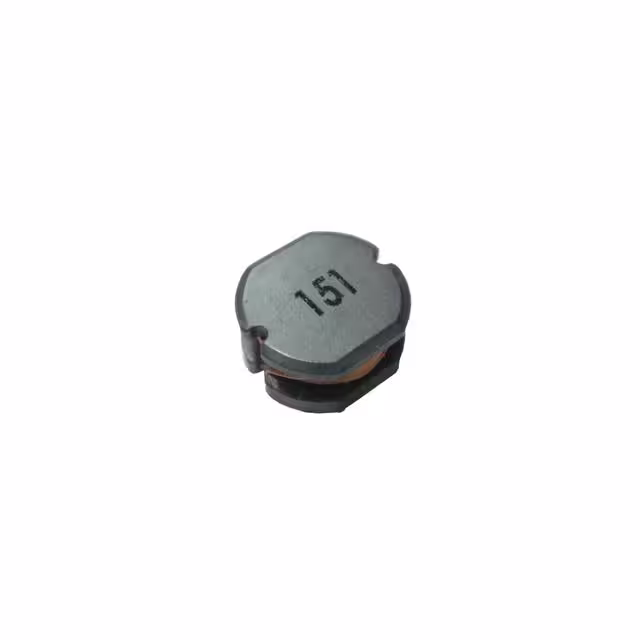

APSD00060530100M00FIXED IND 10UH 120 MOHM SMD |
5,943 |
|
Datasheet |
APSD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | - | 1.8A | Unshielded | 120mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.130" (3.30mm) |
|
SBC3-470-142FIXED IND 47UH 1.4A 120 MOHM TH |
3,493 |
|
Datasheet |
SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.4 A | 1.4A | Unshielded | 120mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.354" (9.00mm) |
|
DRC-V-822KFIXED IND 8.2MH 130MA 21OHM TH |
2,478 |
|
Datasheet |
DRC-V | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 8.2 mH | ±10% | 130 mA | 50mA | Unshielded | 21Ohm Max | 20 @ 252kHz | 200kHz | - | -40°C ~ 125°C | 252 kHz | - | Through Hole | Radial | 0.343" Dia (8.70mm) | 0.492" (12.50mm) |
|
|
DRC-V-391KFIXED IND 390UH 500MA 1OHM TH |
2,470 |
|
Datasheet |
DRC-V | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 500 mA | 480mA | Unshielded | 1Ohm Max | 10 @ 796kHz | 2.1MHz | - | -40°C ~ 125°C | 796 kHz | - | Through Hole | Radial | 0.343" Dia (8.70mm) | 0.492" (12.50mm) |
|
|
DRC-V-102KFIXED IND 1MH 350MA 2.9OHM TH |
2,313 |
|
Datasheet |
DRC-V | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 350 mA | 290mA | Unshielded | 2.9Ohm Max | 20 @ 252kHz | 1.3MHz | - | -40°C ~ 125°C | 252 kHz | - | Through Hole | Radial | 0.343" Dia (8.70mm) | 0.492" (12.50mm) |
|
EXL1V0503-R28-RFIXED IND 280NH 19A 3.3MOHM SMD |
1,976 |
|
Datasheet |
EXL1V0503 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 280 nH | ±20% | 19 A | 28A | Shielded | 3.3mOhm Max | - | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.122" (3.10mm) |
|

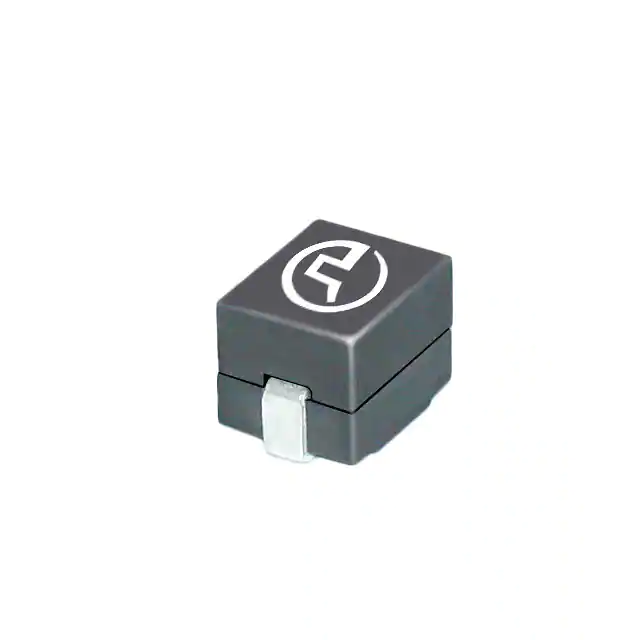

PA2982.151HLFIXED IND 150NH 62A 0.35MOHM SMD |
10,805 |
|
Datasheet |
PA2982.XXXHL | Nonstandard | Tray | Active | - | - | 150 nH | ±10% | 62 A | 64A | Shielded | 0.35mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.315" W (11.00mm x 8.00mm) | 0.201" (5.10mm) |
|

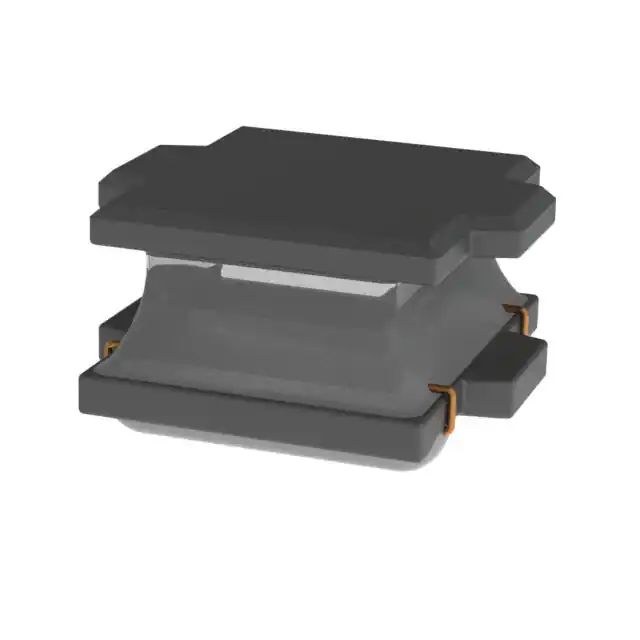

PA4338.334NLTFIXED IND 330UH 640MA 889MOHM SM |
7,491 |
|
Datasheet |
PA4338.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 330 µH | ±20% | 640 mA | 680mA | Shielded | 889mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
SCRH2D11-100FIXED IND 10UH 700MA 524MOHM SMD |
6,011 |
|
Datasheet |
SCRH2D11 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±30% | 700 mA | 340mA | Shielded | 524mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.051" (1.30mm) |
|
|
1231AS-H-R56N=P3FIXED IND 560NH 3.4A 29 MOHM SMD |
5,939 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 nH | ±30% | 3.4 A | 3.3A | Shielded | 29mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.154" W (3.70mm x 3.90mm) | 0.071" (1.80mm) |
