DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MR4020H24B2-RSRFAN AXIAL 40X20MM 24VDC WIRE |
4,494 |
|
Datasheet |
MR4020 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 13.6 CFM (0.381m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 35.1dB(A) | - | 9500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|
|
MR4020L12B1-RSRFAN AXIAL 40X20MM 12VDC WIRE |
3,442 |
|
Datasheet |
MR4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 9.4 CFM (0.263m³/min) | 0.160 in H2O (40.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 26.5dB(A) | - | 6500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|
|
MR4020L12B2-RSRFAN AXIAL 40X20MM 12VDC WIRE |
2,731 |
|
Datasheet |
MR4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 9.4 CFM (0.263m³/min) | 0.160 in H2O (40.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 26.5dB(A) | - | 6500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|
|
MR4020M12B1-RSRFAN AXIAL 40X20MM 12VDC WIRE |
2,329 |
|
Datasheet |
MR4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 11.5 CFM (0.322m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 29.8dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|
|
MR4020M12B2-RSRFAN AXIAL 40X20MM 12VDC WIRE |
2,451 |
|
Datasheet |
MR4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 11.5 CFM (0.322m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 29.8dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|
|
MR4020M24B2-RSRFAN AXIAL 40X20MM 24VDC WIRE |
4,269 |
|
Datasheet |
MR4020 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 11.5 CFM (0.322m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 29.8dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|
|
MR4020X12B2-RSRFAN AXIAL 40X20MM 12VDC WIRE |
4,992 |
|
Datasheet |
MR4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 17.3 CFM (0.484m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 41.0dB(A) | - | 12000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|
|
CBM-9330B-120-346DC BLOWER, 92.3 X 92.6 X 30 MM, |
3,155 |
|
Datasheet |
CBM-93B | Box | Active | 12VDC | Rectangular/Rounded - 92.5mm L x 92.3mm H | 29.50mm | 12.0 CFM (0.336m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Blower | Auto Restart | 34.6dB(A) | 1.44 W | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-9330B-220-346DC BLOWER, 92.3 X 92.6 X 30 MM, |
3,798 |
|
Datasheet |
CBM-93B | Box | Active | 24VDC | Rectangular/Rounded - 92.5mm L x 92.3mm H | 29.50mm | 12.0 CFM (0.336m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Blower | Auto Restart | 34.6dB(A) | 1.68 W | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-A225C-020-350-22FAN AXIAL 120X25.4MM 5VDC WIRE |
4,528 |
|
Datasheet |
CFM-120C | Box | Active | 5VDC | Square - 120mm L x 120mm H | 25.40mm | 69.7 CFM (1.95m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 37.8dB(A) | 2.85 W | 2000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-A225C-220-350-22FAN AXIAL 120X25.4MM 24VDC WIRE |
2,244 |
|
Datasheet |
CFM-120C | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 69.7 CFM (1.95m³/min) | 0.100 in H2O (24.9 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 37.8dB(A) | 4.08 W | 2000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6020B-250-368-22DC AXIAL FAN, 60 MM SQUARE, 20 M |
4,636 |
|
Datasheet |
CFM-60B | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 25.0 CFM (0.700m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 32.9dB(A) | 2.4 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
6025BF).jpg)
|

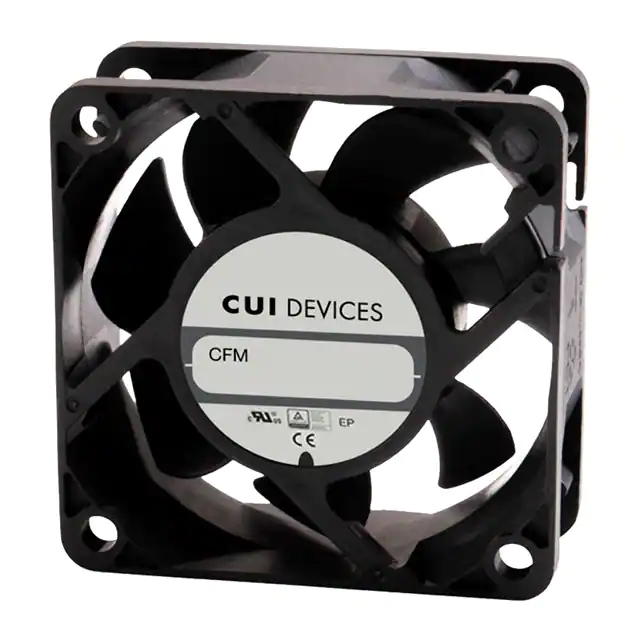

CFM-6015BF-265-412-22FAN AXIAL 60X15.5MM 24VDC WIRE |
3,450 |
|
Datasheet |
CFM-60BF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.50mm | 28.6 CFM (0.801m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 41.2dB(A) | 5.76 W | 6500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
EF40201B1-1000U-H9912VDC FAN 40X20MM PWM |
2,340 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.9 CFM (0.249m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 24.5dB(A) | 0.66 W | 7200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF40201B1-1000U-F9912VDC FAN 40X20MM TACH |
4,354 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.9 CFM (0.249m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 24.5dB(A) | 0.66 W | 7200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF40201BX-1000U-F9912VDC FAN 40X20MM TACH |
1,749 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 10.8 CFM (0.302m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 28.5dB(A) | 0.78 W | 8200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF40201B3-1000U-H9912VDC FAN 40X20MM PWM |
2,683 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.4 CFM (0.179m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 16.2dB(A) | 0.42 W | 5200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF40201B2-1000U-H9912VDC FAN 40X20MM PWM |
3,168 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 21.3dB(A) | 0.48 W | 6200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF40201BX-1000U-H9912VDC FAN 40X20MM PWM |
2,791 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 10.8 CFM (0.302m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 28.5dB(A) | 0.78 W | 8200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EF40201B2-1000U-F9912VDC FAN 40X20MM TACH |
3,452 |
|
Datasheet |
EF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 21.3dB(A) | 0.48 W | 6200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
