DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB0512HB-AF00FAN AXIAL 50X15MM 12VDC WIRE |
4,242 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 18.0 CFM (0.504m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 34.0dB(A) | 1.68 W | 6300 RPM | 3 Wire Leads | - | - | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|
|
AFB0605HCFAN AXIAL 60X13MM BALL 5VDC WIRE |
3,630 |
|
Datasheet |
AFB | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 13.00mm | 21.2 CFM (0.594m³/min) | 0.163 in H2O (40.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.5dB(A) | 1.45 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.074 lb (33.56 g) |
|
|
AFB0424MBFAN AXIAL 40X15MM 24VDC WIRE |
4,424 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 15.00mm | 8.1 CFM (0.227m³/min) | 0.202 in H2O (50.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.5dB(A) | 1.44 W | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|
|
AFB0412HBFAN AXIAL 40X15MM 12VDC WIRE |
2,232 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 9.5 CFM (0.266m³/min) | 0.272 in H2O (67.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.5dB(A) | 1.2 W | 7000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|
CBM-979433S-230-507-22FAN BLOWER 97X33MM 24VDC WIRE |
4,886 |
|
Datasheet |
CBM-97S | Box | Active | 24VDC | Rectangular/Rounded - 97mm L x 94.8mm H | 33.00mm | 18.1 CFM (0.507m³/min) | 0.400 in H2O (99.6 Pa) | Sleeve | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 43.5dB(A) | 5.76 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CBM-4010B-160-267-22FAN BLOWER 39.5X10MM 12VDC WIRE |
4,738 |
|
Datasheet |
CBM-40B | Box | Active | 12VDC | Square/Rounded - 39.5mm L x 39.5mm H | 10.00mm | 1.8 CFM (0.050m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Blower | PWM Control, Speed Sensor (Tach) | 26.7dB(A) | 1.32 W | 6000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
KD2406PTB2.(2).GNFAN AXIAL 60X25MM 24VDC WIRE |
4,030 |
|
Datasheet |
KD | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 19.3 CFM (0.540m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart | 30.0dB(A) | 1.3 W | 3800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
KD2406PTB2.13.(2).A.GNFAN AXIAL 60X25MM 24VDC WIRE |
4,938 |
|
Datasheet |
KD | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
KD2406PTB3.13.(2).A.GNFAN AXIAL 60X25MM 24VDC WIRE |
3,601 |
|
Datasheet |
KD | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 18.0 CFM (0.504m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart | 26.0dB(A) | 1 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
KD2406PTB4.13.(2).A.GNFAN AXIAL 60X25MM 24VDC WIRE |
2,192 |
|
Datasheet |
KD | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
KD2406PTBX.13.(2).A.GNFAN AXIAL 60X25MM 24VDC WIRE |
3,158 |
|
Datasheet |
KD | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
MC35101V1-000U-A99FAN AXIAL 35X10MM 12VDC WIRE |
4,212 |
|
Datasheet |
MagLev® MC | Tray | Obsolete | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 7.0 CFM (0.196m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 28.0dB(A) | 720 mW | 9500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.024 lb (10.89 g) |
|

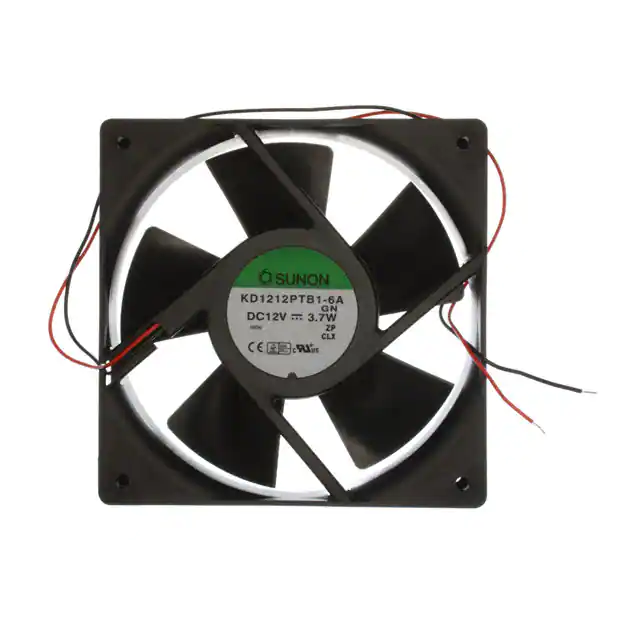

KD1212PTB1-6A.GNFAN AXIAL 120X25MM 12VDC WIRE |
2,587 |
|
Datasheet |
KD | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 90.0 CFM (2.52m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | - | 44.5dB(A) | 3.7 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.441 lb (200.03 g) |
|

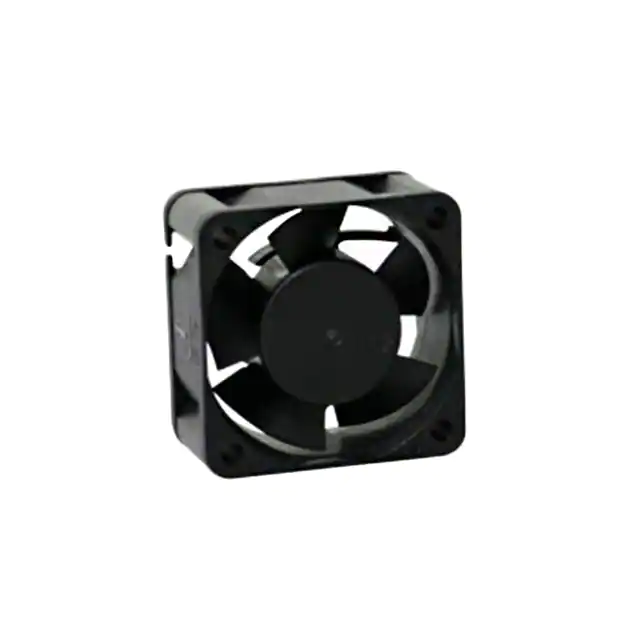

MR4020E12B1-RSRFAN AXIAL 40X20MM 12VDC WIRE |
3,301 |
|
Datasheet |
MR4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 15.8 CFM (0.442m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 39.1dB(A) | - | 11000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|
|
MR4020E12B2-RSRFAN AXIAL 40X20MM 12VDC WIRE |
3,746 |
|
Datasheet |
MR4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 15.8 CFM (0.442m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 39.1dB(A) | - | 11000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|
|
MR4020E24B1-RSRFAN AXIAL 40X20MM 24VDC WIRE |
3,825 |
|
Datasheet |
MR4020 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 15.8 CFM (0.442m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 39.1dB(A) | - | 11000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|
|
MR4020E24B2-RSRFAN AXIAL 40X20MM 24VDC WIRE |
2,889 |
|
Datasheet |
MR4020 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 15.8 CFM (0.442m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 39.1dB(A) | - | 11000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|
|
MR4020H12B1-RSRFAN AXIAL 40X20MM 12VDC WIRE |
1,970 |
|
Datasheet |
MR4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 13.6 CFM (0.381m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 35.1dB(A) | - | 9500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|
|
MR4020H12B2-RSRFAN AXIAL 40X20MM 12VDC WIRE |
4,184 |
|
Datasheet |
MR4020 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 13.6 CFM (0.381m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 35.1dB(A) | - | 9500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
|
|
MR4020H24B1-RSRFAN AXIAL 40X20MM 24VDC WIRE |
2,009 |
|
Datasheet |
MR4020 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 13.6 CFM (0.381m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 35.1dB(A) | - | 9500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.053 lb (24.04 g) |
