DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-6020B-030-257-22FAN AXIAL 60X20MM BALL 5VDC WIRE |
2,893 |
|
Datasheet |
CFM-60B | Box | Active | 5VDC | Square - 60mm L x 60mm H | 20.00mm | 11.4 CFM (0.319m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.7dB(A) | 700 mW | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6020B-040-320-22FAN AXIAL 60X20MM BALL 5VDC WIRE |
2,594 |
|
Datasheet |
CFM-60B | Box | Active | 5VDC | Square - 60mm L x 60mm H | 20.00mm | 15.2 CFM (0.426m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 32.0dB(A) | 2.05 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6020B-140-320-22FAN AXIAL 60X20MM 12VDC WIRE |
3,291 |
|
Datasheet |
CFM-60B | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 15.2 CFM (0.426m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 32.0dB(A) | 1.44 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6020B-130-257-22FAN AXIAL 60X20MM 12VDC WIRE |
3,674 |
|
Datasheet |
CFM-60B | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 11.4 CFM (0.319m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.7dB(A) | 960 mW | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
DC0601512H2B-3T0FAN AXIAL 60X15MM 12VDC WIRE |
3,498 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 23.1 CFM (0.647m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 1.44 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.098 lb (44.45 g) |
|
|
DC0601512J2B-3T0FAN AXIAL 60X15MM 12VDC WIRE |
1,470 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 15.0 CFM (0.420m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 720 mW | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.098 lb (44.45 g) |
|
|
DC0601512L2B-3T0FAN AXIAL 60X15MM 12VDC WIRE |
3,856 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 19.0 CFM (0.532m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 29.0dB(A) | 960 mW | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.098 lb (44.45 g) |
|
|
DC0601512M2B-3T0FAN AXIAL 60X15MM 12VDC WIRE |
1,872 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 21.7 CFM (0.608m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 1.2 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.098 lb (44.45 g) |
|
DC0601524H2B-2T0FAN 60X15MM 24VDC |
4,790 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 23.1 CFM (0.647m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 2.88 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0601524L2B-2T0FAN 60X15MM 24VDC |
1,337 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 19.0 CFM (0.532m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 29.0dB(A) | 1.92 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
ME70151V2-000U-A99FAN AXIAL 70X15MM 12VDC WIRE |
2,465 |
|
Datasheet |
MagLev® ME | Bulk | Not For New Designs | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 23.0 CFM (0.644m³/min) | 0.090 in H2O (22.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 26.5dB(A) | 890 mW | 2800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.091 lb (41.28 g) |
|

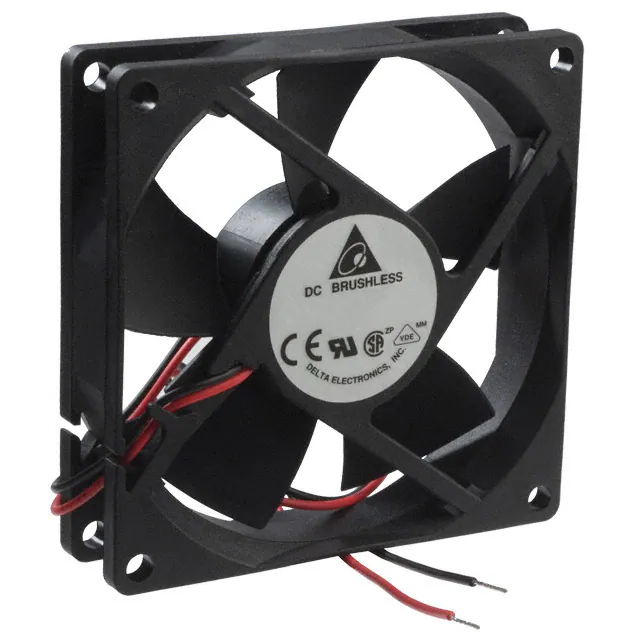

AFB0812SHDFAN AXIAL 80X20MM 12VDC WIRE |
3,314 |
|
Datasheet |
AFB | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 48.2 CFM (1.35m³/min) | 0.245 in H2O (61.0 Pa) | Ball | Tubeaxial | - | 41.0dB(A) | 2.64 W | 4000 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.165 lb (74.84 g) |
|
MC25100V1-000U-A99FAN AXIAL 25X10MM VAPO 5VDC WIRE |
3,559 |
|
Datasheet |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 3.5 CFM (0.098m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 23.0dB(A) | 600 mW | 13000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.017 lb (7.71 g) |
|

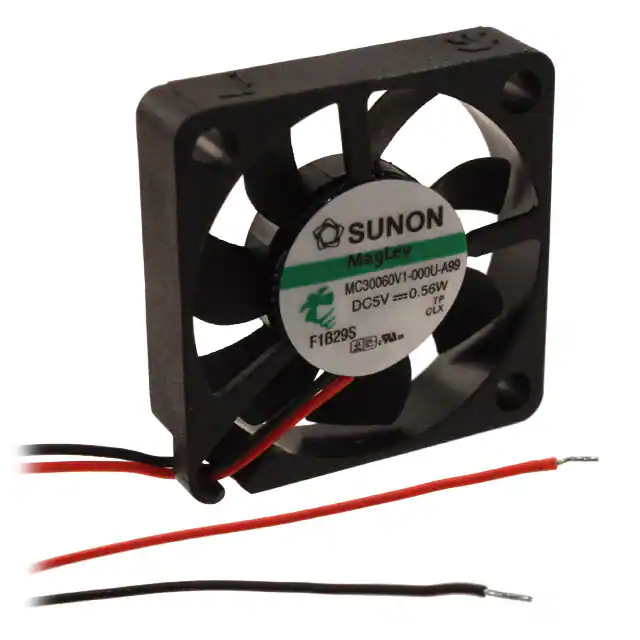

MC30060V1-000U-A99FAN AXIAL 30X6.9MM 5VDC WIRE |
2,853 |
|
Datasheet |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 30mm L x 30mm H | 6.90mm | 4.9 CFM (0.137m³/min) | 0.140 in H2O (34.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 28.0dB(A) | 560 mW | 9500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.013 lb (5.9 g) |
|
MC30100V1-000U-A99FAN AXIAL 30X10MM VAPO 5VDC WIRE |
2,591 |
|
Datasheet |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 5.5 CFM (0.154m³/min) | 0.150 in H2O (37.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 23.0dB(A) | 600 mW | 9500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.019 lb (8.62 g) |
|

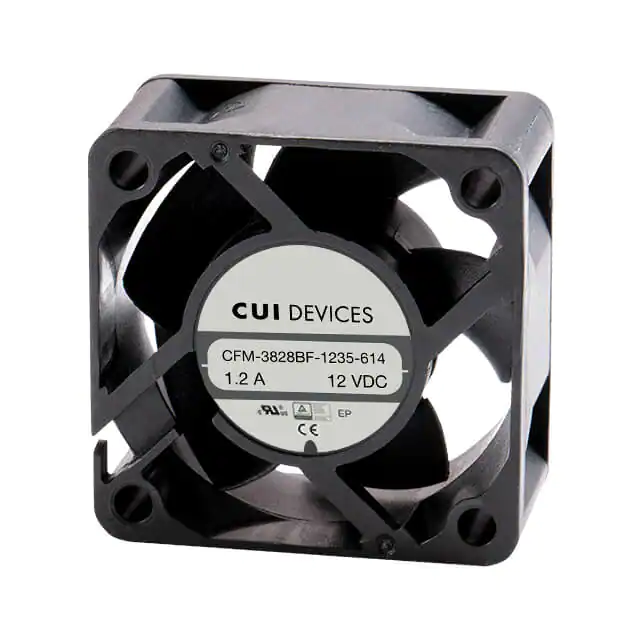

CFM-3828BF-190-406-20FAN AXIAL 38X28MM 12VDC WIRE |
3,393 |
|
Datasheet |
CFM-38BF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 8.4 CFM (0.235m³/min) | 0.470 in H2O (117.1 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 40.6dB(A) | 1.68 W | 9000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0401012H2B-2T2FAN 40X10MM 12VDC MOLEX 22-01-10 |
4,195 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 7.2 CFM (0.202m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 26.0dB(A) | 720 mW | 6000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0401012M2B-2T2FAN 40X10MM 12VDC MOLEX 22-01-10 |
1,798 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.8 CFM (0.134m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 21.0dB(A) | 360 mW | 4000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0401012U2B-2T2FAN 40X10MM 12VDC MOLEX 22-01-10 |
3,404 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 9.3 CFM (0.260m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 1.08 W | 8000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-4010B-250-195-20FAN AXIAL 40X10.5MM 24VDC WIRE |
2,626 |
|
Datasheet |
CFM-40B | Box | Active | 24VDC | Square - 40mm L x 40mm H | 10.50mm | 4.2 CFM (0.118m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 19.5dB(A) | 1.2 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
