DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4710KL-05W-B30-P00FAN AXIAL 119X25.5MM 24VDC WIRE |
2,198 |
|
Datasheet |
4710KL | - | Obsolete | 24VDC | Square - 119mm L x 119mm H | 25.50mm | 88.2 CFM (2.47m³/min) | 0.129 in H2O (32.1 Pa) | Ball | Tubeaxial | - | 35.0dB | 3.6 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
|
4710KL-05W-B40-L00FAN AXIAL 119X25.5MM 24VDC WIRE |
2,069 |
|
Datasheet |
4710KL | - | Obsolete | 24VDC | Square - 119mm L x 119mm H | 25.50mm | 100.6 CFM (2.82m³/min) | 0.164 in H2O (40.9 Pa) | Ball | Tubeaxial | - | 38.5dB | 5.28 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
|
4710KL-05W-B40-P00FAN AXIAL 119X25.5MM 24VDC WIRE |
2,750 |
|
Datasheet |
4710KL | - | Obsolete | 24VDC | Square - 119mm L x 119mm H | 25.50mm | 100.6 CFM (2.82m³/min) | 0.164 in H2O (40.9 Pa) | Ball | Tubeaxial | - | 38.5dB | 5.28 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
|
4710KL-05W-B50-L00FAN AXIAL 119X25.5MM 24VDC WIRE |
2,546 |
|
Datasheet |
4710KL | - | Obsolete | 24VDC | Square - 119mm L x 119mm H | 25.50mm | 114.7 CFM (3.21m³/min) | 0.203 in H2O (50.6 Pa) | Ball | Tubeaxial | - | 41.5dB | 6.96 W | 2800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.397 lb (180.08 g) |
|
EF40201B3-1000U-A99FAN AXIAL 40X20MM 12VDC WIRE |
3,479 |
|
Datasheet |
EF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.3 CFM (0.176m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart | 16.2dB(A) | 420 mW | 5200 RPM | 2 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
EF40201B1-1000U-A99FAN AXIAL 40X20MM 12VDC WIRE |
4,757 |
|
Datasheet |
EF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.9 CFM (0.249m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart | 24.5dB(A) | 660 mW | 7200 RPM | 2 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
EF40201BX-1000U-A99FAN AXIAL 40X20MM 12VDC WIRE |
4,351 |
|
Datasheet |
EF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 10.8 CFM (0.302m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart | 28.5dB(A) | 780 mW | 8200 RPM | 2 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
EF40201B2-1000U-A99FAN AXIAL 40X20MM 12VDC WIRE |
2,481 |
|
Datasheet |
EF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.180 in H2O (45.0 Pa) | Ball | Tubeaxial | Auto Restart | 21.3dB(A) | 480 mW | 6200 RPM | 2 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
CBM-5020B-150-320-22DC BLOWER, 49.2 X 49.8 X 20 MM, |
2,355 |
|
Datasheet |
CBM-50B | Box | Active | 12VDC | Rectangular/Rounded - 49.8mm L x 49.2mm H | 20.00mm | 5.1 CFM (0.143m³/min) | 0.440 in H2O (109.6 Pa) | Ball | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 32.0dB(A) | 2.04 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8025V-242-435FAN AXIAL 80X25MM 24VDC WIRE |
3,331 |
|
Datasheet |
CFM-80V | Tray | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.300 in H2O (74.7 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 43.5dB(A) | 3.8 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.165 lb (74.84 g) |
|
|
CFM-8025V-245-450FAN AXIAL 80X25MM 24VDC WIRE |
4,589 |
|
Datasheet |
CFM-80V | Tray | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 57.0 CFM (1.60m³/min) | 0.350 in H2O (87.2 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 45.0dB(A) | 4.59 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.201 lb (91.17 g) |
|
CFM-9225V-239-420FAN AXIAL 92X25MM 24VDC WIRE |
3,955 |
|
Datasheet |
CFM-92V | Tray | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 65.0 CFM (1.82m³/min) | 0.250 in H2O (62.3 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 42.0dB(A) | 4.28 W | 3900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.227 lb (102.97 g) |
|
|

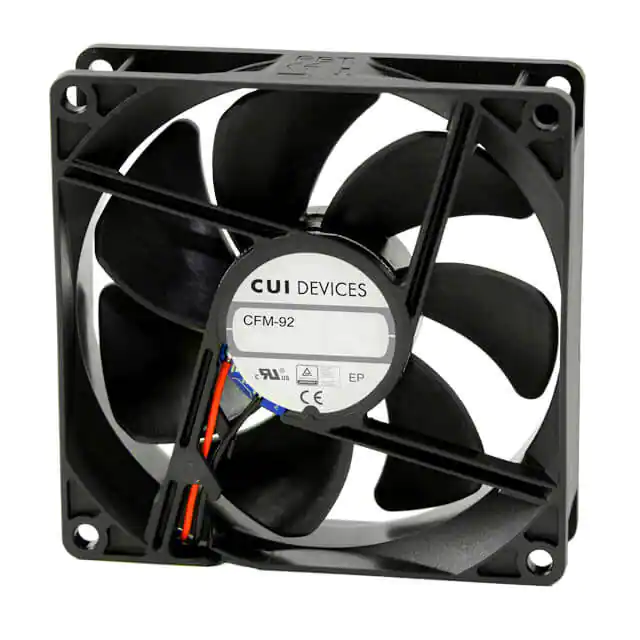

CFM-9225V-242-440FAN AXIAL 92X25MM 24VDC WIRE |
1,007 |
|
Datasheet |
CFM-92V | Tray | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.300 in H2O (74.7 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 44.0dB(A) | 4.97 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.227 lb (102.97 g) |
|
|
MF17080V2-1000U-F995VDC FAN 17X8MM TACH |
4,173 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 17mm L x 17mm H | 8.00mm | 0.700 CFM (0.020m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 14.2dB(A) | 0.33 W | 16500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF17080V1-1000U-F995VDC FAN 17X8MM TACH |
4,841 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 17mm L x 17mm H | 8.00mm | 0.870 CFM (0.025m³/min) | 0.280 in H2O (69.7 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 21.5dB(A) | 0.47 W | 21000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|

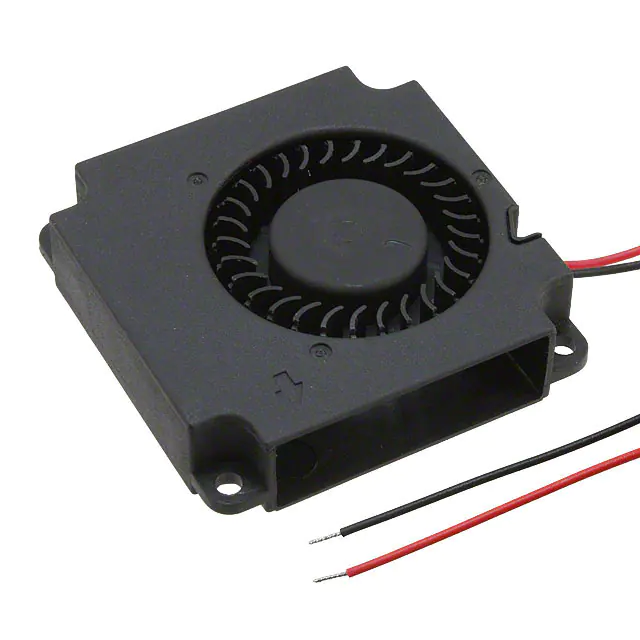

BFB0412HHA-AFAN BLOWER 40X10MM 12VDC WIRE |
2,689 |
|
Datasheet |
BFB | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 3.0 CFM (0.084m³/min) | 0.564 in H2O (140.5 Pa) | Ball | Blower | Locked Rotor Protection | 34.5dB(A) | 960 mW | 8500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.027 lb (12.25 g) |
|
|
DB0601512H2B-2T0FAN BLOWER 60X15.5MM 12VDC WIRE |
1,921 |
|
Datasheet |
DB | Box | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 15.50mm | 3.8 CFM (0.106m³/min) | 0.710 in H2O (176.9 Pa) | Ball | Blower | Locked Rotor Protection | 37.0dB(A) | 1.32 W | 5500 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
|
19032648AFAN AXIAL 52X10MM CR0512HB-G90 |
4,540 |
|
Datasheet |
Flight LT | Bulk | Obsolete | 12VDC | Square - 52mm L x 52mm H | 10.00mm | 9.8 CFM (0.274m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | - | 28.6dB(A) | 1 W | 3800 RPM | 2 Wire Leads | - | - | CE, CSA, UR | 0.053 lb (24.04 g) |
|
DC0501012L2B-2T0FAN AXIAL 50X10MM 12VDC WIRE |
3,938 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 8.2 CFM (0.230m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 840 mW | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.071 lb (32.21 g) |
|
DC0501512J2B-2T0FAN AXIAL 50X15MM 12VDC WIRE |
1,068 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 9.9 CFM (0.277m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 720 mW | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.084 lb (38.1 g) |
