DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-4015B-245-176-20DC AXIAL FAN, 40 MM SQUARE, 15 M |
1,151 |
|
Datasheet |
CFM-40B | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.10mm | 5.0 CFM (0.140m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 17.6dB(A) | 0.72 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

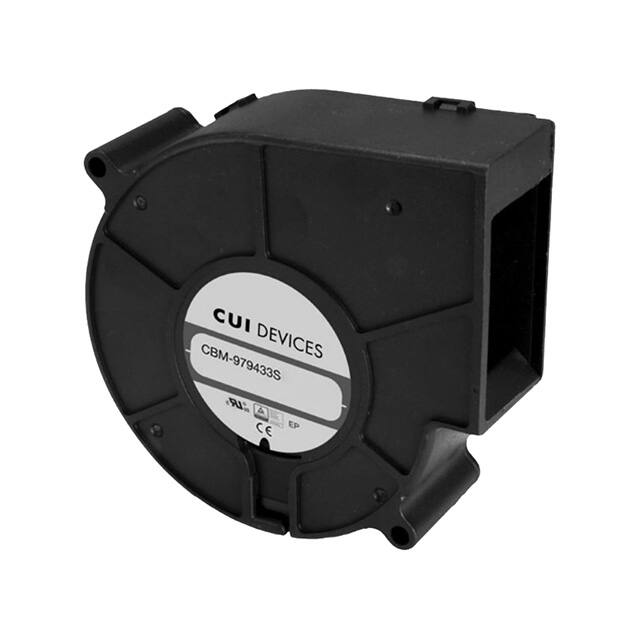

CBM-979433S-225-467-22FAN BLOWER 97X33MM 24VDC WIRE |
4,035 |
|
Datasheet |
CBM-97S | Box | Active | 24VDC | Rectangular/Rounded - 97mm L x 94.8mm H | 33.00mm | 15.1 CFM (0.423m³/min) | 0.280 in H2O (69.7 Pa) | Sleeve | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 39.5dB(A) | 4.32 W | 2500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-979433S-125-467-22FAN BLOWER 97X33MM 12VDC WIRE |
3,724 |
|
Datasheet |
CBM-97S | Box | Active | 12VDC | Rectangular/Rounded - 97mm L x 94.8mm H | 33.00mm | 15.1 CFM (0.423m³/min) | 0.280 in H2O (69.7 Pa) | Sleeve | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 39.5dB(A) | 4.56 W | 2500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8020BF-155-444FAN AXIAL 80X20MM 12VDC WIRE |
1,514 |
|
Datasheet |
CFM-80BF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 20.00mm | 53.9 CFM (1.51m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart | 44.5dB(A) | 5.4 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8020V-230-350FAN AXIAL 80X20MM 24VDC WIRE |
3,397 |
|
Datasheet |
CFM-80V | Tray | Obsolete | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 33.1 CFM (0.927m³/min) | 0.160 in H2O (40.0 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 35.0dB(A) | 1.42 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.145 lb (65.77 g) |
|
|
MF30101V2-1000U-G99FAN AXIAL 30X10MM 12VDC WIRE |
3,444 |
|
Datasheet |
MagLev® MF | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 4.6 CFM (0.129m³/min) | 0.140 in H2O (34.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.0dB(A) | 390 mW | 8600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
09225SA-24Q-AL-D0DC AXIAL FAN |
2,030 |
|
Datasheet |
09225SA | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 65.6 CFM (1.84m³/min) | 0.293 in H2O (73.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 40.0dB | 3.12 W | 3900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225SA-24Q-AT-D0DC AXIAL FAN |
2,817 |
|
Datasheet |
09225SA | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 65.6 CFM (1.84m³/min) | 0.293 in H2O (73.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 40.0dB | 3.12 W | 3900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
EE80251B3-000U-A99Thermal Products |
2,996 |
|
Datasheet |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
UF3H3-710 V2FAN AXIAL 17X3MM VAPO 3VDC |
1,530 |
|
Datasheet |
MagLev® UF, Mighty Mini | Bulk | Active | 3VDC | Square - 17mm L x 17mm H | 3.00mm | 0.575 CFM (0.016m³/min) | 0.085 in H2O (21.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.0dB(A) | 100 mW | 13000 RPM | 2 Position Rectangular Connector | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.003 lb (1.36 g) |
|
|
EFB0612LA-F00FAN AXIAL 60X10MM 12VDC WIRE |
1,665 |
|
Datasheet |
EFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 13.4 CFM (0.375m³/min) | 0.065 in H2O (16.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.5dB(A) | 840 mW | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.062 lb (28.12 g) |
|
|
EFB0612HA-R00FAN AXIAL 60X10MM 12VDC WIRE |
2,732 |
|
Datasheet |
EFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 18.0 CFM (0.504m³/min) | 0.132 in H2O (32.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 33.0dB(A) | 1.44 W | 4200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.062 lb (28.12 g) |
|
|
EFB0412HHD-F00FAN AXIAL 40X20MM 12VDC WIRE |
3,665 |
|
Datasheet |
EFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 9.4 CFM (0.263m³/min) | 0.354 in H2O (88.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 30.5dB(A) | 1.2 W | 8200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.073 lb (33.11 g) |
|
|
AFB0512MB-AFAN AXIAL 50X15MM 12VDC WIRE |
1,131 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 15.3 CFM (0.428m³/min) | 0.177 in H2O (44.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 30.0dB(A) | 1.2 W | 5300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|
|
EFB0612HHA-R00FAN AXIAL 60X10MM 12VDC WIRE |
1,660 |
|
Datasheet |
EFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 21.2 CFM (0.594m³/min) | 0.132 in H2O (32.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 36.5dB(A) | 2.16 W | 4200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.062 lb (28.12 g) |
|
|
EFB0424VHD-R00FAN AXIAL 40X20MM 24VDC WIRE |
3,908 |
|
Datasheet |
EFB | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 10.1 CFM (0.283m³/min) | 0.416 in H2O (103.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 32.5dB(A) | 2.16 W | 9000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.073 lb (33.11 g) |
|
|
EFB0424VHD-F00FAN AXIAL 40X20MM 24VDC WIRE |
1,562 |
|
Datasheet |
EFB | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 10.1 CFM (0.283m³/min) | 0.416 in H2O (103.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.5dB(A) | 2.16 W | 9000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.073 lb (33.11 g) |
|
AFB0512HDFAN AXIAL 50X20MM 12VDC WIRE |
3,083 |
|
Datasheet |
AFB | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 15.8 CFM (0.442m³/min) | 0.182 in H2O (45.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 1.2 W | 5600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.085 lb (38.56 g) |
|
AFB0624MB-R00FAN AXIAL 60X15MM 24VDC WIRE |
1,732 |
|
Datasheet |
AFB | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 13.5 CFM (0.378m³/min) | 0.119 in H2O (29.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 29.0dB(A) | 1.44 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.098 lb (44.45 g) |
|
OD6025-24LSSFAN AXIAL 60X25MM 24VDC WIRE |
2,412 |
|
Datasheet |
OD6025 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 14.0 CFM (0.392m³/min) | 0.140 in H2O (34.9 Pa) | Sealed Sleeve | Tubeaxial | Auto Restart | 20.0dB(A) | 1 W | 2480 RPM | 2 Wire Leads | - | - | cURus, TUV | 0.141 lb (63.96 g) |
