DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

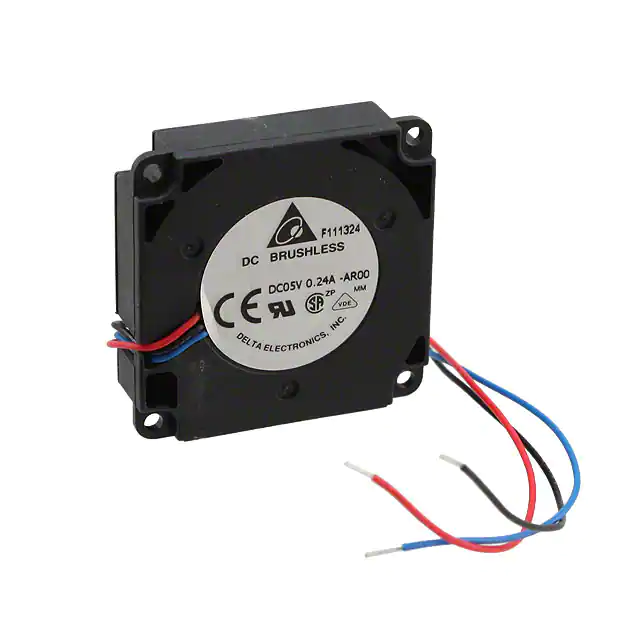

BFB0505HA-CR00FAN BLOWER 50X10.3MM 5VDC WIRE |
4,719 |
|
Datasheet |
BFB | Box | Obsolete | 5VDC | Square - 50mm L x 50mm H | 10.30mm | 3.5 CFM (0.098m³/min) | 0.563 in H2O (140.2 Pa) | Ball | Blower | Locked Rotor Sensor | 32.5dB(A) | 900 mW | 5100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.05 lb (22.68 g) |
|
AFB0512HD-F00FAN AXIAL 50X20MM 12VDC WIRE |
2,696 |
|
Datasheet |
AFB | Bulk | Obsolete | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 15.8 CFM (0.442m³/min) | 0.182 in H2O (45.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 33.0dB(A) | 1.2 W | 5600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.085 lb (38.56 g) |
|
AFB0512VHD-F00FAN AXIAL 50X20MM 12VDC WIRE |
2,326 |
|
Datasheet |
AFB | Box | Obsolete | 12VDC | Square - 50mm L x 50mm H | 20.00mm | 20.3 CFM (0.568m³/min) | 0.303 in H2O (75.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.5dB(A) | 1.92 W | 7000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.085 lb (38.56 g) |
|
MF20080V2-1000U-H995VDC FAN 20X8MM PWM |
2,540 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 20mm L x 20mm H | 8.00mm | 1.3 CFM (0.036m³/min) | 0.150 in H2O (37.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control | 21.0dB(A) | 0.34 W | 12000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF20080V1-1000U-G995VDC FAN 20X8MM ALARM |
4,723 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 20mm L x 20mm H | 8.00mm | 1.6 CFM (0.045m³/min) | 0.240 in H2O (59.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 23.0dB(A) | 0.45 W | 15000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF20080V1-1000U-H995VDC FAN 20X8MM PWM |
2,994 |
|
Datasheet |
MF | Box | Active | 5VDC | Square - 20mm L x 20mm H | 8.00mm | 1.6 CFM (0.045m³/min) | 0.240 in H2O (59.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control | 23.0dB(A) | 0.45 W | 15000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
3610KL-04W-B60-G00FAN AXIAL 92X25MM 12VDC WIRE |
3,802 |
|
Datasheet |
3610KL | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 61.8 CFM (1.73m³/min) | 0.229 in H2O (57.0 Pa) | Ball | Tubeaxial | - | 44.5dB | 5.16 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
3610KL-05W-B20-G00FAN AXIAL 92X25MM 24VDC WIRE |
1,030 |
|
Datasheet |
3610KL | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 33.5 CFM (0.938m³/min) | 0.081 in H2O (20.1 Pa) | Ball | Tubeaxial | - | 29.5dB | 1.44 W | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
MC35100V1-000U-F99FAN AXIAL 35X10MM VAPO 5VDC WIRE |
4,745 |
|
Datasheet |
MagLev® MC | Bulk | Obsolete | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 7.0 CFM (0.196m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 28.0dB(A) | 750 mW | 9500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.024 lb (10.89 g) |
|
|

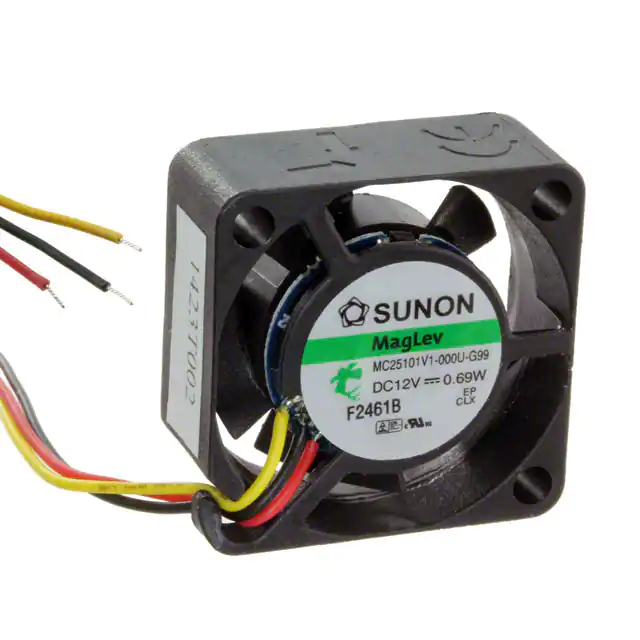

MC25100V1-000U-F99FAN AXIAL 25X10MM VAPO 5VDC WIRE |
3,636 |
|
Datasheet |
MagLev® MC | Bulk | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 3.5 CFM (0.098m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 23.0dB(A) | 600 mW | 13000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.017 lb (7.71 g) |
|
|
MC30100V1-000U-F99FAN AXIAL 30X10MM VAPO 5VDC WIRE |
2,945 |
|
Datasheet |
MagLev® MC | Bulk | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 5.5 CFM (0.154m³/min) | 0.150 in H2O (37.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 23.0dB(A) | 600 mW | 9500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.019 lb (8.62 g) |
|
|
MC35100V1-000U-G99FAN AXIAL 35X10MM VAPO 5VDC WIRE |
2,816 |
|
Datasheet |
MagLev® MC | Bulk | Obsolete | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 7.0 CFM (0.196m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.0dB(A) | 750 mW | 9500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.024 lb (10.89 g) |
|
MC35100V2-000U-G99FAN AXIAL 35X10MM VAPO 5VDC WIRE |
4,248 |
|
Datasheet |
MagLev® MC | Box | Obsolete | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 6.5 CFM (0.182m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 22.0dB(A) | 380 mW | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.023 lb (10.43 g) |
|
|
CFM-9238S-130-410-20FAN AXIAL 92X37.5MM 12VDC WIRE |
3,793 |
|
Datasheet |
CFM-92S | Box | Active | 12VDC | Square - 92mm L x 92mm H | 37.50mm | 57.5 CFM (1.61m³/min) | 0.250 in H2O (62.3 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 41.1dB(A) | 3.6 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

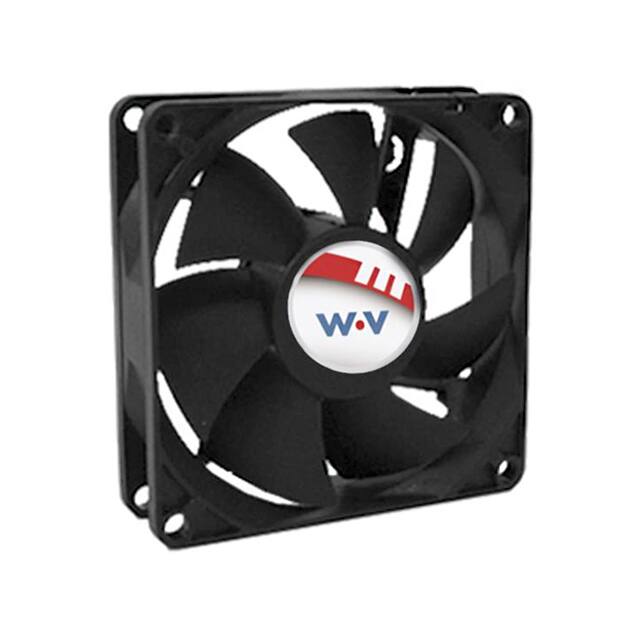

DC0602012L2B-2T0FAN AXIAL 60X20MM 12VDC WIRE |
1,222 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 14.8 CFM (0.414m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 26.0dB(A) | 1.08 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.111 lb (50.35 g) |
|

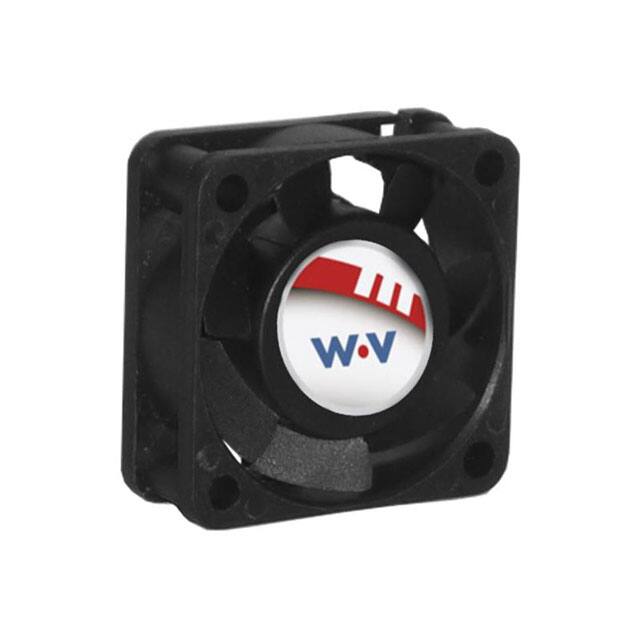

DC0401512L2B-2T0FAN AXIAL 40X15MM 12VDC WIRE |
1,730 |
|
Datasheet |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 6.7 CFM (0.188m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 960 mW | 6000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.045 lb (20.41 g) |
|
|
MF80152V1-1000U-G99FAN AXIAL 80X15MM 24VDC WIRE |
3,983 |
|
Datasheet |
San Ace 80 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 37.0 CFM (1.04m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.9dB(A) | 1.64 W | 3500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF80152V2-1000U-G9924VDC FAN 80X15MM ALARM |
1,726 |
|
Datasheet |
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 33.6 CFM (0.941m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 29.9dB(A) | 1.32 W | 3100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF80152V3-1000U-G9924VDC FAN 80X15MM ALARM |
3,684 |
|
Datasheet |
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 30.0 CFM (0.840m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 26.5dB(A) | 0.96 W | 2800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
CFM-4015B-265-256-20DC AXIAL FAN, 40 MM SQUARE, 15 M |
4,240 |
|
Datasheet |
CFM-40B | Box | Active | 24VDC | Square - 40mm L x 40mm H | 15.10mm | 7.3 CFM (0.204m³/min) | 0.220 in H2O (55.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.6dB(A) | 0.96 W | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
