Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Efficiency | Operating Temperature | Features | Mounting Type | Size / Dimension | Approval Agency |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
1011198REL-70-1007 |
2,291 |
|
![]() Datasheet |
REL-70 (70W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | ||
![]() |
1011194REL-70-1003 |
4,530 |
|
![]() Datasheet |
REL-70 (70W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 14 A | - | - | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | ||
![]() |
UCP180PS36AC/DC CONVERTER 36V 120W |
4,756 |
|
![]() Datasheet |
UCP180 (180W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 120W (180W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 4.24" L x 2.47" W x 1.16" H (107.7mm x 62.7mm x 29.5mm) | ||
![]() |
UCP180PS15AC/DC CONVERTER 15V 120W |
3,965 |
|
![]() Datasheet |
UCP180 (180W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 8 A | - | - | - | - | - | 120W (180W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 4.24" L x 2.47" W x 1.16" H (107.7mm x 62.7mm x 29.5mm) | ||
![]() |
UCP180PS18AC/DC CONVERTER 18V 120W |
4,921 |
|
![]() Datasheet |
UCP180 (180W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 18V | - | - | - | - | - | 6.67 A | - | - | - | - | - | 120W (180W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 4.24" L x 2.47" W x 1.16" H (107.7mm x 62.7mm x 29.5mm) | ||
![]() |
FLS250-2048AC/DC CONVERTER 48V 250W |
3,367 |
|
![]() Datasheet |
FLS250 (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 7.2 A | - | - | - | - | - | 250W (346W Forced Air) | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.58" H (114.3mm x 63.5mm x 40.1mm) | ||
![]() |
PLA300F-5AC/DC CONVERTER 5V |
3,708 |
|
![]() Datasheet |
PLA (300W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 50 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -20°C ~ 70°C | - | Chassis Mount | 7.48" L x 4.02" W x 1.61" H (190.0mm x 102.1mm x 40.9mm) | ||
![]() |

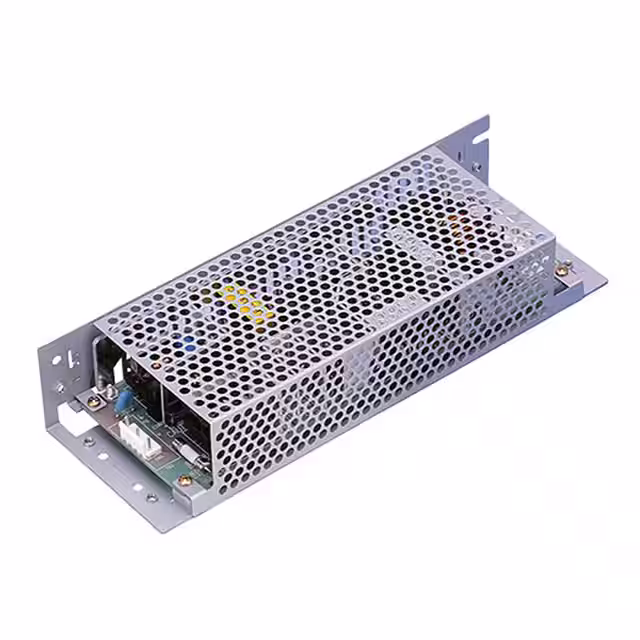

LEB100F-0536-SNAC/DC CONVERTER 5V 36V |
1,120 |
|
![]() Datasheet |
LEB (100W) | Box | Obsolete | Enclosed | 2 | 85 ~ 264 VAC | 5V | 36V | - | - | - | - | 5 A | 4.7 A | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 8.74" L x 2.95" W x 1.38" H (222.0mm x 74.9mm x 35.1mm) | ||
|

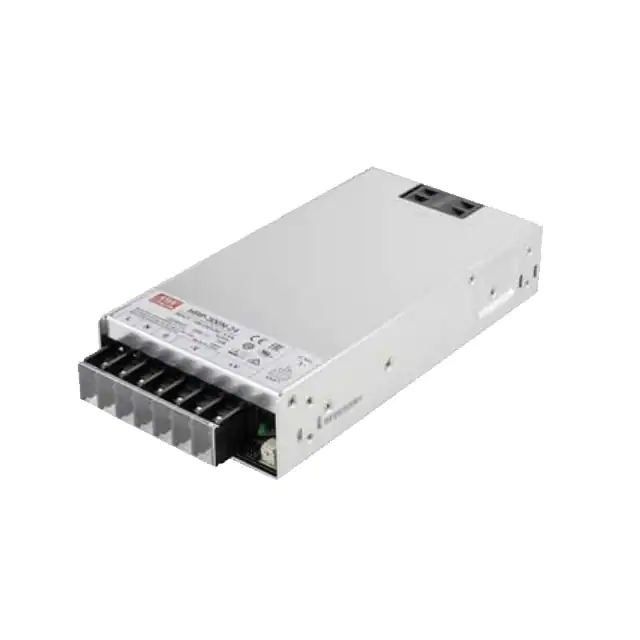

HRP-300N-24AC/DC CONVERTER 24V 336W |
1,646 |
|
![]() Datasheet |
HRP-300N (300W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 14 A | - | - | - | - | - | 336W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 7.83" L x 4.13" W x 1.61" H (199.0mm x 105.0mm x 41.0mm) | ||
![]() |
SLS-12-017TAC/DC CONVERTER 12V 20W |
4,572 |
|
![]() Datasheet |
Silver Line | Bulk | Obsolete | Open Frame | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 1.7 A | - | - | - | - | - | 20W | ITE (Commercial) | - | 0°C ~ 50°C | Adjustable Output, Remote Sense | Chassis Mount | 4.84" L x 3.99" W x 1.62" H (123.0mm x 101.4mm x 41.1mm) | ||
![]() |
MBC275-1T24LAC/DC CONVERTER 24V 160/275W |
1,156 |
|
![]() Datasheet |
MBC275 (275W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 6.67 A | - | - | - | - | - | 160W (275W Forced Air) | Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.0mm) | ||
![]() |
MBC275-1015LAC/DC CONVERTER 15V 160/275W |
4,107 |
|
![]() Datasheet |
MBC275 (275W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 10.66 A | - | - | - | - | - | 160W (275W Forced Air) | Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.0mm) | ||
![]() |
MBC275-1048LAC/DC CONVERTER 48V 160/275W |
2,599 |
|
![]() Datasheet |
MBC275 (275W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 160W (275W Forced Air) | Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.0mm) | ||
![]() |
MBC275-1T12LAC/DC CONVERTER 12V 160/275W |
3,012 |
|
![]() Datasheet |
MBC275 (275W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 13.33 A | - | - | - | - | - | 160W (275W Forced Air) | Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.0mm) | ||
|
MBC201-1015GAC/DC CONVERTER 15V 160/200W |
2,399 |
|
![]() Datasheet |
MBC201 (200W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 10.66 A | - | - | - | - | - | 160W (200W Forced Air) | Medical | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | ||
|
MBC201-1T48GAC/DC CONVERTER 48V 160/200W |
2,942 |
|
![]() Datasheet |
MBC201 (200W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 160W (200W Forced Air) | Medical | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | ||
![]() |
1011248GRN-110-2002 |
2,849 |
|
![]() Datasheet |
GRN-110 (110W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 5V | 12V | - | - | - | - | 12 A | 5 A | - | - | - | - | 110W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm) | ||
![]() |
VOF-450C-48-CNFAC/DC CONVERTER 48V 451W |
2,269 |
|
![]() Datasheet |
VOF-450C-CNF (450W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 9.4 A | - | - | - | - | - | 451W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.69" H (130.0mm x 86.0mm x 43.0mm) | ||
![]() |
VOF-450C-36-CNFAC/DC CONVERTER 36V 450W |
3,243 |
|
![]() Datasheet |
VOF-450C-CNF (450W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 36V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 450W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.69" H (130.0mm x 86.0mm x 43.0mm) | ||
![]() |
VOF-450C-27-CNFAC/DC CONVERTER 27V 451W |
1,522 |
|
![]() Datasheet |
VOF-450C-CNF (450W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 27V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 451W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.69" H (130.0mm x 86.0mm x 43.0mm) |
