Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Efficiency | Operating Temperature | Features | Mounting Type | Size / Dimension | Approval Agency |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
VOF-450C-36AC/DC CONVERTER 36V 450W |
1,214 |
|
![]() Datasheet |
VOF-450C (450W) | Tray | Not For New Designs | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 36V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 450W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.52" H (127.0mm x 76.2mm x 38.5mm) | ||
![]() |
LM600-12B15-QAC/DC CONVERTER 15V 600W |
4,997 |
|
![]() Datasheet |
LM600-12Bxx-Q (600W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 176 ~ 264 VAC, 240 ~ 370 VDC | 15V | - | - | - | - | - | 40 A | - | - | - | - | - | 600W | ITE (Commercial) | 4 kV | -20°C ~ 60°C (With Derating) | Remote Sense, Standby Output, Universal Input | Chassis Mount | 10.52" L x 4.17" W x 1.58" H (267.3mm x 106.0mm x 40.0mm) | ||
![]() |
ARFS-3011M-1205AC/DC CONVERTER 12V 300W |
1,280 |
|
![]() Datasheet |
ARFS-3011M (300W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 25 A | - | - | - | - | - | 300W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) | ||
![]() |
ARFS-3411M-2405AC/DC CONVERTER 24V 336W |
4,688 |
|
![]() Datasheet |
ARFS-3411M (336W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 14 A | - | - | - | - | - | 336W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | - | Chassis Mount | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) | ||
![]() |
AMESP600-27SMNZAC/DC CONVERTER 5V 27V 600W |
1,959 |
|
![]() Datasheet |
AMESP600-MNZ (600W) | Case | Obsolete | Enclosed | 2 | 80 ~ 277 VAC, 110 ~ 390 VDC | 5V | - | - | - | - | - | 1 A | 22.3 A | - | - | - | - | 600W | Industrial | 4 kV | -40°C ~ 70°C | - | Chassis Mount | 8.00" L x 4.00" x W 1.60" H (203.2mm x 101.6mm x 40.6mm) | ||
![]() |
AMESP600-15SMNZAC/DC CONVERTER 5V 15V 600W |
4,956 |
|
![]() Datasheet |
AMESP600-MNZ (600W) | Case | Obsolete | Enclosed | 2 | 80 ~ 277 VAC, 110 ~ 390 VDC | 5V | - | - | - | - | - | 1 A | 40 A | - | - | - | - | 600W | Industrial | 4 kV | -40°C ~ 70°C | - | Chassis Mount | 8.00" L x 4.00" x W 1.60" H (203.2mm x 101.6mm x 40.6mm) | ||
![]() |
VOF-450C-48AC/DC CONVERTER 48V 451W |
2,022 |
|
![]() Datasheet |
VOF-450C (450W) | Tray | Not For New Designs | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 9.4 A | - | - | - | - | - | 451W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.52" H (127.0mm x 76.2mm x 38.5mm) | ||
![]() |

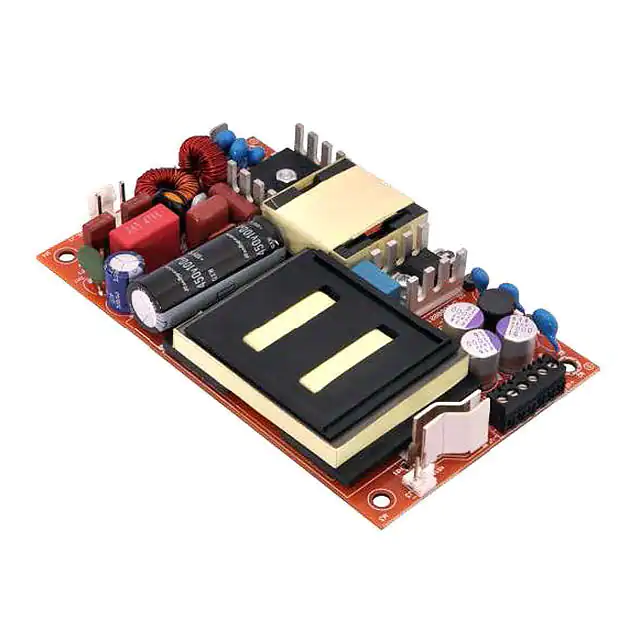

ABC275-1T24LAC/DC CONVERTER 24V 160/275W |
1,811 |
|
![]() Datasheet |
ABC275 (275W) | Box | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 6.67 A | - | - | - | - | - | 160W (275W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.0mm) | ||
![]() |
ABC275-1048LAC/DC CONVERTER 48V 160/275W |
2,306 |
|
![]() Datasheet |
ABC275 (275W) | Box | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 160W (275W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.0mm) | ||
![]() |
ABC275-1T48LAC/DC CONVERTER 48V 160W |
4,024 |
|
![]() Datasheet |
ABC275 (275W) | Box | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 160W (275W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.0mm) | ||
![]() |
ABC275-1T15LAC/DC CONVERTER 15V 160/275W |
1,647 |
|
![]() Datasheet |
ABC275 (275W) | Box | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 15V | - | - | - | - | - | 10.66 A | - | - | - | - | - | 160W (275W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.0mm) | ||
![]() |
ABC275-1030LAC/DC CONVERTER 30V 160/275W |
3,050 |
|
![]() Datasheet |
ABC275 (275W) | Box | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 30V | - | - | - | - | - | 5.33 A | - | - | - | - | - | 160W (275W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.0mm) | ||
![]() |
ABC275-1T12LAC/DC CONVERTER 12V 160/275W |
4,182 |
|
![]() Datasheet |
ABC275 (275W) | Box | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 13.33 A | - | - | - | - | - | 160W (275W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.0mm) | ||
|

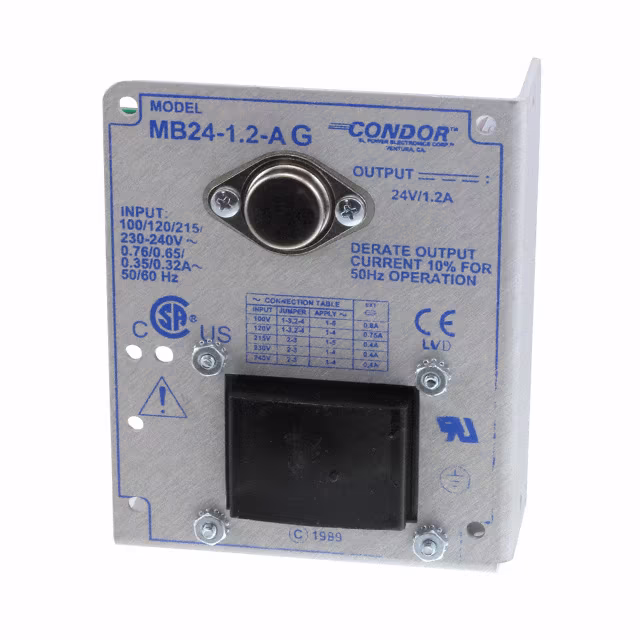

MB24-1.2-AGAC/DC CONVERTER 24V |
2,848 |
|
![]() Datasheet |
Linear B | Bulk | Obsolete | Linear | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 1.2 A | - | - | - | - | - | - | Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.88" L x 4.00" W x 1.63" H (124.0mm x 101.6mm x 41.4mm) | ||
![]() |

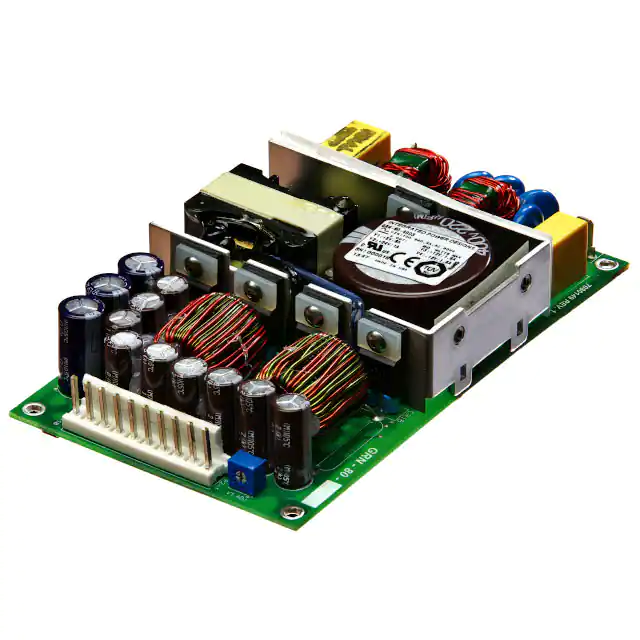

1011260GRN-80-2004 |
4,416 |
|
![]() Datasheet |
GRN-80 (80W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 3 A | 3 A | - | - | - | - | 80W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | ||
![]() |
1011259GRN-80-2003 |
3,527 |
|
![]() Datasheet |
GRN-80 (80W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 4 A | 4 A | - | - | - | - | 80W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | ||
![]() |
1011257GRN-80-2001 |
2,762 |
|
![]() Datasheet |
GRN-80 (80W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 5V | 24V | - | - | - | - | 8 A | 2 A | - | - | - | - | 80W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | ||
![]() |
ULP275-1024AC/DC CONVERTER 24V 160W |
1,904 |
|
![]() Datasheet |
ULP275 (275W) | Bulk | Active | Open Frame | 1 | 80 ~ 264 VAC, 390VDC | 24V | - | - | - | - | - | 6.67 A | - | - | - | - | - | 160W (275W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) | ||
![]() |
ULP275-1048AC/DC CONVERTER 48V 160W |
1,655 |
|
![]() Datasheet |
ULP275 (275W) | Bulk | Active | Open Frame | 1 | 80 ~ 264 VAC, 390VDC | 48V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 160W (275W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) | ||
![]() |
ULP275-0312AC/DC CONVERTER 12V 160W |
1,560 |
|
![]() Datasheet |
ULP275 (275W) | Bulk | Active | Open Frame | 1 | 80 ~ 264 VAC, 390VDC | 12V | - | - | - | - | - | 13.33 A | - | - | - | - | - | 160W (275W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.50" W x 0.75" H (127.0mm x 88.9mm x 19.1mm) |
