    Same Sky (Formerly CUI Devices) HSS-B20-0508H-01S

    Part No.:
    HSS-B20-0508H-01S
    Manufacturer:
    Same Sky (Formerly CUI Devices)
    Category:
    Heat Sinks
    Package:
    Datasheet:
    BomKey ElectronicsHSS-B20-0508H-01S.pdf
    Description:
    HEATSINK TO-220 4.7W ALUMINUM
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Related
    Attributes
    Property Value
    Manufacturer
    Same Sky (Formerly CUI Devices)
    Series:
    HSS
    Packaging:
    Bag
    Product Status:
    Active
    Type:
    Board Level
    Package Cooled:
    TO-220
    Attachment Method:
    Bolt On and Board Mounts
    Shape:
    Rectangular, Fins
    Length:
    0.500" (12.70mm)
    Width:
    1.000" (25.40mm)
    Diameter:
    -
    Fin Height:
    1.180" (29.97mm)
    Power Dissipation @ Temperature Rise:
    4.7W @ 75°C
    Thermal Resistance @ Forced Air Flow:
    5.87°C/W @ 200 LFM
    Thermal Resistance @ Natural:
    15.83°C/W
    Material:
    Aluminum
    Material Finish:
    Black Anodized
    Category:
    Heat Sinks
    Reset All
    Search Similar
    Result:

    1. How to order HSS-B20-0508H-01S on BomKey Electronics?

    Currently,, BomKey Electronics only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does BomKey Electronics guarantee that HSS-B20-0508H-01S is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the HSS-B20-0508H-01S. All suppliers must pass our qualification reviews before they can publish their products including HSS-B20-0508H-01S on BomKey Electronics; we pay more attention to the channels and quality of HSS-B20-0508H-01S products than any other customer. We strictly implement supplier audits, so you can purchase with confidence. .

    3. Are the HSS-B20-0508H-01S price and inventory displayed accurate?

    The price and inventory of HSS-B20-0508H-01S fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of HSS-B20-0508H-01S?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the HSS-B20-0508H-01S we delivered, we will accept the replacement or return of the HSS-B20-0508H-01S only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of HSS-B20-0508H-01S.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as HSS-B20-0508H-01S pin diagram, HSS-B20-0508H-01S datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

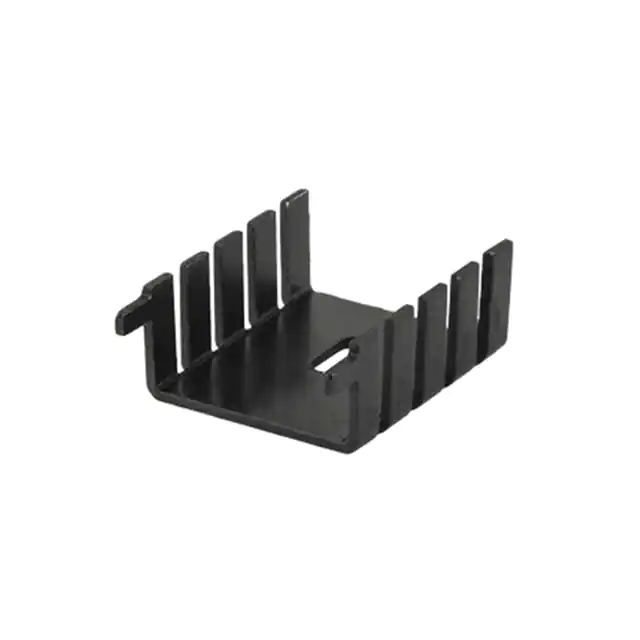

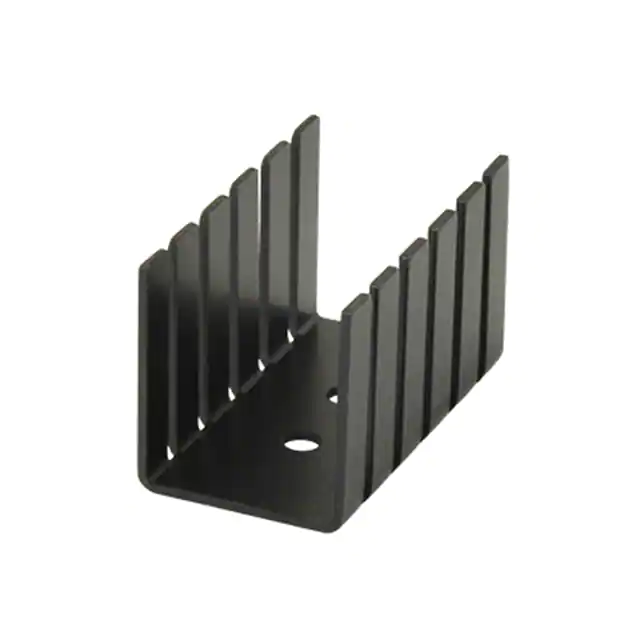

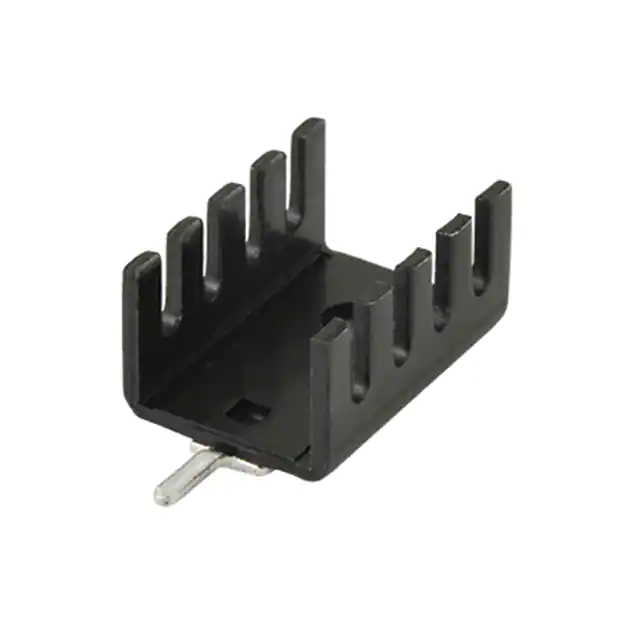

    Images HSS-B20-NP-06 HSS-B20-0635H-01 HSS-B20-NP-04 HSS-B20-NPR-02 HSS-B20-NP-12
    Part No. HSS-B20-NP-06 HSS-B20-0635H-01 HSS-B20-NP-04 HSS-B20-NPR-02 HSS-B20-NP-12
    Manufacturer Same Sky (Formerly CUI Devices) Same Sky (Formerly CUI Devices) Same Sky (Formerly CUI Devices) Same Sky (Formerly CUI Devices) Same Sky (Formerly CUI Devices)
    Series HSS HSS HSS HSS HSS
    Packaging Bag Bag Box Bag Bag
    Product Status Active Active Active Active Active
    Type Board Level Board Level, Vertical Board Level Board Level, Vertical Board Level
    Package Cooled TO-220 TO-220 TO-220 TO-220 TO-220
    Attachment Method Bolt On PC Pin Bolt On Bolt On and Board Mounts Bolt On
    Shape Square, Fins Rectangular, Fins Rectangular, Fins Rectangular, Fins Rectangular, Fins
    Length 0.748" (19.00mm) 0.520" (13.20mm) 1.450" (36.83mm) 0.500" (12.70mm) 1.450" (36.83mm)
    Width 0.748" (19.00mm) 0.375" (9.53mm) 1.750" (44.45mm) 1.000" (25.40mm) 0.700" (17.80mm)
    Diameter - - - - -
    Fin Height 0.375" (9.52mm) 0.748" (19.00mm) 0.370" (9.40mm) 1.180" (29.97mm) 0.850" (21.60mm)
    Power Dissipation @ Temperature Rise 2.9W @ 75°C 2.7W @ 75°C 6.5W @ 75°C 5.1W @ 75°C 6.8W @ 75°C
    Thermal Resistance @ Forced Air Flow 7.51°C/W @ 200 LFM 9.51°C/W @ 200 LFM 3.76°C/W @ 200 LFM 4.20°C/W @ 200 LFM 3.47°C/W @ 200 LFM
    Thermal Resistance @ Natural 26.32°C/W 27.78°C/W 11.54°C/W 14.71°C/W 14.33°C/W
    Material Aluminum Aluminum Aluminum Aluminum Aluminum
    Material Finish Black Anodized Black Anodized Black Anodized Black Anodized Black Anodized
