    OptiFuse RS60RB-050

    Part No.:
    RS60RB-050
    Manufacturer:
    OptiFuse
    Category:
    PTC Resettable Fuses
    Package:
    Radial, Disc
    Datasheet:
    BomKey ElectronicsRS60RB-050.pdf
    Description:
    PTC RESET FUSE 60V 500MA RADIAL
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Related
    Attributes
    Property Value
    Manufacturer
    OptiFuse
    Package/Case:
    Radial, Disc
    Series:
    RS60RB
    Packaging:
    Bulk
    Product Status:
    Active
    Type:
    Polymeric
    Voltage - Max:
    60V
    Current - Hold (Ih) (Max):
    500 mA
    Current - Trip (It):
    1 A
    Current - Max:
    40 A
    Time to Trip:
    4 s
    Resistance - Initial (Ri) (Min):
    500 mOhms
    Resistance - Post Trip (R1) (Max):
    1.17 Ohms
    Resistance - 25°C (Typ):
    -
    Operating Temperature:
    -40°C ~ 85°C
    Grade:
    -
    Qualification:
    -
    Ratings:
    -
    Mounting Type:
    Through Hole
    Size / Dimension:
    0.311" Dia x 0.122" T (7.90mm x 3.10mm)
    Height - Seated (Max):
    0.539" (13.70mm)
    Thickness (Max):
    -
    Lead Spacing:
    0.201" (5.10mm)
    Category:
    PTC Resettable Fuses
    Reset All
    Search Similar
    Result:

    1. How to order RS60RB-050 on BomKey Electronics?

    Currently,, BomKey Electronics only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does BomKey Electronics guarantee that RS60RB-050 is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the RS60RB-050. All suppliers must pass our qualification reviews before they can publish their products including RS60RB-050 on BomKey Electronics; we pay more attention to the channels and quality of RS60RB-050 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence. .

    3. Are the RS60RB-050 price and inventory displayed accurate?

    The price and inventory of RS60RB-050 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of RS60RB-050?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the RS60RB-050 we delivered, we will accept the replacement or return of the RS60RB-050 only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of RS60RB-050.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as RS60RB-050 pin diagram, RS60RB-050 datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

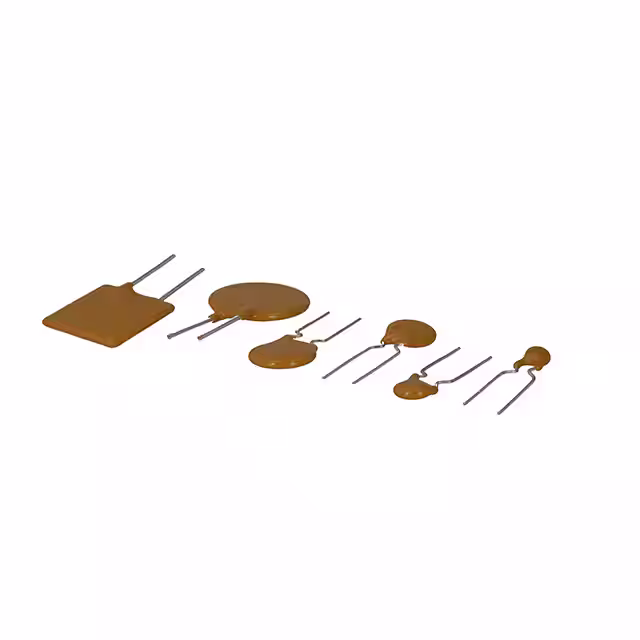

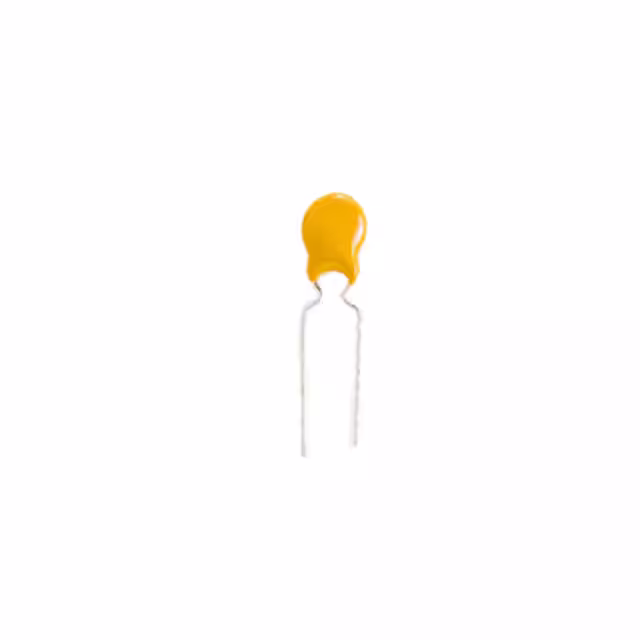

    Images RS60RB-025 RS60RB-010 RS60RB-075 RS60RB-160 RS60RB-005
    Part No. RS60RB-025 RS60RB-010 RS60RB-075 RS60RB-160 RS60RB-005
    Manufacturer OptiFuse OptiFuse OptiFuse OptiFuse OptiFuse
    Package/Case Radial, Disc Radial, Disc Radial, Disc Radial, Disc Radial, Disc
    Series RS60RB RS60RB RS60RB RS60RB -
    Packaging Bulk Bulk Bulk Bulk Bulk
    Product Status Active Active Active Active Active
    Type Polymeric Polymeric Polymeric Polymeric Polymeric
    Voltage - Max 60V 60V 60V 60V 60V
    Current - Hold (Ih) (Max) 250 mA 100 mA 750 mA 1.6 A 50 mA
    Current - Trip (It) 500 mA 200 mA 1.5 A 3.2 A 100 mA
    Current - Max 40 A 40 A 40 A 40 A 40 A
    Time to Trip 2.5 s 4 s 6.3 s 11.4 s 5 s
    Resistance - Initial (Ri) (Min) 1.25 Ohms 2.5 Ohms 250 mOhms 90 mOhms 7.3 Ohms
    Resistance - Post Trip (R1) (Max) 3 Ohms 7.5 Ohms 600 mOhms 220 mOhms 20 Ohms
    Resistance - 25°C (Typ) - - - - -
    Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
    Grade - - - - -
    Qualification - - - - -
    Ratings - - - - -
    Mounting Type Through Hole Through Hole Through Hole Through Hole Through Hole
    Size / Dimension 0.291" Dia x 0.122" T (7.40mm x 3.10mm) 0.291" Dia x 0.122" T (7.40mm x 3.10mm) 0.409" Dia x 0.122" T (10.40mm x 3.10mm) 0.642" Dia x 0.122" T (16.30mm x 3.10mm) 0.642" Dia x 0.122" T (16.30mm x 3.10mm)
    Height - Seated (Max) 0.500" (12.70mm) 0.500" (12.70mm) 0.598" (15.20mm) 0.839" (21.30mm) 0.839" (21.30mm)
    Thickness (Max) - - - - -
    Lead Spacing 0.201" (5.10mm) 0.201" (5.10mm) 0.201" (5.10mm) 0.201" (5.10mm) 0.201" (5.10mm)
