Trimmers, Variable Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance Range | Adjustment Type | Voltage - Rated | Dielectric Material | Q @ Freq | Size / Dimension | Height - Seated (Max) | Operating Temperature | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

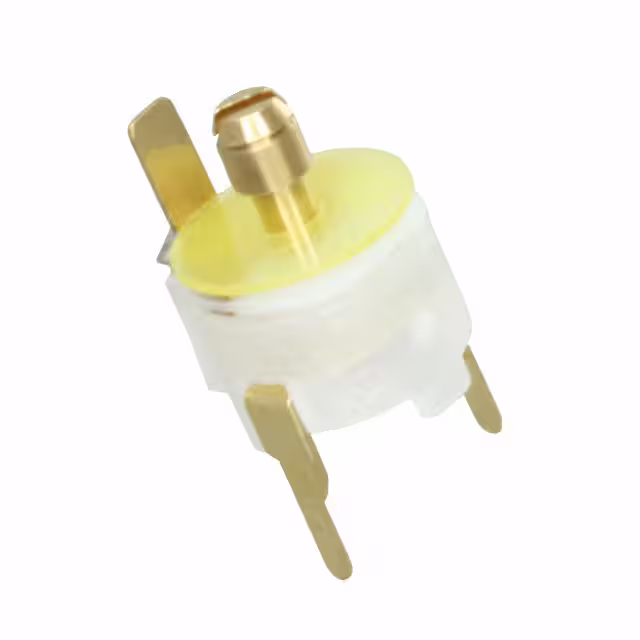

GXE9R000CAP TRIMMER 1.8-9PF 200V TH |
1,370 |
|
Datasheet |
FILMTRIM® | Bulk | Obsolete | 1.8 ~ 9pF | Top and Bottom | 200 V | Polytetrafluoroethylene (PTFE) | 1500 @ 1MHz | 0.335" L x 0.295" W (8.50mm x 7.50mm) | 0.402" (10.20mm) | -40°C ~ 125°C | Through Hole | General Purpose |
|

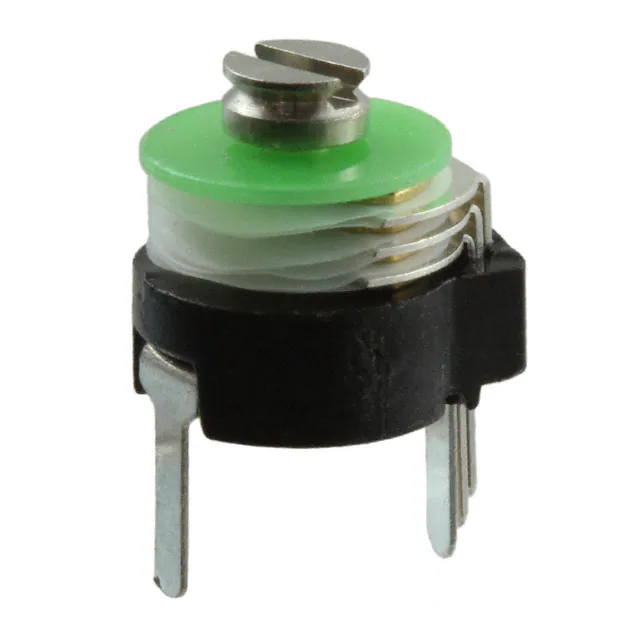

GXL18000CAP TRIMMER 2.3-18PF 150V TH |
657 |
|
Datasheet |
FILMTRIM® | Bulk | Obsolete | 2.3 ~ 18pF | Top | 150 V | Polytetrafluoroethylene (PTFE) | 1500 @ 1MHz | 0.217" L x 0.197" W (5.50mm x 5.00mm) | 0.236" (6.00mm) | -40°C ~ 125°C | Through Hole | General Purpose |
|
PPYD200003.0PF-20PF, 9.5MM SIDE ADJUST, 1 |
460 |
|
Datasheet |
FILMTRIM® | Box | Active | 3 ~ 20pF | Side | 100 V | Polypropylene (PP) | 1000 @ 1MHz | 0.370" Dia (9.40mm) | 0.402" (10.20mm) | -40°C ~ 70°C | Through Hole | General Purpose |
|
|
PPZC101009-100PF, 10MM TOP/BOTTOM ADJUST, |
400 |
|
Datasheet |
FILMTRIM® | Box | Active | 9 ~ 100pF | Top and Bottom | 100 V | Polycarbonate (PC) | 200 @ 1MHz | 0.394" Dia (10.00mm) | 0.449" (11.40mm) | -40°C ~ 85°C | Through Hole | General Purpose |
|
|
PPZC800038-80PF, 9.5MM TOP/BOTTOM ADJUST, |
327 |
|
Datasheet |
FILMTRIM® | Box | Active | 8 ~ 80pF | Top and Bottom | 100 V | Polycarbonate (PC) | 200 @ 1MHz | 0.370" Dia (9.40mm) | 0.402" (10.20mm) | -40°C ~ 85°C | Through Hole | General Purpose |
|
|
PPXE270003.9 - 27PF, 7.5 MM, 200VDC, FILM |
998 |
|
Datasheet |
FILMTRIM® | Box | Active | 3.5 ~ 27pF | Top and Bottom | 200 V | Polytetrafluoroethylene (PTFE) | 1500 @ 1MHz | 0.295" Dia (7.49mm) | 0.402" (10.20mm) | -40°C ~ 85°C | Through Hole | General Purpose |
|
|
PPZL200002.7- 20PF, 5 MM TOP ADJUST, 150V |
477 |
|
Datasheet |
FILMTRIM® | Box | Active | 2.7 ~ 20pF | Top | 150 V | Polycarbonate (PC) | 150 @ 1MHz | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | -40°C ~ 85°C | Through Hole | General Purpose |
|
|
PPZC101039-100PF, 9.5MM TOP/BOTTOM ADJUST |
3,950 |
|
Datasheet |
FILMTRIM® | Box | Active | 9 ~ 100pF | Top and Bottom | 100 V | Polycarbonate (PC) | 200 @ 1MHz | 0.394" Dia (10.00mm) | 0.449" (11.40mm) | -40°C ~ 85°C | Through Hole | General Purpose |
|
|
PPXD900008.0PF-90PF, 9.5MM SIDE ADJUST, 2 |
232 |
|
Datasheet |
FILMTRIM® | Box | Active | 8 ~ 90pF | Side | 100 V | Polytetrafluoroethylene (PTFE) | 1500 @ 1MHz | 0.370" Dia (9.40mm) | 0.488" (12.40mm) | -40°C ~ 85°C | Through Hole | General Purpose |
|
|
PPZC1810412-180PF, 9.5MM TOP/BOTTOM ADJUS |
945 |
|
Datasheet |
FILMTRIM® | Box | Active | 12 ~ 180pf | Top and Bottom | 100 V | Polycarbonate (PC) | 200 @ 1MHz | 0.370" Dia (9.40mm) | 0.472" (12.00mm) | -40°C ~ 85°C | Through Hole | General Purpose |
|
GZN30100CAP TRIMMER 18-300PF 150V TH |
3,264 |
|
Datasheet |
FILMTRIM® | Bulk | Obsolete | 18 ~ 300pF | Top | 150 V | Polycarbonate (PC) | 200 @ 1MHz | 0.709" L x 0.610" W (18.00mm x 15.50mm) | 0.669" (17.00mm) | -40°C ~ 85°C | Through Hole | General Purpose |
|
|
PPXE27000NM3.9 - 27PF, NON-MAGNETIC, 7.5 MM |
496 |
|
Datasheet |
FILMTRIM® | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
PPZC1810012-180PF, 10MM TOP/BOTTOM ADJUST |
670 |
|
Datasheet |
FILMTRIM® | Box | Active | 12 ~ 180pf | Top and Bottom | 100 V | Polycarbonate (PC) | 200 @ 1MHz | 0.394" Dia (10.00mm) | 0.472" (12.00mm) | -40°C ~ 85°C | Through Hole | General Purpose |
|
|
PPZC1510010-150PF, 9.5MM TOP/BOTTOM ADJUS |
591 |
|
Datasheet |
FILMTRIM® | Box | Active | 10 ~ 150pF | Top and Bottom | 100 V | Polycarbonate (PC) | 200 @ 1MHz | 0.370" Dia (9.40mm) | 0.472" (12.00mm) | -40°C ~ 85°C | Through Hole | General Purpose |
|
|
PPXE36000NM4.5 - 36PF, NON-MAGNETIC, 7.5 MM |
484 |
|
Datasheet |
FILMTRIM® | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
|
PPXE45000NM5.0 - 45PF, NON-MAGNETIC, 7.5 MM |
330 |
|
Datasheet |
FILMTRIM® | Box | Active | - | - | - | - | - | - | - | - | - | - |
|
AT 27283+CAPCAP TRIMMER 0.4-2.5PF 500V SMD |
495 |
|
Datasheet |
Sapphire Trimmers | Tray | Active | 0.4 ~ 2.5pF | Top | 500 V | Sapphire | 4000 @ 250MHz | 0.118" Dia (3.00mm) | 0.230" (5.80mm) | -55°C ~ 125°C | Surface Mount | General Purpose |
|

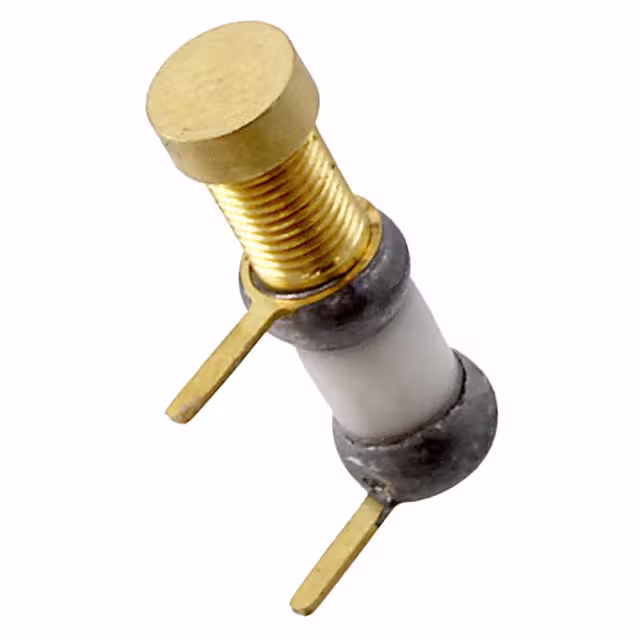

GAA3R513CAP TRIMMER 0.35-3.5PF 250V TH |
476 |
|
Datasheet |
AIRTRIM® GAA | Bulk | Obsolete | 0.35 ~ 3.5pF | Side | 250 V | Air | 5000 @ 100MHz | 0.161" Dia (4.10mm) | - | -65°C ~ 125°C | Through Hole | General Purpose |
|
GAA10008CAP TRIMMER 1-10PF 250V |
107 |
|
Datasheet |
AIRTRIM® GAA | Bulk | Obsolete | 1 ~ 10pF | Bottom | 250 V | Air | 5000 @ 100MHz | 0.303" Dia (7.62mm) | 0.500" (12.70mm) | -65°C ~ 125°C | User Defined | General Purpose |
|
|
PPZN3010018 - 300PF, 16 MM TOP ADJUST, 15 |
484 |
|
Datasheet |
FILMTRIM® | Box | Active | 18 ~ 300pF | Top | 150 V | Polycarbonate (PC) | 200 @ 1MHz | 0.630" Dia (16.00mm) | 0.610" (15.49mm) | -40°C ~ 85°C | Through Hole | General Purpose |
