Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS72US-230S/GSPD TYPE 1 320VAC MCOV 1 POLE |
7,768 |
|
Datasheet |
- | Active | Type 1 | Base + Module | 1 | 320VAC | 20 kA | 75 kA | 200 kA | 1.2 kV | - | -40°C ~ 85°C | - | DIN Rail | - | |
|
DS72US-120S/GSPD TYPE 1 255VAC MCOV 1 POLE |
7,126 |
|
Datasheet |
- | Active | Type 1 | Base + Module | 1 | 255VAC | - | - | 200 kA | 1.5 kV | - | -40°C ~ 85°C | - | DIN Rail | - | |
|
2736460000SPD TYPE 2 305VAC MCOV 2 POLE |
2,327 |
|
Datasheet |
- | Box | Active | Type 2 | Base + Module | 2 | 305VAC | 20 kA | 50 kA | 200 kA | 1 kV | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, cULus, VDE |
|
|
SDSA3650DSPD 1.02KV MCOV 1 POLE |
4,259 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 1.02kV | 10 kA | 40 kA | 200 kA | - | - | 65°C | - | Panel Mount | - |
|
|
SDSA2040DSPD 180V MCOV 1 POLE |
4,314 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 180V | 10 kA | 40 kA | 200 kA | - | - | 65°C | - | Panel Mount | - |
|
|
SDSA3650SPD 510V MCOV 1 POLE |
6,791 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 510V | 10 kA | 40 kA | 200 kA | - | - | 65°C | - | Panel Mount | - |
|
|
SDSA4040DSPD 180V MCOV 1 POLE |
3,017 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 180V | 10 kA | 40 kA | 200 kA | - | - | 65°C | - | Panel Mount | - |
|
|
SDSA4040SPD TYPE 1 840V MCOV 1 POLE |
8,711 |
|
Datasheet |
- | Box | Active | Type 1 | Module Only | 1 | 840V | 10 kA | 40 kA | 200 kA | 2.5 kV | - | -35°C ~ 80°C | - | Panel Mount | - |
|
|
SDSA3650ESPD 510VAC MCOV 1 POLE |
8,505 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 510VAC | 10 kA | - | 200 kA | - | - | - | - | Chassis Mount | - |
|
|
SDSA2040SPD 180V MCOV 1 POLE |
6,392 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 180V | 10 kA | 40 kA | 200 kA | - | - | 65°C | - | Panel Mount | - |
|
|
AGDN60030RSPD TYPE 1 750VAC MCOV 3 POLE |
4,444 |
|
Datasheet |
- | Bulk | Active | Type 1 | Base + Module | 3 | 750VAC | 20 kA | - | 200 kA | 2.5 kV | - | -40°C ~ 85°C | Visual Life Indicator | DIN Rail | UL |
|

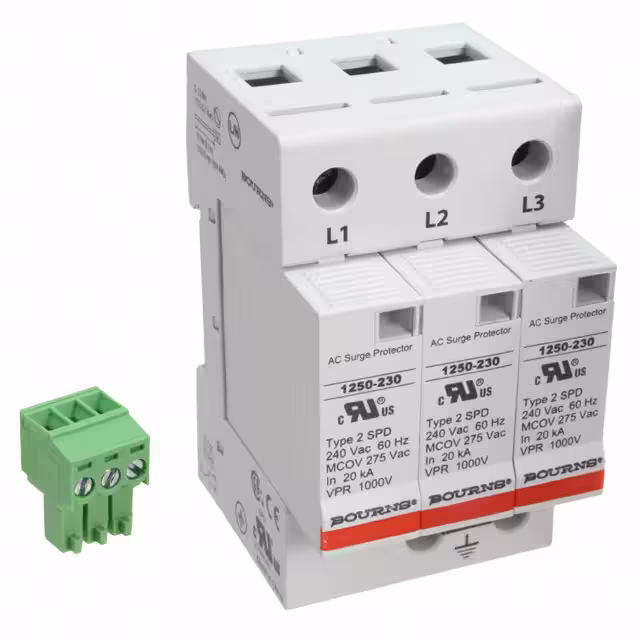

1250-3S-230SPD TYPE 2/TYPE 4 275VAC MCOV |
9,044 |
|
Datasheet |
1250 | Bulk | Active | Type 2, Type 4 | Base + Module | 3 | 275VAC | 20 kA | 50 kA | 100 kA | 1 kV | 1.25 kV | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UR |
|

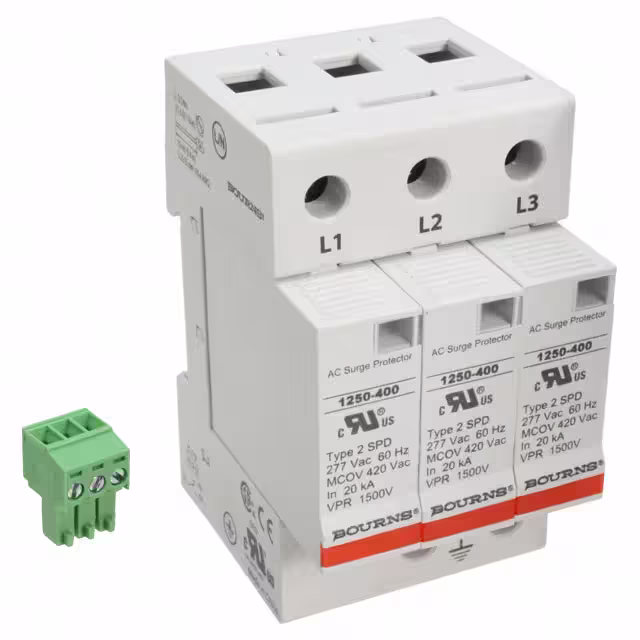

1250-3S-400SPD TYPE 2/TYPE 4 420VAC MCOV |
5,891 |
|
Datasheet |
1250 | Bulk | Active | Type 2, Type 4 | Base + Module | 3 | 420VAC | 20 kA | 50 kA | 100 kA | 1.2 kV | 1.8 kV | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UR |
|
1250-3S-480SPD TYPE 2/TYPE 4 550VAC MCOV |
8,322 |
|
Datasheet |
1250 | Bulk | Active | Type 2, Type 4 | Base + Module | 3 | 550VAC | 20 kA | 50 kA | 100 kA | 1.8 kV | 2.5 kV | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UR |
|

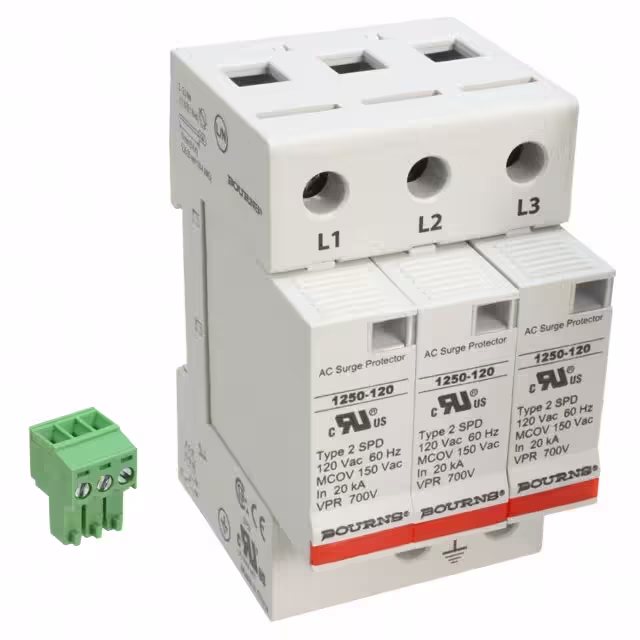

1250-3S-120SPD TYPE 2/TYPE 4 150VAC MCOV |
5,939 |
|
Datasheet |
1250 | Bulk | Active | Type 2, Type 4 | Base + Module | 3 | 150VAC | 20 kA | 50 kA | 100 kA | 700 V | 900 V | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UR |
|
|
BSPD24DINGSPD 23.3VAC/33VDC MCOV 4 POLE |
2,728 |
|
Datasheet |
BSPD | Bulk | Active | - | Base + Module | 4 | 23.3VAC, 33VDC | 10 kA | 20 kA | - | - | - | -40°C ~ 80°C | - | DIN Rail | ATEX, CE, CSAus, UL |
|
|
SPD2-300-4P0SPD TYP 1/TYP 2 300V MCOV 4 POLE |
9,825 |
|
Datasheet |
SPD2 4+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 4 | 300V | 20 kA | 50 kA | 150 kA | 900 V | 1.5 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|

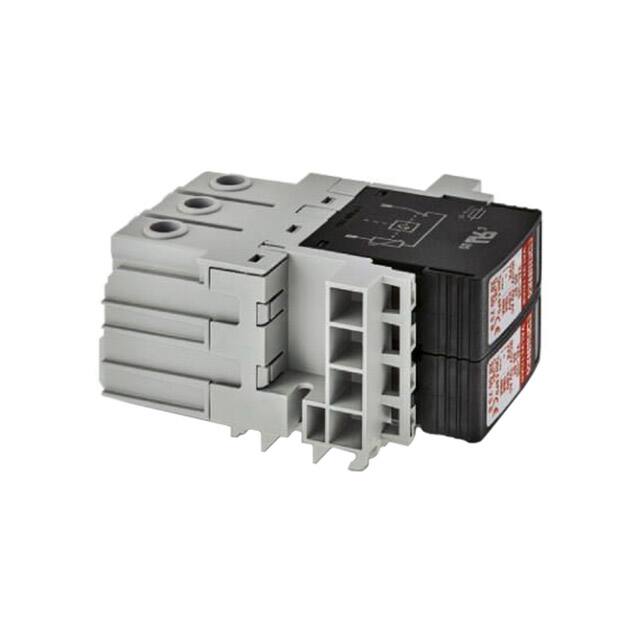

2907043SPD TYP2 75VAC/100VDC MCOV 1POLE |
6,939 |
|
Datasheet |
VAL-US | Bulk | Obsolete | Type 2 | Base + Module | 1 | 75VAC, 100VDC | 15 kA | 40 kA | 25 kA | - | 550 V | -40°C ~ 80°C | - | Panel Mount | cUL, UL |
|

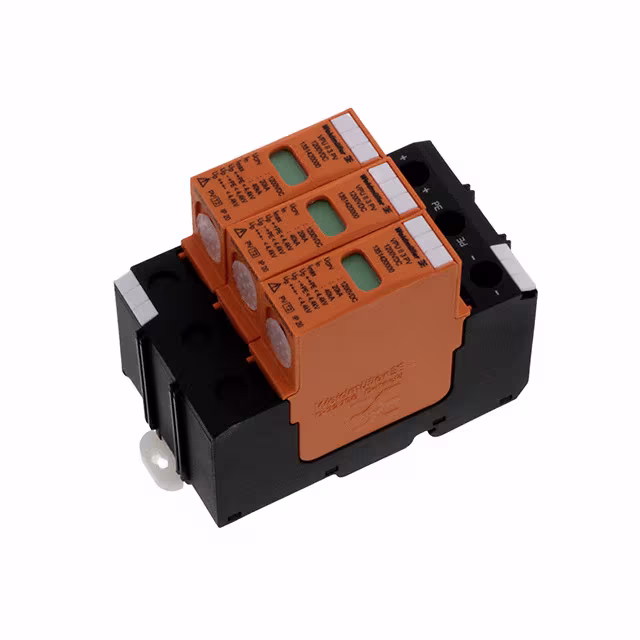

1351420000SPD TYPE 2 1.2KVAC MCOV 1 POLE |
3,221 |
|
Datasheet |
VPU | Box | Obsolete | Type 2 | Base + Module | 1 | 1.2kVAC | - | 40 kA | - | - | - | - | Remote Signaling Contacts | DIN Rail | - |
|
|
16006.2SPD TYPE 2 280VAC MCOV 4 POLE |
9,288 |
|
Datasheet |
CP VH | Box | Active | Type 2 | Base + Module | 4 | 280VAC | 80 kA | 150 kA | - | 400 V | 1.25 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
