Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1280-1S-480SPD TYPE 1/TYPE 2 600VAC MCOV |
9,758 |
|
Datasheet |
1280 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 600VAC | 20 kA | 50 kA | 25 kA | - | 2.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1440-PV-150-PSPD TYPE 1/TYPE 2 170VDC MCOV |
9,571 |
|
Datasheet |
1440 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 170VDC | 20 kA | 50 kA | 25 kA | - | 800 V | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1440-PV-60-PSPD TYPE 1/TYPE 2 100VDC MCOV |
8,582 |
|
Datasheet |
1440 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 100VDC | 20 kA | 50 kA | 25 kA | - | 600 V | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1440-PV-200-PSPD TYPE 1/TYPE 2 225VDC MCOV |
4,197 |
|
Datasheet |
1440 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 225VDC | 20 kA | 50 kA | 25 kA | - | 1.2 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1440-PV-300-PSPD TYPE 1/TYPE 2 350VDC MCOV |
9,241 |
|
Datasheet |
1440 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 350VDC | 20 kA | 50 kA | 25 kA | - | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1440-PV-400-PSPD TYPE 1/TYPE 2 460VDC MCOV |
7,614 |
|
Datasheet |
1440 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 460VDC | 20 kA | 50 kA | 25 kA | - | 2 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1440-PV-500-PSPD TYPE 1/TYPE 2 560VDC MCOV |
8,346 |
|
Datasheet |
1440 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 560VDC | 20 kA | 50 kA | 25 kA | - | 2 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1280-1S-690SPD TYPE 1/TYPE 2 750VAC MCOV |
8,888 |
|
Datasheet |
1280 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 750VAC | 20 kA | 50 kA | 25 kA | - | 2.8 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1440-PV-100-PSPD TYPE 1/TYPE 2 170VDC MCOV |
9,403 |
|
Datasheet |
1440 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 170VDC | 20 kA | 50 kA | 25 kA | - | 600 V | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
2591200000SPD TYPE 2 480VAC MCOV 1 POLE |
1,093 |
|
Datasheet |
VPU AC II | Bulk | Active | Type 2 | Base + Module | 1 | 480VAC | 20 kA | 50 kA | 200 kA | 1.5 kV | 2.3 kV | -40°C ~ 85°C | - | DIN Rail | CE |
|
|
2906846SPD 75VAC MCOV 1 POLE |
2,353 |
|
Datasheet |
TTC | Bulk | Active | - | Module Only | 1 | 75VAC | 5 kA | - | - | - | 1 kV | -40°C ~ 85°C | - | DIN Rail | cCSAus, CSA, CSAus, UL |
|
|
2906861SPD 130VAC MCOV 1 POLE |
5,554 |
|
Datasheet |
TTC | Bulk | Active | - | Module Only | 1 | 130VAC | 5 kA | - | - | - | 800 V | -40°C ~ 85°C | - | DIN Rail | cCSAus, CSA, CSAus, UL |
|
|
1280-127SPD AC 50KA MODULE 180VAC |
2,714 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1280-480SPD AC 50KA MODULE 600VAC |
2,908 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1280-277SPD AC 50KA MODULE 350VAC |
4,398 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1280-400SPD AC 50KA MODULE 440VAC |
3,266 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1280-230SPD AC 50KA MODULE 275VAC |
9,135 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1280-120SPD AC 50KA MODULE 150VAC |
9,878 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1440-PV-750-PSPD TYPE 1/TYPE 2 800VDC MCOV |
3,988 |
|
Datasheet |
1440 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 800VDC | 20 kA | 50 kA | 25 kA | - | 2.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|

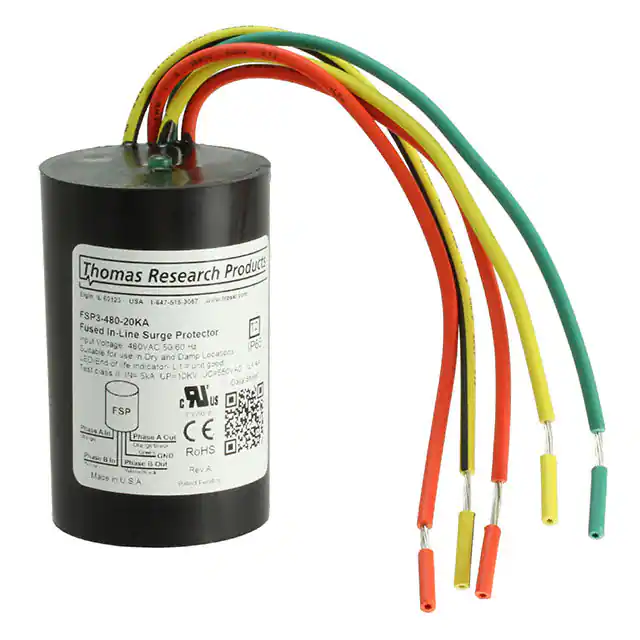

FSP3-480-20KA-NISPD 550VAC/745VDC MCOV 3 POLE |
4,305 |
|
Datasheet |
FSP3 | Box | Active | - | - | 3 | 550VAC, 745VDC | 20 kA | 20 kA | - | - | - | -40°C ~ 85°C | - | Free Hanging | cURus, UL |
